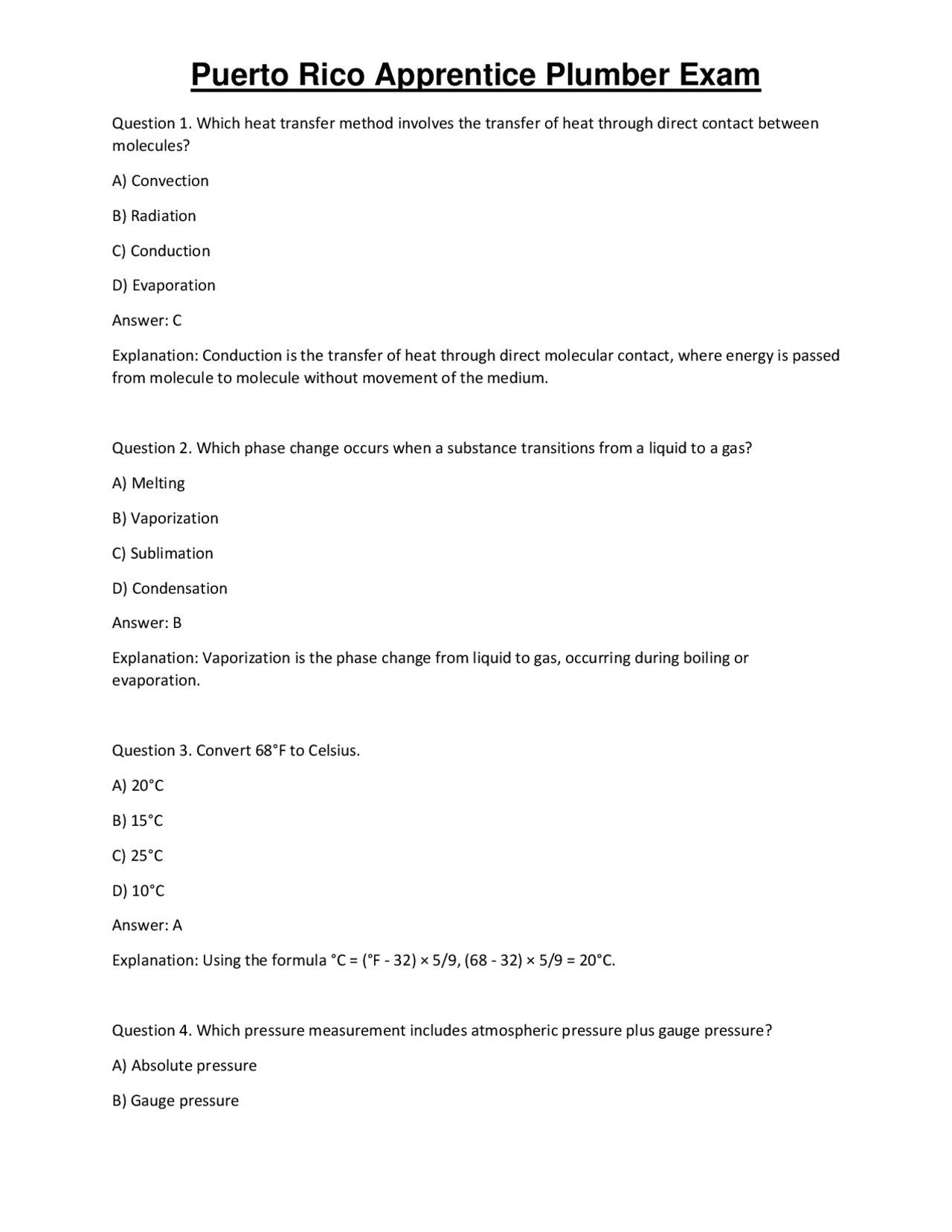

Question 1. Which heat transfer method involves the transfer of heat through direct contact between molecules? A) Convection B) Radiation C) Conduction D) Evaporation Answer: C Explanation: Conduction is the transfer of heat through direct molecular contact, where energy is passed from molecule to molecule without movement of the medium. Question 2. Which phase change occurs when a substance transitions from a liquid to a gas? A) Melting B) Vaporization C) Sublimation D) Condensation Answer: B Explanation: Vaporization is the phase change from liquid to gas, occurring during boiling or evaporation. Question 3. Convert 68°F to Celsius. A) 20°C B) 15°C C) 25°C D) 10°C Answer: A Explanation: Using the formula °C = (°F - 32) × 5/9, (68 - 32) × 5/9 = 20°C. Question 4. Which pressure measurement includes atmospheric pressure plus gauge pressure? A) Absolute pressure B) Gauge pressure
C) Differential pressure D) Static pressure Answer: A Explanation: Absolute pressure measures total pressure including atmospheric pressure, whereas gauge pressure excludes atmospheric pressure. Question 5. Sensible heat causes a change in which property of a substance? A) Temperature B) Phase C) Humidity D) Density Answer: A Explanation: Sensible heat results in a change in temperature without changing the phase of the substance. Question 6. Which component in the vapor compression refrigeration cycle is responsible for compressing the refrigerant vapor? A) Condenser B) Evaporator C) Compressor D) Expansion device Answer: C Explanation: The compressor compresses low-pressure refrigerant vapor into a high-pressure, high- temperature vapor. Question 7. What is the primary function of the condenser in a refrigeration system? A) Absorb heat from the refrigerant B) Release heat to the surroundings C) Expand the refrigerant D) Evaporate the refrigerant
Explanation: Relative humidity indicates the ratio of current absolute humidity to the maximum possible at that temperature. Question 11. Which is a natural refrigerant commonly used for environmentally friendly systems? A) R- 22 B) R-134a C) R-290 (Propane) D) R-410A Answer: C Explanation: R-290, or propane, is a natural hydrocarbon refrigerant with low GWP and zero ODP, making it environmentally friendly. Question 12. What is the main purpose of refrigerant recovery procedures? A) To dispose of refrigerant safely B) To remove refrigerant from a system for reuse or disposal C) To increase refrigerant pressure D) To charge the system with new refrigerant Answer: B Explanation: Recovery involves removing refrigerant from a system for reuse, recycling, or proper disposal, complying with environmental regulations. Question 13. Which type of refrigerant oil is most compatible with POE refrigerants? A) Mineral oil B) Alkylbenzene oil C) Polyolester (POE) oil D) PVE oil Answer: C Explanation: POE oils are specifically compatible with synthetic refrigerants like HFCs and HFOs, including many POE refrigerants.
Question 14. What is the primary function of a reciprocating compressor? A) Compress refrigerant using a piston moving back and forth B) Compress refrigerant with centrifugal force C) Compress refrigerant using a screw mechanism D) Use a scroll to compress refrigerant Answer: A Explanation: Reciprocating compressors operate with pistons moving in cylinders to compress refrigerant. Question 15. Which type of condenser uses air as the cooling medium? A) Water-cooled condenser B) Air-cooled condenser C) Evaporative condenser D) Shell and tube condenser Answer: B Explanation: Air-cooled condensers dissipate heat through fans blowing air across finned tubes containing refrigerant. Question 16. Which evaporator type is characterized by plates arranged to transfer heat efficiently? A) Fin and tube B) Plate C) Shell and coil D) Spiral Answer: B Explanation: Plate evaporators use stacked metal plates to facilitate efficient heat transfer and are often used in compact systems. Question 17. Which expansion device adjusts refrigerant flow based on load conditions to optimize performance? A) Capillary tube
Answer: B Explanation: Proper line sizing and insulation prevent pressure drops, leaks, and energy losses, ensuring system efficiency. Question 21. What is the purpose of vacuum testing during system installation? A) To check refrigerant pressure B) To remove moisture and air from the system C) To verify electrical continuity D) To test compressor operation Answer: B Explanation: Vacuum testing evacuates air and moisture from the system, preventing internal corrosion and poor performance. Question 22. Which safety practice is essential when brazing or soldering refrigerant piping? A) Using open flames with no ventilation B) Wearing proper PPE and working in a well-ventilated area C) Ignoring leak detection after brazing D) Using water-based flux only Answer: B Explanation: Proper PPE and ventilation reduce risk of burns, inhalation of fumes, and fire hazards during brazing or soldering. Question 23. Which component is responsible for protecting the compressor from electrical overload? A) High-pressure switch B) Thermal overload protector C) Pressure gauge D) Expansion valve Answer: B Explanation: Thermal overload protectors shut down the compressor if it overheats, preventing damage.
Question 24. What does the term "leak detection" refer to in HVAC refrigerant systems? A) Finding refrigerant leaks to prevent loss and environmental harm B) Measuring refrigerant temperature C) Detecting electrical faults D) Checking airflow in ducts Answer: A Explanation: Leak detection identifies refrigerant leaks, preventing system inefficiency and environmental contamination. Question 25. In electrical safety, what does Lockout/Tagout procedure ensure? A) Continuous operation of equipment B) Safe maintenance by preventing accidental energization C) Increased system pressure D) Faster repair times Answer: B Explanation: Lockout/Tagout isolates electrical power, ensuring safety during maintenance. Question 26. Which refrigerant classification is based on its ozone depletion potential? A) GWP B) ODP C) PSI D) BTU Answer: B Explanation: Ozone Depletion Potential (ODP) indicates the refrigerant’s impact on the ozone layer. Question 27. Which refrigerant is classified as a hydrocarbon with low GWP? A) R- 22 B) R-134a C) R-600a (Isobutane)
Question 31. What is a typical maintenance task for a condenser in HVAC systems? A) Replacing the expansion valve B) Cleaning fins and checking fan operation C) Replacing the compressor D) Adjusting the evaporator coil Answer: B Explanation: Regular cleaning of fins and inspecting fans ensure efficient heat rejection and system performance. Question 32. Which component's primary role is to transfer heat from the refrigerant to the surroundings in an air-cooled condenser? A) Compressor B) Fan motor C) Finned tubes D) Expansion valve Answer: C Explanation: Finned tubes increase surface area for heat dissipation from refrigerant to ambient air. Question 33. How does a thermostatic expansion valve (TXV) respond to changing system loads? A) It maintains a fixed refrigerant flow B) It adjusts refrigerant flow based on superheat C) It blocks refrigerant flow at high pressure D) It seals the system during shutdown Answer: B Explanation: TXVs modulate refrigerant flow to maintain optimal superheat, adapting to load conditions. Question 34. Which type of evaporator is most suitable for large commercial systems requiring high heat transfer? A) Fin and tube
B) Plate C) Spiral coil D) Shell and coil Answer: A Explanation: Fin and tube evaporators offer high surface area and are ideal for large-scale applications. Question 35. Which control component is used to automatically shut off the system if the refrigerant pressure exceeds safe limits? A) Thermostat B) Pressure switch C) Timer D) Relay Answer: B Explanation: Pressure switches monitor system pressure and turn off the compressor if limits are exceeded for safety. Question 36. Which type of motor is commonly used in fans and pumps due to its simplicity and low cost? A) PSC (Permanent Split Capacitor) B) ECM C) Shaded pole D) Universal Answer: C Explanation: Shaded pole motors are simple, reliable, and inexpensive, often used in small fans. Question 37. During system installation, why is proper duct sealing important? A) To increase airflow resistance B) To prevent leaks and improve efficiency C) To reduce noise D) To allow for future modifications
Question 41. Which safety equipment is essential when working with high-pressure refrigerants? A) Eye protection and gloves B) Hearing protection only C) Hard hat only D) No special PPE needed Answer: A Explanation: Eye protection and gloves protect against refrigerant contact, high-pressure releases, and debris. Question 42. What environmental regulation governs the proper disposal of refrigerants in Puerto Rico? A) OSHA standards B) EPA Section 608 regulations C) Local Puerto Rico waste management laws D) ASHRAE standards Answer: C Explanation: Local Puerto Rico regulations, in addition to EPA regulations, govern proper disposal and handling of refrigerants. Question 43. Which refrigerant is classified under ASHRAE safety group A1? A) R- 22 B) R-134a C) R-290 (Propane) D) R-1234yf Answer: B Explanation: R-134a is classified as A1, indicating it is non-flammable and poses minimal health hazards. Question 44. Which component is used to absorb moisture from the refrigerant system during maintenance? A) Filter-drier B) Sight glass
C) Expansion valve D) Condenser coil Answer: A Explanation: The filter-drier removes moisture and debris from the refrigerant, protecting system components. Question 45. How does a pressure-temperature relationship assist in refrigerant diagnosis? A) It helps determine the refrigerant's state and proper operation B) It measures airflow C) It calculates the system’s age D) It assesses electrical safety Answer: A Explanation: Pressure-temperature charts help verify if refrigerant pressures match expected temperatures, indicating proper function or leaks. Question 46. Which type of compressor is most suitable for variable load conditions and offers high efficiency? A) Reciprocating B) Rotary C) Scroll D) Centrifugal Answer: C Explanation: Scroll compressors are efficient for variable loads, offering smooth operation and high reliability. Question 47. During refrigerant charging, what does superheating help confirm? A) Proper refrigerant level and system operation B) Correct oil level C) Electrical circuit integrity D) Proper duct insulation
Question 51. Why is proper refrigerant line insulation important? A) To prevent condensation and energy loss B) To increase system pressure C) To improve airflow D) To prevent refrigerant leaks Answer: A Explanation: Insulation minimizes heat transfer, preventing condensation and reducing energy consumption. Question 52. Which refrigerant is a hydrofluorocarbon with high GWP but zero ODP? A) R- 22 B) R-134a C) R-410A D) R-600a Answer: C Explanation: R-410A is a HFC with high GWP but zero ODP, used as a replacement for ozone-depleting refrigerants. Question 53. In refrigeration, what does the term "subcooling" refer to? A) Cooling the refrigerant below its saturation temperature after condensation B) Heating the refrigerant before expansion C) Superheating refrigerant vapor D) The temperature rise during compression Answer: A Explanation: Subcooling is the process of cooling the liquid refrigerant below its saturation temperature, increasing system efficiency. Question 54. Which component is responsible for expanding the refrigerant and controlling its flow into the evaporator? A) Compressor
B) Expansion device (e.g., TXV) C) Condenser D) Evaporator fan Answer: B Explanation: The expansion device meters refrigerant into the evaporator, controlling flow based on system load. Question 55. Which type of compressor is known for its ability to handle large capacities and is often used in industrial applications? A) Reciprocating B) Centrifugal C) Scroll D) Rotary Answer: B Explanation: Centrifugal compressors can manage large volumes of refrigerant, making them suitable for industrial-scale systems. Question 56. What is the main function of a fan motor in an air-cooled condenser? A) To circulate refrigerant B) To drive the condenser fan for heat dissipation C) To operate the compressor D) To power the expansion valve Answer: B Explanation: The fan motor drives the condenser fan to enhance airflow over the fins, aiding heat rejection. Question 57. How does a low-pressure switch protect a refrigeration system? A) By shutting off the compressor if pressure falls below safe levels B) By increasing refrigerant flow C) By regulating superheat
Question 61. Which refrigerant safety classification indicates flammability? A) A B) B C) A2L D) C Answer: C Explanation: A2L refrigerants are mildly flammable according to ASHRAE classifications. Question 62. Which component in an HVAC system is responsible for removing heat from the indoor air? A) Evaporator B) Condenser C) Compressor D) Expansion valve Answer: A Explanation: The evaporator absorbs heat from indoor air, cooling it and dehumidifying as part of the air conditioning process. Question 63. Which refrigerant is commonly used in low-temperature applications like commercial freezers? A) R-134a B) R-404A C) R-410A D) R-600a Answer: B Explanation: R-404A is suitable for low-temperature refrigeration, such as commercial freezers and supercooling applications. Question 64. What safety measure should be taken when working with flammable refrigerants like R- 290?
A) Use open flames for brazing B) Ensure proper ventilation and avoid ignition sources C) Work without PPE to increase dexterity D) Avoid using leak detection tools Answer: B Explanation: Proper ventilation and elimination of ignition sources are critical to prevent fire hazards with flammable refrigerants. Question 65. Which type of compressor is characterized by a high-speed rotating impeller? A) Reciprocating B) Rotary C) Centrifugal D) Scroll Answer: C Explanation: Centrifugal compressors use high-speed impellers to impart kinetic energy to refrigerant for compression. Question 66. During system startup, what is the purpose of a relay in electrical control circuits? A) To regulate refrigerant flow B) To control high-current loads with low-current control signals C) To protect against overloads D) To provide power to the compressor Answer: B Explanation: Relays switch high-current loads using low-current control signals, enabling automation. Question 67. Why is the proper sizing of refrigerant lines critical? A) To ensure system leaks occur B) To prevent excessive pressure drops and maintain efficiency C) To increase refrigerant velocity beyond safe limits
