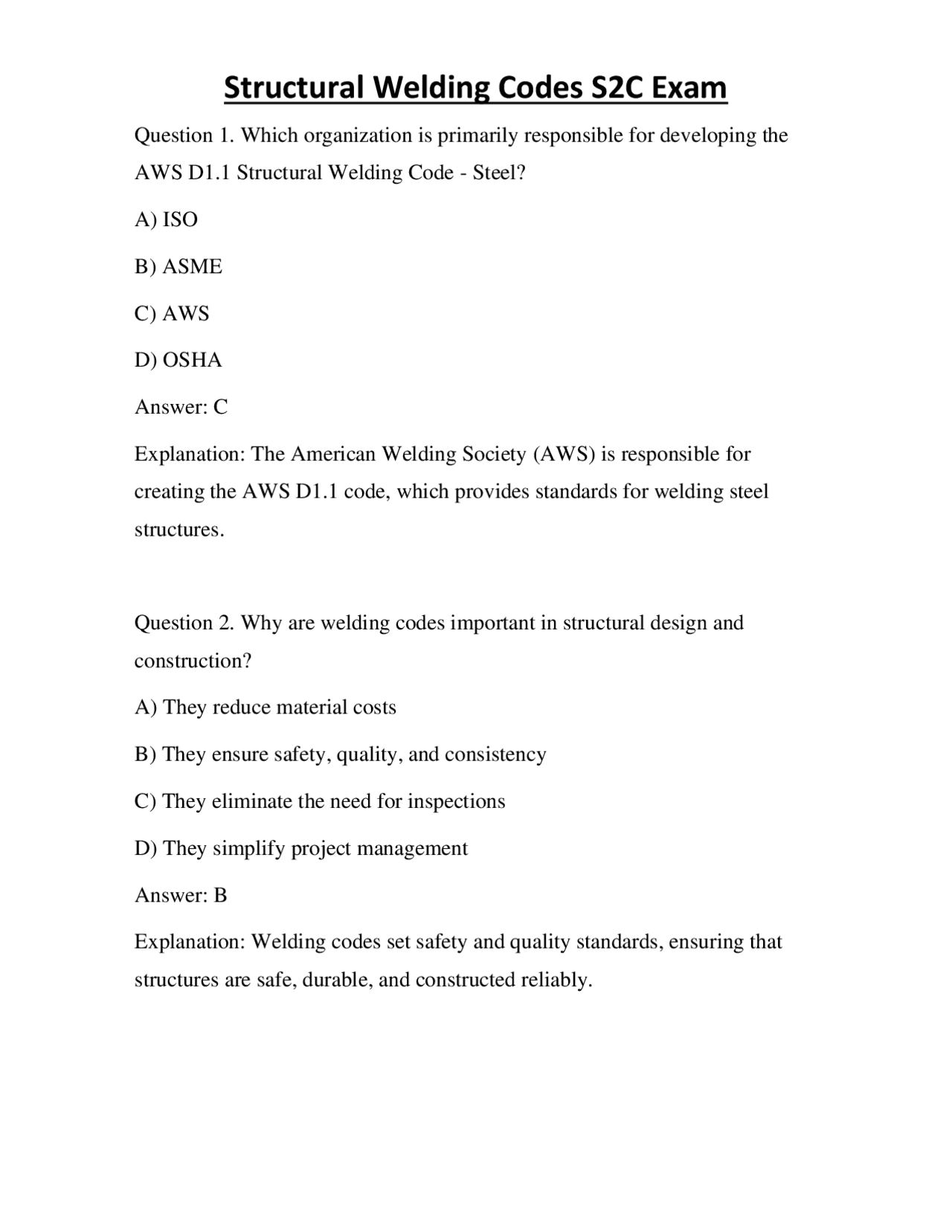

Question 1. Which organization is primarily responsible for developing the AWS D1.1 Structural Welding Code - Steel? A) ISO B) ASME C) AWS D) OSHA Answer: C Explanation: The American Welding Society (AWS) is responsible for creating the AWS D1.1 code, which provides standards for welding steel structures. Question 2. Why are welding codes important in structural design and construction? A) They reduce material costs B) They ensure safety, quality, and consistency C) They eliminate the need for inspections D) They simplify project management Answer: B Explanation: Welding codes set safety and quality standards, ensuring that structures are safe, durable, and constructed reliably.
Question 3. Which of the following is a major organization that develops international welding standards? A) OSHA B) ISO C) NACE D) ANSI Answer: B Explanation: The International Organization for Standardization (ISO) develops and publishes international standards, including those related to welding. Question 4. Which welding process is commonly covered under AWS D1. for structural steel? A) Arc welding (SMAW) B) Gas Tungsten Arc Welding (GTAW) C) Electron Beam Welding D) Laser Beam Welding Answer: A Explanation: AWS D1.1 covers several welding processes including Shielded Metal Arc Welding (SMAW), GMAW, FCAW, and SAW, but SMAW is most traditional for structural steel.
A) Porosity B) Overlap C) Cracking D) Underfill Answer: C Explanation: Cracking often results from residual stresses, improper preheat, or contamination, making the weld brittle. Question 8. Which filler metal classification is typically used for low hydrogen, high-strength steel welding? A) E B) E C) E D) E Answer: B Explanation: E7018 electrodes are low hydrogen, high-strength filler metals suitable for structural steel welding. Question 9. In which environment is special welding precaution necessary due to the presence of high humidity or low temperatures? A) Underwater B) Offshore platform
C) Cold weather conditions D) High-altitude Answer: C Explanation: Cold weather or high humidity can affect weld quality, requiring special preheating and shielding precautions. Question 10. OSHA regulations primarily focus on which aspect of welding safety? A) Material selection B) Worker safety and protective measures C) Inspection procedures D) Welding code development Answer: B Explanation: OSHA sets standards to protect workers from hazards like fumes, electric shock, and fire during welding operations. Question 11. What is the main purpose of Post-Weld Heat Treatment (PWHT)? A) To cool the weld rapidly B) To improve weld appearance C) To relieve stresses and improve toughness D) To remove residual weld slag
Explanation: A tee joint forms when two members are joined perpendicularly at their edges, creating a T shape. Question 14. When designing a weld joint subjected to tensile stress, which factor is most critical? A) The weld's appearance B) The weld's throat size C) The color of the weld D) The number of passes used Answer: B Explanation: The weld's throat size determines its load-carrying capacity under tensile stresses. Question 15. Which document supports the qualification of a welding procedure? A) WPS B) PQR C) Inspection report D) Material certificate Answer: B Explanation: The Procedure Qualification Record (PQR) documents the results of testing that verify a WPS's suitability.
Question 16. Which inspection method is most suitable for detecting surface- breaking cracks? A) Ultrasonic testing B) Magnetic particle testing C) Radiographic testing D) Visual inspection Answer: B Explanation: Magnetic particle testing is effective for revealing surface and near-surface discontinuities like cracks. Question 17. Which material property significantly influences the choice of filler metal? A) Color B) Melting point C) Electrical conductivity D) Compatibility with the base metal’s composition Answer: D Explanation: Compatibility ensures proper fusion, strength, and corrosion resistance of the weld.
A) Regularly inspecting cylinders for leaks B) Storing cylinders horizontally C) Using incompatible gases together D) Keeping cylinders near open flames Answer: A Explanation: Regular inspection prevents leaks and potential hazards like explosions or fires. Question 21. Which process is most suitable for welding high-strength, low alloy steels in critical structures? A) Shielded Metal Arc Welding (SMAW) B) Gas Tungsten Arc Welding (GTAW) C) Submerged Arc Welding (SAW) D) All of the above, depending on the application Answer: D Explanation: All these processes can be suitable; selection depends on specific process requirements, weld quality, and application. Question 22. What is a common cause of porosity in welds? A) Excessive preheat B) Contaminated filler metal or surface C) Too high welding current
D) Excessive shielding gas flow Answer: B Explanation: Contaminants like oil, rust, or moisture trapped in the metal or filler cause gas pockets, leading to porosity. Question 23. Which code provides specific guidelines for welding in offshore and marine environments? A) AWS D1. B) AWS D1. C) API 2A D) ISO 3834 Answer: C Explanation: API 2A offers standards for offshore structural welding, addressing unique environmental challenges. Question 24. What is the primary advantage of using FCAW (Flux-Cored Arc Welding)? A) High-quality welds on thin materials B) High deposition rate and productivity C) No need for shielding gases D) Suitable only for aluminum Answer: B
Question 27. Which organization is responsible for developing international standards that influence welding practices worldwide? A) ASTM B) ISO C) NACE D) OSHA Answer: B Explanation: ISO develops international standards, including those related to welding, to promote global consistency. Question 28. What is the main purpose of a weld joint's throat in structural welding? A) To provide aesthetic appeal B) To determine the weld’s strength capacity C) To facilitate welding access D) To prevent corrosion Answer: B Explanation: The throat size directly affects the load-bearing capacity of the weld.
Question 29. Which of the following is a common weld defect caused by improper welding technique or parameters? A) Cracking B) Excessive reinforcement C) Overlap D) Both B and C Answer: D Explanation: Overlap and excessive reinforcement can result from improper technique or incorrect settings. Question 30. Which weld position involves welding on a vertical surface with the weld metal hanging downward? A) Flat position B) Horizontal position C) Vertical position D) Overhead position Answer: C Explanation: Vertical welding involves depositing weld metal on vertical surfaces, which requires specific technique considerations. Question 31. Which material is most sensitive to cracking during welding and requires careful preheat and post-weld heat treatment?
B) Corner joint C) T-joint D) Lap joint Answer: A Explanation: The butt joint joins two plates in the same plane, end to end, suitable for continuous welds. Question 34. Which factor is most critical when selecting a welding process for welding aluminum? A) Filler metal color B) Compatibility with base metal C) Welding position D) Cost of electrode Answer: B Explanation: Compatibility ensures proper fusion and corrosion resistance, which is vital for aluminum welding. Question 35. Which welding process is most commonly used for high-volume production of welded steel structures? A) GTAW B) SMAW C) SAW
D) GMAW
Answer: D Explanation: GMAW (MIG welding) offers high speed and automation, making it suitable for large production runs. Question 36. Which type of weld defect is characterized by a small cavity or gas pocket within the weld metal? A) Porosity B) Cracking C) Undercut D) Overlap Answer: A Explanation: Porosity results from trapped gases and appears as small cavities within the weld. Question 37. Which organization sets standards and provides certification for welding inspectors? A) AWS B) ASME C) NACE D) API Answer: A
Question 40. Which type of weld joint is best suited for members subjected to shear loads? A) Butt joint B) T-joint C) Lap joint D) Corner joint Answer: C Explanation: Lap joints are effective in shear load applications due to their overlapping configuration. Question 41. What is a typical cause of weld distortion? A) Excessive heat input B) Proper welding sequence C) Correct electrode selection D) Adequate fixturing Answer: A Explanation: Excessive heat input causes thermal expansion and contraction, leading to distortion. Question 42. Which of the following best describes the function of reinforcement in a weld?
A) To improve appearance B) To increase weld strength C) To prevent corrosion D) To reduce weld size Answer: B Explanation: Reinforcement adds material to the weld toe, increasing its cross-sectional area and strength. Question 43. Which material is most suitable for welding with E electrodes? A) Aluminum B) Mild steel C) Stainless steel D) Copper Answer: B Explanation: E6010 electrodes are used for welding mild and carbon steels, especially in repair work. Question 44. Which step is essential before beginning welding to ensure safety and quality? A) Cleaning the base metal B) Applying paint
