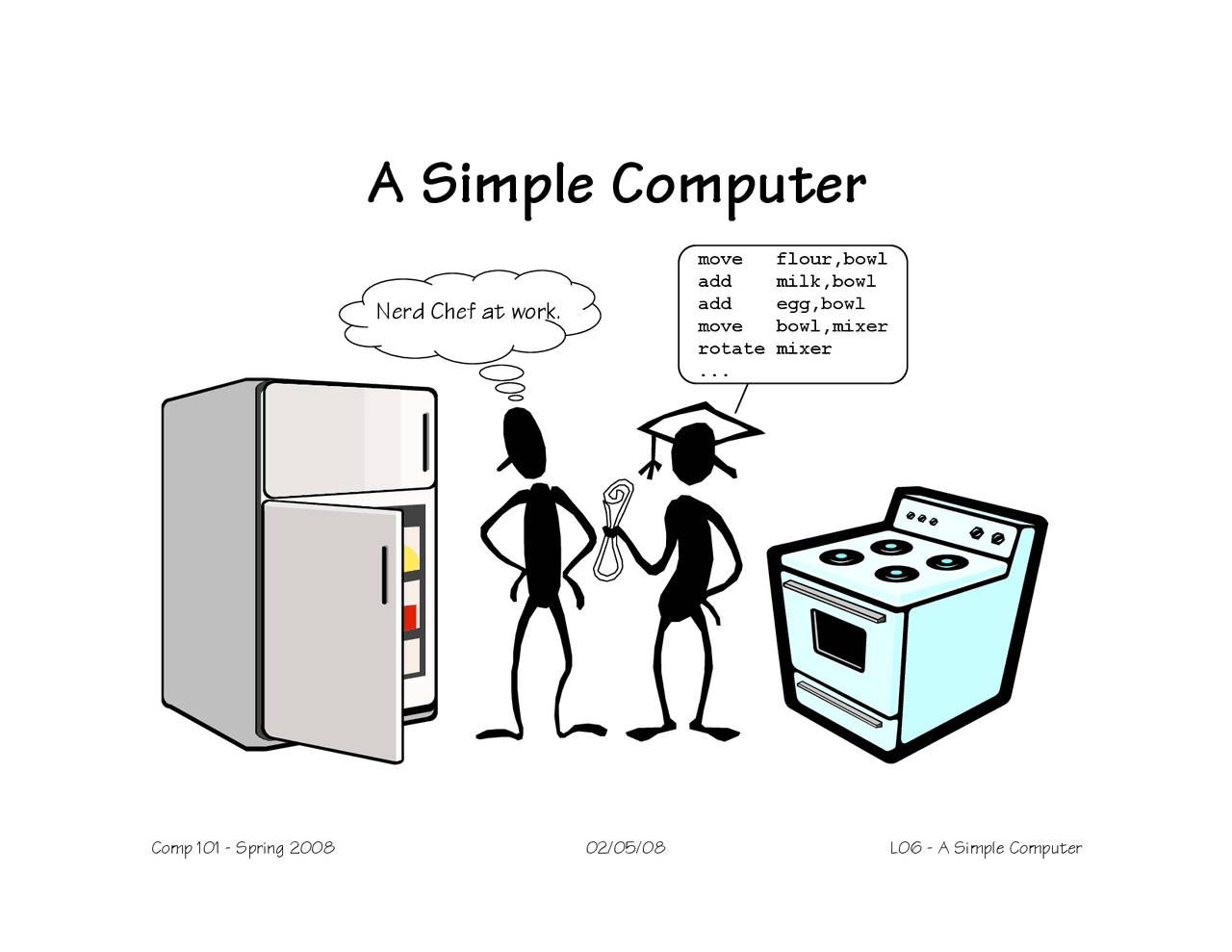

A Simple Computer

move flour,bowl add milk,bowl add egg,bowl move bowl,mixer rotate mixer ... Nerd Chef at work.

The Leap

• We next move from computing with tables (combinational logic and state machines) to a general-purpose computer
• We saw that a Turing Machine is the model of what is “computable,” but simple operations required many steps, and it was tedious to program
• Today, we seek a simple computer model with a unified notion of “data” and “instructions”
• This is the “Von Neumann” architecture model
• The first key idea is a model of “memory”

An Array of Words

• Addresses are organized sequentially in an array
• Addresses are
  • Numerical
  • Symbolic (Label)
• The numerical address is fixed (governed by the hardware)
• Labels are user defined 1: 2: 3: 4: 5: N: 0: . . .

Words = {Instructions, Data}

• Each word of memory can be interpreted as either binary data (number, character, a bit pattern, etc.) or as an instructions
• Not all bit patterns are valid instructions, however.
• Instructions cause the computer to perform a operation
• A program is a collection of instructions
• In general, instructions are executed sequentially

The Stored-Program Computer

• Instructions and Data are stored together in a common memory
• Sequential semantics: To the programmer all instructions appear to be executed sequentially CPU fetches and executes instructions from memory ...
  • The CPU is a H/W interpreter
  • Program IS simply data for this interpreter
  • Main memory: Single expandable resource pool - constrains both data and program size - don’t need to make separate decisions of how large of a program or data memory to buy Key idea: Memory holds not only data, but coded instructions that make up a program****. Central Processing Unit Main Memory instruction instruction instruction data data data

Anatomy of an Instruction

• Instruction sets have a simple structure
• Broken into fields
  • Operation (Opcode) - Verb
  • Operands - Noun
• Recipes provide a near perfect analogy move flour,bowl add milk,bowl add egg,bowl mix bowl Operation (^) Operands

UNC-

• The UNC-101 is a simple 16-bit computer that we will use this semester to explore how computers work (http://www.unc.edu/courses/2008spring/comp/101/001/PS2)
• It has
  • 65536 memory locations ( 16 )
  • Each location has 16-bits
  • 15 registers, that are referred to as ($1-$15)
  • A special operand, $0, that can be used anywhere that a register is allowed. It provides a value of 0, and writes to it are ignored.
  • A simple instruction set

Instructions: Concrete Examples

addi $4, $5, 1 Register[4] ← Register[5] + 1

• All instructions are broken to parts
  • Operation codes (Opcodes), usually mnemonic
  • Operands usually stylized (e.g. “$” implies the contents of the register, whose number follows)

Immediate Arithmetic Instructions

addi $D, $A, imm Reg[D] ← Reg[A] + imm subi $D, $A, imm Reg[D] ← Reg[A] - imm sgti $D, $A, imm Reg[D] ← 1 if (Reg[A] > imm) 0, otherwise

• Where D, A are one of {1,2, … 15}
• 2 operands come from registers
• Third, “Immediate” operand is a constant, which is encoded as part of the instructions

Multiply? Divide?

• You may have noticed that some math function are missing, such as multiply and divide
• Often, more complicated operations are implemented using a series of instructions called a routine
• Simple operations lead to faster computers, because it is often the case the speed of a computer is limited by the most complex task it has to perform. Thus, simple instructions permit fast computer (KISS principle)

Load/Store

• Certain instructions are reserved for accessing the contents of memory
• The only instructions that access memory
• Move data to registers, operate on it, save it st $D,$A memory[Reg[A]] ← Reg[D] ld $D,$A Reg[D] ← memory[Reg[A]] stx $D,$A,imm memory[Reg[A]+imm] ← Reg[D] ldx $D,$A,imm Reg[D] ← memory[Reg[A]+imm]

Bitwise Logic Instructions

and $D, $A, $B Reg[D] ← Reg[A] & Reg[B] or $D, $A, $B Reg[D] ← Reg[A] | Reg[B] xor $D, $A, $B Reg[D] ← Reg[A] ^ Reg[B]

• Where D, A, B are one of {1,2, … 15}
• All operands come from registers
• Performs a bitwise 2-input Boolean operation on the bits of the A and B operands and saves the result in D
• Assuming Reg[1] = 12 (0x000c) and Reg[2] = 10 (0x000a) and $3,$1,$2 # gives Reg[3] = 8 (0x0008) or $3,$1,$2 # gives Reg[3] = 14 (0x000e) xor $3,$1,$2 # gives Reg[3] = 6 (0x0006)

Closing the Gap

• A computer language closer to one we’d speak
  • High-Level construct: total = item1 + item
  • Assembly language: ldx $1,$0,item ldx $2,$0,item add $1,$1,$ stx $1,$0,total
  • Binary (machine language): 0xf10f, 0x0008, 0xf20f, 0x0009, 0x0112, 0xf10e, 0x

An Assembler

• A symbolic machine language
• One-to-one correspondence between computer instruction = line of assembly
• Translates symbolic code to binary machine code
• Manages tedious details
  • Locating the program in memory
  • Figures out addresses (e.g. item1 rather than 0x0008)
• Generates a list of numbers
