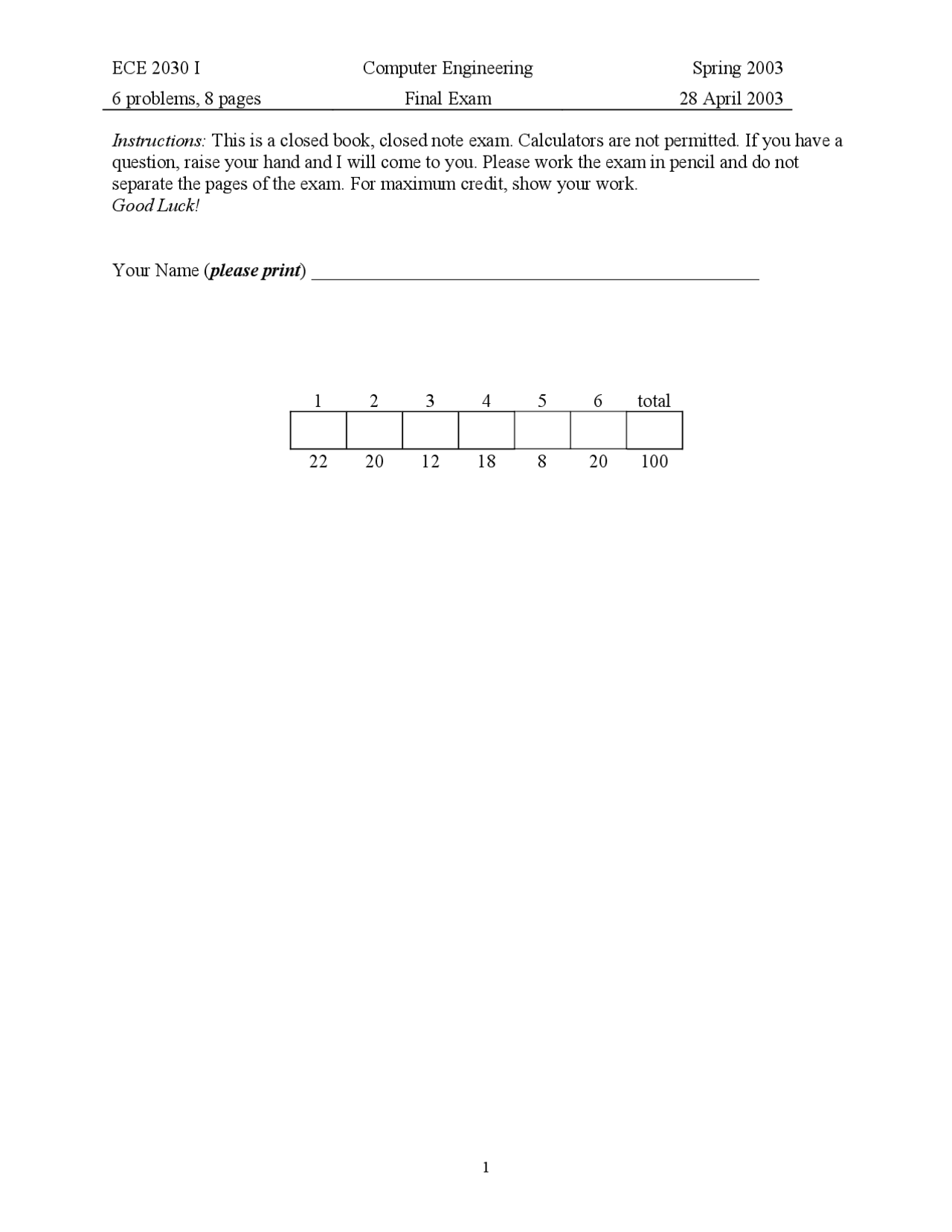

6 problems, 8 pages Final Exam 28 April 2003
Instructions: This is a closed book, closed note exam. Calculators are not permitted. If you have a question, raise your hand and I will come to you. Please work the exam in pencil and do not separate the pages of the exam. For maximum credit, show your work. Good Luck!
Your Name ( please print ) ________________________________________________
1 2 3 4 5 6 total
6 problems, 8 pages Final Exam 28 April 2003
Problem 1 (3 parts, 22 points) Logic Design
Consider the following expression:
Out =( A โ B โ C )+( A โ C )+( A โ B ) Part A (8 points) Implement the expression using only NOR and NOT gates. Assume you do not have the compliments of the inputs. Use proper mixed logic notation. Do not simplify the expression. Determine the number of transistors used in this implementation.
number of transistors:
Part B (8 points) Implement the expression using N and P type switches. Assume the inputs, A, B, and C, are available in their true and complemented forms.
Part C (6 points) Now simplify the expression and produce a sum of products SOP expression. List all prime implicants and indicate which are essential.
A
A
B B
C
C
C
prime implicants
essential? yes no
simplified SOP expression
6 problems, 8 pages Final Exam 28 April 2003
Problem 3 (2 parts, 12 points) Shifting and Counting
Part A (6 points) Suppose the following inputs (in hexadecimal) are applied to the 32-bit barrel shifter used in the datapath. Determine the output (in hexadecimal). Assume the shift amount is drawn from the 16-bit immediate value.
Shift Type Shift Amount Input Value Output Value rotate 0x000C^ B9569AF
arithmetic 0x0008^ B826E
logical 0xFFF4^ CBA
Part B (6 points) Suppose you are given the following incorrect implementation of a counter. Complete the timing diagram below by showing the outputs (O 0 , O 1 , and O 2 ) for clock cycles 7 through 14.
TE Out Clr
TE Out Clr
TE Out Clr
6 problems, 8 pages Final Exam 28 April 2003
Problem 4 (3 parts, 18 points) Subtraction and Memory
Part A (8 points) Convert each subtraction problem (X-Y=Z) below to an addition problem (X+(- Y)=Z) and compute the result of the addition. Also indicate whether an error occurs assuming all numbers are expressed using a six bit twoโs complement representation and then indicate whether an error occurs using a six bit unsigned representation.
Result Signed Error? Unsigned Error?
Part B (5 points) Draw a DRAM memory cell. Label all signals.
Part C (5 points) Consider a memory system built using a 4Mbit DRAM chip organized as 1 million addresses of 4-bit words. Given a memory system with 32 DRAM chips total and a 3-to- memory decoder, what are the following parameters? number of banks number of chips used in one bank
number of addresses word size (in bits )
memory system capacity (in MBytes )
6 problems, 8 pages Final Exam 28 April 2003
Problem 6 (5 parts, 20 points) Reverse Engineering
Consider the following MIPS subroutine. The attached sheet lists the instruction set.
Address label instruction 2000 abc: addi $1, $0, 200 2004 lw $2, ($1) 2008 addi $1, $1, 4 2012 loop: lw $4, ($1) 2016 slt $3, $2, $ 2020 bne $3, $0, target 2024 add $2, $0, $ 2028 target: addi $1, $1, 4 2032 slti $3, $1, 500 2036 bne $3, $0, loop 2040 jr $
Part A (4 points) How many words of data are read in from memory (using lw) by abc?
number words read:
Part B (4 points) What must be true of $2 and $4 for the instruction at address 2024 to be executed?
Part C (4 points) What function does this subroutine compute?
Part D (4 points) The following subroutine (start) calls abc. Insert instructions to push the return address before the call to abc and to pop the return address when abc returns. Use register 29 to hold the stack pointer.
Address label instruction comment 1000 start: addi $25, $0, 3 # init $25 to 3 1004 sub $7, $7, $7 # clear $ 1008 # push return address 1012 1016 jal abc # call abc 1020 # pop return address 1024
1028 sw $2, ($25) # store result 1032 jr $31 # return Part E (4 points) Given the following branch instruction, what is the branch target address?
address label instruction 7052 beq $7, $8, -
Branch target address :.
6 problems, 8 pages Final Exam 28 April 2003
MIPS Instruction Set (subset) instruction example meaning add add $1,$2,$3 $1 = $2 + $ subtract sub $1,$2,$3 $1 = $2 - $ add immediate addi $1,$2,100 $1 = $2 + 100 multiply mul $1,$2,$3 $1 = $2 * $ divide div $1,$2,$3 $1 = $2 / $ and and $1,$2,$3 $1 = $2 & $ or or $1,$2,$3 $1 = $2 | $ and immediate andi $1,$2,100 $1 = $2 & 100 or immediate ori $1,$2,100 $1 = $2 | 100 xor xor $1, $2, $3 (^) $1 = $2 โ $ xor immediate xori $1, $2, 255 (^) $1 = $2 โ 255 shift left logical sll $1,$2,5 $1 = $2 << 5 (logical) shift right logical srl $1,$2,5 $1 = $2 >> 5 (logical) shift left arithmetic sla $1,$2,5 $1 = $2 << 5 (arithmetic) shift right arithmetic sra $1,$2,5 $1 = $2 >> 5 (arithmetic) load word lw $1, ($2) $1 = memory [$2] store word sw $1, ($2) memory [$2] = $ load upper immediate lui $1,100 (^) $1 = 100 x 2 16 branch if equal beq $1,$2,100 if ($1 = $2), PC = PC + 4 + (1004) branch if not equal bne $1,$2,100 (^) if ($1 โ $2), PC = PC + 4 + (1004) set if less than slt $1, $2, $3 if ($2 < $3), $1 = 1 else $1 = 0 set if less than immediate slti $1, $2, 100 if ($2 < 100), $1 = 1 else $1 = 0 jump j 10000 PC = 10000* jump register jr $31 PC = $ jump and link jal 10000 $31 = PC + 4; PC = 10000*
