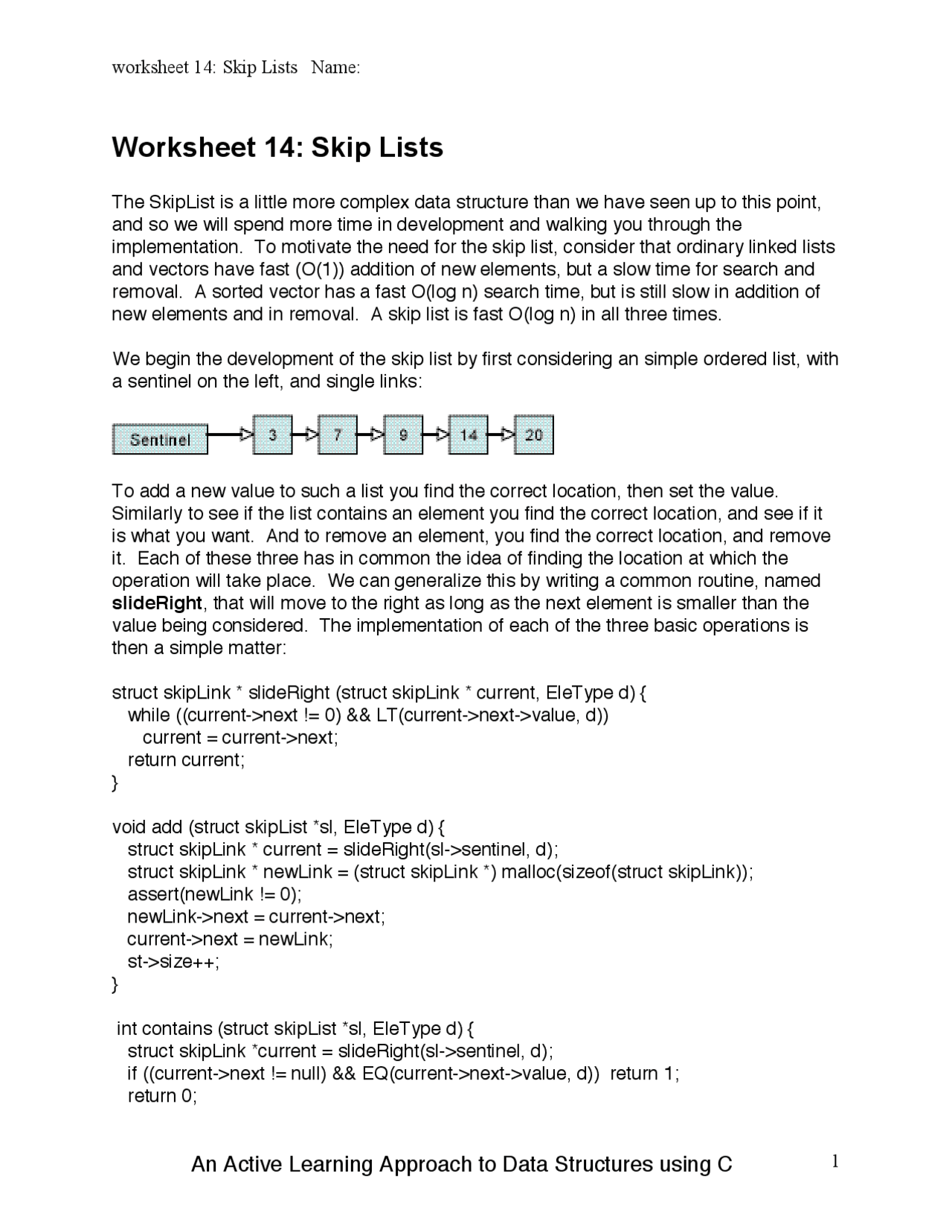

Worksheet 14: Skip Lists
The SkipList is a little more complex data structure than we have seen up to this point, and so we will spend more time in development and walking you through the implementation. To motivate the need for the skip list, consider that ordinary linked lists and vectors have fast (O(1)) addition of new elements, but a slow time for search and removal. A sorted vector has a fast O(log n) search time, but is still slow in addition of new elements and in removal. A skip list is fast O(log n) in all three times. We begin the development of the skip list by first considering an simple ordered list, with a sentinel on the left, and single links: To add a new value to such a list you find the correct location, then set the value. Similarly to see if the list contains an element you find the correct location, and see if it is what you want. And to remove an element, you find the correct location, and remove it. Each of these three has in common the idea of finding the location at which the operation will take place. We can generalize this by writing a common routine, named slideRight , that will move to the right as long as the next element is smaller than the value being considered. The implementation of each of the three basic operations is then a simple matter: struct skipLink * slideRight (struct skipLink * current, EleType d) { while ((current->next != 0) && LT(current->next->value, d)) current = current->next; return current; } void add (struct skipList *sl, EleType d) { struct skipLink * current = slideRight(sl->sentinel, d); struct skipLink * newLink = (struct skipLink *) malloc(sizeof(struct skipLink)); assert(newLink != 0); newLink->next = current->next; current->next = newLink; st->size++; } int contains (struct skipList *sl, EleType d) { struct skipLink *current = slideRight(sl->sentinel, d); if ((current->next != null) && EQ(current->next->value, d)) return 1; return 0;
void remove (struct skipList *sl, EleType d) { struct skipLink *current = slideRight(sl->sentinel, d); if ((current->next != 0) && EQ(current->next->value, d)) { struct lnk = current->next; current->next = lnk->next; free(lnk); sl->size--; } } Try simulating some of the operations on this structure using the list shown until you understand what the function slideRight is doing. What happens when you insert the value 10? Search for 14? Insert 25? Remove the value 9? By itself, this new data structure is not particularly useful or interesting. Each of the three basic operations still loop over the entire collection, and are therefore O(n), which is no better than an ordinary vector or linked list. Why can’t one do a binary search on a linked list? The answer is because you cannot easily reach the middle of a list. But one could imagine keeping a pointer into the middle of a list: and then another, an another, until you have a tree of links In theory this would work, but the effort and cost to maintain the pointers would almost certainly dwarf the gains in search time. But what if we didn’t try to be precise, and instead maintained links probabistically? We could do this by maintaining a stack of ordered lists, and links that could point down to the lower link. We can arrange this so that each level has approximately half the links of the next lower. There would therefore be approximately log n levels for a list with n elements.
Notice that finding the value on one level does not immediately stop the operation - you must proceed all the way down to the bottom level. Try simulating the execution of this algorithm on the earlier picture, removing the following elements: 97, 78, 41, 85, 70. The addition operation is the most complex of the three basic operations. The add operation is the place where probability comes into play. This operation is most easily written using a recursive helper function that takes a link and a value and may (probabilistically) either return a newly installed link, or a null value. The link that is the first argument is the position at which a value should be inserted (e.g., the result of calling slideRight ). Imagine, for example, that we are inserting the value 15. The result of calling slideRight on the structure shown earlier would be simply the sentinel. The following describes the add operation in pseudo-code: add (Link current, EleType newValue) { if we are at the bottom (that is, current.down is null) then make a new link for the new value and insert it following current add 1 to the counter for the collection size return the new link else { // we are not at the bottm level downlink= add(slideRight(current,down, testValue), testValue) if (downLink is not null and coin flip is heads then { make new link for test value and install it after current return new link } } return null } Flipping a coin can be simulated by using random numbers. The method rand() returns a random integer value. If this value is even, assume the coin is heads. If off, assume tails.The topmost add operation performs an initial slide before calling the helper routine. If the helper has returned a link the coin is flipped one more time, and if heads a new level of list is created. This involves creating a new sentinel and installing a new link as the one element in the list. This is written in pseudo-code as follows: add (EleType newValue) { Link downLink = add(slideRight(sentinel, testValue), testValue); if (downLink is not null and coin flip is heads then { // make new level of list make new link for newValue, pointing down to downLink make new sentinel, pointing right to new link and down to existing sentinel } }
You should try simulating the addition of new values to the picture shown earlier. The following is the beginning of an implementation of this data abstraction. Much of the structure has been provided for you. Your task is to fill in the remaining parts. The task of allocating and initializing a new link has been moved into a separate helper function named createSkipLink(double, struct skipLink* nlnk, struct skipLink *dlnk). struct skipList { struct skipLink *topSentinel; int size; }; struct skipLink { EleType value; struct skipLink *next; struct skipLink *down; }; struct skipLink * skipLinkCreate (EleType d, struct skipLink *nlnk, struct skipLink dlnk) { / create a new link and initialize it with the given values */ } void skipListInit (struct skipList slst) { / initialize a skip list structure / } int skipFlip() { return rand() % 2; } struct skipLink * skipLinkAdd (struct skipLink * current, EleType d) { / inner helper routine, add value at current location in list */
On Your Own
- Explain the operation of the method slideRight. What can you say about the link that this method returns?
- How are the links in a skip list different from the links in previous linked list containers?
- Explain how the insertion of a new element into a skip list uses random chance.
- How do you know that the number of levels in a skip list is approximately log n?
- Would the operations of the skip list be faster or slower if we added a new level one-third of the time, rather than one-half of the time? Would you expect there to be more or fewer levels? What about if the probability were higher, say two- thirds of the time? Design an experiment to discover the effect of these changes.
- The bottom row of a skip list is a simple ordered list. You already know from Lesson 36 how to make an iterator for ordered lists. Using this technique, create an iterator for the skip list abstraction. How do you handle the remove operation?
- The smallest value in a skip list will always be the first element. Assuming you have implemented the iterator described in question 6, you have a way of accessing this value. Show how to use a skip list to implement a priority queue. A priority queue, you will recall, provides fast access to the smallest element in a collection. What will be the algorithmic execution time for each of the priority queue operations? void skipPQaddElement (struct skipList *, EleType newElement); EleType skipPQsmallestElement (struct skipList *); void skipPQremoveSmallest (struct skipList *);
- Imagine you implemented the naïve set algorithms described in Lesson 24, but used a skip list rather than a vector. What would the resulting execution times be? Other data structures have provided fast implementations of one or more operations. An ordinary vector had fast insertion, a sorted vector provided a fast search. The skip list is the first data structure we have seen that provides a fast implementation of all three of the Bag operations. This makes it a very good general purpose data structure. The one disadvantage of the skip list is that it uses about twice as much memory as needed by the bottommost linked list. In later lessons we will encounter other data structures that also have fast execution time, and use less memory.
The skip list is the first data structure we have seen that uses probability, or random chance, as a technique to ensure efficient performance. The use of a coin toss makes the class non-deterministic. If you twice insert the same values into a skip list, you may end up with very different internal links. Random chance used in the right way can be a very powerful tool. In one experiment to test the execution time of the skip list we compared the insertion time to that of an ordered list. This was done by adding n random integers into both collections. The results were as shown in the first graph below. As expected, insertion into the skip list was much faster than insertion into a sorted list. However, when comparing two operations with similar time the results are more complicated. For example, the second graph compares searching for elements in a sorted vector versus in a skip list. Both are O(log n) operations. The sorted vector may be slightly faster, however this will in practice be offset by the slower time to perform insertions and removals.
