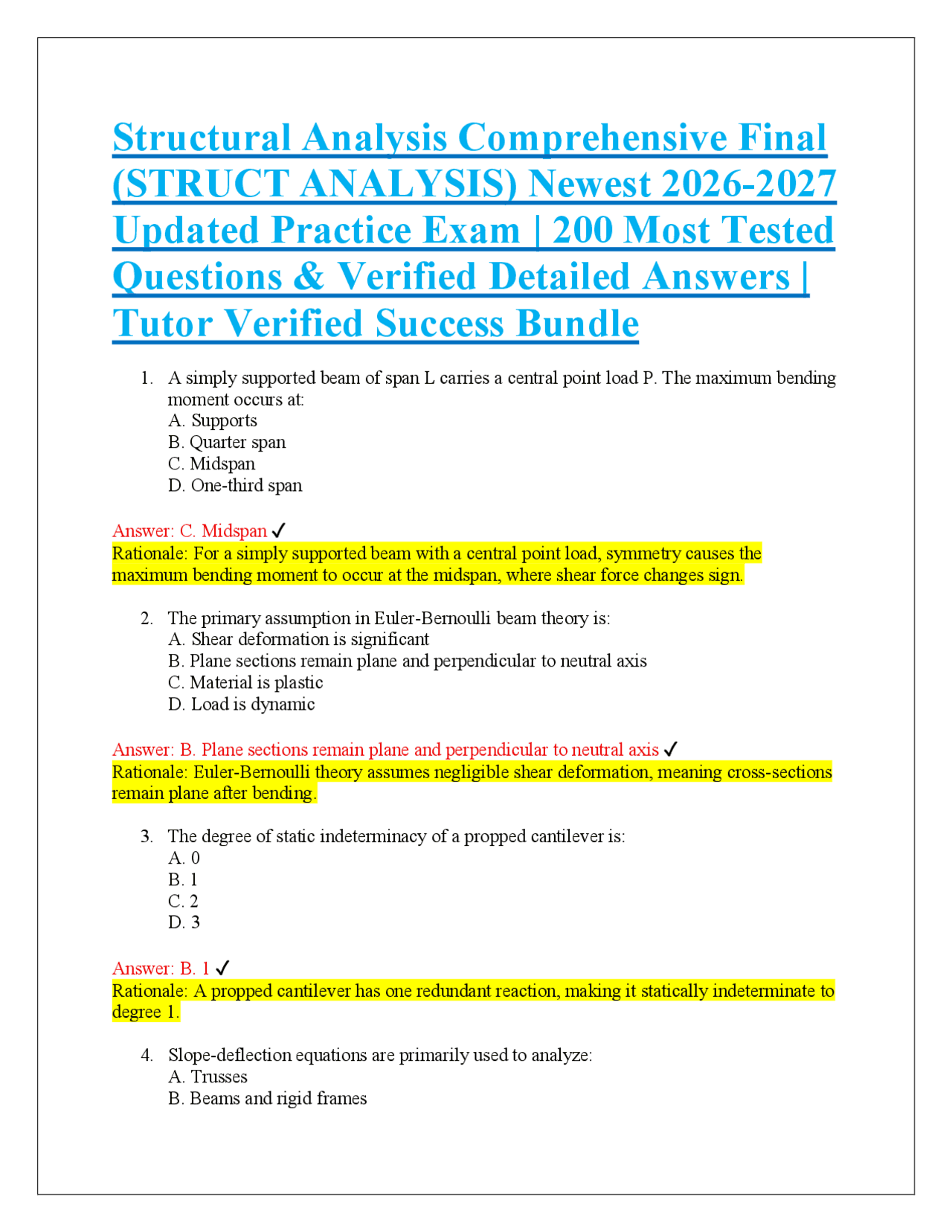

Structural Analysis Comprehensive Final
(STRUCT ANALYSIS) Newest 2026-2027
Updated Practice Exam | 200 Most Tested
Questions & Verified Detailed Answers |
Tutor Verified Success Bundle
1. A simply supported beam of span L carries a central point load P. The maximum bending
moment occurs at:
A. Supports
B. Quarter span
C. Midspan
D. One-third span
Answer: C. Midspan ✓
Rationale: For a simply supported beam with a central point load, symmetry causes the
maximum bending moment to occur at the midspan, where shear force changes sign.
2. The primary assumption in Euler-Bernoulli beam theory is:
A. Shear deformation is significant
B. Plane sections remain plane and perpendicular to neutral axis
C. Material is plastic
D. Load is dynamic
Answer: B. Plane sections remain plane and perpendicular to neutral axis ✓
Rationale: Euler-Bernoulli theory assumes negligible shear deformation, meaning cross-sections
remain plane after bending.
3. The degree of static indeterminacy of a propped cantilever is:
A. 0
B. 1
C. 2
D. 3
Answer: B. 1 ✓
Rationale: A propped cantilever has one redundant reaction, making it statically indeterminate to
degree 1.
4. Slope-deflection equations are primarily used to analyze:
A. Trusses
B. Beams and rigid frames
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29

Partial preview of the text

Download Structural Analysis Comprehensive Final (STRUCT ANALYSIS) Newest 2026-2027 Updated Pract and more Exams Structural Analysis in PDF only on Docsity!

Structural Analysis Comprehensive Final

(STRUCT ANALYSIS) Newest 2026- 2027

Updated Practice Exam | 20 0 Most Tested

Questions & Verified Detailed Answers |

Tutor Verified Success Bundle

  1. A simply supported beam of span L carries a central point load P. The maximum bending moment occurs at: A. Supports B. Quarter span C. Midspan D. One-third span Answer: C. Midspan ✓ Rationale: For a simply supported beam with a central point load, symmetry causes the maximum bending moment to occur at the midspan, where shear force changes sign.
  2. The primary assumption in Euler-Bernoulli beam theory is: A. Shear deformation is significant B. Plane sections remain plane and perpendicular to neutral axis C. Material is plastic D. Load is dynamic Answer: B. Plane sections remain plane and perpendicular to neutral axis ✓ Rationale: Euler-Bernoulli theory assumes negligible shear deformation, meaning cross-sections remain plane after bending.
  3. The degree of static indeterminacy of a propped cantilever is: A. 0 B. 1 C. 2 D. 3 Answer: B. 1 ✓ Rationale: A propped cantilever has one redundant reaction, making it statically indeterminate to degree 1.
  4. Slope-deflection equations are primarily used to analyze: A. Trusses B. Beams and rigid frames

C. Cable structures D. Soil pressure systems Answer: B. Beams and rigid frames ✓ Rationale: The slope-deflection method is used for indeterminate beams and frames based on joint rotations.

  1. The shear force at a section is defined as: A. Rate of change of bending moment B. Integral of bending moment C. Axial force D. Torsional moment Answer: A. Rate of change of bending moment ✓ Rationale: Shear force is mathematically the derivative of bending moment with respect to x.
  2. In a determinate truss, each joint is assumed to be: A. Rigid B. Fixed C. Pinned D. Partially restrained Answer: C. Pinned ✓ Rationale: Truss analysis assumes pin-connected joints, carrying only axial forces.
  3. The method of joints is most efficient when: A. Loads are only at supports B. All member forces are required C. Truss is indeterminate D. Members are curved Answer: B. All member forces are required ✓ Rationale: The method of joints solves equilibrium at each node to find all member forces.
  4. The influence line represents: A. Stress distribution B. Variation of response at a point due to moving load C. Deflection shape D. Plastic hinge formation Answer: B. Variation of response at a point due to moving load ✓ Rationale: Influence lines show how reactions, shear, or moment vary under moving loads.
  5. Maxwell’s reciprocal theorem applies to: A. Plastic structures B. Linear elastic structures

C. m = 3j - 6 D. m = j + 1 Answer: C. m = 3j - 6 ✓ Rationale: For a stable plane truss, m = 2j - 3, but for rigid frames, stability conditions differ; correct relation here is for rigid frames with triangulation constraints.

  1. A cantilever beam fixed at one end has how many reaction components? A. 1 B. 2 C. 3 D. 4 Answer: C. 3 ✓ Rationale: Fixed support resists vertical, horizontal, and moment reactions.
  2. The area under shear force diagram represents: A. Load B. Moment C. Deflection D. Stress Answer: B. Moment ✓ Rationale: Integration of shear force gives bending moment diagram.
  3. The stiffness method is based on: A. Forces B. Displacements C. Energy only D. Plastic deformation Answer: B. Displacements ✓ Rationale: The stiffness method uses nodal displacements as primary unknowns.
  4. A structure is stable if: A. It has no loads B. It can resist applied loads without collapse C. It is statically indeterminate D. It has zero reactions Answer: B. It can resist applied loads without collapse ✓ Rationale: Stability refers to equilibrium under loading conditions.
  5. The principle of superposition applies when: A. Material is plastic B. System is nonlinear

C. Response is linear D. Loads are dynamic only Answer: C. Response is linear ✓ Rationale: Superposition holds only in linear elastic systems.

  1. Fixed-end moments are associated with: A. Trusses B. Beams with restrained ends C. Hinged frames D. Cables Answer: B. Beams with restrained ends ✓ Rationale: Fixed-end moments arise in restrained beam ends under loading.
  2. In a truss, zero-force members are identified when: A. Load is maximum B. Two non-collinear members meet at unloaded joint C. Supports are fixed D. Load is dynamic Answer: B. Two non-collinear members meet at unloaded joint ✓ Rationale: Such members carry no force due to joint equilibrium conditions.
  3. A pin connection allows: A. Moment transfer B. Rotation only C. Axial force only D. Shear only Answer: B. Rotation only ✓ Rationale: Pin supports allow rotation but resist translation.
  4. Degree of freedom in structural analysis refers to: A. Number of loads B. Number of independent displacements C. Number of supports D. Number of beams Answer: B. Number of independent displacements ✓ Rationale: DOF defines independent movements of joints.
  5. Virtual work method is used to compute: A. Forces only B. Deflections

C. Plastic behavior or indeterminacy D. Zero loads Answer: C. Plastic behavior or indeterminacy ✓ Rationale: Moment redistribution occurs in indeterminate systems.

  1. Buckling is a failure mode under: A. Tensile load B. Shear load C. Compressive load D. Torsion only Answer: C. Compressive load ✓ Rationale: Buckling occurs in slender compression members.
  2. Euler’s critical load depends on: A. Density B. Length and stiffness C. Temperature D. Load type only Answer: B. Length and stiffness ✓ Rationale: Critical load depends on EI and effective length.
  3. A fixed beam has higher stiffness than simply supported because: A. It is shorter B. It resists rotation C. It has no load D. It is flexible Answer: B. It resists rotation ✓ Rationale: Fixity provides rotational restraint increasing stiffness.
  4. The bending stress formula is: A. σ = F/A B. σ = My/I C. σ = EI/L D. σ = VQ/Ib Answer: B. σ = My/I ✓ Rationale: Flexure formula relates moment, distance, and inertia.
  5. Shear stress in beams is maximum at: A. Surface B. Neutral axis

C. Mid-depth only D. Supports only Answer: B. Neutral axis ✓ Rationale: Shear stress distribution peaks at neutral axis.

  1. Castigliano’s theorem applies to: A. Plastic systems B. Linear elastic structures C. Thermal systems only D. Fluid systems Answer: B. Linear elastic structures ✓ Rationale: It relates strain energy to deflection.
  2. A redundant support increases: A. Flexibility B. Indeterminacy C. Instability D. Load reduction Answer: B. Indeterminacy ✓ Rationale: Additional restraints create statical redundancy.
  3. Frame analysis primarily considers: A. Only axial forces B. Axial, shear, and moment C. Only shear D. Only torsion Answer: B. Axial, shear, and moment ✓ Rationale: Frames resist combined internal actions.
  4. In slope-deflection method, unknowns are: A. Forces B. Moments C. Joint rotations D. Reactions only Answer: C. Joint rotations ✓ Rationale: The method solves for nodal displacements (rotations).
  5. A hinge releases: A. Shear B. Axial force

C. Color of structure D. Construction speed Answer: B. Internal forces and deformations ✓ Rationale: Structural analysis evaluates response under loads.

  1. In beam theory, deflection is proportional to: A. EI B. 1/EI C. Load squared D. Length only Answer: B. 1/EI ✓ Rationale: Higher stiffness reduces deflection; inverse relation with EI.
  2. The unit of stiffness is: A. N B. N/m C. N·m D. N/m² Answer: B. N/m ✓ Rationale: Stiffness = force/displacement = N/m.
  3. The compatibility condition ensures: A. Force equilibrium B. Displacement continuity C. Load balance D. Stress failure Answer: B. Displacement continuity ✓ Rationale: Compatibility ensures deformations fit together.
  4. A rigid joint in frames resists: A. Axial force only B. Shear only C. Moment and rotation restraint D. Temperature only Answer: C. Moment and rotation restraint ✓ Rationale: Rigid joints transfer moments between members.
  5. The determinant of stiffness matrix must be: A. Zero B. Negative

C. Non-zero D. Infinite Answer: C. Non-zero ✓ Rationale: A non-zero determinant ensures unique solution and stability.

  1. The most critical factor in structural stability is: A. Color B. Load path continuity C. Material cost D. Temperature only Answer: B. Load path continuity ✓ Rationale: Stable structures require a continuous path for load transfer. Structural Analysis Comprehensive Final (STRUCT ANALYSIS)
  2. The stiffness matrix in structural analysis is primarily: A. Diagonal always B. Symmetric for linear systems C. Singular by definition D. Independent of material properties Answer: B. Symmetric for linear systems ✓ Rationale: In linear elastic systems, the stiffness matrix is symmetric due to reciprocal work relationships.
  3. In truss analysis, each member carries: A. Bending only B. Shear only C. Axial force only D. Torsion only Answer: C. Axial force only ✓ Rationale: Ideal truss members are assumed to carry only tension or compression.
  4. A cantilever beam has maximum bending moment at: A. Free end B. Midspan C. Fixed end D. Quarter span Answer: C. Fixed end ✓ Rationale: The fixed support resists rotation, producing maximum moment at the fixed end.
  1. A beam with uniform load has maximum shear at: A. Midspan B. Supports C. Quarter span D. Zero location Answer: B. Supports ✓ Rationale: Shear force is highest at supports for uniformly distributed loads.
  2. Influence line for bending moment at midspan of simply supported beam is: A. Triangular B. Parabolic C. Constant D. Circular Answer: B. Parabolic ✓ Rationale: Moment influence lines for point of interest are typically parabolic shapes.
  3. The unit of deflection is: A. N B. N/m C. m D. N·m Answer: C. m ✓ Rationale: Deflection is a length measurement.
  4. Thermal stresses occur when: A. Load is applied B. Expansion is restrained C. Beam is short D. Material is plastic Answer: B. Expansion is restrained ✓ Rationale: Thermal stress arises due to prevented thermal expansion or contraction.
  5. A redundant member is removed in: A. Statically determinate structures B. Indeterminate structures C. Dynamic systems only D. Cable structures Answer: B. Indeterminate structures ✓ Rationale: Removing redundants reduces indeterminacy to a solvable system.
  1. The unit load method is used for: A. Shear force B. Deflection C. Stress only D. Stability only Answer: B. Deflection ✓ Rationale: Unit load method evaluates displacements using virtual work.
  2. A portal frame is typically: A. Cable system B. Rigid frame C. Truss system D. Beam only Answer: B. Rigid frame ✓ Rationale: Portal frames resist loads through moment connections.
  3. The moment distribution method was developed by: A. Newton B. Hardy Cross C. Euler D. Navier Answer: B. Hardy Cross ✓ Rationale: The Hardy Cross method is used for indeterminate beams and frames.
  4. In structural analysis, equilibrium equations include: A. Energy only B. Force and moment balance C. Temperature effects only D. Strain compatibility only Answer: B. Force and moment balance ✓ Rationale: Equilibrium requires ΣF = 0 and ΣM = 0.
  5. The degree of static indeterminacy increases with: A. Fewer supports B. More constraints C. Less material D. Lower loads Answer: B. More constraints ✓ Rationale: Additional supports increase redundant reactions.
  1. The primary function of bracing in structures is: A. Decoration B. Increase stability C. Reduce weight D. Increase load Answer: B. Increase stability ✓ Rationale: Bracing prevents lateral displacement and instability.
  2. A zero-force member may exist when: A. Load is applied directly B. Two members are collinear at a joint C. Supports are fixed D. Beam is curved Answer: B. Two members are collinear at a joint ✓ Rationale: Certain joint configurations result in zero internal force members.
  3. The bending moment diagram for a simply supported beam under UDL is: A. Linear B. Parabolic C. Constant D. Step function Answer: B. Parabolic ✓ Rationale: UDL produces a quadratic moment distribution.
  4. A rigid frame differs from a truss because it resists: A. Axial forces only B. Shear and bending C. Temperature only D. No loads Answer: B. Shear and bending ✓ Rationale: Frames carry combined axial, shear, and moment effects.
  5. The neutral axis shifts when: A. Load is symmetric B. Material is homogeneous C. Material is composite or unsymmetrical D. No load exists Answer: C. Material is composite or unsymmetrical ✓ Rationale: Non-uniform materials shift the neutral axis location.
  1. Castigliano’s second theorem is used for: A. Reactions B. Deflections C. Loads D. Stability Answer: B. Deflections ✓ Rationale: It computes displacements from strain energy derivatives.
  2. A fixed support provides how many reaction components in 2D? A. 1 B. 2 C. 3 D. 4 Answer: C. 3 ✓ Rationale: Fixed supports resist two forces and one moment.
  3. The primary unknown in force method is: A. Displacement B. Redundant force C. Strain D. Stress Answer: B. Redundant force ✓ Rationale: Force method solves for redundant reactions first.
  4. A pin-ended column is more likely to: A. Yield B. Buckle C. Stretch D. Melt Answer: B. Buckle ✓ Rationale: Pin-ended columns have lower buckling resistance.
  5. The slope at midspan of a simply supported beam under symmetric loading is: A. Maximum B. Zero C. Infinite D. Undefined Answer: B. Zero ✓ Rationale: Symmetry causes zero slope at centerline.
  1. A load applied at shear center causes: A. Torsion B. Pure bending C. No bending D. Instability Answer: B. Pure bending ✓ Rationale: Load at shear center eliminates torsional effects.
  2. In structural analysis, equilibrium must be satisfied: A. Only at supports B. Only at midspan C. At every section D. Only at joints Answer: C. At every section ✓ Rationale: Internal equilibrium must hold throughout the structure.
  3. The unit of stress is: A. N B. N/m C. N/m² D. N·m Answer: C. N/m² ✓ Rationale: Stress is force per unit area = Pascal.
  4. A beam with increasing moment will have: A. Constant shear B. Increasing shear C. Zero shear D. Negative stiffness Answer: B. Increasing shear ✓ Rationale: Shear is the derivative of moment.
  5. The primary cause of structural failure is: A. Color mismatch B. Overstress or instability C. Shape D. Age only Answer: B. Overstress or instability ✓ Rationale: Failure occurs due to exceeding strength or losing stability.
  1. A redundant support reaction is found using: A. Geometry only B. Compatibility equations C. Load summation D. Material density Answer: B. Compatibility equations ✓ Rationale: Indeterminate reactions require deformation compatibility.
  2. The moment at a simple support is: A. Maximum B. Zero C. Infinite D. Negative only Answer: B. Zero ✓ Rationale: Simple supports cannot resist moment.
  3. A structure with more supports than necessary is: A. Mechanism B. Indeterminate C. Unstable D. Plastic Answer: B. Indeterminate ✓ Rationale: Extra supports create redundancy in reactions.
  4. The slope-deflection method is based on: A. Force equilibrium B. Displacement relations C. Mass conservation D. Heat transfer Answer: B. Displacement relations ✓ Rationale: It relates member end moments to rotations and displacements.
  5. The stiffness of a member increases with: A. Increasing length B. Decreasing EI C. Increasing EI D. Increasing load Answer: C. Increasing EI ✓ Rationale: Higher EI means greater resistance to deformation.
