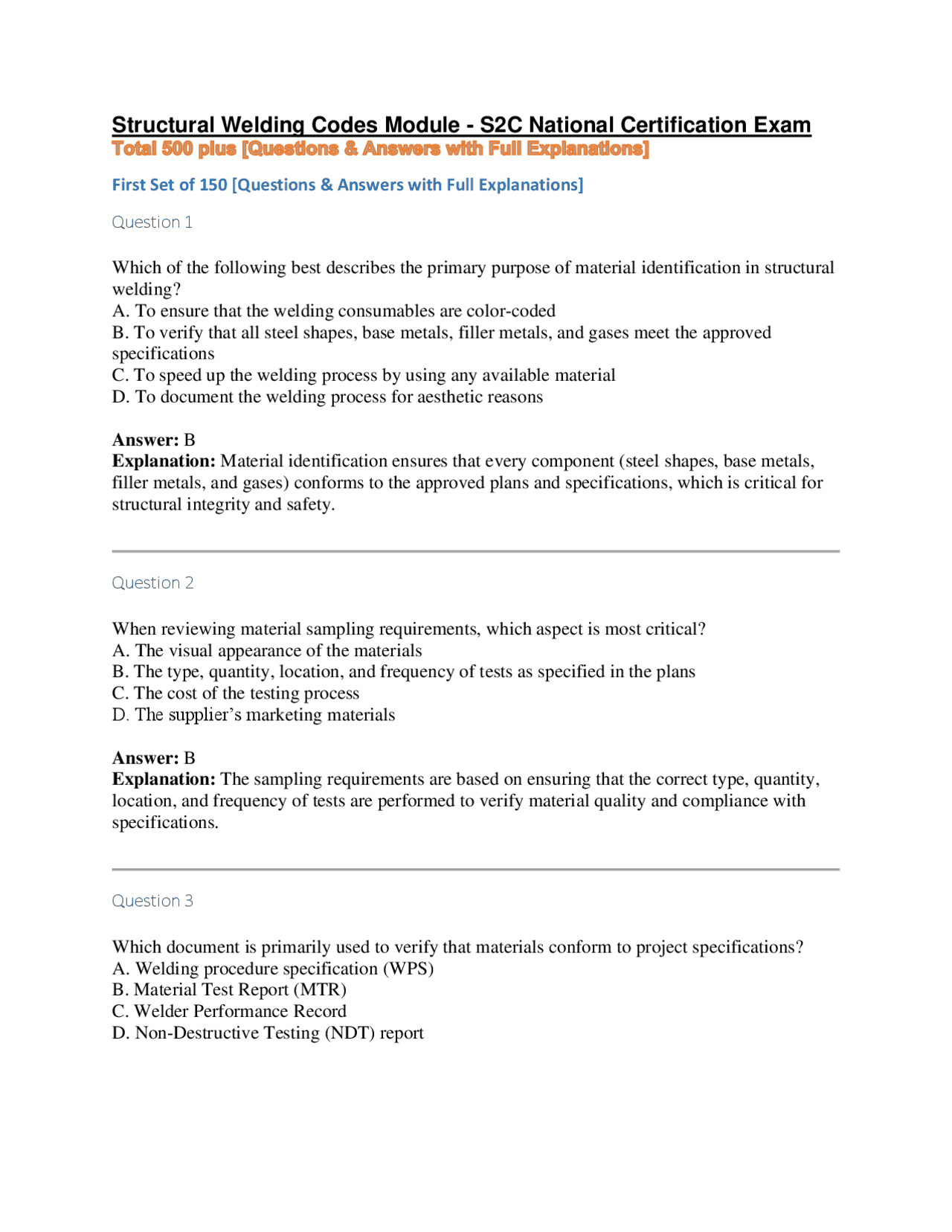

Structural Welding Codes Module - S2C National Certification Exam
First Set of 150 [Questions & Answers with Full Explanations] Question 1 Which of the following best describes the primary purpose of material identification in structural welding? A. To ensure that the welding consumables are color-coded B. To verify that all steel shapes, base metals, filler metals, and gases meet the approved specifications C. To speed up the welding process by using any available material D. To document the welding process for aesthetic reasons Answer: B Explanation: Material identification ensures that every component (steel shapes, base metals, filler metals, and gases) conforms to the approved plans and specifications, which is critical for structural integrity and safety. Question 2 When reviewing material sampling requirements, which aspect is most critical? A. The visual appearance of the materials B. The type, quantity, location, and frequency of tests as specified in the plans C. The cost of the testing process D. The supplier’s marketing materials Answer: B Explanation: The sampling requirements are based on ensuring that the correct type, quantity, location, and frequency of tests are performed to verify material quality and compliance with specifications. Question 3 Which document is primarily used to verify that materials conform to project specifications? A. Welding procedure specification (WPS) B. Material Test Report (MTR) C. Welder Performance Record D. Non-Destructive Testing (NDT) report
Answer: B Explanation: The Material Test Report (MTR) provides detailed information on the chemical and mechanical properties of the material, ensuring conformance to the approved specifications. Question 4 Material identification does NOT include which of the following? A. Confirming the grade of steel B. Checking the welding technique C. Verifying filler metal classification D. Ensuring gas specifications are met Answer: B Explanation: Material identification focuses on the properties and specifications of the materials, not on the welding technique, which is addressed in other parts of the welding procedure. Question 5 Why is it important to sample materials at the correct location? A. It reduces the overall cost of the project. B. It ensures that every section of the fabricated structure meets the quality requirements. C. It helps the welder choose the correct personal protective equipment. D. It minimizes the number of welders required on site. Answer: B Explanation: Sampling at the correct location ensures that the material in every critical area meets the required standards and that the overall integrity of the structure is maintained. Question 6 What is the consequence of not verifying the conformity of base metals? A. Faster project completion B. Reduced need for welding procedure revisions C. Compromised weld quality and potential structural failure D. Increased ease of inspector review Answer: C Explanation: Failing to verify base metal conformity can lead to poor weld quality and ultimately compromise the structural integrity of the construction.
Question 10 What should be verified regarding filler metals? A. Their color and brand only B. That they conform to the welding procedure specification and material standards C. Their cost relative to other consumables D. Their ease of handling by the welder Answer: B Explanation: Filler metals must conform to the welding procedure specification and material standards to ensure that the resulting welds achieve the required quality and performance. Question 11 Material sampling plans must be designed in accordance with: A. The welder’s personal preferences B. The manufacturer’s recommended usage only C. The approved plans and specifications of the project D. The local weather conditions Answer: C Explanation: Sampling plans are dictated by the approved plans and specifications to ensure that the testing process fully validates that the materials used meet all required standards. Question 12 The term “material verification” in structural welding refers to: A. Checking the visual appeal of the weld B. Confirming that the materials used are exactly as specified in the approved documentation C. Approving the final weld deposit D. Recording the welder’s certification Answer: B Explanation: Material verification involves confirming that every material (from base metals to gases) meets the criteria specified in the project’s approved documentation. Question 13 When performing material sampling, what is a common requirement specified in approved plans? A. Sampling materials only from the fabrication shop
B. Sampling at predetermined intervals or locations C. Sampling only in the presence of the project manager D. Sampling exclusively from the final product Answer: B Explanation: Approved plans often specify that samples be taken at predetermined intervals or locations to ensure that the entire structure conforms to the necessary standards. Question 14 Which of the following is NOT typically part of a material sampling program? A. Material identification B. Frequency of sampling C. Welder certification verification D. Testing procedures Answer: C Explanation: Welder certification verification is related to welder qualifications and is not part of the material sampling program, which focuses solely on the materials themselves. Question 15 Material Test Reports (MTRs) provide information on: A. The welding techniques used during assembly B. The chemical and mechanical properties of the materials C. The project’s timeline and cost estimates D. The environmental impact of the welding operation Answer: B Explanation: MTRs document the chemical composition and mechanical properties of the material, which is critical for verifying that the materials meet the project specifications. Question 16 A critical step in the verification process is: A. Only testing materials from the supplier’s inventory B. Cross-referencing the material’s test reports with the approved specifications C. Using any available material if the test report is missing D. Relying solely on the supplier’s reputation
Question 20 Which party is typically responsible for verifying material conformity? A. The welder B. The inspector or quality control team C. The customer D. The supplier’s marketing department Answer: B Explanation: The inspector or quality control team is responsible for verifying material conformity to ensure compliance with project specifications and safety standards. Question 21 What is a direct benefit of thorough material sampling and verification? A. Increased welding speed B. Reduced likelihood of structural failures C. Higher costs due to additional tests D. Simplified welder certification Answer: B Explanation: Proper material sampling and verification ensure that all materials are of the required quality, thereby reducing the risk of weld or structural failures. Question 22 If a material does not meet the approved specifications, the next step is typically to: A. Use the material anyway to save time B. Reject the material and source a compliant replacement C. Document the failure and proceed with welding D. Change the welding procedure to accommodate the material Answer: B Explanation: Nonconforming materials should be rejected and replaced to avoid compromising the integrity of the welded structure. Question 23 In the context of structural welding, material sampling is important because: A. It allows for random quality checks B. It confirms that every batch of material used meets strict quality standards
C. It is optional if the supplier is well-known D. It only applies to filler metals Answer: B Explanation: Regular material sampling confirms that each batch of material complies with the required standards, ensuring overall quality and safety in the structure. Question 24 The frequency of material testing is determined by: A. The availability of testing equipment B. The approved project specifications and sampling plan C. The personal preference of the inspector D. The weather conditions on site Answer: B Explanation: The approved project specifications and sampling plan dictate how often tests should be conducted to ensure material compliance. Question 25 Which aspect is critical when verifying the conformity of welding gases? A. Their odor B. Their composition and pressure specifications C. The country of origin D. The packaging design Answer: B Explanation: For welding gases, the critical factors are the correct composition and pressure, ensuring that the welding process is effective and safe. Question 26 A key part of material verification documentation is: A. The supplier’s contact details B. Accurate records of test results and compliance C. The welding process videos D. The welder’s signature
Question 30 Welder qualifications are verified to ensure that a welder is: A. Familiar with local safety regulations only B. Certified to perform the specific welding process outlined in the WPS C. Able to work long hours D. Experienced in multiple trades Answer: B Explanation: Welder qualification ensures that the individual is certified and competent to perform the specific welding process detailed in the WPS, thereby ensuring weld quality and safety. Question 31 Which welding process is commonly abbreviated as SMAW? A. Submerged Metal Arc Welding B. Shielded Metal Arc Welding C. Surface Metal Arc Welding D. Standard Manual Arc Welding Answer: B Explanation: SMAW stands for Shielded Metal Arc Welding, a widely used welding process known for its versatility and suitability in structural welding applications. Question 32 What is the significance of reviewing welding procedures prior to starting a job? A. It allows for the selection of the cheapest materials B. It ensures that all welding practices are performed in compliance with the approved plans and specifications C. It guarantees that no additional inspections are required D. It reduces the number of welders needed on site Answer: B Explanation: Reviewing the welding procedures is crucial to confirm that all welding practices are in strict adherence to the approved plans, ensuring quality and safety.
Question 33 Which welding process is best suited for high-quality, precision welding in thin materials? A. Shielded Metal Arc Welding (SMAW) B. Gas Tungsten Arc Welding (GTAW) C. Flux-Cored Arc Welding (FCAW) D. Gas Metal Arc Welding (GMAW) Answer: B Explanation: GTAW, also known as TIG welding, is ideal for high-quality, precision welding, especially in thin materials, due to its ability to produce clean, precise welds. Question 34 When verifying welder qualifications, which of the following is most important? A. The welder’s physical fitness B. The welder’s certification and performance records C. The welder’s attendance at safety meetings D. The welder’s familiarity with all welding processes Answer: B Explanation: Verifying welder qualifications focuses on ensuring that the welder has the proper certification and proven performance records for the specific welding processes required by the project. Question 35 In a WPS, which parameter is critical for controlling the heat input during welding? A. The ambient temperature B. The welding current and voltage C. The welder’s experience D. The type of welding helmet used Answer: B Explanation: Welding current and voltage are key parameters in controlling heat input, which affects weld penetration, bead shape, and overall weld quality. Question 36 Which of the following welding processes uses a consumable electrode with a flux coating? A. Gas Tungsten Arc Welding (GTAW)
Answer: A Explanation: A complete WPS includes essential information such as the welding process, base material specifications, joint design, preheat and interpass temperature requirements, ensuring that all variables are controlled. Question 40 Welder requalification is necessary when: A. The welder has worked for more than 10 years B. There is a significant change in the welding process or equipment C. The welder’s uniform is outdated D. The project manager requests it without reason Answer: B Explanation: Requalification is required when there is a significant change in the welding process, equipment, or other parameters that might affect the welder’s ability to produce quality welds. Question 41 During welding, what role does shielding gas play in processes like GMAW and GTAW? A. It increases the weld bead size B. It protects the weld pool from atmospheric contamination C. It cools down the welding equipment D. It cleans the surface of the metal Answer: B Explanation: Shielding gas is essential in processes like GMAW and GTAW as it protects the weld pool from oxygen, nitrogen, and other atmospheric gases that could cause weld defects. Question 42 What does the “approved plans and specifications” phrase refer to in the context of welding procedures? A. Internal guidelines set by the welding shop B. Documents issued by the project owner or engineer that define quality requirements C. Informal instructions passed down orally D. General industry practices without written documentation Answer: B Explanation: The “approved plans and specifications” are formal documents provided by the
project owner or engineer, detailing the quality, design, and performance requirements that must be met during welding. Question 43 Which welding process is characterized by using a continuous solid wire electrode fed through a welding gun? A. Shielded Metal Arc Welding (SMAW) B. Gas Tungsten Arc Welding (GTAW) C. Gas Metal Arc Welding (GMAW) D. Oxy-fuel welding Answer: C Explanation: GMAW uses a continuously fed solid wire electrode, making it an efficient process for many structural welding applications. Question 44 Why is it important to follow the specified preheat temperature in a WPS? A. It ensures the welder remains comfortable B. It helps prevent cracking and promotes proper fusion in the weld C. It allows the filler metal to change color D. It reduces the need for post-weld cleaning Answer: B Explanation: Preheating helps reduce the thermal gradient between the weld metal and the base metal, reducing the risk of cracking and ensuring proper fusion. Question 45 Which welding process is most likely to require the use of a pulsed current to control heat input? A. Shielded Metal Arc Welding (SMAW) B. Gas Metal Arc Welding (GMAW) C. Flux-Cored Arc Welding (FCAW) D. Gas Tungsten Arc Welding (GTAW) Answer: D Explanation: GTAW (TIG welding) often uses pulsed current to precisely control heat input, which is particularly important in welding thin materials or heat-sensitive alloys.
Question 49 Which document outlines the acceptable range of welding parameters such as current, voltage, and travel speed? A. Material Test Report (MTR) B. Welding Procedure Specification (WPS) C. Non-Destructive Testing (NDT) report D. Safety Data Sheet (SDS) Answer: B Explanation: The WPS details the acceptable ranges for various welding parameters to ensure consistency and quality in the welding process. Question 50 Flux-Cored Arc Welding (FCAW) is similar to GMAW except that it: A. Uses a non-consumable electrode B. Employs a tubular wire filled with flux C. Does not require electricity D. Is only used for welding aluminum Answer: B Explanation: FCAW uses a tubular wire filled with flux, which provides its own shielding, making it a distinct process from the solid-wire GMAW. Question 51 In welding procedures, “backing” refers to: A. The process of preparing the base metal B. The material or technique used to support the weld root during welding C. The financial support for the welding project D. The review of the weld by a supervisor Answer: B Explanation: “Backing” is used to support the weld root during welding, ensuring proper fusion and reinforcement at the joint’s bottom. Question 52 Which parameter in a WPS has a direct impact on the penetration of the weld? A. Shielding gas type
B. Welding current C. Welder’s height D. Ambient lighting conditions Answer: B Explanation: Welding current is directly related to the heat input and thus significantly affects the penetration and overall quality of the weld. Question 53 When a welder is qualified on a particular process, it means that: A. The welder can use any welding process interchangeably B. The welder has demonstrated the ability to produce acceptable welds using that process C. The welder can design welding procedures D. The welder is allowed to modify the approved WPS Answer: B Explanation: Welder qualification confirms that the welder can consistently produce welds that meet the quality standards using the specified process. Question 54 Which of the following best describes the role of welding consumables? A. They provide mechanical support to the joint B. They contribute material to the weld joint and protect the weld pool C. They are used solely for cleaning purposes D. They reduce the overall cost of the welding project Answer: B Explanation: Welding consumables, such as filler metals and flux coatings, supply additional material to the weld joint and help protect it during the welding process. Question 55 A welder using GTAW must use: A. A continuously fed solid wire B. A non-consumable tungsten electrode C. A flux-cored wire D. An electrode coated in oil
Question 59 When selecting a welding process for structural applications, which factor is most important? A. The welder’s personal preference B. The mechanical and chemical properties required in the final weld C. The brand of welding equipment D. The color of the welding consumables Answer: B Explanation: The selection of the welding process is based on the mechanical and chemical property requirements of the final weld, ensuring that the chosen process can deliver the necessary performance. Question 60 Which welding process is generally preferred for welding thick materials in structural applications? A. Gas Tungsten Arc Welding (GTAW) B. Shielded Metal Arc Welding (SMAW) C. Oxy-fuel welding D. Plasma Arc Welding Answer: B Explanation: SMAW is often preferred for thick materials due to its versatility, deep penetration, and suitability for a wide range of materials and joint configurations. Question 61 A key element of welding procedure qualification is: A. The number of welders available B. Producing a test weld that demonstrates compliance with the WPS parameters C. The aesthetic appeal of the weld bead D. The speed of the welding process Answer: B Explanation: A test weld must be produced and evaluated to verify that the WPS parameters result in acceptable weld quality; this is the essence of the Procedure Qualification Record (PQR).
Question 62 In the context of welding procedures, “joint design” refers to: A. The artistic style of the weld bead B. The configuration and geometry of the parts to be joined C. The design of the welding machine D. The layout of the welding shop Answer: B Explanation: Joint design describes how the components are configured and prepared for welding, including bevel angles, gap sizes, and joint geometry, which all influence the weld quality. Question 63 Which of the following is NOT typically included in a Welding Procedure Specification (WPS)? A. Base metal type and thickness B. Welding process and technique C. Welder’s personal information D. Preheat and interpass temperature requirements Answer: C Explanation: The WPS focuses on the welding process and parameters rather than personal details about the welder. Question 64 Which welding process is known for producing high-quality, clean welds but requires a high degree of operator skill? A. Shielded Metal Arc Welding (SMAW) B. Flux-Cored Arc Welding (FCAW) C. Gas Tungsten Arc Welding (GTAW) D. Gas Metal Arc Welding (GMAW) Answer: C Explanation: GTAW (TIG welding) is renowned for its high-quality, clean welds but is more challenging to master, requiring significant operator skill.
