▶ Square and rectangular profiles
▶ Light profiles with optimized cross-sections
▶ Round profiles and profiles with smooth lateral surfaces
Connectors with high load-bearing capacities combined
with ultra robust slots and large central bores make profile
connections possible which can handle high static and
dynamic loads.
Bosch Rexroth AG offers you six different profile ranges.
Allprofiles within one profile range have the same slot
dimensions and spacing toensure perfect coordination
during construction.
Due totheir high degree ofrobustness, the 10mm slotted
profiles are suitable for constructions ranging from tables
toheavy machine frames. They are available infour profile
series with aslot spacing of40mm, 45mm, 50mm,
or60mm.
Strut profiles
With more than 120strut profiles for all types ofloading,
Bosch RexrothAG offers the widest product range for
different demands:
The profiles with 8mm and 6mm slots are used inthe
construction oflightweight equipment, partition walls,
stands, orshowcases.
Profile length in profile packaging units ( )
The stated length ofthe profile packaging units relates
tothe guaranteed usable length.
During anodizing aspart ofthe manufacturing process bare
areas which are approx. 30mm long are left ateach end
ofthe profile (=contact areas), sothe profiles are generally
supplied incorporating anexcess length of100mm.
Example:
45x45L L (mm) No.
20pcs 6070 3 842 553 611
Notice: The length dimension “L” inthe table equals the
usable length, whereas the actual length isapprox.
100mm longer.
36326
20x2020x40 30x30 30x60 40x40 40x80 45x45 45x90 50x50 50x100 60x60
10
40
10 10
45
10 10
50
10
1010
6
20
68
30
8
8
6
10
60
10
1010
N
R
N =
R =

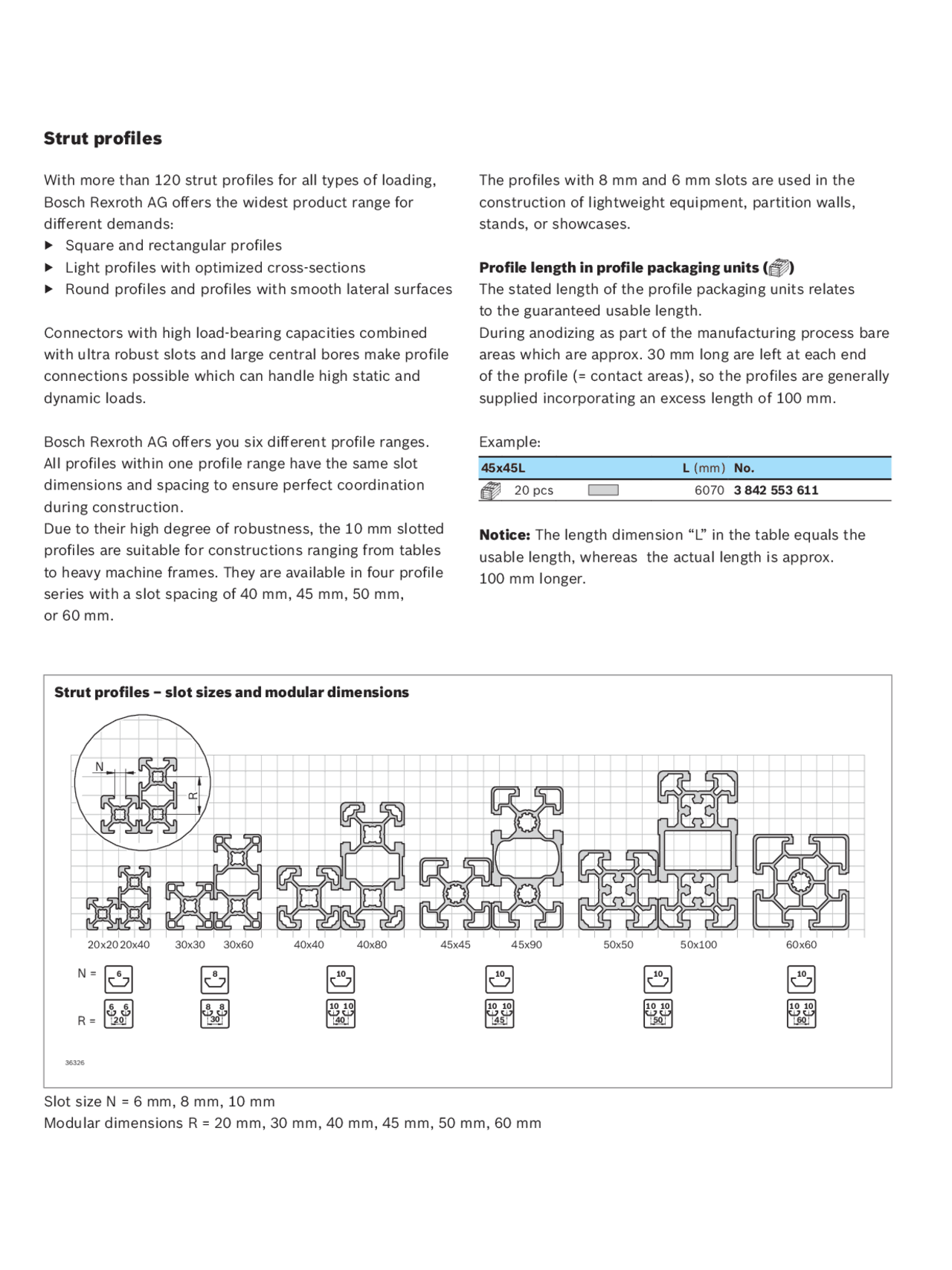

Strut profiles – slot sizes and modular dimensions
Slot sizeN=6mm, 8mm, 10mm
Modular dimensions R=20mm, 30mm, 40mm, 45mm, 50mm, 60mm

pf3
pf4
pf5
pf8

Partial preview of the text

Download Bosch Rexroth AG: Profiles with Slot Sizes and Modular Dimensions and more Slides Construction in PDF only on Docsity!

▶ Square and rectangular profiles

▶ Light profiles with optimized cross-sections

▶ Round profiles and profiles with smooth lateral surfaces

Connectors with high load-bearing capacities combined

with ultra robust slots and large central bores make profile

connections possible which can handle high static and

dynamic loads.

Bosch Rexroth AG offers you six different profile ranges.

All profiles within one profile range have the same slot

dimensions and spacing to ensure perfect coordination

during construction.

Due to their high degree of robustness, the 10 mm slotted

profiles are suitable for constructions ranging from tables

to heavy machine frames. They are available in four profile

series with a slot spacing of 40 mm, 45 mm, 50 mm,

or 60 mm.

Strut profiles

With more than 120 strut profiles for all types of loading,

Bosch Rexroth AG offers the widest product range for

different demands:

The profiles with 8 mm and 6 mm slots are used in the

construction of lightweight equipment, partition walls,

stands, or showcases.

Profile length in profile packaging units ( )

The stated length of the profile packaging units relates

to the guaranteed usable length.

During anodizing as part of the manufacturing process bare

areas which are approx. 30 mm long are left at each end

of the profile (= contact areas), so the profiles are generally

supplied incorporating an excess length of 100 mm.

Example:

45x45L L (mm) No. 20 pcs 6070 3 842 553 611

Notice: The length dimension “L” in the table equals the

usable length, whereas the actual length is approx.

100 mm longer.

36326

20x20 20x40 30x30 30x60 40x40 40x80 45x45 45x90 50x50 50x100 60x

10 40

10 10 45

10 10 50

10

10 10

6 20

6 8 30

8

6 8

10 60

10

10 10

N

R

N =

R =

Strut profiles – slot sizes and modular dimensions

Slot size N = 6 mm, 8 mm, 10 mm

Modular dimensions R = 20 mm, 30 mm, 40 mm, 45 mm, 50 mm, 60 mm

A (cm 2 ) I x (cm^4 ) Iy (cm^4 ) W x (cm^3 ) Wy (cm^3 ) lt (cm^4 ) W t (cm^3 ) m (kg/m)

Profile Slot Profile surface^ Moment of inertia Moment of resistance Torsion index Weight Page

  • Profile Slot Profile surface Moment of inertia Moment of resistance Torsion index Weight Page
  • 20x20 6 1.6 0.7 0.7 0.7 0.7 0.08 0.17 0.4 2-
  • 20x20 1N 6 1.9 0.8 0.8 0.8 0.8 0.60 0.67 0.5 2-
  • 20x20 2N 6 1.8 0.7 0.8 0.7 0.8 0.31 0.52 0.5 2-
  • 20x20 2NVS 6 1.8 0.7 0.7 0.7 0.7 0.37 0.52 0.5 2-
  • 20x20 3N 6 1.7 0.7 0.8 0.7 0.7 0.19 0.34 0.5 2-
  • 20x20 R 6 1.6 0.6 0.6 0.5 0.5 0.21 0.39 0.4 2-
  • 20x40 6 2.9 4.6 1.2 2.5 1.4 0.68 0.91 0.8 2-
  • 20x60 6 3.5 14.2 1.7 4.7 1.7 2.30 2.00 0.9 2-
  • 20x40x40 6 4.2 6.0 6.0 2.6 2.6 1.50 1.30 1.1 2-
  • 10x40 6 2.1 3.2 0.2 1.6 0.4 – – 0.6 2-
  • 30x30 8 3.1 2.8 2.8 1.8 1.8 0.29 0.33 0.9 2-
  • 30x30 1N 8 3.7 3.1 3.5 2.0 2.3 2.80 1.50 1.0 2-
  • 30x30 2N 8 3.5 2.8 3.5 2.1 2.7 1.50 1.20 1.0 2-
  • 30x30 2NVS 8 3.5 3.1 3.1 2.0 2.0 1.70 1.10 1.0 2-
  • 30x30 3N 8 3.3 3.1 2.8 2.3 2.1 0.86 0.73 0.9 2-
  • 30x30° 8 3.7 3.5 3.6 2.0 1.9 1.50 2.00 1.0 2-
  • 30x45° 8 4.0 3.6 5.1 2.1 2.3 2.10 2.40 1.1 2-
  • 30x60° 8 3.6 3.0 4.1 1.7 1.9 1.50 2.00 1.0 2-
  • 30x30 R 8 2.9 2.3 2.3 1.4 1.4 0.81 1.20 0.8 2-
  • 30x60 8 5.5 19.6 5.1 7.0 3.9 2.60 2.10 1.5 2-
  • 30x60 4N 8 5.8 20.2 5.5 6.7 3.8 4.80 2.40 1.6 2-
  • 30x60x60 8 8.2 26.2 26.2 7.6 7.6 6.40 3.60 2.2 2-
  • 30x90 8 7.7 60.7 7.3 13.5 4.9 5.10 3.80 2.1 2-
  • 30x120 8 9.9 136.3 9.6 22.7 6.4 7.60 5.60 2.7 2-
  • 30x45 8/10 4.0 8.1 3.9 3.9 2.9 1.30 1.30 1.1 2-
  • 60x60 8N 8 9.8 39.7 39.7 13.2 13.2 19.30 6.80 2.6 2-
  • 11x20 8 1.0 0.5 0.1 0.7 0.3 – – 0.3 2-
  • 15x120 8 9.0 110.4 2.2 18.4 2.7 – – 2.4 2-
  • 40x40L 10 5.6 9.1 9.1 4.5 4.5 1.30 0.74 1.5 2-
  • 40x40L 0N 10 6.3 10.4 10.4 5.2 5.2 10.70 4.30 1.7 2-
  • 40x40L 1N 10 6.1 9.8 10.3 4.7 5.1 6.90 3.70 1.7 2-
  • 40x40L 2N 10 6.0 9.0 10.3 4.5 5.2 4.00 3.00 1.6 2-
  • 40x40L 2NVS 10 6.0 9.7 9.7 4.9 4.9 4.50 2.70 1.6 2-
  • 40x40L 3N 10 5.8 9.7 9.0 4.8 4.5 2.60 1.70 1.6 2-
  • 40x30° 10 6.2 9.4 11.8 4.7 5.9 3.00 3.10 1.7 2-
  • 40x45° 10 6.8 9.9 16.6 5.0 8.3 4.20 3.70 1.8 2-
  • 40x60° 10 6.3 8.7 13.1 4.3 6.5 3.00 3.10 1.7 2-
  • 40x40L R 10 5.0 7.2 7.2 3.6 3.6 2.50 2.00 1.3 2-
  • 40x40 HR 10 5.5 8.1 7.6 4.0 3.6 4.60 2.80 1.5 2-
  • 40x80L 10 9.9 63.4 17.3 15.9 8.7 8.02 4.80 2.7 2- A (cm 2 ) I x (cm^4 ) Iy (cm^4 ) W x (cm^3 ) Wy (cm^3 ) lt (cm^4 ) W t (cm^3 ) m (kg/m)
  • 40x80L 2N 10 10.9 66.6 20.8 16.6 10.4 22.40 7.58 2.9 2-
  • 40x80L 4N 10 10.4 65.2 19.1 16.3 9.9 13.30 4.40 2.8 2-
  • 40x80L 2NVS 10 10.7 67.8 19.0 17.0 9.5 19.24 7.55 2.9 2-
  • 40x80L 3NVS 10 10.6 67.8 19.0 17.0 9.5 15.90 5.20 2.9 2-
  • 40x80x80L 10 15.4 96.6 96.6 24.2 24.2 19.60 9.80 4.2 2-
  • 40x120L 10 15.5 203.2 27.8 33.9 13.9 17.20 10.00 4.2 2-
  • 40x160L 10 20.5 466.7 37.2 58.3 18.6 25.80 14.60 5.5 2-
  • 80x80L 10 18.2 132.1 132.1 33.0 33.0 59.80 17.20 4.9 2-
  • 80x80L 4N 10 19.1 142.5 142.5 35.6 35.6 83.90 15.4 5.2 2-
  • 80x80L 4NVS 10 19.3 142.5 142.5 35.6 35.6 92.00 16.80 5.2 2-
  • 80x80L 6N 10 18.8 134.1 140.9 33.5 36.2 72.60 15.00 5.1 2-
  • 40x120x120L 10 24.6 318.0 318.0 42.2 42.2 37.10 19.00 6.7 2-
  • 80x120L 10 25.6 389.2 192.8 64.9 48.2 119.00 29.10 6.9 2-
  • 80x160L 10 32.9 850.7 253.4 106.3 63.4 182.00 41.10 8.9 2-
  • 45x45L 10 6.0 11.7 11.7 5.2 5.2 1.46 0.75 1.6 2-
  • 45x45L 0N 10 6.7 13.5 13.5 6.0 6.0 16.20 6.10 1.8 2-
  • 45x45L 1N 10 6.5 12.6 13.5 5.5 6.0 10.00 5.20 1.8 2-
  • 45x45L 2N 10 6.4 11.6 13.5 5.2 6.0 5.50 4.30 1.7 2-
  • 45x45L 2NVS 10 6.4 12.6 12.6 5.6 5.6 6.30 3.80 1.7 2-
  • 45x45L 3N 10 6.2 12.6 11.7 5.4 5.2 3.40 2.40 1.7 2-
  • 45x30° 10 6.9 12.7 15.2 5.0 5.3 6.60 5.70 1.9 2-
  • 45x45° 10 7.6 13.4 21.4 5.2 6.4 9.00 6.80 2.0 2-
  • 45x60° 10 6.8 11.4 16.9 4.4 5.2 6.80 4.30 1.8 2-
  • 45x45L R 10 4.9 8.6 8.6 5.0 5.0 3.30 2.80 1.3 2-
  • 45x45HR 10 6.6 11.0 10.7 4.4 4.8 7.60 3.40 1.8 2-
  • 45x45 10 7.5 13.8 13.8 6.1 6.1 2.65 0.96 2.0 2-
  • 45x60 10 11.0 37.2 22.7 12.4 10.1 6.70 4.09 3.0 2-
  • 45x90SL 10 9.0 73.4 18.1 16.3 8.0 8.57 4.00 2.4 2- A (cm^2 ) Ix (cm^4 ) I y (cm^4 ) Wx (cm^3 ) Wy (cm^3 ) l t (cm^4 ) W t (cm^3 ) m (kg/m)
  • 45x90L 10 11.3 82.0 23.6 18.2 10.5 15.10 4.40 3.0 2-
  • 45x90L 2N 10 12.0 26.9 85.6 6.0 38.1 31.70 7.70 3.2 2-
  • 45x90L 2NVS 10 12.0 25.9 90.6 5.7 40.3 23.34 9.65 3.3 2-
  • 45x90L 3NVS 10 11.8 87.2 25.2 38.8 5.6 25.70 6.60 3.2 2-
  • 45x90 10 15.4 124.6 32.8 27.7 14.6 15.40 6.61 4.2 2-
  • 45x180 10 25.5 766.7 57.3 85.2 25.5 44.40 17.00 6.9 2-
  • 45x270 10 61.9 3962.0 118.0 300.2 61.6 – – 16.7 2-
  • 45x90x90L 10 21.2 152.1 152.1 19.1 19.1 34.90 11.60 5.7 2-
  • 45x90x90L 4N 10 22.1 160.8 160.8 30.6 30.6 65.30 17.20 6.0 2-
  • 90x90SL 10 14.1 130.2 130.2 28.9 28.9 42.50 13.90 3.8 2-
  • 90x90L 10 24.1 211.1 211.1 46.9 46.9 82.10 20.10 6.5 2-
  • 90x90L 4N 10 24.2 227.4 214.7 50.5 47.7 122.00 22.20 6.5 2-
  • 90x90L 4NVS 10 24.2 220.9 220.9 49.2 49.2 127.00 22.00 6.5 2-
  • 90x90 10 38.4 299.8 299.8 66.7 66.7 118.60 26.00 10.4 2-
  • 90x180L 10 42.8 1380.0 401.0 153.3 89.1 257.00 47.10 11.6 2-
  • 90x180 10 63.6 2138.3 544.3 237.6 121.0 429.00 64.00 17.2 2-
  • 90x360 10 90.2 14065.0 710.0 781.4 157.7 937.10 117.60 24.4 2-
  • 15x22.5 10 1.3 0.8 0.3 0.9 0.6 – – 0.3 2-
  • 15x180 10 11.6 321.7 3.2 35.7 4.2 – – 3.1 2-
  • 22.5x45 10 4.7 7.1 2.9 3.2 2.6 – – 1.3 2-
  • 22.5x180 10 21.6 581.0 11.8 66.8 14.7 – – 5.8 2-
  • 50x50L 10 9.3 21.2 21.2 8.5 8.5 5.37 4.30 2.5 2-
  • 50x100L 10 17.2 162.8 42.6 32.6 17.0 29.43 10.70 4.6 2-
  • 50x150L 10 25.8 540.0 64.2 72.0 25.7 52.10 20.50 6.9 2-
  • 100x100L 10 29.9 318.3 318.3 63.7 63.7 153.53 31.40 8.1 2-
  • 100x200L 10 54.0 2133.1 602.1 213.3 120.4 421.00 75.70 14.6 2-

Profile Slot Profile surface^ Moment of inertia Moment of resistance Torsion index Weight Page

A (cm 2 ) Ix (cm^4 ) Iy (cm^4 ) Wx (cm^3 ) W (^) y (cm^3 ) lt (cm^4 ) W (^) t (cm^3 ) m (kg/m)

60x60L 10 9.6 32.4 32.4 10.8 10.8 13.20 8.70 2.6 2-

60x60 10 14.4 52.2 52.2 17.4 17.4 15.90 8.80 3.9 2-

60x90 10 25.8 214.2 90.5 47.6 30.2 45.80 18.00 7.0 2-

50x Rectangular tube

Frame profile 22.5x

Frame profile 22.5x

Angle profile 10 4.5 8.8 6.9 3.2 2.3 – – 1.2 2-

Suspension profile

30x100 L/R Grooved plate

30x100 M Grooved plate

Profile rail 30x45C

U-profile 10 4.4 10.4 8.3 4.6 4.1 – – 1.2 2-

SP 2/R 8 5.2 4.3 11.7 2.4 5.2 – – 1.4 2-

SP 2/B 10 10.4 49.6 25.8 12.1 11.5 – – 2.8 2-

SP 2/B-50 8/10 6.9 16.1 16.9 5.3 7.5 – – 1.9 2-

SP 2/B-100 10 11.9 95.1 30.4 20.0 13.5 – – 3.2 2-

SP 2/BH 10 12.4 53.7 28.6 14.0 13.8 – – 3.3 2-

SP 4/R 10 26.1 222.0 95.5 84.9 16.4 – – 3.5 2-

D28 2.4 1.5 1.5 1.1 1.1 – – 0.7 2-

D28x55 5.9 3.2 88.3 2.3 32.1 – – 1.6 2-

D28L 1.8 1.3 1.3 1.0 1.0 – – 0.5 2-

D28L; N10 2.6 1.2 2.0 0.8 1.4 – – 0.7 2-

Section profile MV45x

30x30 WG30 8 3.2 2.5 3.0 1.6 1.9 – – 0.9 10-

30x30 WG40 8 3.2 2.4 2.9 1.5 1.8 – – 0.9 10-

30x45 WG30 8 4.5 7.3 4.2 3.2 2.7 – – 1.2 10-

30x45 WG40 8 4.5 6.9 4.1 4.3 1.8 – – 1.2 10-

eShop and MT pro – software tools for

designers, planners, and purchasers

Quick & Easy – four steps for simple ordering

Quick & Easy is supported by Rexroth’s eShop and the

MT pro profile configurator.

We offer:

▶ Customer-friendly configuration

▶ Generation of 3D CAD models for designers

▶ Drawings at the press of a button

▶ Integration of frames/profiles in layouts

▶ Easy ordering at the click of a mouse

45x90L

The type of profile finishing is defined in an order key; all

finishes for a profile can be summarized in one order key.

1. Select profile cross-section and length

2. Specify slot for finishing:

all profile slots are identified by letters (A; B; C; …)

  • ascending in clockwise direction (see profile

dimension drawings)

3. Define the parameters:

  • Type of finishing (drilling, milling, miter cutting)
  • Distance from profile end

4. Place order:

Conventionally by fax or, preferably online in our eShop

3 842 993 662 / 393 / B = D17/-

Material number Length Standard finish

Through-hole D

in slot B

Logical structure of the order key

Material number / length / [slot designation = finishing; parameter set]

A

F

Z E

B

C

D

C

D

Q&E

B

A

Profile

Slot

Parameter

Order

Notice:

For a detailed description of the order key, please refer to page 18-2ff

Profile finishing

Rexroth offers you numerous connection options for putting

strut profiles together.

The wide variety of connector types is due to the differing

demands made of the applications:

▶ Right-angled

▶ Variable-angle

▶ Internal

▶ Torsion-resistant

▶ Vibration-resistant

▶ With or without profile finishing

If you require a finished profile, it can be provided for you

in an installation-ready form.

When you select the corresponding material number the

profile is provided in cut, burr-free form, or alternatively

fully finished with drilled holes or threads.

This eliminates risk for you and reduces your production

workload.

If you wish to undertake the finishing yourself, here are

a few tips:

Saw and saw blade

Segmental metal circular saw blade, carbide-tipped

Number of teeth: 92 or 96

Rotational speed: at least 2500 rpm

Finishing of central holes

As a rule, the threads can be directly formed and cut, but

countersinks facilitate their production. The central holes

of the strut profiles are designed for the following thread

manufacturing processes.

Drilling jigs

In the tools section you will find useful drilling jigs for

the Rexroth standard finishes.

Threads Finishing Notices M6 Thread forming – M8 Thread forming – M12 Thread cutting – M16 Thread forming pre-drilling in some cases
