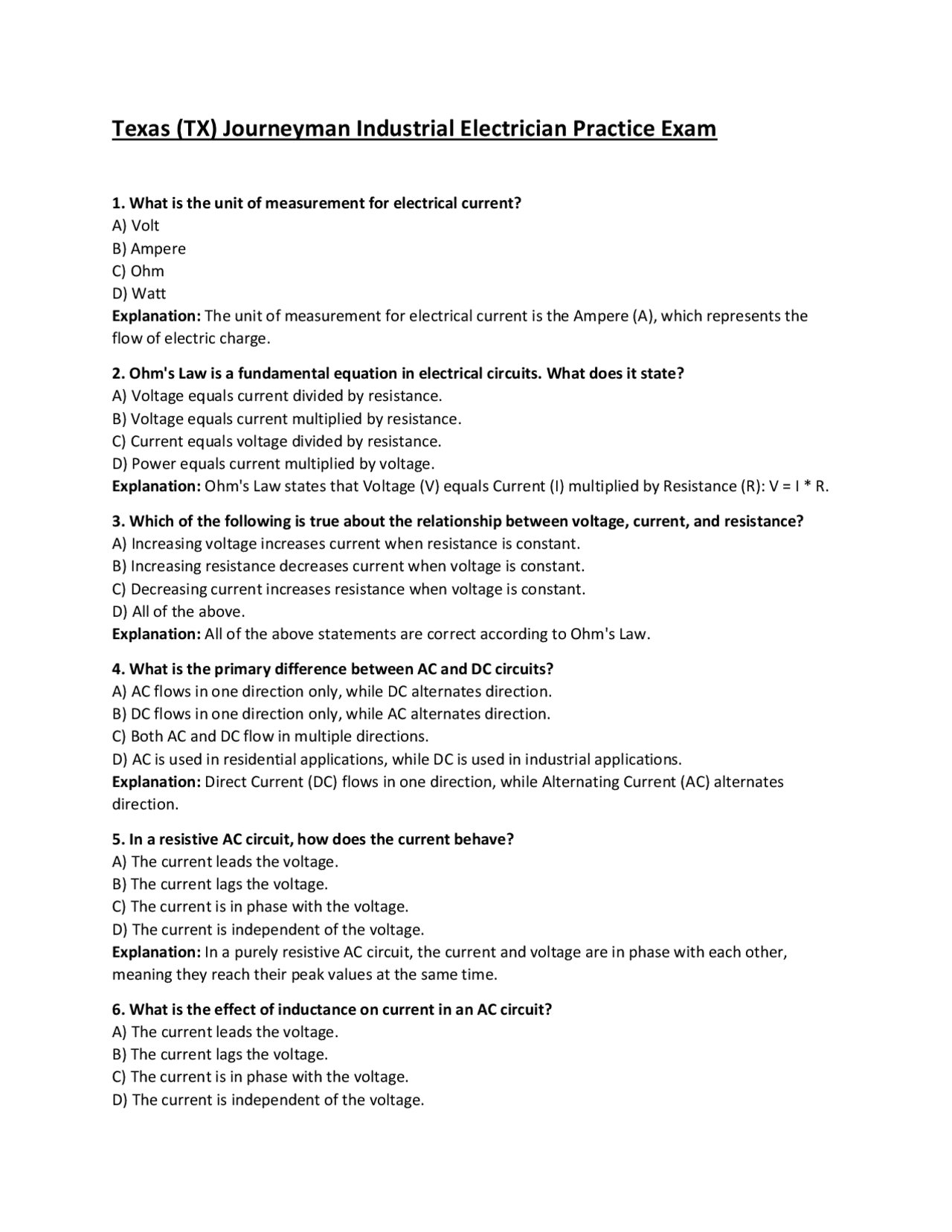

Texas (TX) Journeyman Industrial Electrician Practice Exam
1. What is the unit of measurement for electrical current? A) Volt B) Ampere C) Ohm D) Watt Explanation: The unit of measurement for electrical current is the Ampere (A), which represents the flow of electric charge. 2. Ohm's Law is a fundamental equation in electrical circuits. What does it state? A) Voltage equals current divided by resistance. B) Voltage equals current multiplied by resistance. C) Current equals voltage divided by resistance. D) Power equals current multiplied by voltage. Explanation: Ohm's Law states that Voltage (V) equals Current (I) multiplied by Resistance (R): V = I * R. 3. Which of the following is true about the relationship between voltage, current, and resistance? A) Increasing voltage increases current when resistance is constant. B) Increasing resistance decreases current when voltage is constant. C) Decreasing current increases resistance when voltage is constant. D) All of the above. Explanation: All of the above statements are correct according to Ohm's Law. 4. What is the primary difference between AC and DC circuits? A) AC flows in one direction only, while DC alternates direction. B) DC flows in one direction only, while AC alternates direction. C) Both AC and DC flow in multiple directions. D) AC is used in residential applications, while DC is used in industrial applications. Explanation: Direct Current (DC) flows in one direction, while Alternating Current (AC) alternates direction. 5. In a resistive AC circuit, how does the current behave? A) The current leads the voltage. B) The current lags the voltage. C) The current is in phase with the voltage. D) The current is independent of the voltage. Explanation: In a purely resistive AC circuit, the current and voltage are in phase with each other, meaning they reach their peak values at the same time. 6. What is the effect of inductance on current in an AC circuit? A) The current leads the voltage. B) The current lags the voltage. C) The current is in phase with the voltage. D) The current is independent of the voltage.
Explanation: In an inductive AC circuit, the current lags the voltage due to the magnetic fields created by the inductance.
7. What is the effect of capacitance on current in an AC circuit? A) The current leads the voltage. B) The current lags the voltage. C) The current is in phase with the voltage. D) The current is independent of the voltage. Explanation: In a capacitive AC circuit, the current leads the voltage due to the charging and discharging of the capacitor. 8. What is the power factor in an AC circuit with both resistive and reactive components? A) 0 B) 1 C) A fraction between 0 and 1 D) Infinite Explanation: The power factor in an AC circuit with both resistive and reactive components is a fraction between 0 and 1, representing the ratio of real power to apparent power. 9. Which of the following represents the formula for calculating electrical power in an AC circuit? A) Power = Voltage * Current B) Power = Voltage * Current * Power Factor C) Power = Current^2 * Resistance D) Power = Voltage^2 / Resistance Explanation: The formula for calculating electrical power in an AC circuit is Power = Voltage * Current * Power Factor. 10. What is the phase difference between the current and voltage in a purely inductive AC circuit? A) 0 degrees B) 90 degrees C) 180 degrees D) 270 degrees Explanation: In a purely inductive AC circuit, the current lags the voltage by 90 degrees. 11. In a DC circuit, what will happen if the resistance is increased while the voltage remains constant? A) The current will increase. B) The current will decrease. C) The power will increase. D) The power will decrease. Explanation: According to Ohm’s Law, if resistance increases while voltage remains constant, the current will decrease. 12. Which of the following is the unit of electrical resistance? A) Watt B) Ampere C) Ohm
C) Power = √3 * Voltage * Current * Power Factor D) Power = Voltage^2 / Resistance Explanation: The total power in a three-phase system is calculated using the formula Power = √3 * Voltage * Current * Power Factor.
19. In a three-phase system, what happens if one of the phases is lost? A) The system continues to function normally. B) The system may still operate, but with reduced capacity. C) The system stops functioning entirely. D) The power factor improves. Explanation: If one phase is lost in a three-phase system, the system may still operate but with reduced capacity and potential instability. 20. What is the primary characteristic of a balanced three-phase load? A) All three phases have equal current and voltage. B) One phase has higher current than the others. C) One phase has lower voltage than the others. D) The total current is zero. Explanation: A balanced three-phase load is characterized by equal current and voltage in all three phases. 21. What happens to the total impedance in a series AC circuit if the frequency increases? A) The impedance decreases. B) The impedance remains constant. C) The impedance increases. D) The impedance fluctuates. Explanation: In a series AC circuit with inductance and capacitance, the impedance generally increases with frequency, especially in inductive circuits. 22. Which of the following is true about a purely resistive DC circuit? A) The current and voltage are out of phase. B) The current and voltage are in phase. C) The voltage is constant. D) The resistance varies with time. Explanation: In a purely resistive DC circuit, the current and voltage are in phase with each other. 23. What is the effect of increasing the number of turns on the primary coil of a transformer? A) It decreases the voltage. B) It increases the voltage. C) It does not affect the voltage. D) It decreases the current. Explanation: Increasing the number of turns on the primary coil of a transformer increases the voltage in a step-up transformer. 24. What is the primary purpose of a capacitor in an AC circuit? A) To store energy in a magnetic field. B) To store energy in an electric field.
C) To limit the current flow. D) To provide a phase shift between current and voltage. Explanation: A capacitor stores energy in an electric field and can cause a phase shift between current and voltage in AC circuits.
25. What is the total resistance in a parallel circuit with two resistors, R1 and R2? A) R_total = R1 + R B) R_total = R1 * R2 / (R1 + R2) C) R_total = (R1 + R2)^ D) R_total = R1 * R Explanation: In a parallel circuit, the total resistance is given by R_total = R1 * R2 / (R1 + R2). 26. In an AC circuit with both resistive and reactive components, the power factor is A) Zero. B) One. C) Between 0 and 1. D) Infinite. Explanation: The power factor in such a circuit is between 0 and 1, representing the efficiency of power usage. 27. The efficiency of a transformer is primarily dependent on A) The resistance of the primary coil. B) The efficiency of the secondary coil. C) The impedance in the load. D) The losses in the core and windings. Explanation: The efficiency of a transformer depends primarily on the losses in the core and windings, such as eddy current and hysteresis losses. 28. In a three-phase system, how does the current compare to a single-phase system for the same power? A) The current is higher in the three-phase system. B) The current is the same in both systems. C) The current is lower in the three-phase system. D) The current is unpredictable. Explanation: For the same power, the current in a three-phase system is lower than in a single-phase system due to the more efficient distribution of power. 29. What is the relationship between frequency and inductive reactance in an AC circuit? A) Inductive reactance increases as frequency increases. B) Inductive reactance decreases as frequency increases. C) Inductive reactance is unaffected by frequency. D) Inductive reactance is directly proportional to voltage. Explanation: Inductive reactance increases as frequency increases because reactance is directly proportional to frequency. 30. What is the total impedance in a series RLC circuit? A) Z = R + L + C
36. What does the phase sequence of a three-phase system determine? A) The magnitude of the current in each phase B) The direction of rotation of a motor C) The voltage rating of the system D) The efficiency of the transformer Explanation: The phase sequence determines the direction of rotation of a motor and the phase relationship in a three-phase system. 37. What is the formula for calculating total power in a three-phase system with a balanced load? A) Power = 3 * Voltage * Current * Power Factor B) Power = Voltage * Current * Power Factor C) Power = Voltage^2 / Resistance D) Power = 2 * Voltage * Current Explanation: The formula for calculating total power in a three-phase system with a balanced load is Power = √3 * Voltage * Current * Power Factor. 38. What is the effect of reducing the resistance in a circuit with a constant voltage? A) The current will decrease. B) The current will increase. C) The power will decrease. D) The power will increase. Explanation: According to Ohm’s Law, reducing resistance in a circuit with constant voltage will cause the current to increase. 39. In an AC circuit, what is the effect of a capacitor in terms of impedance? A) It increases impedance. B) It decreases impedance. C) It has no effect on impedance. D) It makes impedance purely resistive. Explanation: A capacitor decreases impedance in an AC circuit by providing reactance that opposes current. 40. How is the frequency of a transformer determined? A) By the voltage rating. B) By the current rating. C) By the design of the transformer’s core. D) By the power supply frequency. Explanation: The frequency of a transformer is determined by the power supply frequency. 41. Which of the following components is primarily responsible for providing the magnetic field in an electric motor? A) The rotor B) The stator C) The commutator D) The capacitor Explanation: The stator is primarily responsible for providing the magnetic field in an electric motor.
42. What type of load is best suited for a three-phase system? A) Capacitive load B) Inductive load C) Resistive load D) Balanced load Explanation: A balanced load is best suited for a three-phase system, ensuring efficiency and smooth operation. 43. What type of current is typically used for long-distance power transmission? A) Alternating current (AC) B) Direct current (DC) C) Pulsating current D) None of the above Explanation: Alternating current (AC) is typically used for long-distance power transmission due to its ability to be transformed into different voltages. 44. What is the primary cause of power loss in a conductor? A) Inductive reactance B) Resistance C) Capacitive reactance D) Magnetic fields Explanation: Power loss in a conductor is primarily caused by its resistance, which generates heat when current flows through it. 45. What is the function of a voltage regulator in an industrial electrical system? A) To reduce power consumption B) To ensure a stable output voltage C) To convert AC to DC D) To protect the circuit from overload Explanation: A voltage regulator ensures that the output voltage remains stable despite fluctuations in input voltage. 46. What is the purpose of the neutral wire in a three-phase system? A) To balance the load across all three phases B) To carry current to the load C) To prevent overcurrent in one phase D) To ground the electrical system Explanation: The neutral wire in a three-phase system balances the load and ensures safe operation by returning current to the source. 47. In a resistive circuit, the power factor is A) 0 B) 1 C) Between 0 and 1 D) Infinite Explanation: In a purely resistive circuit, the power factor is 1, indicating that all the supplied power is used efficiently.
C) Article 700 D) Article 1000 Explanation: Article 500 of the NEC specifically covers wiring methods for hazardous locations, including the classification and requirements for Class I, II, and III areas.
54. What is the primary reason for classifying hazardous locations in the NEC? A) To limit the use of electrical equipment B) To determine appropriate wiring methods and equipment C) To reduce the installation cost of electrical systems D) To simplify the process of system inspection Explanation: Hazardous location classifications help to determine appropriate wiring methods, equipment, and protective measures to prevent accidents and ensure safety in industrial environments. 55. According to the NEC, what is the minimum distance that a service entrance conductor should be from a building’s roof edge? A) 3 feet B) 4 feet C) 5 feet D) 6 feet Explanation: The NEC requires that service entrance conductors be a minimum of 3 feet from a building’s roof edge to prevent damage and ensure safe operation. 56. When sizing a service entrance conductor, what is the most important factor to consider? A) The length of the conductor B) The load demand C) The ambient temperature D) The type of insulation Explanation: The load demand is the most important factor when sizing service entrance conductors. It ensures the conductor can handle the electrical load without overheating or causing a fire. 57. What is the required clearance between service panels and adjacent walls or obstructions? A) 3 feet B) 4 feet C) 5 feet D) 6 feet Explanation: NEC guidelines require a minimum clearance of 3 feet between service panels and adjacent walls or obstructions to allow for safe operation and maintenance access. 58. What type of transformer configuration is most commonly used for distributing 480V three-phase power in industrial settings? A) Delta-Delta B) Delta-Wye C) Wye-Wye D) Wye-Delta
Explanation: The Delta-Wye transformer configuration is commonly used to step down three-phase voltage in industrial settings, particularly for 480V systems.
59. Which of the following transformer configurations provides the most balanced voltage output? A) Delta-Delta B) Delta-Wye C) Wye-Wye D) Wye-Delta Explanation: The Wye-Wye transformer configuration provides the most balanced voltage output, making it ideal for industrial settings that require stable and consistent voltage. 60. In hazardous locations, which of the following is a permissible method for wiring installations? A) Open wiring on insulating supports B) Exposed metallic conduit C) Type MC cables with appropriate fittings D) None of the above Explanation: In hazardous locations, Type MC cables with appropriate fittings are permissible as they are designed to withstand physical damage and provide a secure connection. 61. What is the maximum allowable temperature rise for a conductor in an industrial application according to the NEC? A) 50°F B) 75°F C) 90°F D) 120°F Explanation: The NEC typically limits the temperature rise for conductors to 75°F to prevent overheating and ensure safe operation. 62. What is the purpose of overcurrent protection in electrical systems? A) To prevent short circuits B) To prevent overloading and electrical fires C) To regulate voltage levels D) To reduce harmonic distortion Explanation: Overcurrent protection is designed to prevent overloading of circuits, reducing the risk of electrical fires and damage to equipment. 63. Which type of circuit breaker is used to protect against both overloads and short circuits? A) Ground fault circuit interrupter (GFCI) B) Arc fault circuit interrupter (AFCI) C) Standard thermal-magnetic circuit breaker D) Fused disconnect switch Explanation: A standard thermal-magnetic circuit breaker provides protection against both overloads and short circuits, making it suitable for general industrial applications.
C) Only lighting equipment needs to be rated for hazardous locations D) No special equipment is necessary in hazardous locations Explanation: In hazardous locations, equipment must meet specific ignition temperature limits and be designed to prevent sparks or arcs that could ignite flammable substances.
70. What is the key difference between Class I and Class II hazardous locations? A) Class I locations contain flammable gases or vapors, while Class II contains combustible dusts B) Class I locations are indoors, while Class II locations are outdoors C) Class I locations are high voltage areas, while Class II are low voltage D) There is no difference between Class I and Class II locations Explanation: Class I hazardous locations involve flammable gases or vapors, whereas Class II locations involve combustible dusts, each requiring different safety measures. 71. What does the NEC require for wiring in damp or wet locations? A) Use of non-metallic conduit only B) Use of waterproof junction boxes C) Use of conductors with a temperature rating suitable for wet conditions D) No special requirements Explanation: The NEC requires conductors in damp or wet locations to have a temperature rating suitable for the environmental conditions to prevent insulation breakdown and electrical hazards. 72. In industrial environments, what is the purpose of using armored cable (AC) or metal-clad cable (MC)? A) To provide flexibility for easy installation B) To provide physical protection against mechanical damage C) To reduce electrical resistance D) To reduce noise interference Explanation: Armored (AC) and metal-clad (MC) cables are used in industrial environments to provide protection against mechanical damage and ensure safety in harsh conditions. 73. Which of the following is an approved method for grounding a metal raceway system? A) Grounding the raceway at one end only B) Grounding the raceway at both ends C) Grounding the raceway through an insulated conductor D) No grounding is required Explanation: Grounding the raceway at both ends is the approved method to ensure safety and provide a low-resistance path for fault current. 74. Which of the following conductors is typically used for industrial power circuits? A) Copper B) Aluminum C) Both copper and aluminum D) Silver
Explanation: Copper and aluminum are both commonly used for industrial power circuits, with copper being more expensive but offering better conductivity.
75. In industrial settings, what is the most common method of protecting conductors from physical damage? A) Installing them in open air B) Using conduit or raceways C) Using low-resistance conductors D) Coating conductors with insulating materials Explanation: Conductors in industrial settings are commonly protected from physical damage by running them inside conduit or raceways. 76. What is the NEC’s requirement for a ground fault circuit interrupter (GFCI) in industrial locations? A) GFCIs are not required in industrial locations B) GFCIs must be installed at all electrical outlets C) GFCIs must be installed on circuits supplying personnel areas D) GFCIs must be installed on machinery circuits Explanation: The NEC requires GFCIs to be installed in personnel areas of industrial locations to protect against ground faults that could cause electrical shock. 77. What is the purpose of a distribution transformer in an industrial electrical system? A) To convert DC to AC B) To step up voltage for transmission C) To distribute electrical power at a usable voltage D) To protect against overcurrent Explanation: A distribution transformer steps down voltage to a usable level for industrial equipment, ensuring safe and efficient power delivery. 78. What type of overcurrent protection is required for a motor circuit? A) Thermal-magnetic circuit breakers B) Fuses with a rating higher than the motor's full-load current C) Circuit breakers with an instantaneous trip setting D) All of the above Explanation: Overcurrent protection for motor circuits requires the use of thermal-magnetic circuit breakers or fuses that are properly rated for the motor’s full-load current and have a time delay feature. 79. What is the role of an industrial switchgear panel? A) To control lighting systems only B) To regulate voltage levels across the entire facility C) To protect and disconnect circuits in an emergency D) To act as a grounding point for the entire electrical system Explanation: Switchgear panels in industrial environments are used to protect and disconnect circuits in emergencies, ensuring system safety and reliability.
85. Which article of the NEC specifies the wiring methods for low-voltage industrial systems? A) Article 100 B) Article 200 C) Article 300 D) Article 400 Explanation: Article 300 of the NEC specifies the wiring methods for low-voltage systems, detailing how cables and conduits should be installed to ensure safety. 86. Which of the following is a typical requirement for wiring installations in classified hazardous locations? A) Use of standard electrical wiring methods B) Special wiring methods to prevent ignition of hazardous materials C) Use of non-metallic conduit only D) Open wiring on insulators Explanation: In hazardous locations, special wiring methods, such as explosion-proof equipment and sealed conduits, are required to prevent ignition of hazardous materials. 87. Which of the following transformer types is typically used for high-voltage distribution in industrial facilities? A) Step-up transformer B) Step-down transformer C) Auto-transformer D) Isolation transformer Explanation: Step-up transformers are typically used to increase voltage for high-voltage distribution in industrial settings, allowing efficient long-distance power transmission. 88. In an industrial facility, what type of cable is most commonly used for circuit protection in hazardous locations? A) Armored cable (AC) B) Metal-clad cable (MC) C) Non-metallic-sheathed cable (NM) D) Underground feeder cable (UF) Explanation: Metal-clad (MC) cable is commonly used for circuit protection in hazardous locations because it offers enhanced protection against mechanical damage and potential sparks. 89. When installing wiring in wet locations, what type of conductor insulation is required? A) Insulation with a minimum rating of 90°C B) Insulation with a minimum rating of 60°C C) Waterproof-rated insulation D) No special insulation is required Explanation: For wet locations, the NEC requires conductors with waterproof-rated insulation to ensure safety and prevent short circuits due to moisture.
90. What is the NEC’s guideline for the installation of switchgear in industrial applications? A) Switchgear must be located outdoors only B) Switchgear should be accessible for maintenance and operation C) Switchgear can be installed without grounding D) Switchgear can be installed directly on the floor without a foundation Explanation: The NEC requires switchgear to be installed in a manner that allows easy access for maintenance and operation, and proper grounding must be provided. 91. What is the primary function of a circuit breaker in an industrial electrical system? A) To protect against overcurrent conditions B) To regulate voltage fluctuations C) To prevent equipment from overheating D) To provide electrical isolation during repairs Explanation: Circuit breakers are primarily designed to protect circuits from overcurrent conditions, preventing damage to equipment and reducing the risk of fire. 92. When using a generator for industrial applications, what should be considered for grounding? A) Only the neutral conductor needs to be grounded B) The generator should be grounded to prevent electric shock C) The generator does not require grounding if it is portable D) Only the load side needs to be grounded Explanation: The generator should be properly grounded to prevent electric shock hazards and ensure safe operation of the system, including grounding the neutral conductor. 93. Which of the following is an acceptable method of grounding a motor in an industrial setting? A) Grounding the motor to the building's steel frame B) Using a grounding conductor from the motor’s terminal box C) Grounding only the motor frame D) No grounding is required for motors Explanation: A grounding conductor should be connected from the motor’s terminal box to a grounding point to ensure safe operation and prevent electric shock. 94. In an industrial facility, which of the following is the most common method for providing overcurrent protection for motor circuits? A) Fuses with time-delay characteristics B) Thermal-magnetic circuit breakers C) Ground fault circuit interrupters (GFCIs) D) Arc fault circuit interrupters (AFCIs) Explanation: Thermal-magnetic circuit breakers are commonly used to protect motor circuits from both overloads and short circuits, offering a reliable and adjustable protection method. 95. What is the primary purpose of a disconnect switch in an industrial electrical system? A) To protect circuits from overloading B) To control the voltage level
Explanation: Waterproof-rated cable is the most suitable for wet industrial locations, as it provides protection against moisture, ensuring electrical safety and reliability.
101. Which of the following is the primary factor in determining the load requirements for a general- purpose circuit? A. Type of conductor used B. Voltage rating of the circuit C. Total connected load D. Size of the raceway Explanation: The total connected load is the main factor in determining the load requirements for a general-purpose circuit. This load is based on the equipment or devices connected to the circuit. 102. When balancing loads across phases, which of the following is the primary goal? A. To reduce the total load B. To ensure system stability and prevent overloading C. To increase the voltage rating D. To reduce the number of circuits Explanation: The goal of balancing loads across phases is to ensure system stability by preventing overloading of any single phase, which can lead to instability and potential equipment failure. 103. Which of the following factors should be considered when selecting the appropriate conductor size for a circuit? A. Ampacity B. Voltage rating C. Type of insulation D. All of the above Explanation: When selecting a conductor size, ampacity, voltage rating, and insulation type are all critical factors in ensuring that the conductor can handle the current load safely. 104. What is the maximum allowable temperature rating of a conductor in a residential setting? A. 60°C B. 75°C C. 90°C D. 100°C Explanation: The maximum allowable temperature rating for conductors typically depends on the insulation type. For residential circuits, 90°C is a common temperature rating for conductors. 105. Which of the following is NOT a consideration when selecting a conductor material? A. Ampacity B. Environmental conditions C. Conductor insulation D. Conductor length Explanation: While all these factors are important for selecting the proper conductor, the length of the conductor itself does not directly affect the material selection. The material selection is more related to ampacity, environmental conditions, and insulation type.
106. When calculating the load for a branch circuit, what must be considered in addition to the connected load? A. Conductor size B. Voltage drop C. Circuit protection type D. Number of conductors used Explanation: Voltage drop is an important factor to consider in addition to the connected load to ensure that the voltage at the load end is within acceptable limits. 107. Which of the following would be a typical conductor material used in industrial settings? A. Copper B. Aluminum C. Steel D. All of the above Explanation: Copper and aluminum are commonly used as conductor materials in industrial settings due to their high electrical conductivity. Steel is not typically used as a conductor but may be used for reinforcing purposes in some raceways. 108. What is the primary reason for using cable trays in industrial electrical systems? A. To protect the cables from physical damage B. To increase the voltage rating of conductors C. To ensure that the cables do not exceed their ampacity D. To simplify the wiring design Explanation: Cable trays are primarily used to protect cables from physical damage while also providing support and allowing for proper airflow. 109. When choosing a raceway for a high-temperature environment, what factor is most important? A. Material strength B. Conductor ampacity C. Raceway temperature rating D. Raceway size Explanation: The temperature rating of the raceway is the most important factor to consider when selecting a raceway for high-temperature environments to prevent overheating or degradation of the materials. 110. What is the maximum permissible voltage drop in branch circuits according to the National Electrical Code (NEC)? A. 1% B. 2% C. 3% D. 5% Explanation: The NEC allows a maximum voltage drop of 3% for branch circuits, ensuring the devices receive sufficient voltage to operate effectively. 111. When installing conduits, what must be ensured about the physical protection of cables? A. Cables should be installed directly in the ground B. Cables must be protected from physical damage by using appropriate enclosures or raceways
