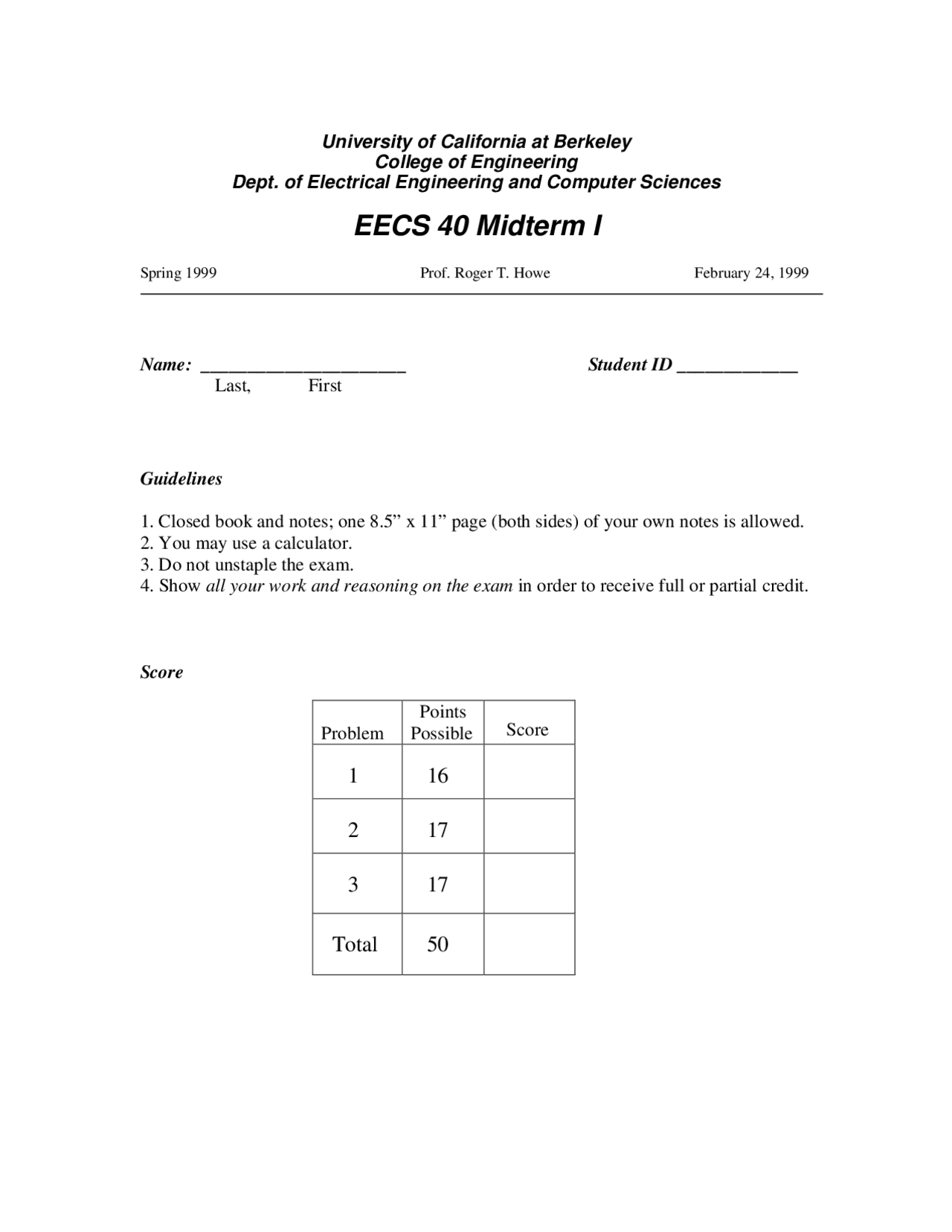

University of California at Berkeley
College of Engineering
Dept. of Electrical Engineering and Computer Sciences
EECS 40 Midterm I
Spring 1999 Prof. Roger T. Howe February 24, 1999
Name: ______________________ Student ID _____________
Last, First
Guidelines
1. Closed book and notes; one 8.5” x 11” page (both sides) of your own notes is allowed.
2. You may use a calculator.
3. Do not unstaple the exam.
4. Show all your work and reasoning on the exam in order to receive full or partial credit.
Score
Problem Points
Possible Score
1 16
2 17
3 17
Total 50
pf3
pf4
pf5

Partial preview of the text

Download EECS 40 Midterm I - UC Berkeley, Spring 1999 and more Exams Electrical Engineering in PDF only on Docsity!

University of California at Berkeley College of Engineering Dept. of Electrical Engineering and Computer Sciences

EECS 40 Midterm I

Spring 1999 Prof. Roger T. Howe February 24, 1999

_Name: ______________________ Student ID ______________ Last, First

Guidelines

  1. Closed book and notes; one 8.5” x 11” page (both sides) of your own notes is allowed.
  2. You may use a calculator.
  3. Do not unstaple the exam.
  4. Show all your work and reasoning on the exam in order to receive full or partial credit.

Score

Problem

Points Possible Score

Total 50

  1. Equivalent Circuits [16 points]

2 kΩ

1 kΩ^ 3 kΩ

A

B

5 kΩ

1 mA

(a) [4 pts.] Find the Thevenin equivalent voltage between A and B.

(b) [4 pts.] Find the Thevenin equivalent resistance RTH between terminals A and B.

  1. Current-Voltage Characteristics [17 points]

10 kΩ

4 kΩ

B

2 kΩ

A

2 mA (^) Load

IOUT

VOUT

4 kΩ

(a) [4 pts.] Find the numerical value of the short-circuit current IOUT = ISC , when VAB = 0 V.

(b) [4 pts.] Plot the output current IOUT versus the output voltage VOUT on the graph below

IOUT

VOUT

[mA]

[V]

(c) [4 pts.] The circuit in parts (a) and (b) is modified by the addition of a 2 V voltage source, as shown below. Find the numerical value of the open-circuit voltage Voc.

10 kΩ

4 kΩ

B

2 kΩ

A

2 mA

Load

IOUT

VOUT

4 kΩ

2 V

(d) [5 pts.] Plot the output current IOUT versus the output voltage VOUT for the modified circuit on the graph below.

IOUT

VOUT

[mA]

[V]

(c) [4 pts.] For this part, the voltage source is removed and a 5 mA current source replaces the 6 kΩ resistor between nodes B and C. The “arrowhead” end of the current source points toward node B. Only node D is connected to the reference node for this part. Find the voltage VF.

(d) [5 pts.] Repeat part (c), but keep the 6 kΩ resistor connected between nodes B and C for this part.
