Timing Model

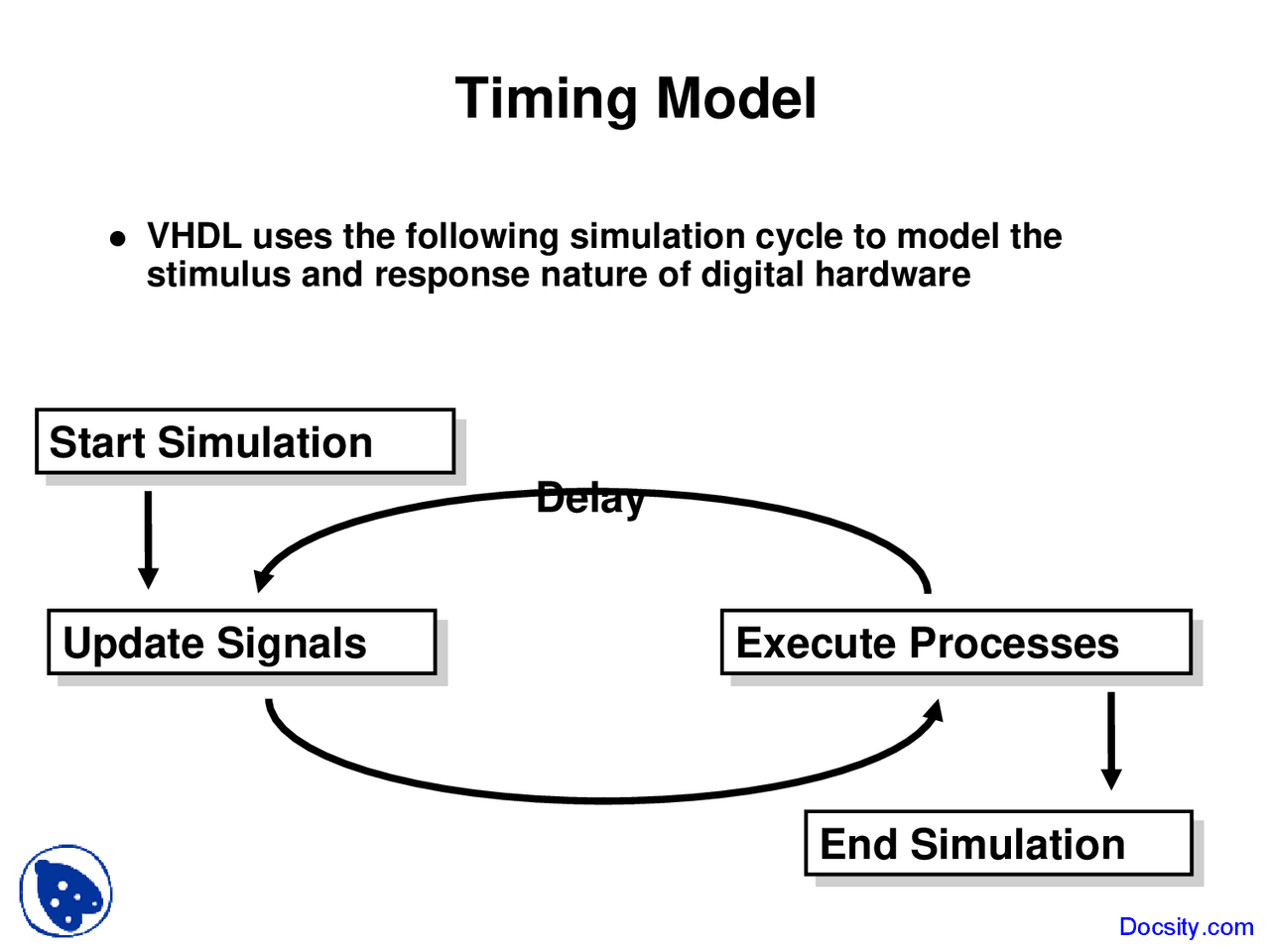

 VHDL uses the following simulation cycle to model the stimulus and response nature of digital hardware

Start Simulation

Update Signals Execute Processes

End Simulation

Delay

Delay Types

Input delay

Output

 All VHDL signal assignment statements prescribe an amount of time that must transpire before the signal assumes its new value

 This prescribed delay can be in one of three forms:  Transport -- prescribes propagation delay only  Inertial -- prescribes propagation delay and minimum input pulse width  Delta -- the default if no delay time is explicitly specified

 Default signal assignment propagation delay if no delay is explicitly prescribed  VHDL signal assignments do not take place immediately  Delta is an infinitesimal VHDL time unit so that all signal assignments can result in signals assuming their values at a future time  E.g.

 Supports a model of concurrent VHDL process execution  Order in which processes are executed by simulator does not affect simulation output

Delta Delay

Output <= NOT Input; -- Output assumes new value in one delta cycle

Delta Delay

An Example without Delta Delay

 What is the behavior of C?

IN: 1->

A

B

C

NAND gate evaluated first: IN: 1-> A: 0-> B: 1-> C: 0->

AND gate evaluated first: IN: 1-> A: 0-> C: 0-> B: 1-> C: 1->

Transport Delay

 Transport delay must be explicitly specified

 I.e. keyword “TRANSPORT” must be used

 Signal will assume its new value after specified delay (^) -- TRANSPORT delay example Output <= TRANSPORT NOT Input AFTER 10 ns;

Input Output

0 5 10 15 20 25 30 35

Input

Output

Inertial delay model

 An input value must be stable for a specified pulse rejection limit duration before the value is allowed to propagate to the output.

 Example:

Z <= reject 4ns inertial A after 10 ns;

Default delay model.

Inertial Delay (cont.)

 Example of gate with ‘inertia’ smaller than propagation delay  e.g. Inverter with propagation delay of 10ns which suppresses pulses shorter than 5ns

 Note: the REJECT feature is new to VHDL 1076-

Output <= REJECT 5ns INERTIAL NOT Input AFTER 10ns;

Input

Output

0 5 10 15 20 25 30 35

Signal Waveforms

 It is possible to assign multiple values to a signal, each with a different delay value.

For example:

Phase1 <= ‘0’, ‘1’ after 8ns, ‘0’ after 13 ns, ‘1’ after 50 ns; A more general syntax:

Signal object <= [transport | [ reject pulse_rejection_limit] inertial ] waveform-element, waveform-element;

Wait Statement (cont.)

Examples:-

1. wait on A, B, C;
2. wait until A= B;
3. wait for10 ns;
4. wait on clock for20 ns;
5. wait until SUM >100 for50 ms;
   • the process suspends for a maximum of 50 ms until the value of signal SUM is greater than 100.
   • If the Boolean condition is not satisfied for 50 ms, the process resumes from the statement following the wait statement

6. wait on clock until SUM> 100;

–continue to wait if SUM <= 100 the process suspends for a maximum of 50 ms until the value of signal SUM is greater than 100. –If the Boolean condition is not satisfied for 50 ms, the process resumes from the statement following the wait statement

Wait Statement (Example)

process --no sensitivity list variable temp1, temp2:BIT; begin temp1 := A and B; temp2 := C and D; temp1 := temp1 or temp2; Z <= not temp1 wait on A, B, C, D; --replaces the sensitivity list

end process;

Wait example

WAIT0 : process

begin

wait on DATA; sig_A <= DATA; wait for 0 ns; sig_B <= Sig_A;

end process;
