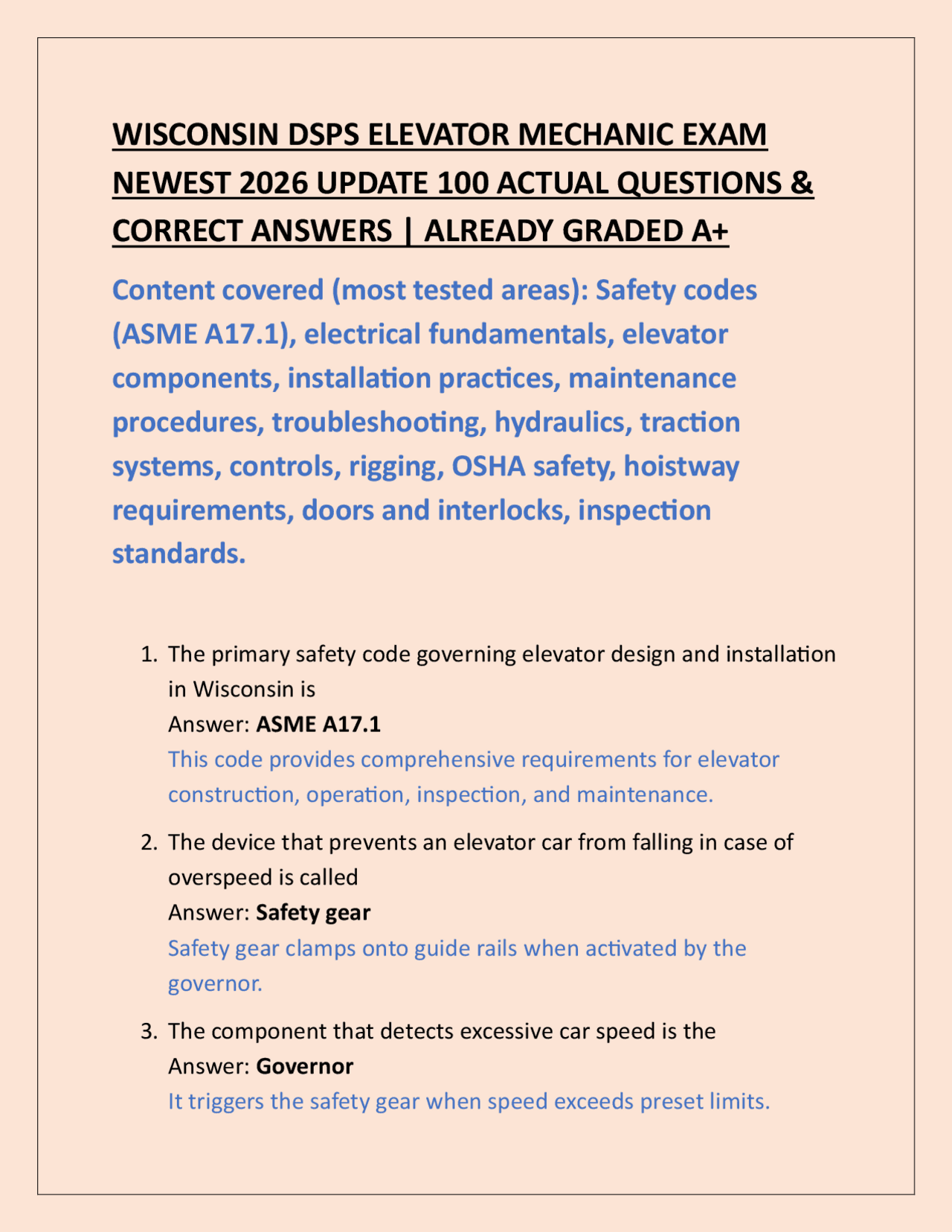

WISCONSIN DSPS ELEVATOR MECHANIC EXAM
NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS &
CORRECT ANSWERS | ALREADY GRADED A+
Content covered (most tested areas): Safety codes
(ASME A17.1), electrical fundamentals, elevator
components, installation practices, maintenance
procedures, troubleshooting, hydraulics, traction
systems, controls, rigging, OSHA safety, hoistway
requirements, doors and interlocks, inspection
standards.
1. The primary safety code governing elevator design and installation
in Wisconsin is
Answer: ASME A17.1
This code provides comprehensive requirements for elevator
construction, operation, inspection, and maintenance.
2. The device that prevents an elevator car from falling in case of
overspeed is called
Answer: Safety gear
Safety gear clamps onto guide rails when activated by the
governor.
3. The component that detects excessive car speed is the
Answer: Governor
It triggers the safety gear when speed exceeds preset limits.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe

Partial preview of the text

Download WISCONSIN DSPS ELEVATOR MECHANIC EXAM NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS & CORRECT and more Exams Mechanical Engineering in PDF only on Docsity!

WISCONSIN DSPS ELEVATOR MECHANIC EXAM

NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS &

CORRECT ANSWERS | ALREADY GRADED A+

Content covered (most tested areas): Safety codes

(ASME A17.1), electrical fundamentals, elevator

components, installation practices, maintenance

procedures, troubleshooting, hydraulics, traction

systems, controls, rigging, OSHA safety, hoistway

requirements, doors and interlocks, inspection

standards.

  1. The primary safety code governing elevator design and installation in Wisconsin is Answer: ASME A17. This code provides comprehensive requirements for elevator construction, operation, inspection, and maintenance.
  2. The device that prevents an elevator car from falling in case of overspeed is called Answer: Safety gear Safety gear clamps onto guide rails when activated by the governor.
  3. The component that detects excessive car speed is the Answer: Governor It triggers the safety gear when speed exceeds preset limits.
  1. The vertical tracks that guide the elevator car are called Answer: Guide rails They maintain alignment and stability of the car and counterweight.
  2. The space in which the elevator travels is known as the Answer: Hoistway Also called the shaft, it encloses the car and counterweight.
  3. The room housing the drive machine for traction elevators is the Answer: Machine room Contains motor, controller, brake, and sheaves.
  4. The main lifting component in a traction elevator is the Answer: Hoist ropes Steel cables that support and move the car.
  5. The device that balances the weight of the elevator car is the Answer: Counterweight Reduces motor load and energy consumption.
  6. The braking system on a traction machine is typically Answer: Electromechanical brake Spring-applied and electrically released for fail-safe operation.
  7. The electrical supply for most commercial elevators is Answer: Three-phase power Provides efficient operation for large motors.
  8. The purpose of a door interlock is to Answer: Prevent movement with doors open Ensures passenger safety by locking doors during operation.
  1. A sheave is best described as a Answer: Grooved pulley Guides hoist ropes and transmits motion.
  2. The component that converts electrical energy into mechanical motion is the Answer: Motor Drives the traction machine or pump.
  3. The device used to level the car precisely at landings is Answer: Leveling device Ensures smooth passenger entry and exit.
  4. Fire service Phase I operation returns the car to Answer: Designated landing Allows firefighters to take control.
  5. Fire service Phase II operation provides Answer: Manual in-car control Disables normal automatic operation.
  6. The protective enclosure around moving parts in the machine room is Answer: Guarding Prevents accidental contact with hazardous components.
  7. The process of securing loads during installation is called Answer: Rigging Uses hoists, slings, and anchors safely.
  8. Personal fall protection is required when working above Answer: Six feet OSHA standard for fall hazards.
  1. The grounding conductor’s purpose is to Answer: Provide fault path Reduces shock risk and ensures breaker operation.
  2. Lockout/tagout procedures are used to Answer: Control hazardous energy Prevents accidental startup during maintenance.
  3. The car top inspection station allows Answer: Slow manual operation Used during maintenance and installation.
  4. The emergency stop switch must be Answer: Red and accessible Allows quick shutdown in emergencies.
  5. The component that indicates car position electronically is the Answer: Encoder Provides feedback to the controller.
  6. The relay is an electrically operated Answer: Switch Used for control circuits.
  7. The fuse protects circuits from Answer: Overcurrent Melts to open circuit when current is excessive.
  8. The circuit breaker can be reset after Answer: Trip condition Unlike fuses, it does not require replacement.
  1. The rated load plate shows Answer: Maximum capacity Legal passenger or weight limit.
  2. The standby power system operates during Answer: Power outage Moves cars to safe landing or maintains service.
  3. The seismic switch is installed in areas prone to Answer: Earthquakes Stops elevator during seismic activity.
  4. The overspeed governor rope connects to Answer: Safety gear linkage Transfers activation force.
  5. The controller cabinet contains Answer: Control electronics Brain of the elevator system.
  6. The function of the counterweight buffer is to Answer: Cushion impact Protects equipment if counterweight overtravels.
  7. Final acceptance testing verifies Answer: Proper operation and safety Ensures system meets code before public use.
  8. The main purpose of a slack rope switch is to Answer: Shut down the elevator if a hoist rope loses tension

Protects against uncontrolled car movement caused by broken or loose ropes.

  1. A governor rope must be made of Answer: Steel wire Ensures high strength and reliable activation of safety gear.
  2. In hydraulic elevators, a rupture in the hydraulic line may cause Answer: Sudden car drop Requires properly rated safety valves to prevent free fall.
  3. The function of the car sling is to Answer: Support the car platform Connects the car frame to hoist ropes or hydraulic piston.
  4. The best location for the machine room in a traction elevator is Answer: Above the hoistway Provides optimal rope wrap and easier maintenance.
  5. The top of car clearance must allow safe passage for Answer: Maintenance personnel Minimum clearance per code ensures worker safety.
  6. A pit ladder provides safe access for Answer: Elevator pit inspection Required for maintenance and emergency access.
  7. The governor rope sheave must be aligned to Answer: Prevent rope derailment Maintains proper contact with the governor.
  1. The plunger in a hydraulic elevator moves inside the Answer: Cylinder Hydraulic fluid pressure raises the car.
  2. The oil reservoir in a hydraulic system must be sized to Answer: Accommodate full stroke Ensures smooth operation and prevents overflow.
  3. Emergency lowering of a car is performed by Answer: Manual valve operation Used by qualified personnel during power failure.
  4. The function of the leveling switch is to Answer: Align car floor with landing Prevents tripping hazards.
  5. Hall call buttons communicate with the Answer: Controller Registers passenger requests for car dispatch.
  6. A relubrication schedule for ropes prevents Answer: Corrosion and wear Maintains rope integrity and service life.
  7. The rated speed of a traction elevator is measured in Answer: Feet per minute Defines operational performance.
  8. The term “hoistway enclosure” refers to Answer: Shaft walls and doors Separates moving car from building spaces.
  1. The operation of a hoist motor contactor is controlled by Answer: Control circuits Allows automated motor starting/stopping.
  2. The interlock mechanism ensures the door cannot Answer: Open when car is not present Prevents accidents.
  3. The position of the governor rope switch is critical to Answer: Safety gear activation timing Incorrect placement can delay stopping action.
  4. The pit stop switch allows maintenance personnel to Answer: Control car in the pit Used for safe inspection and testing.
  5. The overspeed governor operates when car speed exceeds Answer: Rated maximum Protects against uncontrolled descent.
  6. Safety tests for hydraulic elevators include Answer: Piston and valve integrity Ensures no leakage or failure under load.
  7. The main difference between geared and gearless traction is Answer: Presence of reduction gear Gearless has direct drive, higher speed, less maintenance.
  8. Governor rope tension is maintained by Answer: Counterweight or spring Ensures proper activation during overspeed.
  1. Governor rope breakage would result in Answer: Immediate safety gear activation Critical safety measure.
  2. The main purpose of the elevator controller is to Answer: Coordinate movement and calls Directs motor, brakes, and door operation.
  3. The door operator belt requires tension adjustment to Answer: Maintain proper door speed Avoids jerky or unsafe operation.
  4. The car operating panel provides Answer: Passenger control inputs Buttons, emergency signals, and floor selection.
  5. The hydraulic relief valve prevents Answer: Excessive pressure Protects system components from damage.
  6. The inspection pit must have minimum depth of Answer: 42 inches Per ASME and Wisconsin DSPS code.
  7. A machine room hoistway pit ladder must extend at least Answer: 36 inches above pit floor Provides safe access.
  8. Elevator ropes must be inspected for Answer: Broken wires and corrosion Prevents sudden failure.
  1. A leveling device may be Answer: Mechanical or electronic Ensures smooth and precise floor alignment.
  2. Firefighters’ service operation must allow car to be Answer: Manually controlled at designated floors Facilitates rescue and emergency response.
  3. Final documentation includes Answer: Test reports, certificates, and diagrams Required for code compliance and record keeping
