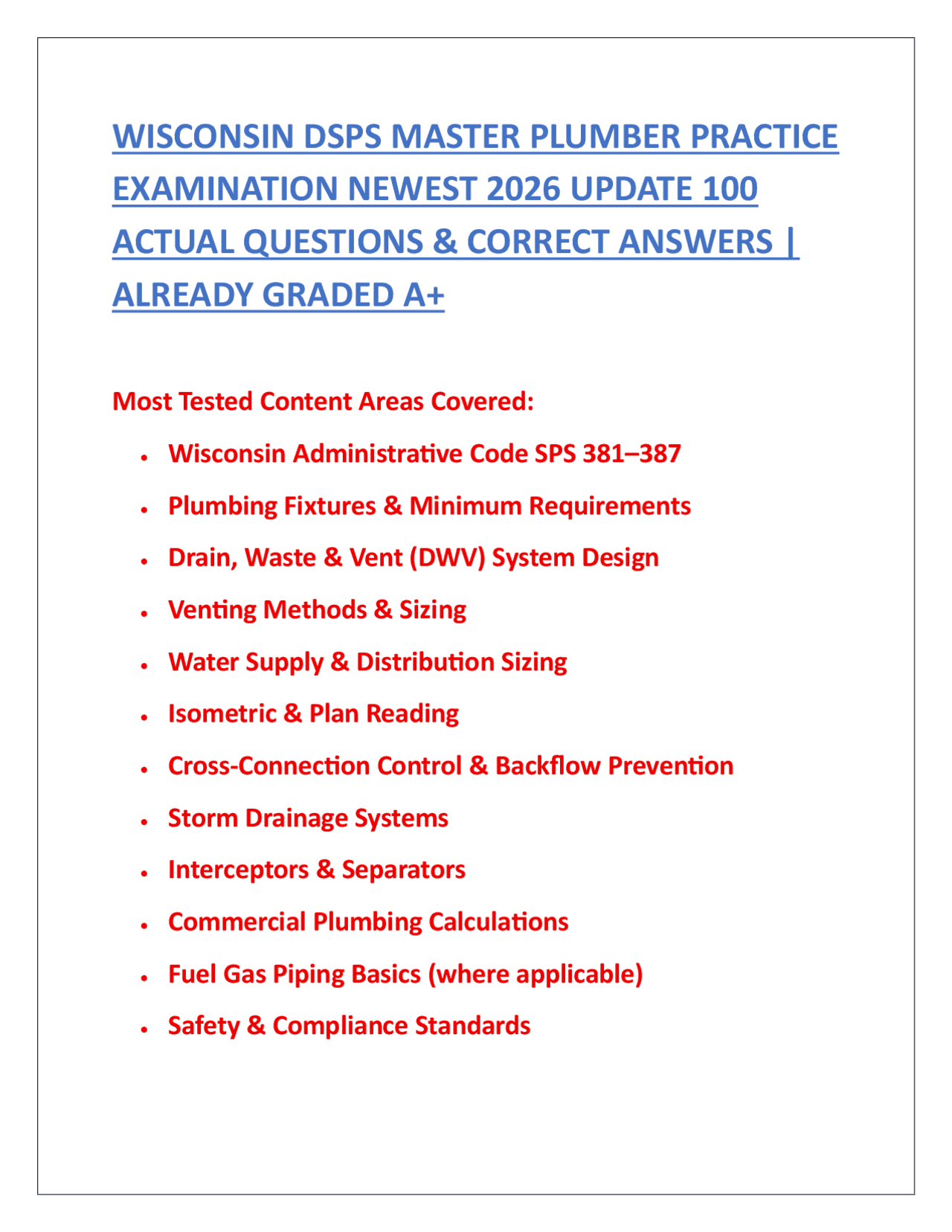

WISCONSIN DSPS MASTER PLUMBER PRACTICE
EXAMINATION NEWEST 2026 UPDATE 100
ACTUAL QUESTIONS & CORRECT ANSWERS |
ALREADY GRADED A+
Most Tested Content Areas Covered:
• Wisconsin Administrative Code SPS 381–387
• Plumbing Fixtures & Minimum Requirements
• Drain, Waste & Vent (DWV) System Design
• Venting Methods & Sizing
• Water Supply & Distribution Sizing
• Isometric & Plan Reading
• Cross-Connection Control & Backflow Prevention
• Storm Drainage Systems
• Interceptors & Separators
• Commercial Plumbing Calculations
• Fuel Gas Piping Basics (where applicable)
• Safety & Compliance Standards
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17

Partial preview of the text

Download WISCONSIN DSPS MASTER PLUMBER PRACTICE EXAMINATION NEWEST 2026 UPDATE 100 ACTUAL QUESTIO and more Exams Construction in PDF only on Docsity!

WISCONSIN DSPS MASTER PLUMBER PRACTICE

EXAMINATION NEWEST 2026 UPDATE 100

ACTUAL QUESTIONS & CORRECT ANSWERS |

ALREADY GRADED A+

Most Tested Content Areas Covered:

  • Wisconsin Administrative Code SPS 381– 387
  • Plumbing Fixtures & Minimum Requirements
  • Drain, Waste & Vent (DWV) System Design
  • Venting Methods & Sizing
  • Water Supply & Distribution Sizing
  • Isometric & Plan Reading
  • Cross-Connection Control & Backflow Prevention
  • Storm Drainage Systems
  • Interceptors & Separators
  • Commercial Plumbing Calculations
  • Fuel Gas Piping Basics (where applicable)
  • Safety & Compliance Standards
  1. What is the minimum trap seal depth required under Wisconsin plumbing code? Answer: 2 inches Explanation: SPS 382 requires a minimum 2-inch trap seal to prevent sewer gas infiltration while maintaining proper drainage.
  2. What is the maximum developed length of a 2-inch trap arm before venting? Answer: 8 feet Explanation: Based on Wisconsin venting tables, a 2-inch trap arm may extend up to 8 feet with proper slope before requiring a vent.
  3. What is the minimum slope required for horizontal drainage piping 3 inches in diameter? Answer: 1/8 inch per foot Explanation: SPS 382 allows 3-inch and larger piping to slope at 1/8 inch per foot for proper scouring velocity.
  4. What is the minimum vent size allowed for any plumbing fixture? Answer: 1.25 inches Explanation: No vent serving a fixture may be smaller than 1¼ inches under Wisconsin code.
  1. What is required when a building drain connects to a public sewer lower than upstream manhole cover elevation? Answer: Backwater valve Explanation: A backwater valve prevents sewage backup into the building.
  2. What is the minimum size for a building drain serving three water closets? Answer: 3 inches Explanation: Three water closets fall within drainage fixture unit limits for a 3-inch building drain.
  3. What is the minimum air gap for a plumbing fixture? Answer: Twice the diameter of the outlet but not less than 1 inch Explanation: Air gaps must comply with cross-connection standards to prevent back-siphonage.
  4. What type of vent connects two trap arms at the same level? Answer: Common vent Explanation: A common vent serves two fixtures installed at the same elevation.
  5. What is the minimum size cleanout required at the base of a 4 - inch stack?

Answer: 4 inches Explanation: Cleanouts must be full-sized for pipes 4 inches and larger.

  1. What is the minimum slope for a 2-inch horizontal drain? Answer: 1/4 inch per foot Explanation: Pipes smaller than 3 inches require ¼-inch per foot slope.
  2. What fitting must be used at the base of a vertical soil stack? Answer: Long sweep 90 or combination wye and 1/8 bend Explanation: These fittings reduce turbulence and maintain flow velocity.
  3. What is the maximum drainage fixture units allowed on a 4- inch horizontal branch? Answer: 216 DFU Explanation: Wisconsin DFU tables allow up to 216 DFUs for 4-inch horizontal drainage.
  4. What is required for indirect waste from a commercial ice machine? Answer: Air gap into a trapped and vented receptor Explanation: Prevents contamination of potable water.
  1. What is required if that separation cannot be maintained? Answer: Water service installed 12 inches above sewer and pressure rated Explanation: Elevation separation provides contamination protection.
  2. What venting method allows vertical wet venting in bathroom groups? Answer: Vertical wet vent Explanation: Wisconsin permits vertical wet venting for bathroom groups under sizing rules.
  3. What is the minimum trap arm slope? Answer: 1/4 inch per foot Explanation: Ensures scouring velocity and prevents trap siphonage.
  4. What is the minimum pipe size for a standpipe for a clothes washer? Answer: 2 inches Explanation: Required to handle discharge rate.
  5. What is the minimum standpipe height?

Answer: 18 inches and maximum 30 inches above trap weir Explanation: Prevents overflow and siphoning.

  1. What fitting is prohibited for horizontal to horizontal drainage direction change? Answer: Short sweep 90 Explanation: Creates excessive turbulence.
  2. What is required at the upper terminal of each stack? Answer: Vent through roof Explanation: Ensures atmospheric equalization.
  3. What is the minimum size of building sewer for residential dwelling? Answer: 4 inches Explanation: Wisconsin requires 4-inch minimum building sewer.
  4. What is required for a floor drain in a mechanical room? Answer: Trap primer connection Explanation: Prevents evaporation of trap seal.
  5. What is the maximum fixture unit load on a 1.5-inch vent?
  1. What is required when connecting copper to galvanized pipe? Answer: Dielectric fitting Explanation: Prevents galvanic corrosion.
  2. What is the maximum developed length of a 1.5-inch trap arm? Answer: 6 feet Explanation: Based on venting table limitations.
  3. What is required for a public restroom water closet flush valve? Answer: Vacuum breaker protection Explanation: Protects potable supply.
  4. What is the required slope for storm piping 4 inches? Answer: 1/8 inch per foot Explanation: Matches horizontal drainage slope rule.
  5. What is required when vent piping runs horizontally? Answer: Minimum 6 inches above flood rim before horizontal offset Explanation: Prevents obstruction and cross-flow.
  1. What is the minimum pipe size for a building storm drain serving 2,000 square feet roof area (moderate rainfall)? Answer: 4 inches Explanation: Based on Wisconsin storm drainage tables.
  2. What protection is required for water heater T&P discharge piping? Answer: Full-size pipe terminating to approved location Explanation: Must not reduce in size.
  3. What is the minimum clearance between combustible material and single-wall vent connector? Answer: 6 inches Explanation: Required for fire safety.
  4. What is required for a master plumber to pull permits in Wisconsin? Answer: Active DSPS license Explanation: Only licensed master plumbers may obtain plumbing permits.
  5. What is the minimum size vent for a 4-inch soil stack? Answer: 2 inches (unless roof termination requires 3 inches) Explanation: Stack vent sizing per code table.

Answer: Wye fitting or combination wye and 1/8 bend Explanation: These fittings maintain smooth flow and reduce blockage risk.

  1. What is the maximum spacing between supports for horizontal 2-inch PVC pipe? Answer: 4 feet Explanation: Wisconsin code requires adequate support to prevent sagging and joint stress.
  2. What is the minimum cover required for underground building sewers under traffic areas? Answer: 36 inches Explanation: Extra protection is required to prevent crushing from loads.
  3. What is required for a sump pit receiving sanitary waste? Answer: Sealed cover and vent connection Explanation: Prevents sewer gas escape and maintains sanitary conditions.
  4. What is the minimum discharge pipe size for a sump pump handling sanitary waste?

Answer: 2 inches Explanation: Required to handle solids and prevent clogging.

  1. What is required for potable water piping passing through a concrete wall? Answer: Sleeve with waterproof seal Explanation: Protects pipe and prevents water infiltration.
  2. What is the minimum distance between cleanouts on horizontal drainage piping 4 inches or less? Answer: 100 feet Explanation: Ensures accessibility for maintenance.
  3. What is required when installing a floor drain in a garage? Answer: Connection to approved drainage system with trap Explanation: Prevents contamination and sewer gas entry.
  4. What is the minimum size for a vent serving a water closet? Answer: 2 inches Explanation: Due to fixture load, water closets require at least a 2-inch vent.
  5. What is required for a hose bibb subject to freezing?
  1. What is required for potable water piping installed in exterior walls? Answer: Protection from freezing Explanation: Insulation or relocation required in cold climates.
  2. What is the minimum size for a relief drain from a water heater pan? Answer: 3/4 inch Explanation: Must handle potential discharge volume.
  3. What is required for a building sewer passing under a footing? Answer: Sleeve or structural protection Explanation: Prevents load damage.
  4. What is the maximum number of fixture units allowed on a 3 - inch horizontal branch? Answer: 42 DFU Explanation: Based on drainage capacity tables.
  5. What is required for vent termination near a window? Answer: Minimum 4 feet horizontally from opening Explanation: Prevents sewer gas entry.
  1. What is required for potable water system disinfection after new installation? Answer: Chlorination and flushing Explanation: Ensures sanitary water quality.
  2. What is the minimum size for a kitchen sink drain in commercial use? Answer: 2 inches Explanation: Higher discharge rates require larger piping.
  3. What is required for connecting dissimilar plastic piping materials? Answer: Approved transition fitting Explanation: Prevents leakage and joint failure.
  4. What is required for underground joints in building sewer piping? Answer: Watertight joints Explanation: Prevents infiltration and exfiltration.
  5. What is the minimum slope for a building sewer 6 inches in diameter?

Answer: Pressure test at working pressure or higher Explanation: Confirms system integrity.

  1. What is required for drainage piping installed above ceilings? Answer: Proper support and accessibility for cleanouts Explanation: Prevents sagging and ensures serviceability.
  2. What is the minimum size for a floor sink drain? Answer: 2 inches Explanation: Floor sinks must handle indirect waste flows.
  3. What is required for venting an ejector pit? Answer: Full-size vent to atmosphere Explanation: Prevents pressure buildup and odor release indoors.
  4. What is the minimum distance between potable water piping and electrical lines? Answer: As required to prevent contact and comply with electrical code Explanation: Coordination with electrical safety standards.
  5. What is required for a change of direction greater than 135 degrees in drainage piping?

Answer: Cleanout at or near the change Explanation: Allows maintenance access.

  1. What is required for an island sink venting method? Answer: Loop vent or approved alternative vent Explanation: Conventional venting not possible.
  2. What is the minimum size for a relief vent on a sanitary ejector system? Answer: 2 inches Explanation: Ensures adequate air movement.
  3. What is required when installing plumbing in corrosive soil conditions? Answer: Protective wrapping or corrosion-resistant materials Explanation: Prevents premature failure.
  4. What is required for potable water storage tanks? Answer: Approved materials and protection from contamination Explanation: Must maintain water quality.
  5. What is required for pipe penetrations through fire-rated assemblies?
