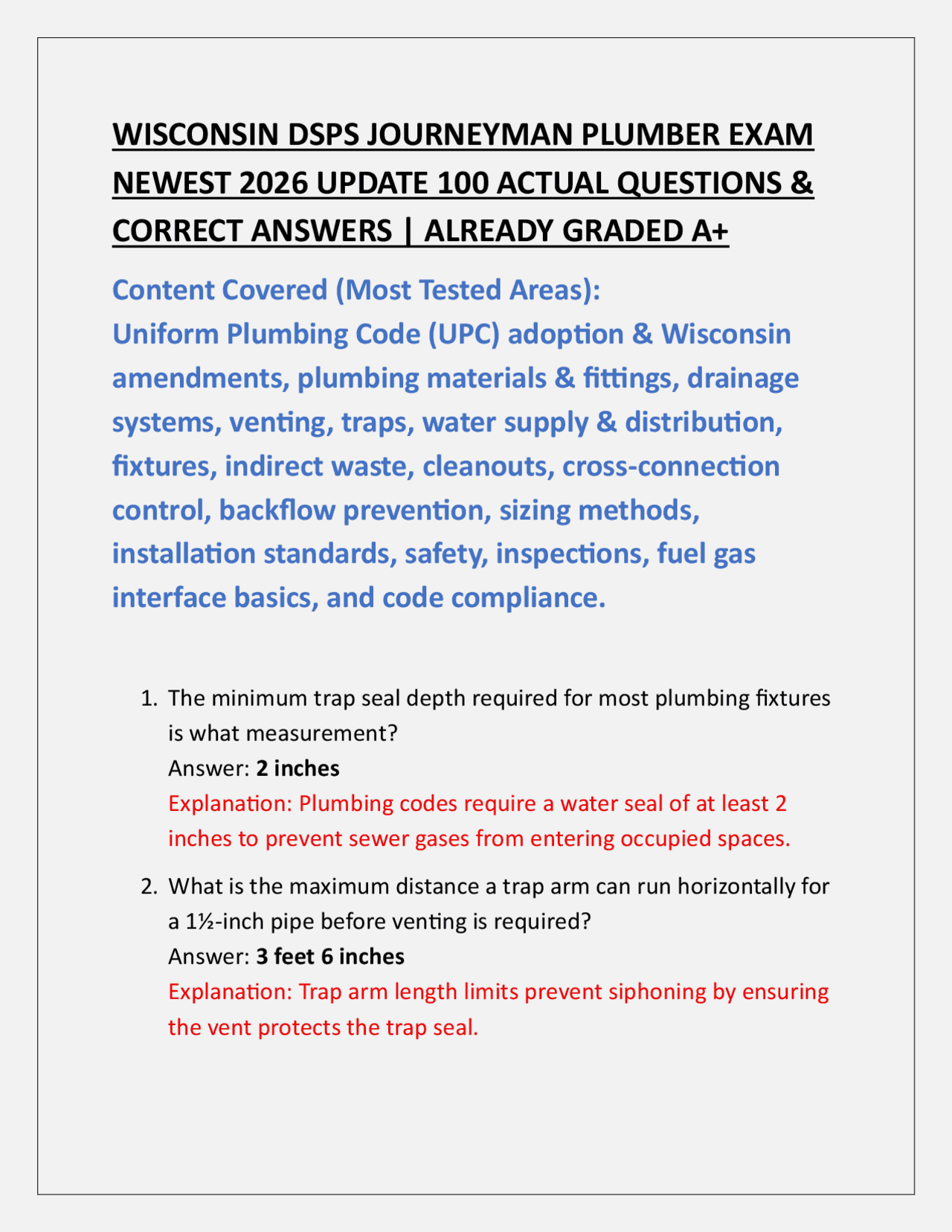

WISCONSIN DSPS JOURNEYMAN PLUMBER EXAM
NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS &
CORRECT ANSWERS | ALREADY GRADED A+
Content Covered (Most Tested Areas):
Uniform Plumbing Code (UPC) adoption & Wisconsin
amendments, plumbing materials & fittings, drainage
systems, venting, traps, water supply & distribution,
fixtures, indirect waste, cleanouts, cross-connection
control, backflow prevention, sizing methods,
installation standards, safety, inspections, fuel gas
interface basics, and code compliance.
1. The minimum trap seal depth required for most plumbing fixtures
is what measurement?
Answer: 2 inches
Explanation: Plumbing codes require a water seal of at least 2
inches to prevent sewer gases from entering occupied spaces.
2. What is the maximum distance a trap arm can run horizontally for
a 1½-inch pipe before venting is required?
Answer: 3 feet 6 inches
Explanation: Trap arm length limits prevent siphoning by ensuring
the vent protects the trap seal.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download WISCONSIN DSPS JOURNEYMAN PLUMBER EXAM NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS & CORRECT and more Exams Construction in PDF only on Docsity!

WISCONSIN DSPS JOURNEYMAN PLUMBER EXAM

NEWEST 2026 UPDATE 100 ACTUAL QUESTIONS &

CORRECT ANSWERS | ALREADY GRADED A+

Content Covered (Most Tested Areas):

Uniform Plumbing Code (UPC) adoption & Wisconsin

amendments, plumbing materials & fittings, drainage

systems, venting, traps, water supply & distribution,

fixtures, indirect waste, cleanouts, cross-connection

control, backflow prevention, sizing methods,

installation standards, safety, inspections, fuel gas

interface basics, and code compliance.

  1. The minimum trap seal depth required for most plumbing fixtures is what measurement? Answer: 2 inches Explanation: Plumbing codes require a water seal of at least 2 inches to prevent sewer gases from entering occupied spaces.
  2. What is the maximum distance a trap arm can run horizontally for a 1½-inch pipe before venting is required? Answer: 3 feet 6 inches Explanation: Trap arm length limits prevent siphoning by ensuring the vent protects the trap seal.
  1. What type of pipe material is prohibited for potable water distribution due to corrosion concerns? Answer: Unlined steel pipe Explanation: Unlined steel corrodes internally, contaminating drinking water and restricting flow.
  2. What fitting must be used to change direction in drainage piping from vertical to horizontal? Answer: Long sweep quarter bend Explanation: Long sweep fittings reduce turbulence and clogging in drainage systems.
  3. What device protects potable water from contamination due to backflow? Answer: Backflow preventer Explanation: Backflow devices stop reverse flow caused by backsiphonage or backpressure.
  4. What is the minimum size for a building sewer serving a single-family dwelling? Answer: 4 inches Explanation: Codes mandate 4-inch minimum to handle solids and prevent blockage.
  5. What vent type serves two fixtures located on opposite sides of a wall? Answer: Common vent Explanation: A common vent connects two fixtures to a single vertical vent pipe.
  6. What is the required slope for horizontal drainage piping 2½ inches or smaller?

Answer: 1 1/4 inches Explanation: Smaller vents risk frost closure and inadequate airflow.

  1. What plumbing system component equalizes pressure to prevent trap siphonage? Answer: Vent Explanation: Vents admit air to maintain neutral pressure.
  2. What fitting joins two pipes of different diameters concentrically? Answer: Reducer Explanation: Reducers transition between pipe sizes.
  3. What type of joint is typically used for copper water tubing? Answer: Soldered joint Explanation: Soldering creates a leak-proof metallic bond.
  4. What fixture requires an air gap rather than a mechanical backflow device? Answer: Dishwasher drain connection Explanation: Air gaps provide the highest level of backflow protection.
  5. What is the minimum burial depth to protect water service piping from freezing in cold climates? Answer: Below frost line Explanation: Depth varies locally but must prevent freezing.
  6. What component controls thermal expansion in a closed water system? Answer: Expansion tank

Explanation: Prevents excessive pressure buildup when water heats.

  1. What pipe system removes wastewater from fixtures to the sewer? Answer: Drainage system Explanation: Includes branch drains, stacks, and building drain.
  2. What is the purpose of a P-trap’s shape? Answer: Maintain water seal Explanation: The curved form retains water to block gases.
  3. What type of vent connects to a soil or waste stack above the highest fixture? Answer: Stack vent Explanation: Extends the stack to open air.
  4. What is the required minimum diameter for a water closet drain? Answer: 3 inches Explanation: Ensures adequate flow of solids.
  5. What device measures water consumption in a building? Answer: Water meter Explanation: Installed by the utility or authority.
  6. What is the primary function of a pressure-reducing valve? Answer: Lower incoming pressure Explanation: Protects fixtures and piping from excessive pressure.
  7. What type of pipe is commonly used for vent systems due to corrosion resistance and ease of installation?

Answer: Fixture unit sizing Explanation: Uses demand factors to size piping.

  1. What is required at the base of each vertical soil or waste stack? Answer: Cleanout Explanation: Provides access for maintenance.
  2. What fitting connects horizontal branch lines into a vertical stack at a 45-degree angle? Answer: Wye fitting Explanation: Promotes smooth flow into the stack.
  3. What component prevents siphoning of a water heater through the cold inlet? Answer: Heat trap Explanation: Also improves energy efficiency.
  4. What is the minimum diameter for a building water service pipe to a single-family home? Answer: 3/4 inch Explanation: Must supply peak demand adequately.
  5. What type of drain conveys clear water waste without fecal matter? Answer: Waste drain Explanation: Distinct from soil drains carrying human waste.
  6. What plumbing term describes contamination due to negative pressure? Answer: Backsiphonage Explanation: Occurs when supply pressure drops.
  1. What device is installed to remove sediment from water before distribution? Answer: Strainer Explanation: Protects valves and fixtures.
  2. What is required for accessibility of shutoff valves? Answer: Readily accessible location Explanation: Must be reachable without removing building parts.
  3. What pipe system carries rainwater from roofs? Answer: Storm drainage system Explanation: Separate from sanitary drainage in many jurisdictions.
  4. What is the purpose of a fixture tailpiece? Answer: Connect fixture outlet to trap Explanation: Short pipe section below the fixture.
  5. What plumbing component allows removal of a fixture without cutting pipe? Answer: Union fitting Explanation: Threaded connection separable in place.
  6. What test verifies drainage system integrity before use? Answer: Water test Explanation: System is filled to check for leaks.
  7. What condition occurs when waste discharges cause trap water to be pulled out? Answer: Siphonage Explanation: Leads to loss of trap seal.

Explanation: Indirect connection prevents backflow into potable water.

  1. What is the minimum slope for storm drainage piping 3 inches or larger? Answer: 1/8 inch per foot Explanation: Slight slope ensures proper runoff while avoiding excessive velocity.
  2. What type of valve is used to shut off water to individual fixtures for maintenance? Answer: Angle stop valve Explanation: Located at fixture supply, allows service without shutting main supply.
  3. What is the minimum trap size for a kitchen sink? Answer: 1 1/2 inches Explanation: Proper diameter prevents clogging and maintains water seal.
  4. What type of backflow prevention is required for high hazard connections? Answer: Reduced pressure principle backflow preventer (RPZ) Explanation: RPZ protects potable water from contaminants under both backpressure and backsiphonage.
  5. What is the maximum vertical distance a vent can rise before it must connect to a vent stack? Answer: 42 inches Explanation: Limits ensure fixture traps are properly ventilated.
  1. What component is required at the end of a vent terminating above the roof? Answer: Vent cap or flashing Explanation: Prevents debris entry while maintaining airflow.
  2. What type of joint is prohibited for underground water service piping? Answer: Threaded joint on PVC or copper Explanation: Underground systems require solvent, compression, or welded joints for durability.
  3. What is the primary purpose of a vent stack? Answer: Release sewer gases and maintain trap seal Explanation: Also allows air to enter drainage system for proper flow.
  4. What is the maximum number of fixture units allowed on a 3 - inch horizontal branch? Answer: 20 fixture units Explanation: Determined by UPC sizing tables for pipe capacity.
  5. What type of fitting is used to transition from vertical to horizontal in a soil stack with minimal turbulence? Answer: Long sweep 90° bend Explanation: Provides smoother flow than short 90° elbow.
  6. What device prevents thermal expansion from causing overpressure in a closed water heating system? Answer: Expansion tank Explanation: Absorbs pressure increases and protects piping and fixtures.
  1. What type of cleanout is installed on vertical soil stacks? Answer: Stack cleanout Explanation: Allows removal of blockages from main vertical piping.
  2. What is the required minimum slope for a 4-inch horizontal drainage pipe? Answer: 1/8 inch per foot Explanation: Ensures self-scouring velocity.
  3. What is the purpose of a trap primer? Answer: Maintain water in trap Explanation: Automatically replenishes water in traps subject to evaporation.
  4. What type of pipe supports potable water while resisting corrosion and scaling? Answer: Copper Explanation: Copper has a long lifespan and resists biofilm and scale.
  5. What fixture requires an air gap of at least 1 inch above the flood rim? Answer: Lavatory faucet Explanation: Prevents backflow contamination into potable water supply.
  6. What is the primary purpose of a check valve on a pump discharge? Answer: Prevent backflow into pump Explanation: Protects equipment and maintains system integrity.
  1. What minimum size must a soil stack be in a two-story dwelling? Answer: 3 inches Explanation: Ensures adequate flow of solids and liquid.
  2. What type of venting system is used for multiple fixtures on the same horizontal branch? Answer: Loop vent Explanation: Provides continuous ventilation for several fixtures.
  3. What type of pipe is prohibited for venting inside buildings? Answer: Cast iron unless specifically approved Explanation: Cast iron is heavy and difficult to slope; plastic preferred.
  4. What is the minimum distance between a water heater and combustible materials if unshielded? Answer: 6 inches Explanation: Prevents fire hazard; varies by appliance type.
  5. What device is installed at the end of a floor drain to allow odor-free operation? Answer: Trap Explanation: Water in trap prevents sewer gases from escaping.
  6. What fixture requires a temperature-controlled mixing valve in public facilities? Answer: Shower Explanation: Prevents scalding and complies with safety codes.
  7. What is the minimum water pressure required at fixtures for proper operation?
  1. What component is used to isolate a section of piping for maintenance without shutting down the entire system? Answer: Gate or ball valve Explanation: Allows selective shutoff.
  2. What type of piping is allowed for natural gas distribution within a building? Answer: CSST or black steel pipe Explanation: Approved for fuel gas systems per code.
  3. What is the maximum distance a vent can be installed from a trap for a 2-inch pipe? Answer: 5 feet Explanation: Ensures trap seal protection and prevents siphoning.
  4. What is the required minimum size of a vent stack serving multiple fixtures? Answer: 2 inches Explanation: Supports combined fixture units without pressure loss.
  5. What type of pipe connection is commonly used for copper water lines underground? Answer: Compression or flared Explanation: Avoids corrosion and allows maintenance.
  6. What is the purpose of an expansion loop in a long horizontal hot water line? Answer: Absorb thermal expansion Explanation: Prevents stress and joint failure.
  1. What type of water heater requires a relief valve to prevent overpressure? Answer: Closed tank water heater Explanation: Protects tank and piping from excessive pressure.
  2. What is the minimum size for a vertical waste stack in a single-family dwelling? Answer: 3 inches Explanation: Matches maximum fixture unit demand.
  3. What device is installed to prevent cross-connection in irrigation or landscape systems? Answer: Backflow preventer Explanation: Protects potable water from contamination.
  4. What is the minimum horizontal distance between a water service and a septic tank leach field? Answer: 10 feet Explanation: Prevents contamination and ensures safety.
  5. What fixture requires both an air gap and a vacuum breaker when connected to potable water? Answer: Commercial dishwasher Explanation: High hazard connection requires dual protection.
