This exam tests foundational knowledge for apprentices in industrial electrical work. It includes electrical theory, safety procedures, wiring techniques, code compliance, and use of tools. Candidates must demonstrate readiness to work under supervision on industrial electrical systems following Wisconsin electrical codes and safety standards.
Typology: Exams
1 / 184
This page cannot be seen from the preview
Don't miss anything!

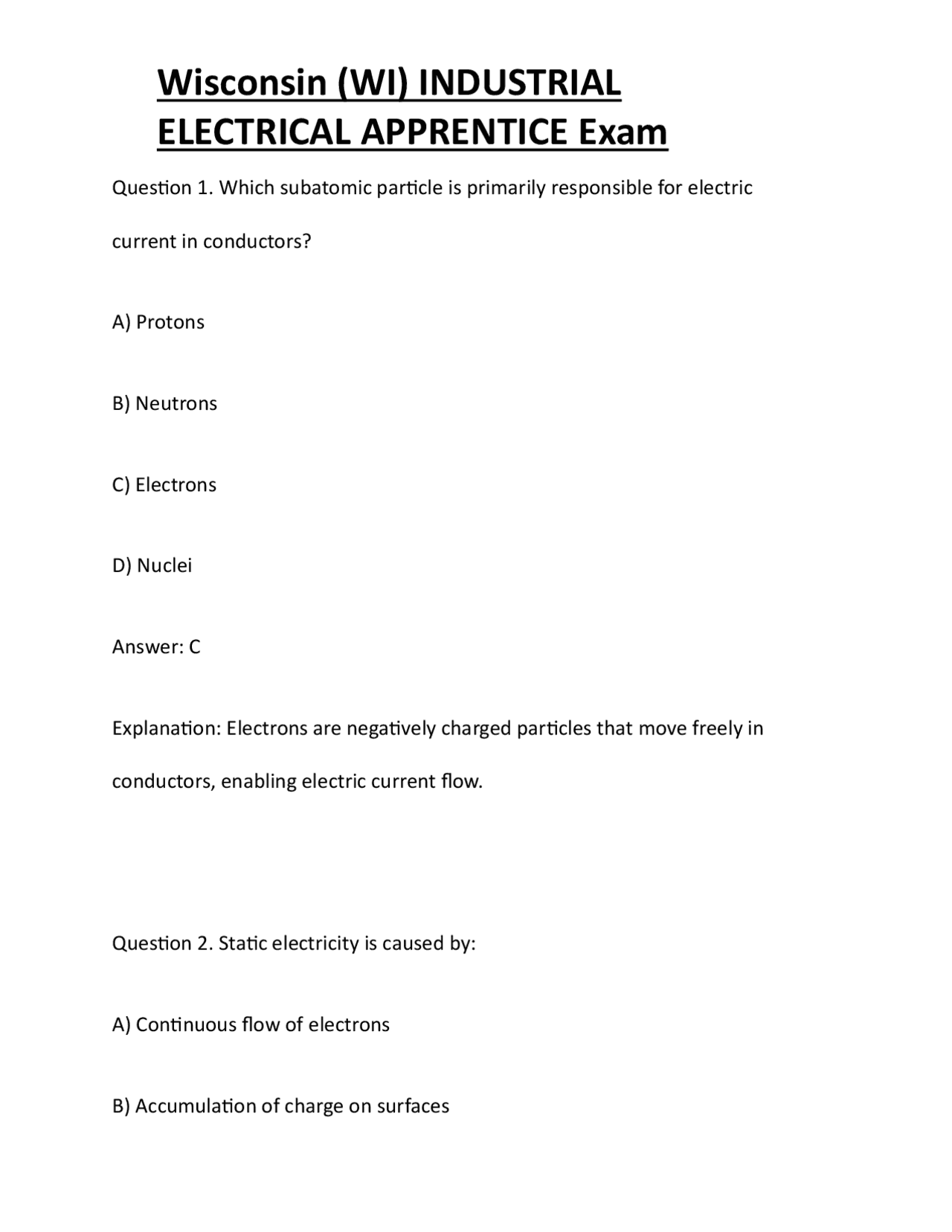

Question 1. Which subatomic particle is primarily responsible for electric current in conductors? A) Protons B) Neutrons C) Electrons D) Nuclei Answer: C Explanation: Electrons are negatively charged particles that move freely in conductors, enabling electric current flow. Question 2. Static electricity is caused by: A) Continuous flow of electrons B) Accumulation of charge on surfaces
C) Movement of ions in solution D) Magnetic fields interacting with metals Answer: B Explanation: Static electricity results from an imbalance of charges that accumulate on surfaces, not continuous current flow. Question 3. Which material is typically classified as an insulator? A) Copper B) Aluminum C) Rubber D) Silver Answer: C
Question 5. Power in an electrical circuit is calculated using Watt's Law as: A) P = V × I B) P = V / I C) P = I^2 × R D) P = V^2 / R Answer: A Explanation: Watt's Law states power (P) equals voltage (V) times current (I). Question 6. In a series circuit, the total resistance is: A) Less than any individual resistor B) The sum of all resistances C) The reciprocal of the sum of reciprocals
D) Independent of the resistors Answer: B Explanation: In series, resistances add up directly: R_total = R1 + R2 + R3... Question 7. Which statement about parallel circuits is correct? A) Voltage across all components is the same B) Total resistance increases as more branches are added C) Current divides among branches D) All of the above Answer: D Explanation: Parallel circuits have the same voltage across components, and the total resistance decreases as branches increase, with current dividing among branches.
B) Placing a magnet near a conductor C) Increasing resistance D) Using a static charge Answer: A Explanation: Passing current through a coil of wire generates a magnetic field, creating an electromagnet. Question 10. A chemical cell converts chemical energy into: A) Mechanical energy B) Electrical energy C) Nuclear energy D) Thermal energy
Answer: B Explanation: Chemical cells (batteries) produce electrical energy through chemical reactions. Question 11. The RMS value of a sine wave is approximately: A) 0.707 times the peak B) Equal to the peak C) Zero D) 1.414 times the peak Answer: A Explanation: RMS (Root Mean Square) value of a sine wave is roughly 0. times its peak value.
C) The cosine of the phase angle D) All of the above Answer: D Explanation: Power factor is the cosine of the phase angle and the ratio of real power to apparent power. Question 14. A single-phase power system supplies: A) Three-phase loads only B) One sinusoidal voltage C) Multiple sinusoidal voltages D) DC power only Answer: B
Explanation: Single-phase systems supply one sinusoidal voltage waveform. Question 15. A clamp-on ammeter is primarily used to measure: A) Voltage B) Resistance C) AC current without breaking the circuit D) Insulation resistance Answer: C Explanation: Clamp-on ammeters measure AC current directly by clamping around a conductor without disconnecting it. Question 16. Megohmmeters are used to test:
D) Power consumption Answer: B Explanation: Oscilloscopes display voltage waveforms over time, allowing analysis of shape, frequency, and phase. Question 18. Phase sequence testers determine: A) The magnitude of voltage B) The sequence of phases in a three-phase system C) The resistance of conductors D) The capacitance of a circuit Answer: B Explanation: They identify the order of phases (ABC or ACB) in a three-phase system.
Question 19. An energy meter primarily measures: A) Voltage B) Current C) Power consumption over time D) Resistance Answer: C Explanation: Energy meters record total energy consumed in kilowatt-hours over a period. Question 20. Earth resistance testers are used to measure: A) Ground conductor resistance
Answer: B Explanation: OSHA mandates Lockout/Tagout procedures to ensure circuits are de-energized before maintenance. Question 22. The purpose of a fuse in an electrical circuit is to: A) Limit voltage B) Protect against overcurrent C) Increase resistance D) Reduce power consumption Answer: B Explanation: Fuses protect circuits by melting and disconnecting when current exceeds safe limits.
Question 23. The main purpose of grounding in electrical systems is to: A) Provide a return path for current B) Protect equipment and personnel from faults C) Increase circuit resistance D) Reduce voltage levels Answer: B Explanation: Grounding provides a safe path for fault current, preventing shock hazards and equipment damage. Question 24. Conductors are sized based on: A) Their voltage rating B) Their ampacity
Explanation: Rigid Metal Conduit (RMC) is a metallic conduit used to protect wiring in industrial and commercial applications. Question 26. Rigid Metal Conduit (RMC) is typically used in: A) Residential wiring only B) Outdoor and industrial environments C) Underwater installations D) Low-voltage alarm systems only Answer: B Explanation: RMC provides durable, metallic protection suitable for outdoor and industrial settings. Question 27. The National Electrical Code (NEC) is primarily published by:
Answer: B Explanation: The NEC is published by the National Fire Protection Association (NFPA). Question 28. Article 430 of the NEC deals with: A) Grounding requirements B) Motors and motor circuits C) Lighting systems
