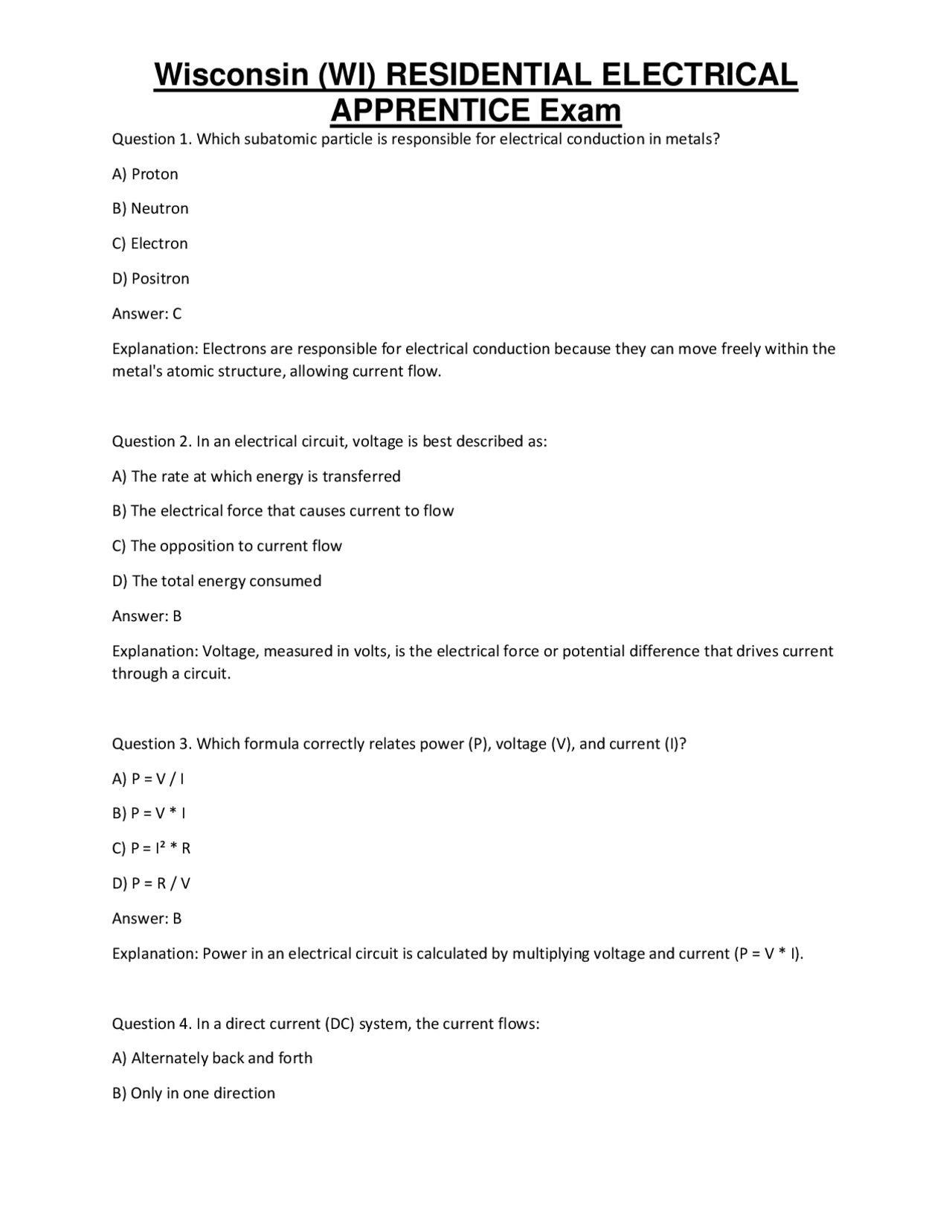

APPRENTICE Exam
Question 1. Which subatomic particle is responsible for electrical conduction in metals? A) Proton B) Neutron C) Electron D) Positron Answer: C Explanation: Electrons are responsible for electrical conduction because they can move freely within the metal's atomic structure, allowing current flow. Question 2. In an electrical circuit, voltage is best described as: A) The rate at which energy is transferred B) The electrical force that causes current to flow C) The opposition to current flow D) The total energy consumed Answer: B Explanation: Voltage, measured in volts, is the electrical force or potential difference that drives current through a circuit. Question 3. Which formula correctly relates power (P), voltage (V), and current (I)? A) P = V / I B) P = V * I C) P = I² * R D) P = R / V Answer: B Explanation: Power in an electrical circuit is calculated by multiplying voltage and current (P = V * I). Question 4. In a direct current (DC) system, the current flows: A) Alternately back and forth B) Only in one direction
APPRENTICE Exam
C) Randomly D) In a sinusoidal pattern Answer: B Explanation: Direct current (DC) flows steadily in one direction, unlike AC which alternates direction periodically. Question 5. The frequency of residential AC power in the United States is approximately: A) 50 Hz B) 60 Hz C) 100 Hz D) 120 Hz Answer: B Explanation: In the US, residential AC power operates at approximately 60 Hz, meaning the current reverses direction 60 times per second. Question 6. Which waveform characterizes AC power supply? A) Square wave B) Sine wave C) Triangular wave D) Sawtooth wave Answer: B Explanation: AC power is characterized by a sine wave, which smoothly oscillates between positive and negative values. Question 7. True power in an AC circuit is also known as: A) Reactive power B) Apparent power C) Real power D) Inductive power
APPRENTICE Exam
Question 11. When a magnetic field is applied around a conductor with changing current, what phenomenon occurs? A) Electromagnetic induction B) Resistance increase C) Voltage decrease D) Static electricity Answer: A Explanation: Changing magnetic fields induce voltage in conductors, a principle described by Faraday's Law of electromagnetic induction. Question 12. Which device operates based on electromagnetic induction to transform voltage levels? A) Resistor B) Transformer C) Capacitor D) Diode Answer: B Explanation: Transformers use electromagnetic induction to step voltage up or down in AC circuits. Question 13. The primary purpose of a multimeter is to measure: A) Only voltage B) Only resistance C) Voltage, current, and resistance D) Only current Answer: C Explanation: Multimeters can measure voltage, current, and resistance, making them versatile test instruments. Question 14. When using a multimeter to check continuity, a reading of zero ohms indicates:
APPRENTICE Exam
A) Open circuit B) Short circuit C) Closed circuit D) No connection Answer: C Explanation: Zero ohms indicates a continuous, low-resistance path, meaning the circuit is complete. Question 15. The purpose of a GFCI outlet is to: A) Protect against overloads B) Prevent electrical fires C) Protect people from electric shocks D) Suppress electromagnetic interference Answer: C Explanation: GFCIs detect ground faults and shut off power quickly, protecting users from electric shocks. Question 16. The NEC is primarily concerned with: A) Design aesthetics B) Electrical safety and installation standards C) Building insulation D) Plumbing codes Answer: B Explanation: The National Electrical Code (NEC) sets safety and installation standards for electrical systems. Question 17. In Wisconsin, local amendments to the NEC are enforced through: A) OSHA regulations B) Wisconsin Administrative Code (e.g., SPS 316) C) Local building codes only
APPRENTICE Exam
Explanation: Bending radius should be at least twice the conduit diameter to avoid damage and maintain conduit integrity. Question 21. Which type of circuit is characterized by the division of current among parallel branches? A) Series circuit B) Open circuit C) Parallel circuit D) Short circuit Answer: C Explanation: In a parallel circuit, current divides among branches, with voltage remaining the same across all branches. Question 22. When calculating the equivalent resistance of resistors in parallel, the formula is: A) R_total = R1 + R2 + R B) 1/R_total = 1/R1 + 1/R2 + 1/R C) R_total = (R1 * R2) / (R1 + R2) D) R_total = R1 * R2 * R Answer: B Explanation: The reciprocal of the total resistance in parallel is the sum of the reciprocals of individual resistances. Question 23. Kirchhoff's Voltage Law states that: A) The sum of current entering a junction equals that leaving B) The sum of the electromotive force and the voltage drops in a loop is zero C) Resistance is proportional to current D) Voltage drops are equal in all resistors in series Answer: B Explanation: KVL states that the sum of voltage rises and drops around a closed loop equals zero.
APPRENTICE Exam
Question 24. Electromagnetic induction can be utilized in which of the following devices? A) Resistor B) Transformer C) Diode D) Capacitor Answer: B Explanation: Transformers operate on electromagnetic induction to transfer energy between circuits at different voltage levels. Question 25. Which instrument is most appropriate for measuring AC voltage? A) Ammeter B) Voltmeter C) Ohmmeter D) Continuity tester Answer: B Explanation: A voltmeter is used to measure voltage, and when set to AC, it measures AC voltage accurately. Question 26. When performing a continuity test, a multimeter reading of "OL" indicates: A) Circuit is continuous B) Circuit is open C) There is a short D) Resistance is zero Answer: B Explanation: "OL" or overload indicates an open circuit, meaning no continuity exists. Question 27. Which safety device is designed to disconnect power quickly during a fault condition? A) Fuse B) Circuit breaker
APPRENTICE Exam
Answer: B Explanation: Grounding electrode conductors connect the electrical system to earth (ground), providing a reference point and safety path. Question 31. During rough-in wiring, the location of outlet boxes is determined by: A) Aesthetic preference B) Code requirements and load calculations C) Availability of conduit D) Personal choice Answer: B Explanation: Box placement must comply with NEC requirements and be based on circuit load and accessibility needs. Question 32. When installing a receptacle, the ground wire should be connected to: A) The brass screw B) The silver screw C) The green screw or grounding terminal D) The hot terminal Answer: C Explanation: The ground wire connects to the green grounding screw or terminal on the receptacle to ensure safety. Question 33. Which type of lighting fixture is most suitable for recessed lighting installations? A) Surface-mounted fixture B) Recessed or can light fixture C) Wall sconce D) Floor lamp Answer: B Explanation: Recessed or can light fixtures are designed to be installed within ceilings, providing a clean appearance.
APPRENTICE Exam
Question 34. To wire a 240V appliance, the circuit must include: A) Two hot conductors and a neutral B) Two hot conductors and a ground C) One hot, one neutral, and a ground D) One hot and one neutral Answer: B Explanation: 240V appliances typically require two hot conductors and a ground; they do not use a neutral unless specified. Question 35. The purpose of a device's "box fill calculation" is to determine: A) How much wire is needed B) The number of conductors that can be safely placed in a box C) The size of the breaker D) The total length of wire in the circuit Answer: B Explanation: Box fill calculations ensure the box is not overcrowded, preventing damage and maintaining safety. Question 36. In residential wiring, the term "service entrance" refers to: A) The point where electrical power enters the building B) The internal wiring of the electrical panel C) The wiring from the panel to individual outlets D) The grounding system Answer: A Explanation: The service entrance is where utility power connects to the building's electrical system, typically at the meter base. Question 37. Which of the following is NOT a typical material used for conduit in residential wiring?
APPRENTICE Exam
D) Safety glasses only Answer: A Explanation: Insulated gloves provide protection against electric shock when working on energized circuits. Question 41. Ladder safety in electrical work includes: A) Using a wooden ladder only B) Ensuring the ladder is stable and on a level surface C) Climbing with tools in hand at all times D) Standing on the top rung for better reach Answer: B Explanation: Proper ladder safety involves stability, proper placement, and avoiding unsafe positions such as the top rung. Question 42. To prevent accidental contact with energized parts, it is important to: A) Use insulated tools B) Keep the work area cluttered C) Work without PPE D) Use only low-voltage circuits Answer: A Explanation: Insulated tools and proper procedures reduce the risk of electrical shock during work. Question 43. OSHA regulations require that electrical panels have: A) No clearance requirements B) At least 3 feet of working space in front and 30 inches wide C) Only minimal clearance D) No barriers or barriers only on the sides Answer: B
APPRENTICE Exam
Explanation: OSHA mandates a minimum of 3 feet of clear working space in front of electrical panels for safe access. Question 44. When installing GFCIs, the device should be connected so that: A) The line side is connected to the load terminals B) The load side is connected to the line terminals C) Line and load are interchangeable D) It does not matter how they are connected Answer: A Explanation: GFCIs are wired with the line side connected to incoming power; the load side supplies protected outlets. Question 45. Which of the following is a common cause of electrical shock in residential wiring? A) Proper grounding B) Damaged insulation C) Correct wiring techniques D) Use of GFCIs Answer: B Explanation: Damaged insulation can expose conductors, increasing the risk of shock. Question 46. In residential wiring, the term "rough-in" refers to: A) Final installation of fixtures B) Initial wiring phase before wall coverings are installed C) Testing and troubleshooting D) Inspection and approval Answer: B Explanation: Rough-in involves installing wiring, boxes, and conduit before finishing surfaces are completed.
APPRENTICE Exam
B) Decide the color of wiring C) Select the location of receptacles D) Calculate the cost of materials Answer: A Explanation: Load calculations ensure wiring and protective devices are appropriately rated for the expected electrical demand. Question 51. Which of the following is a typical safety requirement when working in confined spaces? A) No ventilation needed B) Use of PPE and proper ventilation C) Working alone is recommended D) No special precautions are necessary Answer: B Explanation: Confined spaces require proper ventilation and PPE to prevent hazards like asphyxiation or electric shock. Question 52. Which device is designed to protect against arc faults? A) GFCI B) AFCI C) Circuit breaker D) Fuse Answer: B Explanation: Arc Fault Circuit Interrupters (AFCIs) detect arc faults and disconnect power to prevent fires. Question 53. To ensure safe operation, receptacles installed outdoors must be: A) Weather-resistant and GFCI protected B) Only GFCI protected C) Only weatherproof
APPRENTICE Exam
D) No special requirements Answer: A Explanation: Outdoor receptacles need to be weather-resistant and GFCI protected to withstand environmental conditions and prevent shock. Question 54. Which of the following is a common cause of overcurrent in residential circuits? A) Using proper fuses B) Short circuits and overloads C) Correct grounding D) Using GFCIs Answer: B Explanation: Short circuits and overloads cause excessive current, which can damage wiring and equipment. Question 55. A transformer steps down voltage from 120V to 12V with a turns ratio of: A) 1: B) 10: C) 1: D) 120: Answer: A Explanation: A turns ratio of 1:10 indicates the primary voltage is 120V, and the secondary is 12V, corresponding to a step-down transformer. Question 56. Which of the following best describes "conduit fill"? A) The amount of current a conduit can carry B) The total cross-sectional area occupied by conductors in a conduit C) The length of conduit needed for a run D) The number of bends allowed in conduit Answer: B
APPRENTICE Exam
Question 60. To calculate the conduit fill percentage, you need to know: A) The number and size of conductors B) The length of the conduit C) The voltage of the system D) The power factor Answer: A Explanation: Conduit fill calculations depend on the number and size of conductors to ensure proper sizing and heat dissipation. Question 61. Which of the following tools is used to measure insulation resistance? A) Clamp meter B) Megohmmeter (Insulation Resistance Tester) C) Continuity tester D) Voltage tester Answer: B Explanation: A megohmmeter, or insulation resistance tester, measures the insulation resistance of wiring and devices. Question 62. The purpose of a "lockout/tagout" procedure is to: A) Prevent unauthorized access B) Protect workers from accidental energization during maintenance C) Secure tools D) Prevent theft Answer: B Explanation: Lockout/tagout procedures ensure circuits are de-energized and cannot be turned on unexpectedly during maintenance. Question 63. Which is true about AFCIs? A) They detect ground faults
APPRENTICE Exam
B) They protect against arc faults C) They are only used in commercial installations D) They replace circuit breakers Answer: B Explanation: AFCIs detect arc faults, which can cause fires, and disconnect power to prevent hazards. Question 64. The "6/12 rule" for receptacle spacing states that: A) Receptacles should be installed every 6 feet in every room B) Receptacles should be spaced so that no point along the wall is more than 12 inches from a receptacle C) Receptacles should be installed every 12 feet in hallways only D) Receptacles are only needed in bedrooms Answer: B Explanation: The 6/12 rule ensures receptacles are placed so that no point along the wall is more than 12 inches from a receptacle, promoting safety and convenience. Question 65. When calculating load for a dwelling, the general lighting load per NEC is typically: A) 3 VA per square foot B) 1 VA per square foot C) 2 VA per square foot D) 5 VA per square foot Answer: A Explanation: NEC recommends a general lighting load of 3 volt-amperes (VA) per square foot for dwelling units. Question 66. Which device is used to disconnect the power supply to an individual circuit? A) Main breaker B) Branch circuit breaker C) Switch
