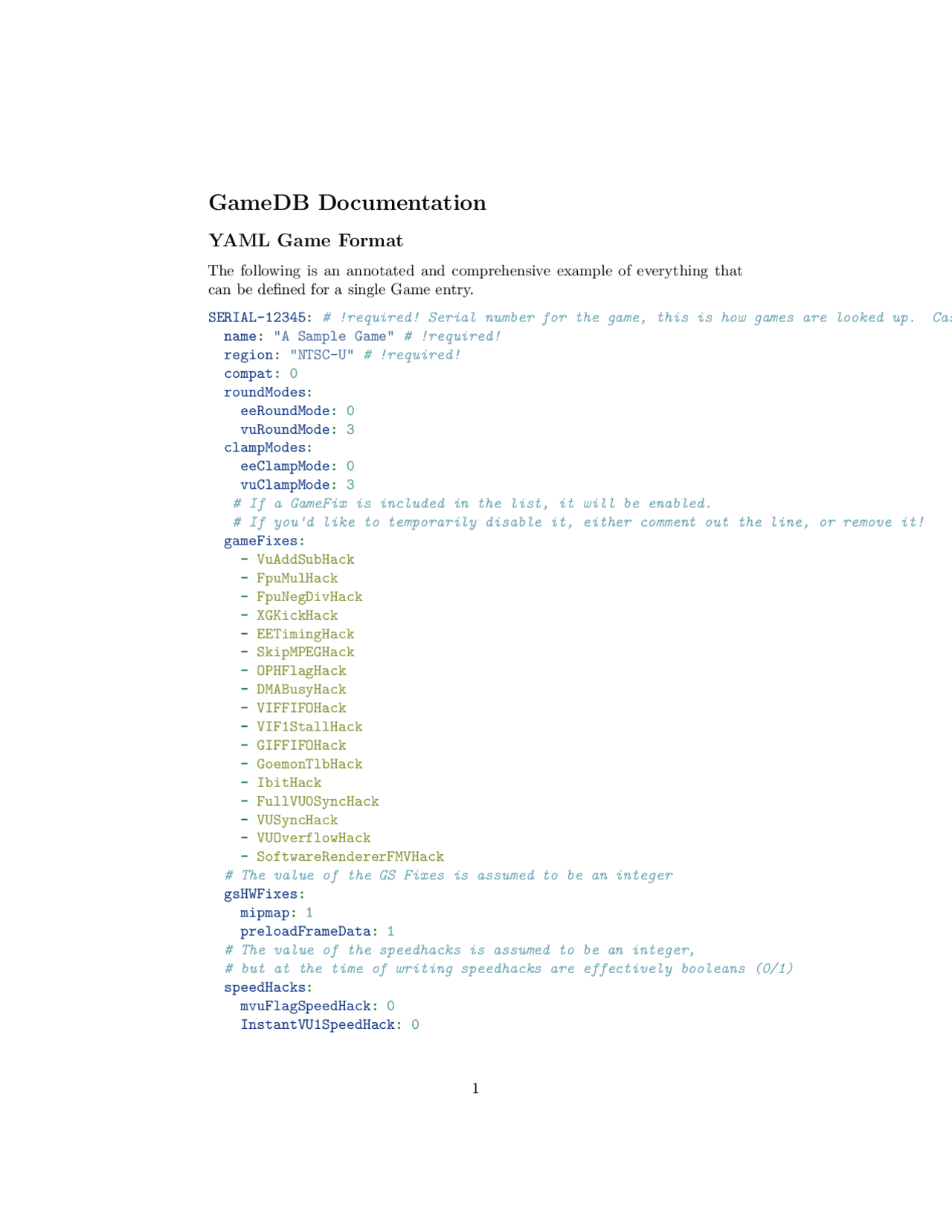

GameDB Documentation
YAML Game Format
The following is an annotated and comprehensive example of everything that can be defined for a single Game entry. SERIAL-12345 : # !required! Serial number for the game, this is how games are looked up. Cas name : "A Sample Game" # !required! region : "NTSC-U" # !required! compat : 0 roundModes : eeRoundMode : 0 vuRoundMode : 3 clampModes : eeClampMode : 0 vuClampMode : 3 _# If a GameFix is included in the list, it will be enabled.
If you'd like to temporarily disable it, either comment out the line, or remove it!_
gameFixes :
- VuAddSubHack - FpuMulHack - FpuNegDivHack - XGKickHack - EETimingHack - SkipMPEGHack - OPHFlagHack - DMABusyHack - VIFFIFOHack - VIF1StallHack - GIFFIFOHack - GoemonTlbHack - IbitHack - FullVU0SyncHack - VUSyncHack - VUOverflowHack - SoftwareRendererFMVHack # The value of the GS Fixes is assumed to be an integer gsHWFixes : mipmap : 1 preloadFrameData : 1 _# The value of the speedhacks is assumed to be an integer,
but at the time of writing speedhacks are effectively booleans (0/1)_
speedHacks : mvuFlagSpeedHack : 0 InstantVU1SpeedHack : 0
memcardFilters :
- "SERIAL-123" - "SERIAL-456" # You can define multiple patches, but they are identified by the CRC. patches : default : # Default CRC! content : |- # !required! This allows for multi-line strings in YAML, this type preserv comment=Sample Patch patch=1,EE,00000002,word, crc123 : # Specific CRC Patch! content : |- comment=Another Sample patch=1,EE,00000001,word, Note that quoting strings in YAML is optional, but certain charac- ters are reserved like ‘*’ and require the string to be quoted. Be aware / use a YAML linter to avoid confusion.
A Note on Case Sensitivity
Both the serial numbers for the games, and the CRC patches are at the moment not case-sensitive and will be looked up with their lowercase representations. However, stylistically, uppercase is preferred and may be enforced and migrated to in the future.
For example:
- SLUS-123 will be stored and looked up in the GameDB as slus-
- Likewise, a CRC with upper-case hex 23AF6876 will be stored and looked up as 23af
However, YAML is case-sensitive and will allow multiple serials that only differ on casing. To prevent mistakes, this will also throw a validation error where the first entry will be the one that wins.
Everything else can be safely assumed to be case sensitive!
Compatibility
compat can be set to the following values:
- 0 = Unknown Compatibility Status
- 1 = Nothing
- 2 = Intro
- 3 = Menu
- 4 = In-game
- 5 = Playable
- 6 = Perfect
GS Hardware General Fixes
- beforeDraw {OI with suffix } {None unless specific game GSC} Default: Automatic (No value, looks up GameDB) with valid variable name (ex. OI_BurnoutGames)
- afterDraw {OO with suffix } {None unless specific game GSC} Default: Automatic (No value, looks up GameDB) with valid variable name
- conservativeFramebuffer [ 0 or 1 ] {Off or On} Default: On ( 1 )
- texturePreloading [ 0 or 1 or 2 ] {None, Partial or Full Hash Cache} Default: None ( 0 )
- deinterlace [Value between 0 to 9 ] {Automatic, Off, WeaveTFF, WeaveBFF, BobTFF, BobBFF, BlendTFF, BlendBFF, AdaptiveTFF, AdaptiveBFF} Default: Automatic (No value, looks up GameDB)
GS Hardware Renderer Fixes
- autoFlush [ 0 or 1 or 2 ] {Disabled, Enabled (Sprites Only), Enabled (All Primitives)} Default: Off ( 0 )
- disableDepthSupport [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- disablePartialInvalidation [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- cpuFramebufferConversion [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- preloadFrameData [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- textureInsideRT [ 0 or 1 ] {Disabled, Inside Targets, Merge Targets} De- fault: Off ( 0 )
- PCRTCOverscan [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- cpuCLUTRender [ 0 or 1 or 2 ] {Disabled, Normal, Aggressive} Default: Disabled ( 0 )
- cpuSpriteRenderBW [Value between 0 to 10 ] {Disabled, 1 (64), 2 (128), 3 (192), 4 (256), 5 (320), 6 (384), 7 (448), 8 (512), 9 (576), 10 (640)} Default: Off ( 0 )
- cpuSpriteRenderLevel [ 0 or 1 or 2 ] {Sprites only, Sprites/Triangles, Blended Sprites/Triangles} Default: Off unless cpuSpriteRenderBW has value other than Off then it is ‘Sprites only’ ( 0 )
- estimateTextureRegion [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- getSkipCount {GSC with suffix } {None unless specific game GSC} Default: Disabled ( 0 ) unless valid variable name (ex. GSC_PolyphonyDigitalGames, GSC_UrbanReign, …)
- gpuPaletteConversion [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- gpuTargetCLUT [ 0 or 1 or 2 ] {Disabled, Enabled (Exact Match), Enabled (Check Inside Target)} Default: Disabled ( 0 )
- minimumBlendingLevel [ 0 or 1 or 2 or 3 or 4 or 5 ] {Minimum, Basic, Medium, High, Full(Slow), Maximum (Very Slow)} Default: Automatic (No value, looks up GameDB)
- maximumBlendingLevel [ 0 or 1 or 2 or 3 or 4 or 5 ] {Minimum, Basic, Medium, High, Full(Slow), Maximum (Very Slow)} Default: Automatic (No value, looks up GameDB)
- recommendedBlendingLevel [ 0 or 1 or 2 or 3 or 4 or 5 ] {Minimum, Basic, Medium, High, Full(Slow), Maximum (Very Slow)} Default: Automatic (No value, looks up GameDB)
- readTCOnClose [ 0 or 1 ] {Off, On} Default: Off ( 0 ) // Tab 3 Hardware Fixes (4th checkbox on right row 2)
GS Hardware Upscaling Fixes
- alignSprite [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- mergeSprite [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- forceEvenSpritePosition [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- bilinearUpscale [ 0 or 1 or 2 ] {Automatic, Force Bilinear, Force Nearest} Default: Automatic
- skipDrawStart [Value between 0 to 10000 ] {0-10000} Default: Off ( 0 )
- skipDrawEnd [Value between 0 to 10000 ] {0-10000} Default: Off ( 0 )
- halfPixelOffset [ 0 or 1 or 2 or 3 or 4 ] {Off, Normal Vertex, Special (Tex- ture), Special (Texture Aggressive), Align to Native} Default: Off ( 0 )
- nativePaletteDraw [ 0 or 1 ] {Off, On} Default: Off ( 0 )
- roundSprite [ 0 or 1 or 2 ] {Off, Half or Full} Default: Off ( 0 )
Game Fixes
These values are case-sensitive, so take care. If you incorrectly specify a Game- Fix, you will get a validation error on startup. Any invalid game-fixes will be dropped from the game’s list of fixes.
Game Fixes Options
- FpuMulHack - For Tales of Destiny: This fix addresses hanging issues.
- SoftwareRendererFMVHack - Used for complex FMV rendering in certain games.
- SkipMPEGHack - Prevents game hanging/freezing by skipping videos/FMVs.
- GoemonTlbHack - Preload TLB hack to prevent TLB miss on Goemon.
- EETimingHack - General-purpose timing hack affecting Digital Devil Saga, SSX, and others.
- InstantDMAHack - Resolves cache emulation problems, affecting games like Fire Pro Wrestling Z.
- OPHFlagHack - Affects games like Bleach Blade Battlers, Growlanser II and III, Wiz- ardry.
- GIFFIFOHack
- Games such as PaRappa the Rapper 2 need VU1 to sync, so you can force sync with this parameter.
Memory Card Filter Override
By default, the FolderMemoryCard filters save games based on the game’s serial, which means that only saves whose folder names contain the game’s serial are loaded.
This works fine for the vast majority of games, but fails in some cases, which this override is for. ** ’Examples include multi-disc games, where later games often reuse the serial of the previous disc(s) - and games that allow transfer of savedata between different games, such as importing data from a prequel. This can unlock certain content ranging from cosmetic features (gear/ visual costume) to mechanics (early unlock of weapons). These are not needed with file memcards as they don’t hide the serials or outside date from the game itself nor its save memcard. ** Values should be specified as a list of strings, example shown above.
Patches
The patch that corresponds to the running game’s CRC will take precedence over the default. Multiple patches using the same CRC cannot be defined and this will throw a validation error. CRCs are case-insensitive, however uppercase is preferred stylisti- cally! Patches should be defined as multi-line string blocks, where each line would correspond with a line in a conventional *.pnach file For more information on how to write a patch, see the following forum post
Editor Tooling
We provide a JSON Schema for the GameDB’s format. You can use this to validate the file, and assist in writing it properly.
VSCode Integration If you use VSCode and you want it to properly lint the GameIndex.yaml file you should:
- Download the YAML extension - https://marketplace.visualstudio.com/i tems?itemName=redhat.vscode-yaml
- Add the following to your settings:
"yaml.schemas": { "https://raw.githubusercontent.com/PCSX2/pcsx2/master/pcsx2/Docs/gamedb-schema.json": "**/ } ,
