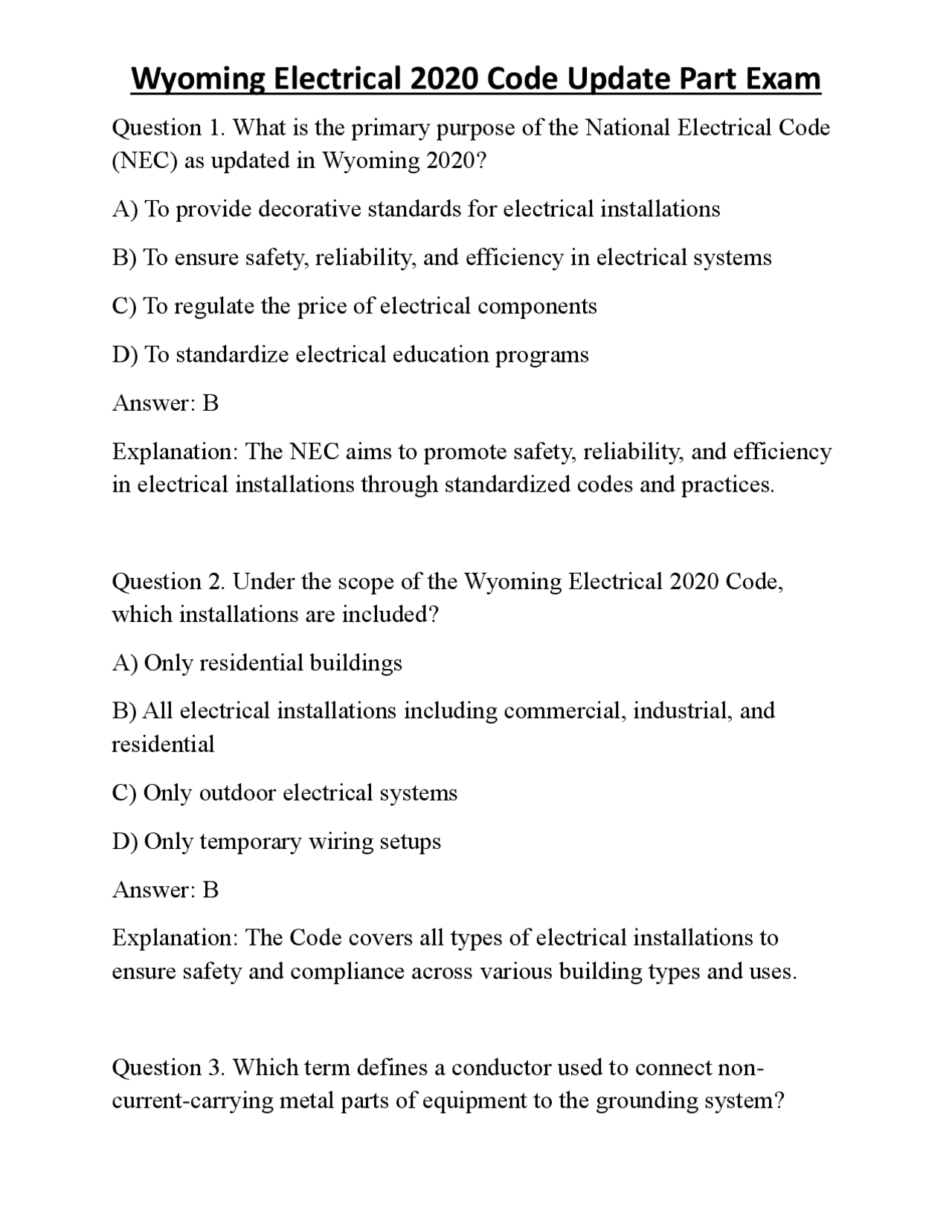

Question 1. What is the primary purpose of the National Electrical Code (NEC) as updated in Wyoming 2020? A) To provide decorative standards for electrical installations B) To ensure safety, reliability, and efficiency in electrical systems C) To regulate the price of electrical components D) To standardize electrical education programs Answer: B Explanation: The NEC aims to promote safety, reliability, and efficiency in electrical installations through standardized codes and practices. Question 2. Under the scope of the Wyoming Electrical 2020 Code, which installations are included? A) Only residential buildings B) All electrical installations including commercial, industrial, and residential C) Only outdoor electrical systems D) Only temporary wiring setups Answer: B Explanation: The Code covers all types of electrical installations to ensure safety and compliance across various building types and uses. Question 3. Which term defines a conductor used to connect non- current-carrying metal parts of equipment to the grounding system?
A) Hot wire B) Grounding conductor C) Neutral conductor D) Protective conductor Answer: D Explanation: The protective conductor (grounding conductor) connects metal parts to the grounding system to prevent shock hazards. Question 4. Which wiring method is characterized by a nonmetallic sheathed cable used predominantly in residential wiring? A) Armored cable (Type AC) B) Nonmetallic Sheathed Cable (Type NM) C) Rigid Metal Conduit (RMC) D) Liquidtight Flexible Metal Conduit (LFMC) Answer: B Explanation: Type NM cable is a nonmetallic sheathed cable commonly used in residential wiring due to its ease of installation and flexibility. Question 5. What is the main advantage of using armored cable (Type AC)? A) It is the least expensive wiring method B) It provides enhanced mechanical protection
D) Cable Trays Answer: B Explanation: LFMC is flexible and designed to accommodate movement, vibration, or bending in wiring runs. Question 8. When installing conductors in raceways, what is the maximum number of current-carrying conductors allowed before applying correction factors? A) Three conductors B) Four conductors C) Six conductors D) Nine conductors Answer: A Explanation: The NEC allows up to three current-carrying conductors in a raceway without derating; more than three requires correction factors. Question 9. What is the purpose of a grounding electrode system? A) To provide a path for normal current flow B) To connect all non-current-carrying metal parts to earth for safety C) To serve as the main power source D) To insulate conductors from the ground Answer: B
Explanation: The grounding electrode system connects the building's grounding system to earth, providing a path for fault currents and enhancing safety. Question 10. Which type of overcurrent protection device is typically used for branch circuit protection in residential installations? A) Fuses B) Circuit Breakers C) Ground Fault Circuit Interrupters (GFCIs) D) Surge Protectors Answer: B Explanation: Circuit breakers are commonly used in residential branch circuits for overcurrent protection due to their reusability and reliability. Question 11. What is the main function of a circuit breaker? A) To increase current flow B) To disconnect electrical supply during overload or short circuit C) To reduce voltage D) To act as a fuse with a fixed lifespan Answer: B Explanation: Circuit breakers automatically disconnect power during overloads or short circuits to prevent damage and hazards.
Question 14. Which of the following is a significant feature of a cable tray system? A) It is completely enclosed and protects conductors from environmental elements B) It provides an open, accessible pathway for multiple conductors in large installations C) It is used exclusively outdoors D) It is a type of rigid metal conduit Answer: B Explanation: Cable trays provide an open pathway for multiple cables, facilitating easy installation and maintenance in large systems. Question 15. Which wiring method is most suitable for applications requiring flexibility and vibration resistance in commercial settings? A) Rigid Metal Conduit (RMC) B) Liquidtight Flexible Metal Conduit (LFMC) C) Electrical Nonmetallic Tubing (ENT) D) Cable Trays Answer: B Explanation: LFMC offers flexibility and vibration resistance, making it suitable for dynamic environments.
Question 16. What is the primary consideration when selecting conductors for general wiring? A) Color and appearance B) Ampacity and allowable current capacity C) Cost only D) Length of wire Answer: B Explanation: The ampacity of conductors determines how much current they can safely carry without overheating. Question 17. Which of the following is an NEC requirement for overcurrent protection of conductors? A) Conductors must always be protected by fuses only B) Overcurrent protection devices must be rated equal to or less than the conductor’s ampacity C) Conductors do not require overcurrent protection if they are insulated D) Overcurrent protection is only necessary in outdoor installations Answer: B Explanation: Overcurrent devices must be rated to protect conductors from overloads and short circuits, adhering to the conductor’s ampacity. Question 18. Which component is used to protect electrical circuits from overcurrent and short circuits?
C) They cannot be used in outdoor environments D) They are the same as conduit systems Answer: B Explanation: Flexible cords and cables are designed for portable or movable equipment, providing flexibility and ease of connection. Question 21. Which type of lighting fixture is described as being designed for outdoor or damp locations? A) Incandescent fixtures B) Weatherproof lighting fixtures C) Fluorescent fixtures D) Decorative chandeliers Answer: B Explanation: Weatherproof fixtures are designed to withstand outdoor elements and damp conditions, ensuring safety and durability. Question 22. What is a key requirement for electrical receptacles in wet or damp locations? A) They must be installed indoors only B) They must be weatherproof and GFCI protected C) They require no special protection D) They should be mounted higher than 6 feet from the ground
Answer: B Explanation: Receptacles in wet or damp locations must be weatherproof and GFCI protected to prevent electrical shock hazards. Question 23. Which type of occupancy has specific wiring requirements due to potential hazards or special needs? A) Residential only B) Hazardous (Classified) Locations C) Commercial buildings only D) Outdoor recreational areas only Answer: B Explanation: Hazardous locations require specific wiring methods and protections due to the presence of flammable or explosive atmospheres. Question 24. Which classification includes locations where ignitable concentrations of flammable gases or vapors are present? A) Class I B) Class II C) Class III D) Class IV Answer: A
Question 27. Which system is designed to automatically disconnect power during an emergency? A) Low-voltage system B) Emergency System C) Communication system D) Energy storage system Answer: B Explanation: Emergency systems provide immediate power disconnection or backup during emergencies to ensure safety. Question 28. What is a common feature of a legally required standby system? A) It is optional and only used in industrial plants B) It provides power to essential systems during main power failure C) It is used solely for lighting in outdoor areas D) It replaces the main electrical system permanently Answer: B Explanation: Legally required standby systems supply power to critical loads during outages, ensuring safety and operation continuity. Question 29. Which system is used to distribute signals and data in modern buildings?
A) Power distribution system B) Communications system C) Lighting system D) Emergency backup system Answer: B Explanation: Communications systems handle data, voice, and signals within buildings for operational and safety purposes. Question 30. What does a community antenna television (CATV) distribution system do? A) Distributes electrical power B) Distributes television and radio signals to multiple outlets C) Provides internet connectivity only D) Supplies potable water Answer: B Explanation: CATV systems distribute television and radio signals throughout a community or building. Question 31. Which table property details the allowable current for conductors based on material and insulation type? A) Conductor Properties Table B) Ampacity Tables
Answer: B Explanation: This table helps in selecting conduit sizes based on the number of conductors and physical space considerations. Question 34. What is the purpose of a box fill calculation? A) To determine the number of conductors in a conduit B) To calculate the total volume occupied by conductors in an electrical box C) To specify the length of conductors needed for a project D) To calculate the electrical load of a circuit Answer: B Explanation: Box fill calculations ensure that the electrical box is not overfilled, complying with safety and code requirements. Question 35. Which type of wiring method is generally acceptable for underground residential distribution? A) Rigid Metal Conduit (RMC) B) Nonmetallic Sheathed Cable (Type NM) C) Liquidtight Flexible Nonmetallic Conduit (LFNC) D) Underground Feeder (UF) cable Answer: D
Explanation: UF cable is specifically designed for underground use, offering protection against moisture and mechanical damage. Question 36. Which component is essential for the operation of a motor controller? A) Fuse only B) Overload protection device C) Lighting fixture D) Grounding rod Answer: B Explanation: Overload protection devices prevent motor damage during excessive current conditions, ensuring safe operation. Question 37. Which type of transformer is typically used for step-down applications in residential settings? A) Power Transformer B) Distribution Transformer C) Isolated Transformer D) Variable Transformer Answer: B Explanation: Distribution transformers step down high voltage to usable levels for residential and commercial use.
A) No special requirements B) Use of isolated circuits and dedicated outlets for critical equipment C) Use of only metallic conduits D) Wiring only in outdoor locations Answer: B Explanation: Health care facilities require dedicated circuits and isolation to ensure reliability and safety for sensitive equipment. Question 41. What is a defining feature of a Type I hazardous location? A) Presence of combustible dust B) Presence of flammable gases or vapors C) Presence of easily ignitable fibers D) No special hazards Answer: B Explanation: Type I locations involve flammable gases or vapors, demanding explosion-proof wiring and equipment. Question 42. Which type of equipment is typically used in a Class III hazardous location? A) Equipment designed to prevent ignition of dust or fibers B) Equipment for high-voltage transmission only C) Standard residential wiring
D) Outdoor lighting fixtures only Answer: A Explanation: Class III locations involve fibers or flyings that can ignite, requiring specialized wiring and equipment. Question 43. Which occupancy type includes temporary installations like construction sites? A) Permanent buildings B) Temporary Installations C) Manufacturing facilities D) Residential homes Answer: B Explanation: Temporary installations are used in construction, events, or temporary setups, requiring specific codes for safety. Question 44. Which system is designed to provide backup power during main power failure? A) Emergency System B) Legally Required Standby System C) Optional Standby System D) Power Distribution System Answer: B
