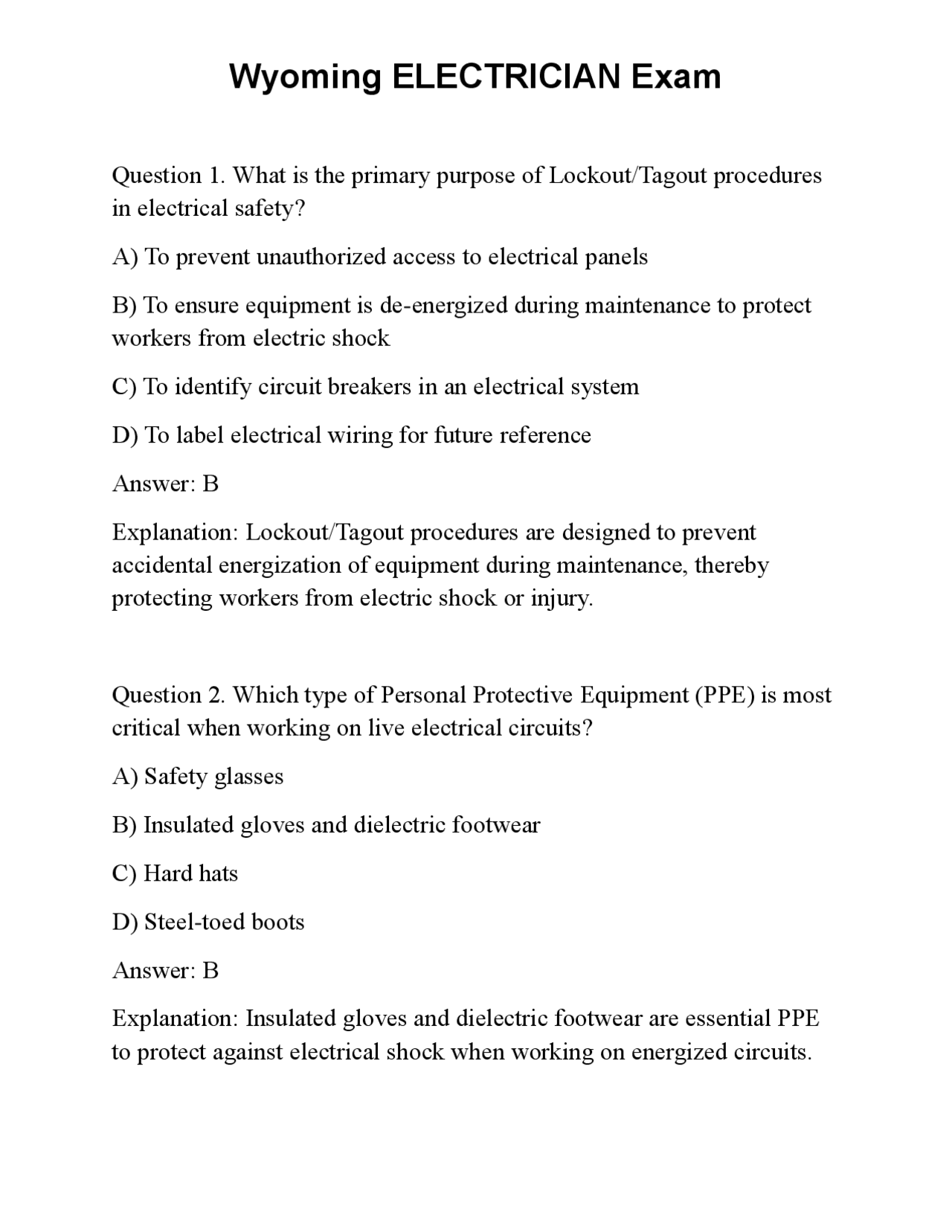

Question 1. What is the primary purpose of Lockout/Tagout procedures in electrical safety? A) To prevent unauthorized access to electrical panels B) To ensure equipment is de-energized during maintenance to protect workers from electric shock C) To identify circuit breakers in an electrical system D) To label electrical wiring for future reference Answer: B Explanation: Lockout/Tagout procedures are designed to prevent accidental energization of equipment during maintenance, thereby protecting workers from electric shock or injury. Question 2. Which type of Personal Protective Equipment (PPE) is most critical when working on live electrical circuits? A) Safety glasses B) Insulated gloves and dielectric footwear C) Hard hats D) Steel-toed boots Answer: B Explanation: Insulated gloves and dielectric footwear are essential PPE to protect against electrical shock when working on energized circuits.
Question 3. What is an arc flash hazard, and why is it dangerous? A) A type of fire caused by electrical wiring faults B) A sudden release of electrical energy that can cause burns, blindness, or death C) A harmless electrical discharge D) A visual indicator of electrical overload Answer: B Explanation: An arc flash is a dangerous release of energy resulting from an electrical fault, producing intense heat and light that can cause severe burns, blindness, or death. Question 4. Which first aid step is most appropriate for an electrical shock victim? A) Move the victim immediately to fresh air if they are in contact with live equipment B) Cover the burns with a sterile dressing and seek medical assistance C) Do nothing until emergency services arrive D) Administer oral fluids to the victim Answer: B Explanation: For electrical burns, applying a sterile dressing and seeking medical help is critical, as electrical shock can cause internal injuries and burns.
Question 7. In atomic structure, which subatomic particle carries a negative charge? A) Proton B) Neutron C) Electron D) Nucleus Answer: C Explanation: Electrons are negatively charged subatomic particles that orbit the nucleus of an atom. Question 8. According to Ohm's Law, if voltage remains constant and resistance increases, what happens to current? A) Increases B) Decreases C) Remains unchanged D) Becomes zero Answer: B Explanation: Ohm's Law states I = V/R; increasing resistance while voltage stays the same results in decreased current.
Question 9. How is electrical power calculated in a circuit? A) Power = Voltage × Resistance B) Power = Voltage / Current C) Power = Voltage × Current D) Power = Resistance / Voltage Answer: C Explanation: Power (Watts) in an electrical circuit is calculated as the product of voltage and current (P = V × I). Question 10. In a series circuit, what happens to the total resistance when additional resistors are added? A) Resistance decreases B) Resistance increases C) Resistance remains the same D) Resistance becomes zero Answer: B Explanation: Adding resistors in series increases the total resistance because resistances sum up. Question 11. How does voltage behave across components in a parallel circuit?
C) Transformation of electric energy into thermal energy D) Dissipation of magnetic fields in conductors Answer: B Explanation: Electromagnetism refers to the magnetic fields generated by electric currents. Question 14. Which device measures the resistance of an electrical component? A) Multimeter (Ohmmeter function) B) Circuit tracer C) GFCI tester D) Phase rotation meter Answer: A Explanation: A multimeter in resistance mode (ohmmeter) measures the resistance of electrical components. Question 15. When testing for continuity, what indicates a complete circuit? A) No reading on the tester B) A beep or light indicating continuity C) A high resistance reading
D) No change in the multimeter display Answer: B Explanation: Continuity testers emit a beep or light when a complete path exists, indicating low or zero resistance. Question 16. Which tool is used to determine the phase rotation of three- phase systems? A) Multimeter B) Megohmmeter C) Phase rotation meter D) GFCI tester Answer: C Explanation: A phase rotation meter identifies the sequence of phases in three-phase systems. Question 17. In the NEC, what is the purpose of Chapter 2 regarding wiring and protection? A) To specify grounding procedures B) To establish requirements for circuit overcurrent protection and wiring methods C) To provide rules for electrical load calculations
Answer: B Explanation: Overcurrent devices like circuit breakers and fuses protect conductors and equipment from damage caused by excessive current. Question 20. How are grounding electrodes typically connected to the electrical system? A) Using grounding electrode conductors B) Via uninsulated conductors only C) Through the neutral wire only D) With insulated load conductors Answer: A Explanation: Grounding electrodes are connected to the system using grounding electrode conductors to establish a low-resistance path to earth. Question 21. Which type of conduit is most suitable for outdoor underground installations? A) EMT (Electrical Metallic Tubing) B) RMC (Rigid Metal Conduit) C) IMC (Intermediate Metal Conduit) D) UF (Underground Feeder) cable
Answer: D Explanation: UF cable is designed specifically for underground outdoor installations, offering protection from moisture and physical damage. Question 22. Which of the following is a key consideration when sizing conductors for a circuit? A) The color of the wire insulation B) The ampacity based on load calculations and insulation type C) The length of the wire only D) The number of outlets connected Answer: B Explanation: Conductor sizing depends on ampacity, which is influenced by load requirements and insulation temperature ratings. Question 23. What does NEC Article 230 primarily address? A) Overcurrent protection devices B) Service conductors, raceways, and cables C) Lighting and receptacles D) Grounding and bonding Answer: B
Question 26. Which electrical material is most suitable for underground wiring installations? A) NM cable B) UF cable C) EMT conduit with EMT fittings D) Surface-mounted conduit Answer: B Explanation: UF cables are specifically designed for underground use, providing moisture resistance and durability. Question 27. What is the primary function of a circuit breaker? A) To step down voltage B) To open the circuit during overload or short circuit conditions C) To convert AC to DC D) To filter electromagnetic interference Answer: B Explanation: Circuit breakers automatically trip to disconnect power during overloads or faults, protecting wiring and equipment.
Question 28. Which of the following is a characteristic of a combination circuit? A) It contains only series components B) It contains both series and parallel components within the same circuit C) It is used exclusively in DC systems D) It does not require overcurrent protection Answer: B Explanation: Combination circuits have both series and parallel elements, allowing complex circuit configurations. Question 29. How does the power factor affect electrical system efficiency? A) Higher power factor reduces energy loss and improves efficiency B) Power factor has no effect on efficiency C) Lower power factor increases system efficiency D) Power factor only affects DC systems Answer: A Explanation: A higher power factor indicates more efficient use of electrical power, reducing losses and improving system performance.
B) A container that houses electrical components and provides access C) A method of wiring conductors D) A type of conduit material Answer: B Explanation: An enclosure is a protective housing that contains electrical devices and wiring, providing access and protection. Question 33. Which article of the NEC covers the requirements for service disconnects? A) Article 210 B) Article 220 C) Article 230 D) Article 250 Answer: C Explanation: Article 230 specifies requirements for service disconnecting means, including location, ratings, and accessibility. Question 34. What is the primary purpose of grounding in electrical systems? A) To prevent overcurrent conditions B) To provide a safe path to earth for fault currents
C) To increase electrical resistance D) To improve power factor Answer: B Explanation: Grounding provides a low-resistance path to earth, helping to clear faults and reduce shock hazards. Question 35. Which type of conduit is most suitable for installation in areas prone to physical damage? A) EMT (Electrical Metallic Tubing) B) RMC (Rigid Metal Conduit) C) FMC (Flexible Metallic Conduit) D) IMC (Intermediate Metal Conduit) Answer: B Explanation: RMC is robust and resistant to physical damage, making it suitable for hazardous or exposed areas. Question 36. When calculating the load for a dwelling unit, which of the following is typically included? A) Only lighting loads B) General lighting, receptacles, appliances, and fixed equipment C) Only HVAC loads
Answer: A Explanation: Ampacity is the maximum current a wire or cable can carry safely, based on insulation and installation conditions. Question 39. Which device is used to verify the proper phase sequence in a three-phase system? A) Multimeter B) Phase rotation meter C) Megohmmeter D) GFCI tester Answer: B Explanation: A phase rotation meter confirms the correct phase sequence, ensuring proper operation of three-phase equipment. Question 40. Which of the following is a key feature of a GFCI device? A) It protects against overcurrent B) It detects imbalance between hot and neutral currents to prevent ground faults C) It converts AC to DC D) It controls lighting dimming Answer: B
Explanation: GFCIs monitor current imbalance and trip quickly to prevent electrical shock hazards from ground faults. Question 41. What is the main purpose of the NEC's Article 250? A) To specify wiring methods B) To address grounding and bonding requirements C) To regulate lighting fixtures D) To define overcurrent protection devices Answer: B Explanation: Article 250 covers grounding and bonding, crucial for electrical safety and system stability. Question 42. Which type of electrical device is most suitable for protecting motors from overloads? A) Fuses B) Motor overload relays or motor circuit protectors C) GFCIs D) Surge protectors Answer: B Explanation: Motor overload relays or motor circuit protectors are designed specifically to protect motors from overload conditions.
