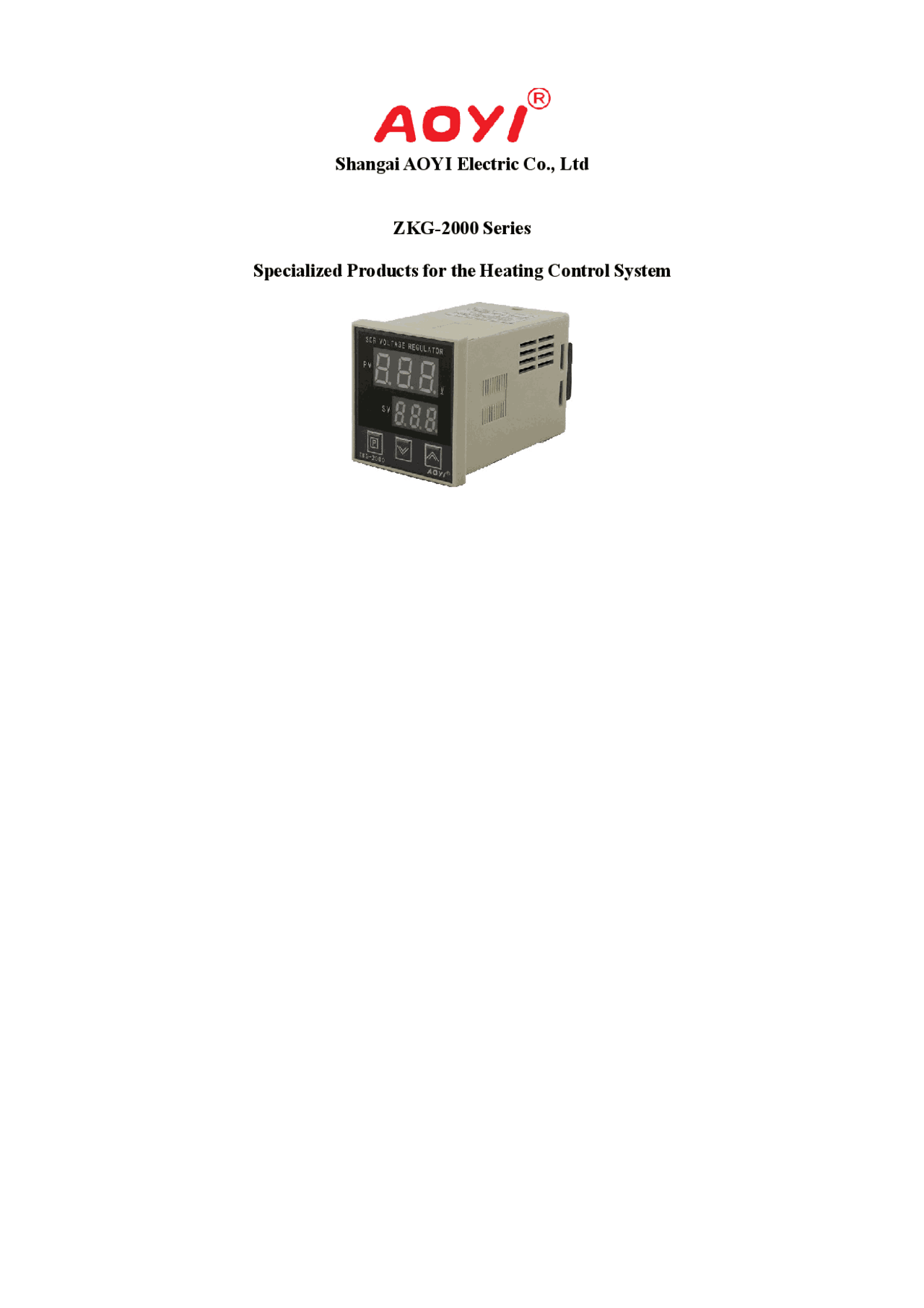

Shangai AOYI Electric Co., Ltd ZKG-2000 Series Specialized Products for the Heating Control System

DESCRIPTION

Generral Digital SCR voltage regulatro „ZKG-2000 series“ based on single-chip computer as the core are designed to adjust load voltage continuosly by phase-shift trigger, wich is fit for temperature control of forming machine or other mechanical equipments. Due to the use of deep voltage negative feedback, „ZKG-2000 series“ have exceptional stabilized voltage property, well linearity control function, and can minimize the effects of electric network fluctuation. ZKG-2000 series have the built-in LED which can display output voltage. This new design has special advantages, such as high accuracy, good shock-resistant, good reliability, strong anti-interference ability, small overall dimensions, light weight, clear reading, no parallax, remote viewing result so on. ZKG-2000 series have pushbutton switches which are operationally simple and reliable. Import Technical Specifications Output Impulse (when the load resistance is 20Ω): Amplitude  3 V Width 50ms Maximum Conduction Angle of Phase-Shift Trigger: Not less than 150o Enviroment Conditions: Maximum relative humidity 80% Temperature 0~150 oC Far away from corrosive gas Main Power Supplay: Voltage 220V ± 15% Frequency 50Hz/60Hz Input power nearly 3W Dimensions: Overall dimensions 48x48x90 (mm) Opening size 45x45 (mm)
