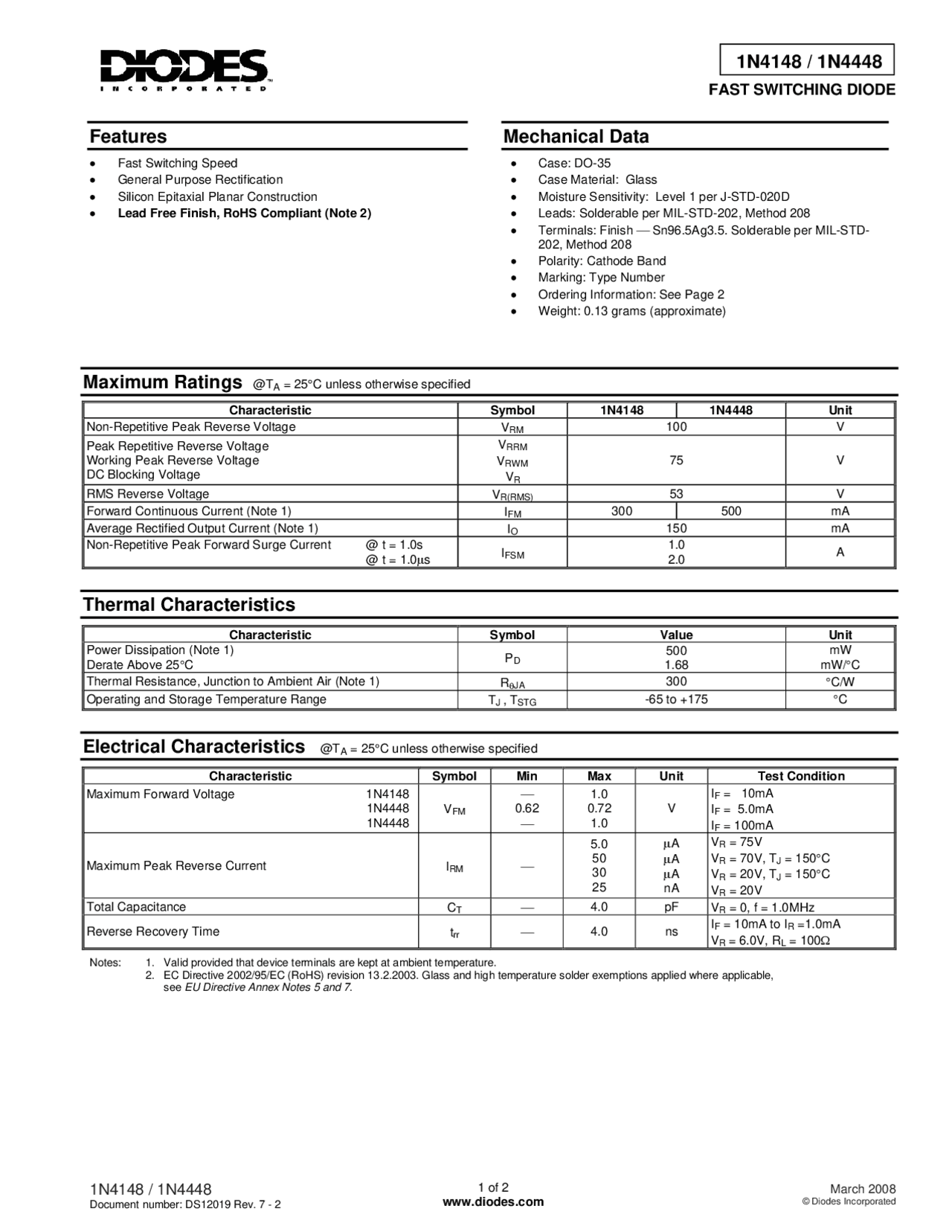

1N4148 / 1N4448
Document number: DS12019 Rev. 7 - 2
1 of 2
www.diodes.com March 2008
© Diodes Incorporated
1N4148 / 1N4448
FAST SWITCHING DIODE
Features
Fast Switching Speed
General Purpose Rectification
Silicon Epitaxial Planar Construction
Lead Free Finish, RoHS Compliant (Note 2)
Mechanical Data
Case: DO-35
Case Material: Glass
Moisture Sensitivity: Level 1 per J-STD-020D
Leads: Solderable per MIL-STD-202, Method 208
Terminals: Finish Sn96.5Ag3.5. Solderable per MIL-STD-
202, Method 208
Polarity: Cathode Band
Marking: Type Number
Ordering Information: See Page 2
Weight: 0.13 grams (approximate)
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic Symbol 1N4148 1N4448 Unit
Non-Repetitive Peak Reverse Voltage VRM 100 V
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
75 V
RMS Reverse Voltage VR(RMS) 53 V
Forward Continuous Current (Note 1) IFM 300 500 mA
Average Rectified Output Current (Note 1) IO 150 mA
Non-Repetitive Peak Forward Surge Current @ t = 1.0s
@ t = 1.0μs IFSM 1.0
2.0 A
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 1)
Derate Above 25°C PD 500
1.68 mW
mW/°C
Thermal Resistance, Junction to Ambient Air (Note 1) RθJA 300 °C/W
Operating and Storage Temperature Range TJ , TSTG -65 to +175 °C
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic Symbol Min Max Unit Test Condition
Maximum Forward Voltage 1N4148
1N4448
1N4448
VFM
0.62
1.0
0.72
1.0 V IF = 10mA
IF = 5.0mA
IF = 100mA
Maximum Peak Reverse Current IRM
5.0
50
30
25
μA
μA
μA
nA
VR = 75V
VR = 70V, TJ = 150°C
VR = 20V, TJ = 150°C
VR = 20V
Total Capacitance CT 4.0 pF VR = 0, f = 1.0MHz
Reverse Recovery Time trr 4.0 ns IF = 10mA to IR =1.0mA
VR = 6.0V, RL = 100Ω
Notes: 1. Valid provided that device terminals are kept at ambient temperature.
2. EC Directive 2002/95/EC (RoHS) revision 13.2.2003. Glass and high temperature solder exemptions applied where applicable,
see EU Directive Annex Notes 5 and 7.
Please click here to visit our online spice models database.
