3.2 - 35
3.2
4 11 R2
Supersedes 1 07 R1

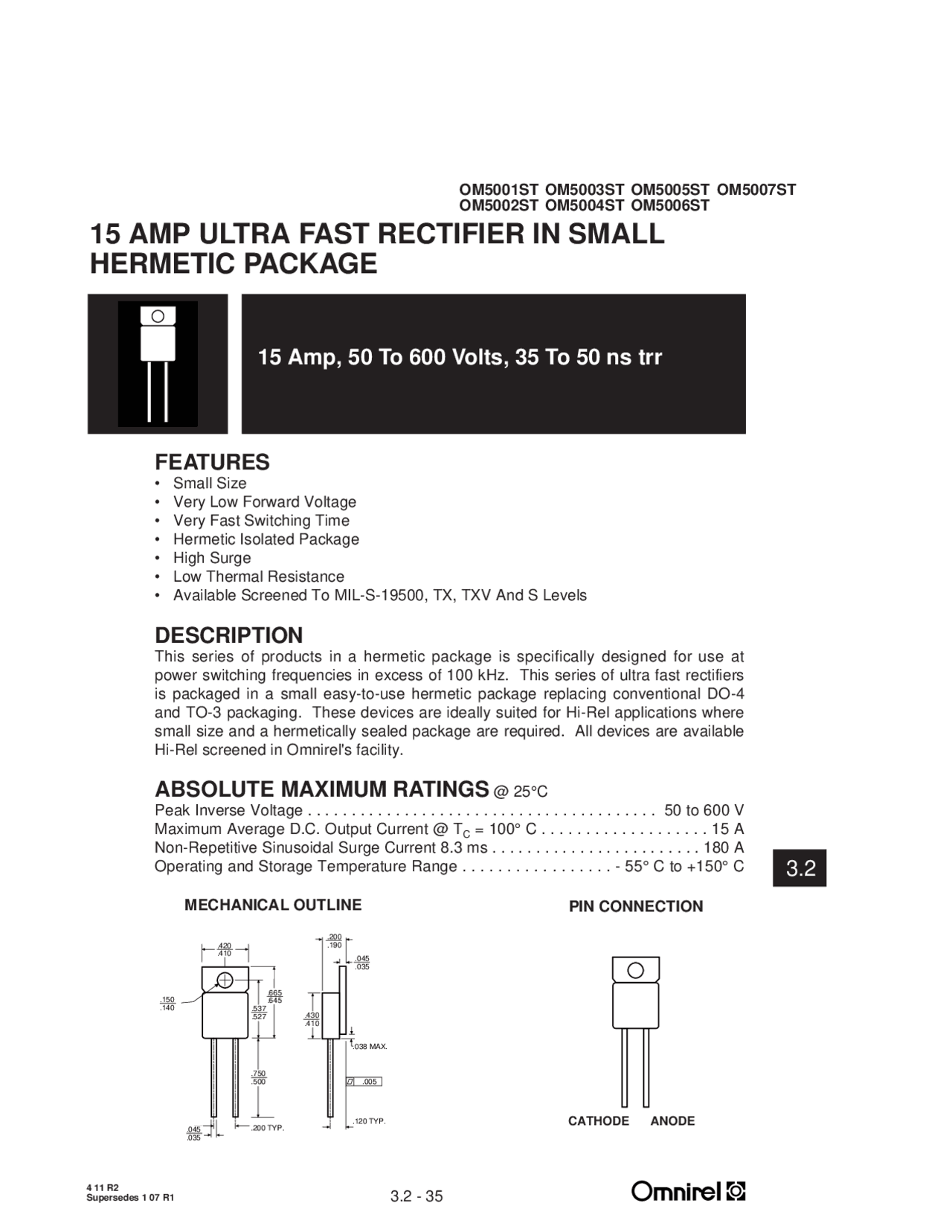

15 AMP ULTRA FAST RECTIFIER IN SMALL
HERMETIC PACKAGE
FEATURES
• Small Size
• Very Low Forward Voltage
• Very Fast Switching Time
• Hermetic Isolated Package
• High Surge
• Low Thermal Resistance
• Available Screened To MIL-S-19500, TX, TXV And S Levels
DESCRIPTION
This series of products in a hermetic package is specifically designed for use at
power switching frequencies in excess of 100 kHz. This series of ultra fast rectifiers
is packaged in a small easy-to-use hermetic package replacing conventional DO-4
and TO-3 packaging. These devices are ideally suited for Hi-Rel applications where
small size and a hermetically sealed package are required. All devices are available
Hi-Rel screened in Omnirel's facility.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Peak Inverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 to 600 V
Maximum Average D.C. Output Current @ TC= 100° C . . . . . . . . . . . . . . . . . . . 15 A
Non-Repetitive Sinusoidal Surge Current 8.3 ms . . . . . . . . . . . . . . . . . . . . . . . . 180 A
Operating and Storage Temperature Range . . . . . . . . . . . . . . . . . - 55° C to +150° C
Z
OM5005ST
OM5006ST
15 Amp, 50 To 600 Volts, 35 To 50 ns trr
CATHODE ANODE
PIN CONNECTION
OM5001ST
OM5002ST OM5003ST
OM5004ST OM5007ST
.045
.035
.430
.410
.200
.190
.038 MAX.
.120 TYP.
.537
.527
.665
.645
.420
.410
.150
.140
.750
.500
.200 TYP.
.045
.035
.005
MECHANICAL OUTLINE
