Reduced RFI and EMI Reduced Snubbing Extensive Characterization of Recovery Parameters Hermetically Sealed Ceramic Eyelets

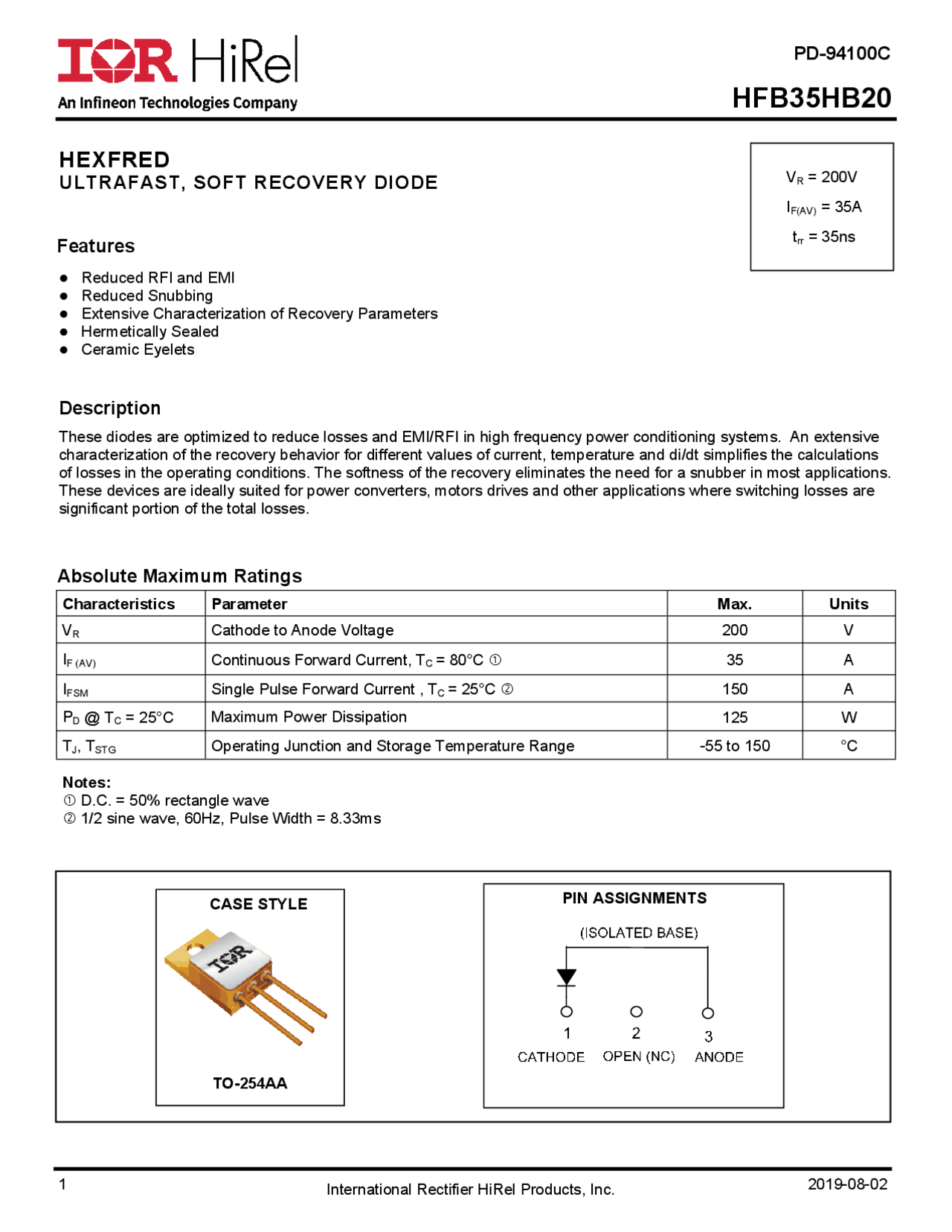

PD-94100C
HFB35HB
Description
These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
Characteristics Max. Units VR 200 V
IF (AV) 35 A
IFSM 150 A
PD @ TC = 25°C 125 W
TJ, TSTG -55 to 150 °C
Absolute Maximum Ratings
Parameter Cathode to Anode Voltage
Continuous Forward Current, T (^) C = 80°C
Single Pulse Forward Current , T (^) C = 25°C
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
VR = 200V
IF(AV) = 35A
trr = 35ns
Features
Notes: D.C. = 50% rectangle wave 1/2 sine wave, 60Hz, Pulse Width = 8.33ms
PIN ASSIGNMENTS
HEXFRED
ULTRAFAST, SOFT RECOVERY DIODE
CASE STYLE
TO-254AA
International Rectifier HiRel Products, Inc.
Symbol Parameter Typ. Max. Units
RJC Junction-to-Case, See Fig. 4 ––– 1.0 °C/W
Wt Weight 9.3 ––– g
Thermal - Mechanical Characteristics
Symbol Parameter Min. Typ. Max. Units Test Conditions
VBR Cathode Anode Breakdown Voltage 200 ––– ––– V IR = 100μA
VFM Max Forward Voltage See Fig. 1
––– ––– 1.25 IF = 20A, TJ = -55°C
––– ––– 1.15 IF = 20A, TJ = 25°C
––– ––– 1.41 IF = 35A, TJ = 25°C
––– ––– 1.92 IF = 70A, TJ = 25°C
––– ––– 1.01 IF = 20A, TJ = 125°C
IRM Max Reverse Leakage Current ––– ––– 10 μA V (^) R VR Rated
See Fig. 2 (^) 1.0 mA VR VR Rated, T (^) J = 125°C
C (^) T Junction Capacitance, See Fig. 3 ––– ––– 200 pF V (^) R 200V
L (^) S Series Inductance ––– 7.8 ––– nH Measured from anode lead to Cathode lead, 6mm (0.25 in) from package
V
Electrical Characteristics @ T J = 25°C (unless otherwise specified)
Symbol Parameter Min. Typ. Max. Units Test Conditions
trr (^) Reverse Recovery Time ––– ––– 35 ns (^) IF = 1.0A, V (^) R = 30V, dif/dt = 200A/μs
trr1 Reverse Recovery Time ––– 45 ––– ns
TJ = 25°C
IF = 35A
trr2 See Fig. 5 ––– 68 ––– T (^) J = 125°C
IRRM1 (^) Peak Recovery Current ––– 3.3 ––– A
TJ = 25°C
VR = 160V
IRRM2 See Fig. 6 ––– 7.6 ––– T (^) J = 125°C
Q (^) rr1 Reverse Recovery Charge –––^76 –––^ nC
TJ = 25°C
di (^) f/dt = 200A/μs Q (^) rr2 See Fig. 7^ –––^270 –––^ T^ J = 125°C
di (^) (rec)M /dt1 ––– 236 ––– A/μs
T J = 25°C
di (^) (rec)M /dt1 ––– 1020 ––– T (^) J = 125°C
Peak Rate of Fall of Recovery Current
During tb - See Fig. 8
Dynamic Recovery Characteristics @ T J = 25°C (unless otherwise specified)
Fig. 5 Typical Reverse Recovery Vs di (^) f /dt Fig. 6^ Typical Recovery Current Vs di^ f /dt
Fig. 7 Typical Stored Charge Vs di (^) f /dt Fig. 8^ Typical di^ (rec)M /dt Vs dif /dt
IRFP
D.U.T.
L = 70μH
V (^) R= 200V
0.01
G
D
S
dif/dt ADJUST
Fig. 9 Typical Reverse Recovery Parameter Test Circuit
t (^) a t (^) b
t rr
Q (^) rr
IF
I (^) RRM 0.5I (^) RRM di(rec)M/dt 0.75 I (^) RRM
5
4
3
2
0
(^1) di /dtf
Fig. 10 Reverse Recovery Waveform and Definitions
di (^) f /dt - Rate of change of current through zero crossing. I (^) RRM - Peak reverse recovery current. t (^) rr - Reverse recovery time measured from zero crossing point of negative going I (^) F to point where a line passing through 0.75I (^) RRM and 0.5IRRM extrapolated to zero current. Qrr - Area under curve defined by t (^) rr and I (^) RRM - Qrr = (t (^) rr X IRRM ) / 2 di (^) (rec)M / dt - Peak rate of change of current during t (^) b position of t (^) rr.
100 1000 dif / dt - ( A / μs )
30
50
70
90
trr
VR = 160V TJ = 125°C TJ = 25°C
IF = 17.5A
IF = 70A
IF = 35A
100 1000 dif / dt - ( A / μs )
1
10
100
IRRM
VR = 160V TJ = 125°C TJ = 25°C
IF = 17.5A
IF = 70A IF = 35A
100 1000 dif / dt - ( A / μs )
10
100
1000
Q
rr
VR = 160V TJ = 125°C TJ = 25°C
IF = 17.5A
IF = 70A IF = 35A
100 1000 dif / dt - ( A / μs )
100
1000
10000
di
( rec )M
/ dt - ( A / μs )
VR = 160V TJ = 125°C TJ = 25°C
IF = 17.5A
IF = 70A IF = 35A
Case Outline and Dimensions — TO-254AA
3.81 [.150]
0.12 [.005]
1.27 [.050] 1.02 [.040]
6.60 [.260] 6.32 [.249]
C 14.48 [.570] 12.95 [.510]
3X
0.36 [.014] B A
1.14 [.045] 0.89 [.035]
- ALL DIMENSIONS ARE SHOWN IN MILLIMETERS [INCHES].
- DIMENSIONING & TOLERANCING PER ASME Y14.5M-1994.
2X
3.81 [.150]
- CONFORMS TO JEDEC OUTLINE TO-254AA.
- CONTROLLING DIMENSION: INCH.
NOTES:
20.32 [.800] 20.07 [.790]
13.84 [.545] 3.78 [.149] 13.59 [.535] 3.53 [.139]
17.40 [.685] 16.89 [.665]
A
1 2 3
13.84 [.545] 13.59 [.535]
0.84 [.033] MAX.
B
PIN ASSIGNMENTS 1 = DRAIN 2 = SOURCE 3 = GATE
Refer to page 1.
