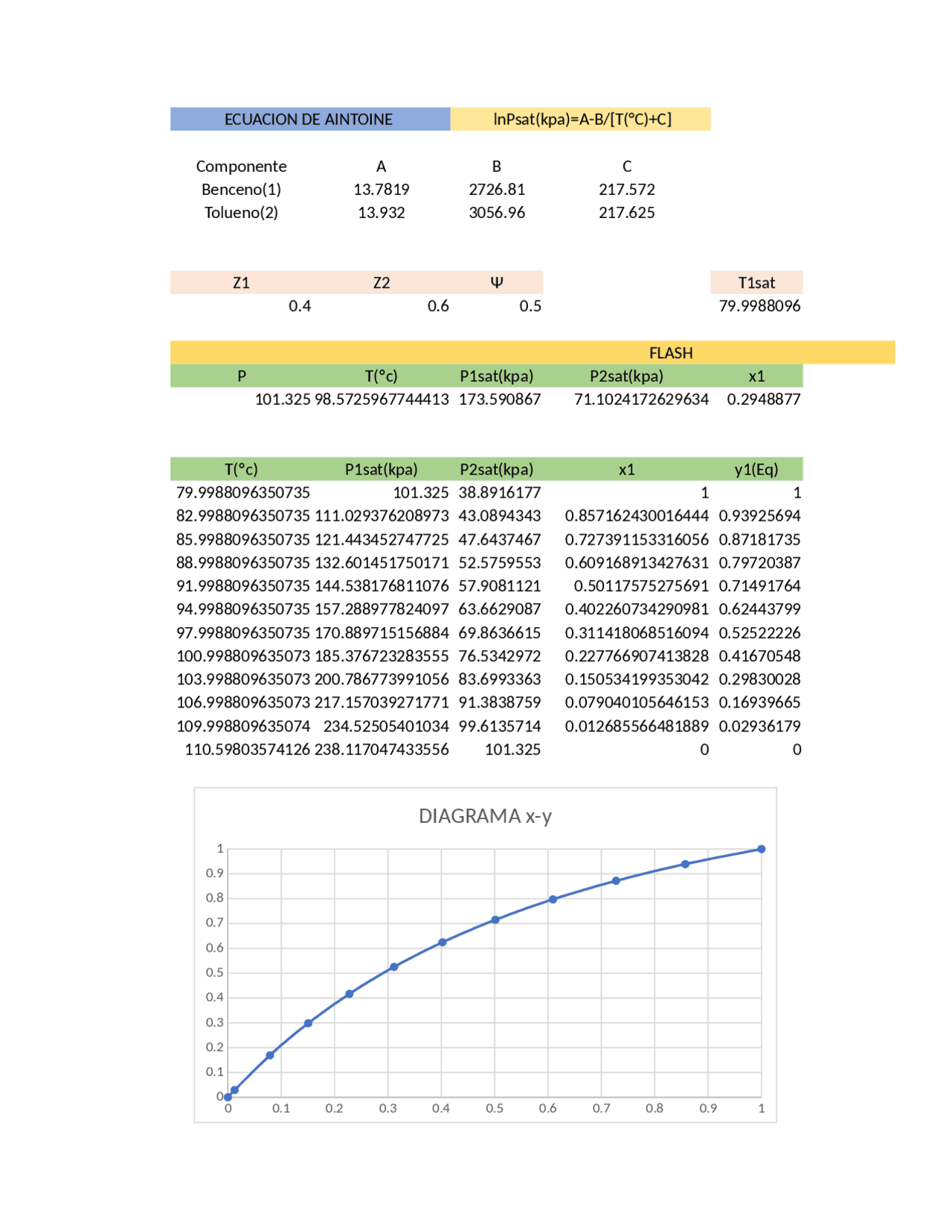

ECUACION DE AINTOINE lnPsat(kpa)=A-B/[T(°C)+C]
Componente A B C
Benceno(1) 13.7819 2726.81 217.572
Tolueno(2) 13.932 3056.96 217.625
Z1 Z2 Ψ T1sat
0.4 0.6 0.5 79.9988096
FLASH
P T(ºc) P1sat(kpa) P2sat(kpa) x1
101.325 98.5725967744413 173.590867 71.1024172629634 0.2948877
T(ºc) P1sat(kpa) P2sat(kpa) x1 y1(Eq)
79.9988096350735 101.325 38.8916177 1 1
82.9988096350735 111.029376208973 43.0894343 0.857162430016444 0.93925694
85.9988096350735 121.443452747725 47.6437467 0.727391153316056 0.87181735
88.9988096350735 132.601451750171 52.5759553 0.609168913427631 0.79720387
91.9988096350735 144.538176811076 57.9081121 0.50117575275691 0.71491764
94.9988096350735 157.288977824097 63.6629087 0.402260734290981 0.62443799
97.9988096350735 170.889715156884 69.8636615 0.311418068516094 0.52522226
100.998809635073 185.376723283555 76.5342972 0.227766907413828 0.41670548
103.998809635073 200.786773991056 83.6993363 0.150534199353042 0.29830028
106.998809635073 217.157039271771 91.3838759 0.079040105646153 0.16939665
109.998809635074 234.52505401034 99.6135714 0.012685566481889 0.02936179
110.59803574126 238.117047433556 101.325 0 0
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
DIAGRAMA x-y
