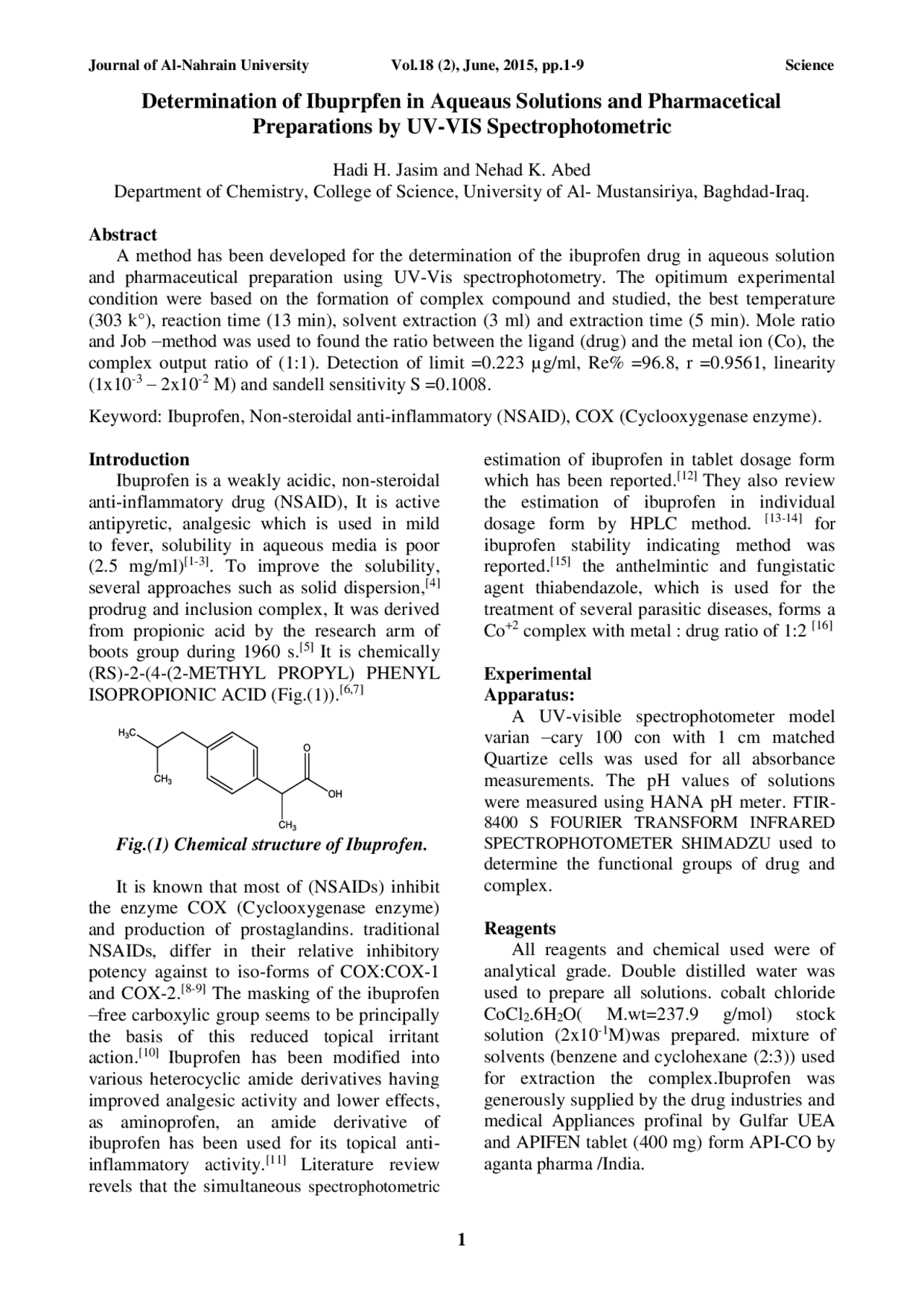

Journal of Al-Nahrain University Vol.18 (2), June, 2015, pp.1-9 Science
Determination of Ibuprpfen in Aqueaus Solutions and Pharmacetical
Preparations by UV-VIS Spectrophotometric
Hadi H. Jasim and Nehad K. Abed Department of Chemistry, College of Science, University of Al- Mustansiriya, Baghdad-Iraq.
Abstract A method has been developed for the determination of the ibuprofen drug in aqueous solution and pharmaceutical preparation using UV-Vis spectrophotometry. The opitimum experimental condition were based on the formation of complex compound and studied, the best temperature (303 k°), reaction time (13 min), solvent extraction (3 ml) and extraction time (5 min). Mole ratio and Job – method was used to found the ratio between the ligand (drug) and the metal ion (Co), the complex output ratio of (1:1). Detection of limit =0.223 μg/ml, Re% =96.8, r =0.9561, linearity (1x10-3^ – 2x10-2^ M) and sandell sensitivity S =0.1008.
Keyword: Ibuprofen, Non-steroidal anti-inflammatory (NSAID), COX (Cyclooxygenase enzyme).
Introduction Ibuprofen is a weakly acidic, non-steroidal anti-inflammatory drug (NSAID), It is active antipyretic, analgesic which is used in mild to fever, solubility in aqueous media is poor (2.5 mg/ml)[1-3]. To improve the solubility, several approaches such as solid dispersion,[4] prodrug and inclusion complex, It was derived from propionic acid by the research arm of boots group during 1960 s.[5]^ It is chemically (RS)- 2 - (4-(2-METHYL PROPYL) PHENYL ISOPROPIONIC ACID (Fig.( 1 )).[6,7]
Fig.(1) Chemical structure of Ibuprofen.
It is known that most of (NSAIDs) inhibit the enzyme COX (Cyclooxygenase enzyme) and production of prostaglandins. traditional NSAIDs, differ in their relative inhibitory potency against to iso-forms of COX:COX- and COX-2.[8-9]^ The masking of the ibuprofen
- free carboxylic group seems to be principally the basis of this reduced topical irritant action.[10]^ Ibuprofen has been modified into various heterocyclic amide derivatives having improved analgesic activity and lower effects, as aminoprofen, an amide derivative of ibuprofen has been used for its topical anti- inflammatory activity.[11]^ Literature review revels that the simultaneous spectrophotometric
estimation of ibuprofen in tablet dosage form which has been reported.[12]^ They also review the estimation of ibuprofen in individual dosage form by HPLC method. [13-14]^ for ibuprofen stability indicating method was reported.[15]^ the anthelmintic and fungistatic agent thiabendazole, which is used for the treatment of several parasitic diseases, forms a Co+2^ complex with metal : drug ratio of 1:2 [16]
Experimental Apparatus: A UV-visible spectrophotometer model varian – cary 100 con with 1 cm matched Quartize cells was used for all absorbance measurements. The pH values of solutions were measured using HANA pH meter. FTIR- 8400 S FOURIER TRANSFORM INFRARED SPECTROPHOTOMETER SHIMADZU used to determine the functional groups of drug and complex.
Reagents All reagents and chemical used were of analytical grade. Double distilled water was used to prepare all solutions. cobalt chloride CoCl 2 .6H 2 O( M.wt=237.9 g/mol) stock solution (2x10-1M)was prepared. mixture of solvents (benzene and cyclohexane (2:3)) used for extraction the complex.Ibuprofen was generously supplied by the drug industries and medical Appliances profinal by Gulfar UEA and APIFEN tablet (400 mg) form API-CO by aganta pharma /India.
Hadi H. Jasim
From stock solution of ibuprofen (100 μg/ml) was prepared by dissolving 10 mg of pure ibuprofen in 100 ml and dissolved in weak acidic water (pH=8.5). The working standard solutions were then prepared by suitable dilutions of the stock solution with water
Procedures: Calibration Curve Eight standard solution were prepared from stock solution (0.2 M complex) by mixing equal volume (10 ml) of each sample of drug with different concentration of cobalt ion as follows (0.01,0.02,0.03,0.05,0.07,0.08,0.09,0.10 M), then configure complex when the optimum
conditions complex for the process complexity Each solution was extracted by 4 ml of organic phase mixture (benzene and cyclohexane) after shaking for 5 min at room temperature. Then it had been measured at wave length (603 nm). The analytical curve was obtained by plotting absorbance against Ibuprofen concentration and the corresponding lineare regression equation was used to convert absorbance into Co concentration for all analyzed tablets samples. Under the optimum experimental conditions described, linearity, detection limit, molar absorptivity, and sandell's sensitivity were show in Table (1), and results of statistically evaluated shows in Table (2).
Table (1) Results of Recovery percentage, linearity, Detection of Limit and Sandell's Sensitivity.
Rec % Ere% RSD%
Sandell's sensitivity S(μg /cm^2 )
Molar absorpitivit Ɛ (Lmol-^1 cm-^1 )
Dol μg/ml
Linearity rang DRUGE (M)
Ibuprofen 1x10-^3 - 10x1-^3 0.223 0.374 x10^4 0.1008 96.8% 3.2 - 0.
Table (2) Results values of recreation equation, correlation coefficients, T-test and confidence Limit of Ibu-Co (ll) complex.
Conf. Limit for the interapt a±sat
Conf-limit for the slope b± sbt
T-test tablet %95 c.l
T-test calculated
Correlation cofficent R
Regnession equation y=BX+A
Y=4.1734X+0.1868 0.9561 16.81 2.36 60±0.251 0.132 ±
Determination of Ibuprofen in Pharmaceuticals Preparation The proposed method was applied for the assay of Ibu in tablets by using direct - calibration and standard additions procedures Fig.(2) under optimum conditions. The Ibu was determined by measuring the absorbance of complex after extracted by mixture (benzene and cyclohexane (2:3)) and compared with the calibration curve. The results for the determination of Ibuprofen by standard method are summarized in Table (3) after addition 1 ml of standard solution 1x10- M Ibuprofen for each solution.
Hadi H. Jasim
Fig.(3) Mole Ratio Method of the Complexation between IBU and Co (II) salt.
Job Method In this procedure, both Ibuprofen and cobalt ion with the same concentration (2x10-2M) was used to prepare (10 ml) of different ratio of mixtures Ibu-Co (ll) shown in Table (4):
Table (4) The volumes used for Co(ll) and Ibu with the same concentration 2x10-2^ M.
Co (ll) ml Conc. (2x10-^2 M) 1 2 3 4 5 6 7 8 9 Ibu(ml) Conc.2x10-^2 M 9 8 7 6 5 4 3 2 1
Then seized the optimum conditions for the process complexity. The complex formed in each flask was extracted with mixture solvent (benzene and cyclohexane) and the absorbance of complex extracted was measured at ʎ max = 603 nm. The absorbance versus the volume ratio Ibo/Co was plotted
Fig.(4) from which the stoichiometry of ion- association complex was determined.
Fig. (4) Determination the mole ratio between Co(ll) and Ibu by Job-method.
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.
ABS
VL/VM
0
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Abs
V m/V total
Journal of Al-Nahrain University Vol.18 (2), June, 2015, pp.1-9 Science
Results and Discussion Absorption spectra: Uv-vis spectra of the pure ibuprofen drug, pure cobalt salt and the complex Ibu-Co (ll) were scanned using UV-VIS spectrophotometer for recoding the spectra to verify of the formation of complex. It was shown Fig.(5) that the pure drug gave two absorption
maxima 218 and 264 nm. Fig.(6) shown the pure CoCl2.6H 2 O(ll). Distinctive absorption maximum at 509 nm, while the Ibo - Co complex gave an absorption maximum at (603) nm Fig.(7), indicating the formation of complex between the drug and organic solvent.
Fig.(5) Spectram uv-vis of the pure Ibuprofen standard solution.
Fig.(6) Spectrum of Co(II) solution (2x10-2^ M).
Fig.(7) Spectrum of complex IBU-Co) (ll) with different concentration.
Journal of Al-Nahrain University Vol.18 (2), June, 2015, pp.1-9 Science
Effect of Reaction time: A 5 ml of 100 μg/ml Ibuprofen mixed with 5 ML of 100 μg/ml Co(ll) was mixed, were fixed other conditions before extraction. Shake the mixture with different time (5, 7, 10, 13, 15,
- mint and measured the absorbance of complex after extraction for each time used. Fig.(10) show the absorbance increase with time shaking until (13 min), after that the absorbance decreases when the reaction time increase.
Fig. (10) Effect of reaction time on the formation of Ibu/Co complex.
Effect of Extraction time : After the complex formed extracted by (4ml) of organic solvent (2:3) mixture (benzene and cyclohexane). Fixed all the conditions and shaking the mixture with of different (2,3,4,5,6,7) min to to choice the sutabil shaking time for the complex extraction and measure the absorbance after each shaking, use UV-VIS spectroscopy.
Fig. (11) Effect of extraction time on the formation of IBU-Co(II) complex.
0
0 5 10 15 20 25
Abs
Time (min
0
0 1 2 3 4 5 6 7 8
Abs
Time (min
Hadi H. Jasim
IR Spectra Infrared spectra of pure Ibuprofen and complex are shown in Table (5), all vibration peaks, we can show that in Table (5).
Table (5) Show the shift of some wave number of peaks.
ύ (O-H) ύ(C-H) aromatic ύ (C-H) alphatic ύ(C=O) ύ (Co-O) Ibuprofen 3208 3010 2956 , 2897 1712 Complex 3090 3045 2953 , 2928 1691 524
Acknowledgements First of all, I would like to thank Allah for giving me strength to accomplish this work. Iam very gratefully to my supervisor D.r Hadi H. Jasim for helping me during the time of this work. Special thanks to staff of chemical department at Al- Mustansiriya university for providing me of the equipments and materials necessary to complete this study.
Reference [1] Shravan kumar patel, Dinesh Kumar, Amol P.waghmode and Avinash S. dhabale "Solubility enhancement of ibuprofen using hydrotopic agents" Intermadional gournal of pharmacy and lift science, vol: 2(2), 542- 545, (2011). [2] Ahn y.s, I.H song, kong, B.K, Kim, m.s, cho, s.h., Rhee, I.M., Lee, H.B. and K hang, G., preparation and characterization of liquefied Ibuprofen using selfmicroemulsion drug delivery system (SMEDDS) J.kor. pharm. sci,:34,: 35-42, (2004). [3] Tri pathi. K.D, Non-sterodial Anti- inflammatory Drugs and Anti-pyretic analgesics, In Essentials of medical pharmacology, Jaypee Brothers, new delhi 5 th^ end; p: 176, (2003). [4] New a, M., Bhandari, K.H, KIM,J.O., I.M, J.S., Kim, J.A., Yoo, B.K, Woo, J.S., Choi, H.G and yong C.S., Enhancement of solubility, dissolution and bioavailability of Ibuprofen in solid dispersion system, Chem. Pharm. Bull, 56,: 569-574, (2008). [5] Adams, s.s., "The propionic acids: A personal perspective" Journal of clinical pharmacology, :32(4),: 317-323, (1992). [6] Su P.H., Chem J.Y., Su C.M., Huang T.C. and Lee H.S.,"Comparison of ibuprofen and
indomethacin therapy for patent ductus arteriosus in preterm infants". pediatrics international: official journal of the Japan pediatric society.:45(6),: 665-670, (2003). [7] N. MEHTA, S. Aggarwal, S. Thareja, D. Malla, MM. Misra, T-R. Bhard waj and M. Kumar. inter. J. chem. Tech. Res.,: 2,: 233, (2010). [8] Kurnumbail R.G, A.M.Stevens, J.K.Gierse, J.J. MCDonald, R.A. Stegeman, J.Y. Pak, D. Gildehaus, J.M. Lyashiro, T.D.Penning, k. siebert, P.C. Isakson and W.C. Stallings, "Structural basis for selective inhibition of cyclooxygenase-2 by anti-inflammatory agents" Nature(London), 384,644 (1996). [9] Selinsky. B.S, k.Gupta and C.T. Shrkey., "Structural analysis of NSAID binding by prostaglandin H2 synthase: time-dependent and time-independent inhibitors elicit identical enzyme conformations" P J.Loll, Biochemistry;", 40,: 5172, (2001). [10] Cocoo. M.T, C. Congiu, V. Onnis, M. Morell and O. Cauli. Eur. J. Med. Chem.,: 38, 513, (2003). [11] Nema. R.K and Kumar M., Simultaneous spectrophotometric estimation of Ibuprofen and chlorzoxazone in tablet dosage form, Inter.J. of chemical sci, 6(3),: 1638-1645, (2008). [12] Indian pharmacopoeia: Government of India Ministry of health and family welfare, Published by Indian pharmacopoeia commission, Ghaziabad. 2,:600-1,(2007). [13] British pharmacopeia: Ibuprofen tablet assay General medicine Council, 1,: 1328- 30, (2009). [14] Ghassan, Z.A and omar z, HPLC Method Modification & validation for qualification of Ibuprofen. Inter.J. of Adv. Inpharma. Sci,1, 404-409, (2010).
