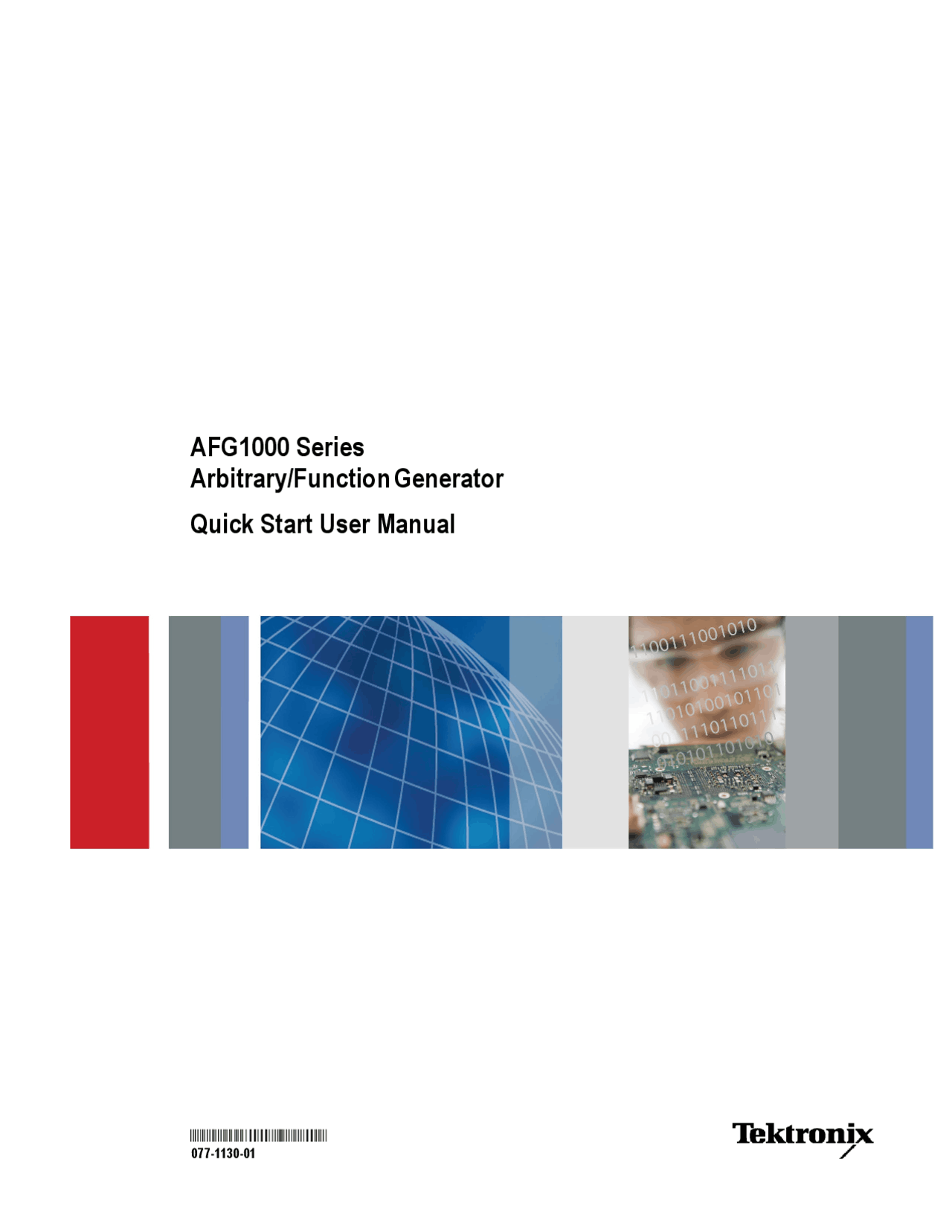

AFG1000 Series

Arbitrary/Function Generator

Quick Start User Manual

P077113001

077-1130-

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc. 14150 SW Karl Braun Drive P.O. Box 500 Beaverton, OR 97077 USA

For product information, sales, service, and technical support: In North America, call 1-800-833-9200. Worldwide, visit www.tektronix.com to find contacts in your area.

Warranty

Tektronix warrants that the product will be free from defects in materials and workmanship for a period of three (3) years from the date of original purchase from an authorized Tektronix distributor. If the product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. Parts, modules and replacement products used by Tektronix for warranty work may be new or reconditioned to like new performance. All replaced parts, modules and products become the property of Tektronix.

In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the defective product to the service center designated by Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Tektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than Tektronix representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of non-Tektronix supplies; or d) to service a product that has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty of servicing the product.

THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX' RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

[W16 – 15AUG04]

AFG1000 Series Quick Start User Manual i

Table of contents

Preface ....................................................................................................................................................... iii Where to find more information.......................................................................................................... iii Conventions used in this manual ......................................................................................................... iii

Table of contents

• Getting started Service offerings iv
  • General features....................................................................................................................................
  • Before installation
  • Standard accessories
  • Operating requirements
  • Power the instrument on and off
  • Change instrument settings at power-on
  • Erase waveforms from memory
  • Select a local language
  • Protect your instrument from misuse
  • General care
  • Update your instrument firmware
  • Equivalent output circuits...................................................................................................................
• Instrument front panel, interface, and rear panel
  • Front panel overview..........................................................................................................................
  • Parts of the screen interface
  • Default setup
  • Select waveform
  • Select run mode
  • Adjust waveform parameters
  • Channel select
  • Channel output On/Off
  • Display both channels
  • Rear panel...........................................................................................................................................
• Operating basics........................................................................................................................................
  • Quick tutorial: How to select a waveform and adjust parameters
  • Quick tutorial: How to generate a sine waveform
  • Quick tutorial: Instrument help system
  • Generate a pulse waveform
  • Generate a built-in waveform
  • Create/save a user-defined waveform
  • Recall a user-defined waveform
  • Generate noise
  • Generate DC
  • Sweep a waveform ii AFG1000 Series Quick Start User Manual
  • Modulate a waveform.........................................................................................................................
  • Generate a burst waveform.................................................................................................................
  • Copy channel setting
  • USB memory device
  • Utility menu........................................................................................................................................
  • Save/recall instrument setup
• Application examples
  • Output the waveform created with ArbExpress..................................................................................
• Appendix A: Line fuse replacement..........................................................................................................
• Index

iv AFG1000 Series Quick Start User Manual

Preface

Service offerings

Tektronix provides service to cover repair under warranty and other services that are designed to meet your specific service needs.

Tektronix warrants this product as describe in the warranty statement at the front of this manual. Tektronix technicians provide warranty service at most Tektronix service locations worldwide.

Please contact your local Tektronix representative for more information on any repair or adjustment service.

AFG1000 Series Quick Start User Manual 1

Getting started

General features

Each AFG1000 Series Arbitrary/Function Generator offers the functionality of three generators in one, and a frequency counter:

25 MHz / 60 MHz Function Generator

12.5 MHz / 30 MHz Pulse Generator

14-bit Arbitrary Waveform Generator

200 MHz Frequency Counter

The following table describes some of the general features of your instrument.

Feature AFG1022 AFG Channel 2 2 Sine 25 MHz 60 MHz Pulse 12.5 MHz 30 MHz Arbitrary waveform 2 to 8,192 points, 14 - bit 2 to 1 M points, 14-bit Sampling Rate 1 25 MS/s 300 MS/s Amplitude High Z 2 mVp-p - 20 Vp-p 50 Ω 1 mVp-p - 10 Vp-p

High Z ≤ 25 MHz: 2 mVp-p to 20 Vp-p

25 MHz: 2 mVp-p to 10 Vp-p 50 Ω ≤ 25 MHz: 1 mVp-p to 10 Vp-p 25 MHz: 1 mVp-p to 5 Vp-p Display Color TFT LCD Color TFT LCD Interface USB USB Help system Instrument help available in multiple languages Instrument help available in multiple languages

Before installation

Inspect the instrument carton for external damage. If the carton is damaged, notify the carrier.

Remove the instrument from its package and check that it has not been damaged in transit. Verify that the carton contains the instrument and its standard accessories.

Getting started

AFG1000 Series Quick Start User Manual 3

Operating requirements

The following information and figure describe temperature, clearance, and power supply operating requirements of the instrument.

229.16 mm (9.02 in)

306.36 mm (12.06 in)

111.16 mm (4.38 in)

Figure 1: Instrument dimensions

Environmental requirements

Clearance. When placing the instrument on a cart or bench, observing the following clearance requirements:

Sides: 50 mm (2 in)

Rear: 50 mm (2 in)

Temperature. Before operating the instrument, ensure the ambient temperature is between 0 °C to +40 °C (+32 °F to +104 °F).

CAUTION. To ensure proper cooling, keep both sides of the instrument clear of obstructions.

Power supply requirements

Source voltage and frequency. 220 - 240 VAC, 100 - 120 VAC, 50/60 Hz, CATⅡ.

Power Consumption. AFG1022: Less than 28 W AFG1062: Less than 35 W

WARNING. To reduce the risk of fire and shock, ensure that the mains supply voltage fluctuations do not exceed 10% of the operating voltage range.

Getting started

4 AFG1000 Series Quick Start User Manual

Power the instrument on and off

The following procedures show you how to apply power to the instrument and turn it on and off.

Power on To turn apply power to the instrument and turn it on, do the following:

CAUTION. The instrument can be damaged if the line selector switch on the rear panel is in the incorrect position when power is applied to the instrument. To avoid damaging the instrument, verify that the line selector switch is in the correct position for your area before connecting the power cord.

1. Switch the line selector to the correct position. 2. Peel off the label on the power receptacle and if needed, replace the fuse according to the line setting (refer to Appendix A for the steps of fuse replacement) before inserting the AC power cord. Insert the AC power cord into the power receptacle on the rear panel and the other end into a properly grounded power outlet. 3. Push the front-panel power button to power on the instrument.

Power off To turn the instrument off, do the following:

1. Push the front-panel power button to power off the instrument.

Getting started

6 AFG1000 Series Quick Start User Manual

Erase waveforms from memory

You can erase all waveforms from the instrument internal memory using the following procedure.

1. Push the Arb panel button. 2. Press Others. 3. Press File browse to enter the file system. 4. Use the general purpose knob to select INTER , and then press Enter. 5. Press Secure. 6. Press Select to erase all waveforms stored in internal memory, or press Cancel to cancel the operation.

Getting started

AFG1000 Series Quick Start User Manual 7

Select a local language

When you power on the instrument for the first time, English is selected by default. After you select a desired language, all the bezel menus, pop-up messages, and built-in help are displayed in the specified language.

1. Push the front-panel Utility button. 2. Press System. 3. Press Language to select the desired language. You can select from English, and Simplified Chinese.

Getting started

AFG1000 Series Quick Start User Manual 9

General care

Protect the instrument from adverse weather conditions. The instrument is not waterproof. Do not store or leave the instrument where the display will be exposed to direct sunlight for long periods of time.

CAUTION. To avoid damage to the instrument, do not expose it to sprays, liquids, or solvents.

Preventive maintenance Preventive maintenance mainly consists of periodic cleaning. Periodic cleaning

reduces instrument breakdown and increases reliability. Clean the instrument as needed, based on the operating environment. Dirty conditions might require more frequent cleaning than computer room conditions.

Clean the flat panel display surface by gently rubbing the display with a cleanroom wipe. If the display is very dirty, moisten the wipe with distilled water or a 75% isopropyl alcohol solution and gently rub the digital surface. Avoid excess force or you might damage the display surface.

Clean the exterior surfaces with a dry, lint-free cloth or a soft bristle brush. If dirt remains, use a cloth dampened with a 75% isopropyl alcohol solution. A swab is useful for cleaning in narrow spaces around the controls and connectors. Do not use abrasive compounds on any part of the instrument.

To avoid damaging the instrument, follow these precautions: Avoid getting moisture inside the instrument during external cleaning and use only enough to dampen the cloth or swab. Do not wash the front-panel power switch. Cover the switch while washing the instrument. Use only deionized water when cleaning. Use a 75% isopropyl alcohol solution as a cleanser and rinse with deionized water. Do not use chemical cleaning agents; they can damage the instrument. Avoid chemicals that contain benzene, toluene, xylene, acetone, or similar solvents.

Getting started

10 AFG1000 Series Quick Start User Manual

Update your instrument firmware

Use the front-panel USB connector to update your instrument firmware using a USB memory device. USB memory device requirements : This instrument supports a USB memory device with a FAT32 or FAT16 file system. If the USB memory device doesn't work properly, format it into the FAT32 or FAT16 format and try again; or try another USB memory device.

CAUTION. Updating your instrument firmware is a sensitive operation which might damage your instrument if you do not follow all instructions carefully. To prevent damage to the instrument, do not remove the USB memory device or power off the instrument during the update process.

NOTE: The screen images of the following procedure are provided as an example. The actual screen display might be different depending on your instrument configuration.

1. Push the front-panel Utility button to display the Utility menu and view the currently installed firmware version on the display screen. 2. From a PC, visit www.tektronix.com and check if Tektronix offers a newer firmware version. Download and unzip the compressed zip file. Copy the designated firmware file onto a USB memory device. 3. Insert the USB memory device into the front-panel USB connector on your instrument.
