Economic model

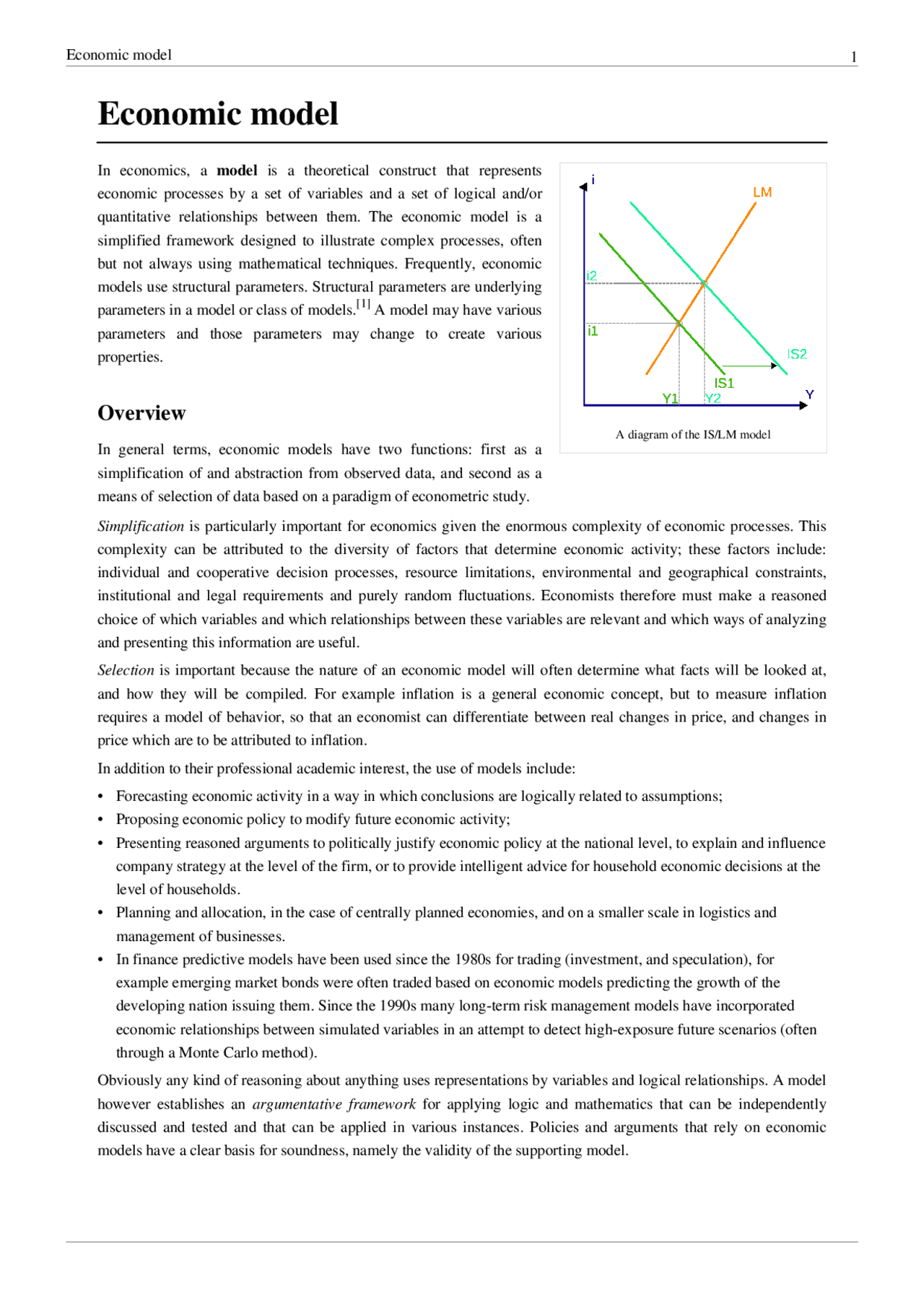

A diagram of the IS/LM model
In economics, a model is a theoretical construct that represents economic processes by a set of variables and a set of logical and/or quantitative relationships between them. The economic model is a simplified framework designed to illustrate complex processes, often but not always using mathematical techniques. Frequently, economic models use structural parameters. Structural parameters are underlying parameters in a model or class of models.[1]^ A model may have various parameters and those parameters may change to create various properties.
Overview
In general terms, economic models have two functions: first as a simplification of and abstraction from observed data, and second as a means of selection of data based on a paradigm of econometric study.
Simplification is particularly important for economics given the enormous complexity of economic processes. This complexity can be attributed to the diversity of factors that determine economic activity; these factors include: individual and cooperative decision processes, resource limitations, environmental and geographical constraints, institutional and legal requirements and purely random fluctuations. Economists therefore must make a reasoned choice of which variables and which relationships between these variables are relevant and which ways of analyzing and presenting this information are useful.
Selection is important because the nature of an economic model will often determine what facts will be looked at, and how they will be compiled. For example inflation is a general economic concept, but to measure inflation requires a model of behavior, so that an economist can differentiate between real changes in price, and changes in price which are to be attributed to inflation.
In addition to their professional academic interest, the use of models include:
- Forecasting economic activity in a way in which conclusions are logically related to assumptions;
- Proposing economic policy to modify future economic activity;
- Presenting reasoned arguments to politically justify economic policy at the national level, to explain and influence company strategy at the level of the firm, or to provide intelligent advice for household economic decisions at the level of households.
- Planning and allocation, in the case of centrally planned economies, and on a smaller scale in logistics and management of businesses.
- In finance predictive models have been used since the 1980s for trading (investment, and speculation), for example emerging market bonds were often traded based on economic models predicting the growth of the developing nation issuing them. Since the 1990s many long-term risk management models have incorporated economic relationships between simulated variables in an attempt to detect high-exposure future scenarios (often through a Monte Carlo method).
Obviously any kind of reasoning about anything uses representations by variables and logical relationships. A model however establishes an argumentative framework for applying logic and mathematics that can be independently discussed and tested and that can be applied in various instances. Policies and arguments that rely on economic models have a clear basis for soundness, namely the validity of the supporting model.
Economic models in current use do not pretend to be theories of everything economic ; any such pretensions would immediately be thwarted by computational infeasibility and the paucity of theories for most types of economic behavior. Therefore conclusions drawn from models will be approximate representations of economic facts. However, properly constructed models can remove extraneous information and isolate useful approximations of key relationships. In this way more can be understood about the relationships in question than by trying to understand the entire economic process.
The details of model construction vary with type of model and its application, but a generic process can be identified. Generally any modelling process has two steps: generating a model, then checking the model for accuracy (sometimes called diagnostics). The diagnostic step is important because a model is only useful to the extent that it accurately mirrors the relationships that it purports to describe. Creating and diagnosing a model is frequently an iterative process in which the model is modified (and hopefully improved) with each iteration of diagnosis and respecification. Once a satisfactory model is found, it should be double checked by applying it to a different data set.
Types of models
According to whether all the model variables are deterministic, economic models can be classified as stochastic or non-stochastic models; according to whether all the variables are quantitative, economic models are classified as discrete or continuous choice model; according to the model's intended purpose/function, it can be classified as quantitative or qualitative; according to the model's ambit, it can be classified as a general equilibrium model, a partial equilibrium model, or even a non-equilibrium model; according to the economic agent's characteristics, models can be classified as rational agent models, representative agent models etc.
- Stochastic models are formulated using stochastic processes. They model economically observable values over time. Most of econometrics is based on statistics to formulate and test hypotheses about these processes or estimate parameters for them. A widely used class of econometric models popularized by Tinbergen and later Wold are autoregressive models, in which the stochastic process satisfies some relation between current and past values. Examples of these are autoregressive moving average models and related ones such as autoregressive conditional heteroskedasticity (ARCH) and GARCH models for the modelling of heteroskedasticity.
- Non-stochastic mathematical models may be purely qualitative (for example, models involved in some aspect of social choice theory) or quantitative (involving rationalization of financial variables, for example with hyperbolic coordinates, and/or specific forms of functional relationships between variables). In some cases economic predictions of a model merely assert the direction of movement of economic variables, and so the functional relationships are used only in a qualitative sense: for example, if the price of an item increases, then the demand for that item will decrease. For such models, economists often use two-dimensional graphs instead of functions.
- Qualitative models – Although almost all economic models involve some form of mathematical or quantitative analysis, qualitative models are occasionally used. One example is qualitative scenario planning in which possible future events are played out. Another example is non-numerical decision tree analysis. Qualitative models often suffer from lack of precision.
At a more practical level, quantitative modelling is applied to many areas of economics and several methodologies have evolved more or less independently of each other. As a result, no overall model taxonomy is naturally available. We can nonetheless provide a few examples which illustrate some particularly relevant points of model construction.
- An accounting model is one based on the premise that for every credit there is a debit. More symbolically, an accounting model expresses some principle of conservation in the form algebraic sum of inflows = sinks − sources This principle is certainly true for money and it is the basis for national income accounting. Accounting models are true by convention, that is any experimental failure to confirm them, would be attributed to fraud,
relative merits of qualitative and quantitative models vary across the profession: Milton Friedman can be viewed as having advocated a qualitative approach, while Ronald Coase worried that "if you torture the data long enough, it will confess;" Prospect theory as proposed by Daniel Kahneman(a Nobel prize winner) is more quantiative, while rational agent models are more qualitative.
Pitfalls
Restrictive, unrealistic assumptions
Provably-unrealistic assumptions are pervasive in neoclassical economic theory (also called the "standard theory" or "neoclassical paradigm"), and those assumptions are inherited by simplified models for that theory. (Any model based on a flawed theory, cannot transcend the limitations of that theory.) Joseph Stiglitz' 2001 Nobel Prize lecture [2] (^) reviews his work on Information Asymmetries, which contrasts with the assumption, in standard models, of
"Perfect Information". Stiglitz surveys many aspects of these faulty standard models, and the faulty policy implications and recommendations that arise from their unrealistic assumptions. Stiglitz writes: (p. 519–520)
"I only varied one assumption – the assumption concerning perfect information
- and in ways which seemed highly plausible. ...
We succeeded in showing not only that the standard theory was not robust – changing only one assumption in ways which were totally plausible had drastic consequences, but also that an alternative robust paradigm with great explanatory power could be constructed. There were other deficiencies in the theory, some of which were closely connected. The standard theory assumed that technology and preferences were fixed. But changes in technology, R & D, are at the heart of capitalism. ... I similarly became increasingly convinced of the inappropriateness
of the assumption of fixed preferences. (Footnote: In addition, much of recent economic theory has assumed that beliefs are, in some sense, rational. As noted earlier, there are many aspects of economic behavior that seem hard to reconcile with this hypothesis.)"
Economic models can be such powerful tools in understanding some economic relationships, that it is easy to ignore their limitations. One tangible example where the limits of Economic Models collided with reality, but were nevertheless accepted as "evidence" in public policy debates, involved models to simulate the effects of NAFTA, the North American Free Trade Agreement. James Stanford published his examination of 10 of these models. [3]^ [4]
The fundamental issue is circularity: embedding one's assumptions as foundational "input" axioms in a model, then proceeding to "prove" that, indeed, the model's "output" supports the validity of those assumptions. Such a model is consistent with similar models that have adopted those same assumptions. But is it consistent with reality? As with any scientific theory, empirical validation is needed, if we are to have any confidence in its predictive ability.
If those assumptions are, in fact, fundamental aspects of empirical reality, then the model's output will correctly describe reality (if it is properly "tuned", and if it is not missing any crucial assumptions). But if those assumptions are not valid for the particular aspect of reality one attempts to simulate, then it becomes a case of "GIGO" – Garbage In, Garbage Out".
James Stanford outlines this issue for the specific Computable General Equilibrium ("CGE") models that were introduced as evidence into the public policy debate, by advocates for NAFTA: [5]
"..CGE models are circular: if trade theory holds that free trade is mutually beneficial, then a quantitative simulation model based on that theoretical structure will automatically show that free trade is mutually beneficial...if the economy actually behaves in the manner supposed by the modeler, and the model itself sheds no light on this question, then a properly calibrated model may provide a rough empirical estimate of the effects of a policy change. But the validity of the model hangs entirely on the
prior, nontested specification of its structural relationships ... [Hence, the apparent consensus of pro-NAFTA modelers] reflects more a consensus of prior theoretical views than a consensus of quantitative evidence."
Commenting on Stanford's analysis, one computer scientist wrote,
"When simulating the impact of a trade agreement on labor, it seems absurd to assume a priori that capital is immobile, that full employment will prevail, that unit labor costs are identical in the U.S. and Mexico, that American consumers will prefer products made in America (even if they are more expensive), and that trade flows between the U.S. and Mexico will exactly balance. Yet a recent examination of ten prominent CGE models showed that nine of them include at least one of those unrealistic assumptions, and two of the CGE models included all the above assumptions. This situation bears a disturbing resemblance to computer-assisted intellectual dishonesty. Human beings have always been masters of self-deception, and hiding the essential basis of one's deception by embedding it in a computer program surely helps reduce what might otherwise become an intolerable burden of cognitive dissonance." [6]
In commenting on the general phenomenon of embedding unrealistic "GIGO" assumptions in neoclassical economic models, Nobel prizewinner Joseph Stiglitz is only slightly more diplomatic: (p. 507-8)
"But the ... model, by construction, ruled out the information asymmetries which are at the heart of macro-economic problems. Only if an individual has a severe case of schizophrenia is it possible for such problems to arise. If one begins with a model that assumes that markets clear, it is hard to see how one can get much insight into unemployment (the failure of the labor market to clear)." [2]
Despite the prominence of Stiglitz' 2001 Nobel prize lecture, the use of (perhaps intentionally-) misleading neoclassical models persisted in 2007, according to these authors: [7]
" ... projected welfare gains from trade liberalization are derived from global computable general equilibrium (CGE) models, which are based on highly unrealistic assumptions. CGE models have become the main tool for economic analysis of the benefits of multilateral trade liberalization; therefore, it is essential that these models be scrutinized for their realism and relevance. ... we analyze the foundation of CGE models and argue that their predictions are often misleading. ...
We appeal for more honest simulation strategies that produce a variety of plausible outcomes."
The working paper, "Debunking the Myths of Computable General Equilibrium Models", [8]^ provides both a history, and a readable theoretical analysis of what CGE models are, and are not. In particular, despite their name, CGE models use neither the Walrass general equilibrium, nor the Arrow-Debreus General Equilibrium frameworks. Thus, CGE models are highly-distorted simplifications of theoretical frameworks—collectively called "the neoclassical economic paradigm" – which—themselves—were largely discredited by Joseph Stiglitz.
In the "Concluding Remarks" (p. 524) of his 2001 Nobel Prize lecture, Stiglitz examined why the neoclassical paradigm—and models based on it—persists, despite his publication, over a decade earlier, of some of his seminal results showing that Information Asymmetries invalidated core Assumptions of that paradigm and its models:
"One might ask, how can we explain the persistence of the paradigm for so long? Partly, it must be because, in spite of its deficiencies, it did provide insights into many economic phenomena. ... But one cannot ignore the possibility that the survival of the [neoclassical] paradigm was partly because the belief in that paradigm, and the policy prescriptions, has served certain interests." [2]
In the aftermath of the 2007–2009 global economic meltdown, the profession's attachment to unrealistic models is increasingly being questioned and criticized. After a weeklong workshop, one group of economists released a paper highly critical of their own profession's unethical use of unrealistic models. Their Abstract offers an indictment of
into account.
History
One of the major problems addressed by economic models has been understanding economic growth. An early attempt to provide a technique to approach this came from the French physiocratic school in the Eighteenth century. Among these economists, François Quesnay should be noted, particularly for his development and use of tables he called Tableaux économiques. These tables have in fact been interpreted in more modern terminology as a Leontiev model, see the Phillips reference below.
All through the 18th century (that is, well before the founding of modern political economy, conventionally marked by Adam Smith's 1776 Wealth of Nations) simple probabilistic models were used to understand the economics of insurance. This was a natural extrapolation of the theory of gambling, and played an important role both in the development of probability theory itself and in the development of actuarial science. Many of the giants of 18th century mathematics contributed to this field. Around 1730, De Moivre addressed some of these problems in the 3rd edition of the Doctrine of Chances. Even earlier (1709), Nicolas Bernoulli studies problems related to savings and interest in the Ars Conjectandi. In 1730, Daniel Bernoulli studied "moral probability" in his book Mensura Sortis, where he introduced what would today be called "logarithmic utility of money" and applied it to gambling and insurance problems, including a solution of the paradoxical Saint Petersburg problem. All of these developments were summarized by Laplace in his Analytical Theory of Probabilities (1812). Clearly, by the time David Ricardo came along he had a lot of well-established math to draw from.
Tests of macroeconomic predictions
In the late 1980s a research institute compared twelve leading macroeconomic models available at the time. They compared the models' predictions for how the economy would respond to specific economic shocks (allowing the models to control for all the variability in the real world; this was a test of model vs. model, not a test against the actual outcome). Although the models simplified the world and started from a stable, known common parameters the various models gave significantly different answers. For instance, in calculating the impact of a monetary loosening on output some models estimated a 3% change in GDP after one year, and one gave almost no change, with the rest spread between.[11]
Partly as a result of such experiments, modern central bankers no longer have as much confidence that it is possible to 'fine-tune' the economy as they had in the 1960s and early 1970s. Modern policy makers tend to use a less activist approach, explicitly because they lack confidence that their models will actually predict where the economy is going, or the effect of any shock upon it. The new, more humble, approach sees danger in dramatic policy changes based on model predictions, because of several practical and theoretical limitations in current macroeconomic models; in addition to the theoretical pitfalls, (listed above) some problems specific to aggregate modelling are:
- Limitations in model construction caused by difficulties in understanding the underlying mechanisms of the real economy. (Hence the profusion of separate models.)
- The law of Unintended consequences, on elements of the real economy not yet included in the model.
- The time lag in both receiving data and the reaction of economic variables to policy makers attempts to 'steer' them (mostly through monetary policy) in the direction that central bankers want them to move. Milton Friedman has vigorously argued that these lags are so long and unpredictably variable that effective management of the macroeconomy is impossible.
- The difficulty in correctly specifying all of the parameters (through econometric measurements) even if the structural model and data were perfect.
- The fact that all the model's relationships and coefficients are stochastic, so that the error term becomes very large quickly, and the available snapshot of the input parameters is already out of date.
- Modern economic models incorporate the reaction of the public & market to the policy maker's actions (through game theory), and this feedback is included in modern models (following the rational expectations revolution and Robert Lucas, Jr.'s critique of the optimal control concept of precise macroeconomic management). If the response to the decision maker's actions (and their credibility) must be included in the model then it becomes much harder to influence some of the variables simulated.
Comparison with models in other sciences
Complex systems specialist and mathematician David Orrell wrote on this issue and explained that the weather, human health and economics use similar methods of prediction (mathematical models). Their systems – the atmosphere, the human body and the economy – also have similar levels of complexity. He found that forecasts fail because the models suffer from two problems : i- they cannot capture the full detail of the underlying system, so rely on approximate equations; ii- they are sensitive to small changes in the exact form of these equations. This is because complex systems like the economy or the climate consist of a delicate balance of opposing forces, so a slight imbalance in their representation has big effects. Thus, predictions of things like economic recessions are still highly inaccurate, despite the use of enormous models running on fast computers. [12]
The effects of deterministic chaos on economic models
Economic and meteorological simulations may share a fundamental limit to their predictive powers: chaos. Although the modern mathematical work on chaotic systems began in the 1970s the danger of chaos had been identified and defined in Econometrica as early as 1958:
"Good theorising consists to a large extent in avoiding assumptions....(with the property that)....a small change in what is posited will seriously affect the conclusions." (William Baumol, Econometrica, 26 see : Economics on the Edge of Chaos [13]).
It is straightforward to design economic models susceptible to butterfly effects of initial-condition sensitivity.[14][15]
However, the econometric research program to identify which variables are chaotic (if any) has largely concluded that aggregate macroeconomic variables probably do not behave chaotically. This would mean that refinements to the models could ultimately produce reliable long-term forecasts. However the validity of this conclusion has generated two challenges:
- In 2004 Philip Mirowski challenged this view and those who hold it, saying that chaos in economics is suffering from a biased "crusade" against it by neo-classical economics in order to preserve their mathematical models.
- The variables in finance may well be subject to chaos. Also in 2004, the University of Canterbury study Economics on the Edge of Chaos concludes that after noise is removed from S&P 500 returns, evidence of deterministic chaos is found.
More recently, chaos (or the butterfly effect) has been identified as less significant than previously thought to explain prediction errors. Rather, the predictive power of economics and meteorology would mostly be limited by the models themselves and the nature of their underlying systems (see Comparison with models in other sciences above).
The critique of hubris in planning
A key strand of free market economic thinking is that the market's "invisible hand" guides an economy to prosperity more efficiently than central planning using an economic model. One reason, emphasized by Friedrich Hayek, is the claim that many of the true forces shaping the economy can never be captured in a single plan. This is an argument which cannot be made through a conventional (mathematical) economic model, because it says that there are critical systemic-elements that will always be omitted from any top-down analysis of the economy.[16]
References
- Baumol, William & Blinder, Alan (1982), Economics: Principles and Policy (2nd ed.), New York: Harcourt Brace Jovanovich, ISBN 0155188399.
- Caldwell, Bruce (1994), Beyond Positivism: Economic Methodology in the Twentieth Century (Revised ed.), New York: Routledge, ISBN 0415109116.
- Holcombe, R. (1989), Economic Models and Methodology , New York: Greenwood Press, ISBN 0313266794. Defines model by analogy with maps, an idea borrowed from Baumol and Blinder. Discusses deduction within models, and logical derivation of one model from another. Chapter 9 compares the neoclassical school and the Austrian school, in particular in relation to falsifiability.
- Lange, Oskar (1945), "The Scope and Method of Economics", Review of Economic Studies (The Review of Economic Studies Ltd.) 13 (1): 19–32, doi:10.2307/2296113, JSTOR 2296113. One of the earliest studies on methodology of economics, analysing the postulate of rationality.
- de Marchi, N. B. & Blaug, M. (1991), Appraising Economic Theories: Studies in the Methodology of Research Programs , Brookfield, VT: Edward Elgar, ISBN 1852785152. A series of essays and papers analysing questions about how (and whether) models and theories in economics are empirically verified and the current status of positivism in economics.
- Morishima, Michio (1976), The Economic Theory of Modern Society , New York: Cambridge University Press, ISBN 0521210887. A thorough discussion of many quantitative models used in modern economic theory. Also a careful discussion of aggregation.
- Orrell, David (2007), Apollo's Arrow: The Science of Prediction and the Future of Everything , Toronto: Harper Collins Canada, ISBN 0002007401.
- Phillips, Almarin (1955), "The Tableau Économique as a Simple Leontief Model", Quarterly Journal of Economics (The MIT Press) 69 (1): 137–144, doi:10.2307/1884854, JSTOR 1884854.
- Samuelson, Paul A. (1948), "The Simple Mathematics of Income Determination", in Metzler, Lloyd A., Income, Employment and Public Policy; essays in honor of Alvin Hansen , New York: W. W. Norton.
- Samuelson, Paul A. (1983), Foundations of Economic Analysis (Enlarged ed.), Cambridge: Harvard University Press, ISBN 0674313011. This is a classic book carefully discussing comparative statics in microeconomics, though some dynamics is studied as well as some macroeconomic theory. This should not be confused with Samuelson's popular textbook.
- Tinbergen, Jan (1939), Statistical Testing of Business Cycle Theories , Geneva: League of Nations.
- Walsh, Vivian (1987), "Models and theory", The New Palgrave: A Dictionary of Economics , 3 , New York: Stockton Press, pp. 482–483, ISBN 0935859101.
- Wold, H. (1938), A Study in the Analysis of Stationary Time Series , Stockholm: Almqvist and Wicksell.
- Wold, H. & Jureen, L. (1953), Demand Analysis: A Study in Econometrics , New York: Wiley.
External links
- R. Frigg and S. Hartmann, Models in Science (http://plato.stanford.edu/entries/models-science/). Entry in the Stanford Encyclopedia of Philosophy.
- H. Varian How to build a model in your spare time (http://www.sims.berkeley.edu/~hal/Papers/how.pdf) The author makes several unexpected suggestions: Look for a model in the real world, not in journals. Look at the literature later, not sooner.
- Elmer G. Wiens: Classical & Keynesian AD-AS Model (http://www.egwald.ca/macroeconomics/keynesian. php) – An on-line, interactive model of the Canadian Economy.
- IFs Economic Sub-Model (http://www.ifs.du.edu/ifs): Online Global Model
