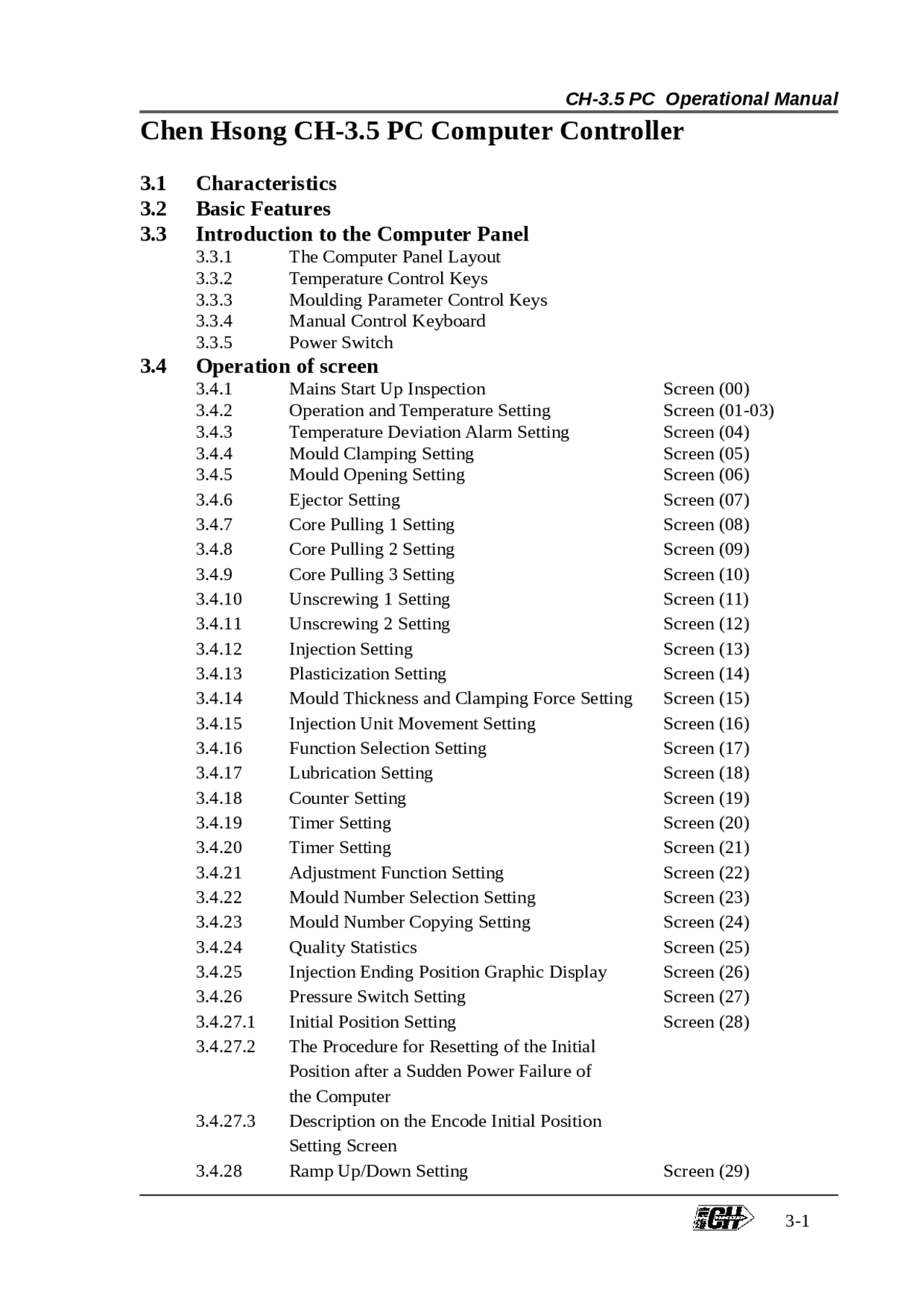

Chen Hsong CH-3.5 PC Computer Controller
3.1 Characteristics
3.2 Basic Features
3.3 Introduction to the Computer Panel
3.3.1 The Computer Panel Layout 3.3.2 Temperature Control Keys 3.3.3 Moulding Parameter Control Keys 3.3.4 Manual Control Keyboard 3.3.5 Power Switch
3.4 Operation of screen
3.4.1 Mains Start Up Inspection Screen (00) 3.4.2 Operation and Temperature Setting Screen (01-03) 3.4.3 Temperature Deviation Alarm Setting Screen (04) 3.4.4 Mould Clamping Setting Screen (05) 3.4.5 Mould Opening Setting Screen (06) 3.4.6 Ejector Setting Screen (07) 3.4.7 Core Pulling 1 Setting Screen (08) 3.4.8 Core Pulling 2 Setting Screen (09) 3.4.9 Core Pulling 3 Setting Screen (10) 3.4.10 Unscrewing 1 Setting Screen (11) 3.4.11 Unscrewing 2 Setting Screen (12) 3.4.12 Injection Setting Screen (13) 3.4.13 Plasticization Setting Screen (14) 3.4.14 Mould Thickness and Clamping Force Setting Screen (15) 3.4.15 Injection Unit Movement Setting Screen (16) 3.4.16 Function Selection Setting Screen (17) 3.4.17 Lubrication Setting Screen (18) 3.4.18 Counter Setting Screen (19) 3.4.19 Timer Setting Screen (20) 3.4.20 Timer Setting Screen (21) 3.4.21 Adjustment Function Setting Screen (22) 3.4.22 Mould Number Selection Setting Screen (23) 3.4.23 Mould Number Copying Setting Screen (24) 3.4.24 Quality Statistics Screen (25) 3.4.25 Injection Ending Position Graphic Display Screen (26) 3.4.26 Pressure Switch Setting Screen (27) 3.4.27.1 Initial Position Setting Screen (28) 3.4.27.2 The Procedure for Resetting of the Initial Position after a Sudden Power Failure of the Computer 3.4.27.3 Description on the Encode Initial Position Setting Screen 3.4.28 Ramp Up/Down Setting Screen (29)
3.4.29.1 Auxiliary Speed and Pressure Setting Screen (30) 3.4.29.2 Auxiliary Speed and Pressure Setting Screen (31) 3.4.29.3 Auxiliary Speed and Pressure Setting Screen (32) 3.4.30 Ladder Program Monitoring Screen (33) 3.4.31 Input/Output Monitoring Screen (34, 35, 36, 37, 38, 39) 3.4.32 Input/Output Status Monitoring Screen Screen (40, 41) 3.4.33 Timer Monitoring Screen Screen (42, 43) 3.4.34 Counter Monitoring Screen Screen (44) 3.4.35 Language Selection and Memory Erase Screen (45) 3.4.36 Speed Linearization Screen (46) 3.4.37 Pressure Linearization Screen (47) 3.4.38 Speed and Pressure Adjustment Screen (48) 3.4.39 Air Blow Setting Screen (49)
3.5 Alarm Message and Trouble Shooting
3.5.1 Description of Computer Warning Message 3.5.2 Description of Alarm Message of System Faults 3.5.3 Description of Title of Faults 3.6 Moulding Operation Instruction 3.6.1 Temperature Control Setting 3.6.2 Setting of the Temperature Deviation (alarm) 3.6.3 Setting of the Temperature Preheat Function 3.6.4 Selection of Fully Automatic, Semi-Automatic or Manual Operation 3.6.5 Setting of Position, Speed and Pressure Data 3.6.6 Setting of the Numeric Data for Moulding Conditions 3.6.7 Adjustment of Proportional Numerical Control 3.6.8 Enable and Disable the Key Lock Function 3.6.9 Description of Application of the Computer’s Internal Counters 3.6.10 Description of Application of the Computer’s Internal Timer 3.6.11 Description of Input and Output Port of the Computer 3.7 CH-3.5PC Special Screen Operation 3.8 CH-3.5PC Standard Electrical Wiring Diagram
(13) Production volume setting for auto-stop function. (14) Lubrication setting for the toggle unit, setting the frequency of lubrication for mechanical links and an alarm for low oil level. (15) Operation display. (16) Diagnostic function can check the status of inputs and outputs and monitors the timers and counters. (17) Mould data can be copied or deleted freely. Also by using the mould data copy function in block form from standard mould data, saves on setting times. (18) Both the mold data and quality data can be captured by any IBM comptabile PC via a serial communication port with additional software running in Windows 95 system. All this data can be stored on harddisk and printed out by a windows supporting printer.
3.3 Introduction to the computer panel
3.3.1 The Computer Panel Layout
Moulding control parameter keyboard This keyboard has the following functions: (1) Entering the required numerical data for the moulding conditions Speed setting 00-99, 00 means no speed Pressure setting 00-99, 00 means no pressure Position setting 0000-999.9 mm Time setting 0-6553.5 sec Counter setting 0- Mould thickness setting 0-6553.5 mm (2) Checking if the keyboard is operating normally (3) Accessing out the computer control program (4) Checking the operating status of outputs, inputs and timers.
3.3.4 Manual Control Keyboard
(1) The manual operation keyboard can be used to operate the individual movements of the moulding cycle. (2) Mould height adjustment and automatic door operation use the same key as the mould height adjustment function. The screen display must be mould height adjustment.
3.3.5 Power Switch
(1) Emergency Stop Button The red button at the lower right hand corner of the computer panel is used to cut off the electrical supply when it is pressed. Before restarting the machine, turn the red button according to the direction of arrows to unlock the button. (2) Power ON Push Button The green Power ON Push Button is located below the red Emergency Stop Button on the computer panel. When it is pressed, the power supply control unit of this machine will be turned on. This function will protect the computer system effectively, when power is suddenly turned off. (3) The computer includes a voltage stabilizer unit for power input. This will maintain its normal function if the power input varies within the range of AC 90V-AC 265V 50/60 Hz. 3.4 Operation Screen
3.4.2 Operation and temperature setting
During manual operation, the screen (01) is shown as below: During automatic operation, the screen (02) is shown as below: The screen (03) is shown as below
T1 T2 T3 T4 T5 T6 T7 T
AA BB CC DD EE FF GG HH WR
II ?? ?? ?? ?? ?? ?? ?? RD
OFF NOZZ JJ %
MOLDMOLD ﹕ 12
???bar ????p ??? mm ???? mm T1 T2 T3 T4 T5 T6 T7 T AA BB CC DD EE FF GG HH WR II ?? ?? ?? ?? ?? ?? ?? RD OFF NOZZ JJ % MOLDMOLD ﹕ 12 ???bar ????p ??? mm ???? mm
Press to display Screen (02), press again to display Screen (03). The screen (02) and screen (03) can change regularly. In which the items are: " I I " : In display of the data measured by the computer "KK" : Nozzle heating the proportional value setting "AA" : Zone 1 temperature setting "BB" : Zone 2 temperature setting "CC" : Zone 3 temperature setting "DD" : Zone 4 temperature setting "EE" : Zone 5 temperature setting (depends on the machine clamp tonnage) "FF" : Zone 6 temperature setting (depends on the machine clamp tonnage) "GG" : Zone 7 temperature setting (depends on the machine clamp tonnage) "HH" : Zone 8 temperature setting (depends on the machine clamp tonnage) "JJ" : Temperature mode Setting switch. By pressing the key or one of the three modes will be selected (ON, OFF, PREHEAT) "LL" : Injection filling time display "MM" : Injection time setting "NN" : Automatic cycle time display "OO" : Cooling time setting "PP" : No. of moulding produced display "QQ" : Recycle time setting
T1 T2 T3 T4 T5 T6 T7 T
AA BB CC DD EE FF GG HH WR
II ?? ?? ?? ?? ?? ?? ?? RD
JJ NOZZ KK %
AUTO
FILLING LL s INJ. MM s CYC. TIME NN s COOL OO s CYCLE NO PP t RECYC. QQ s MOLD ﹕ 12 ???bar ????p ??? mm ???? mm
3.4.3 Temperature Deviation Alarm Setting
Temperature deviation alarm setting screen (04) (1) Press and simultaneously to display screen (04) (2) Press the Cursor key to select the temperature deviation alarm setting values for all stages. Press the numerical keys to enter the required values and complete the setting by pressing again. Shown on the screen: "JJ " : Temperature control or mode selection to select the following three modes : (i) ON (ii) OFF (iii) PREHEAT "LL" : Zone 1 temperature deviation high limit alarm setting "MM" : Zone 2 temperature deviation high limit alarm setting "NN" : Zone 3 temperature deviation high limit alarm setting "OO" : Zone 4 temperature deviation high limit alarm setting "PP" : Zone 5 temperature deviation high limit alarm setting
T1 T2 T3 T4 T5 T6 T7 T
AA BB CC DD EE FF GG HH WR
II ?? ?? ?? ?? ?? ?? ?? RD
JJ NOZZ KK %
ALARM
HI +LL +MM +NN +OO +PP +QQ
+RR +SS
LO -TT -UU -VV -WW -XX -YY -ZZ -AB
PREHEAT RATIO AC %
NOZZLE HEATING CYCLE AD s ???bar ????p ??? mm ???? mm
"OO" : Zone 6 temperature deviation high limit alarm setting "RR" : Zone 7 temperature deviation high limit alarm setting "SS" : Zone 8 temperature deviation high limit alarm setting "TT" : Zone 1 temperature deviation low limit alarm setting "UU" : Zone 2 temperature deviation low limit alarm setting "VV" : Zone 3 temperature deviation low limit alarm setting "WW" : Zone 4 temperature deviation low limit alarm setting "XX" : Zone 5 temperature deviation low limit alarm setting "YY" : Zone 6 temperature deviation low limit alarm setting "ZZ" : Zone 7 temperature deviation low limit alarm setting "AB" : Zone 8 temperature deviation low limit alarm setting "AC" : During preheat, (%) temperature reduction setting "AD" : Nozzle temperature cycle time setting:
"KK" : Clamping force in tons. This value is calculated automatically from the position (FF p). (It is only a value for reference and not an absolute value) Low Pressure Stroke Alarm (TIM 6) AA % BB% DD % EE % GG % HH % Fast mould closing Low pressure clamping High pressure clamping CC mm FF p II p
3.4.5 Mould-opening setting
Mould Opening Setting Screen (06) (1) Press or or to display screen (06) (2) Press the cursor key to select the mould-opening parameter item settings. Press the numerical keys to enter the required figures and then press to complete the setting. Shown on the screen: "AA" : Break speed setting "BB" : Break pressure setting "CC" : Break end position setting "DD" : Fast mould open speed setting "EE" : Fast mould open pressure setting "FF" : Fast mould open end position setting "GG" : Setting of speed for reduced-speed mould-opening "HH" : Setting of pressure for reduced-speed mould-opening "II" : Setting of the end position for the action of reduced-speed mould-opening "JJ" : Setting of the position of the standby mould-opening action (optional function or air blowing position during mould-opening) "KK" : Displayed max. mould-opening stroke
OPENING
SP PR POSIT
BREAK AA % BB % TO CC p FAST OPEN DD % EE % TO FF mm SLOW OPEN GG % HH % TO II mm OPEN AUX AT JJ mm MAXIMUM OPENING STROKE KK mm ??? ???? ??? mm ???? mm
3.4.6 Ejector Setting
Ejector Setting Screen (07) (1) Press the key to display screen (07). (2) Press the cursor key to select the ejector parameter settings. Press the numerical keys to enter the required figures and then press to complete setting. Shown on the screen: "AA" : The number of ejection setting (CNT 04) "BB" : The number of ejector vibration setting (used with multiple ejection) (CNT 05) "CC" : Maximum ejection stroke display "DD" : Ejector stopping time (used with ejector stopping at end of stroke mode) (TIM 11) "EE" : Mould opening position setting for start of ejector during mould opening stroke (optional function) "FF" : Ejector motion mode. Use to select one of the following three modes, (i) No motion (ii) Ejector stopping at end of stroke
EJECTOR
NOS.OFEJE AA VIBRATION BB
MAX.STRK. CC mm PAUSE DD s EJECT.START.AT OPEN POSIT. EE mm EJECTOR MODE FF SP PR POSIT EJT.OUT→ GG % HH % → II mm EJT.IN ← JJ % KK % ← LL mm ???bar ????p ??? mm ???? mm
(iii) Multiple ejection "GG" : Ejector forward speed setting "HH" : Ejector forward pressure setting "II" : Ejector forward motion end position setting "JJ" : Ejector backward speed setting "KK" : Ejector backward pressure setting "LL" : Ejector backward motion changeover position setting GG % HH % Ejector forward ← LL mm → Ejector retract (2) JJ % KK % Speed / pressure Ejector backward ↑ (Screen 29) II mm
