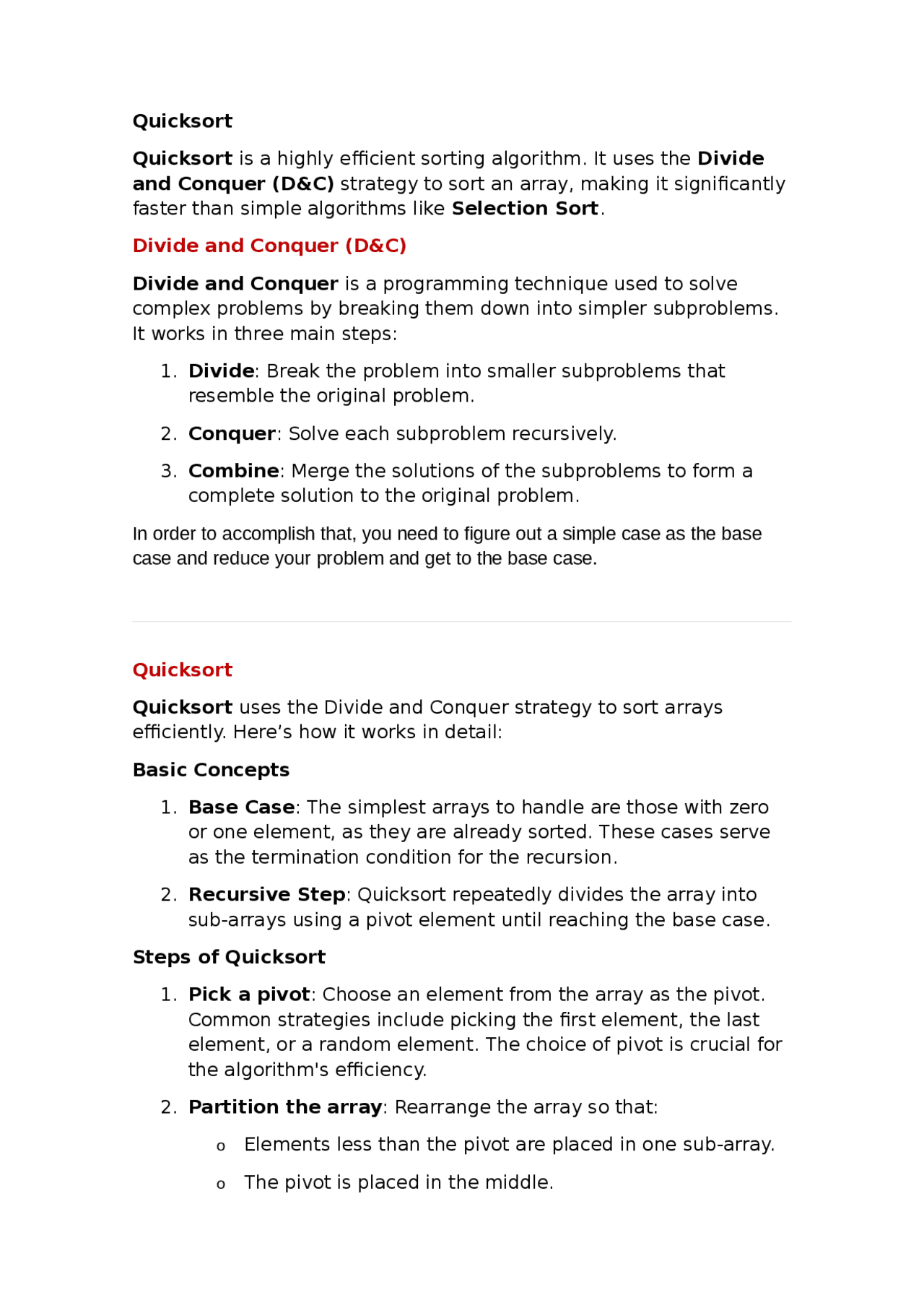

Quicksort
Quicksort is a highly efficient sorting algorithm. It uses the Divide
and Conquer (D&C) strategy to sort an array, making it significantly
faster than simple algorithms like Selection Sort.
Divide and Conquer (D&C)
Divide and Conquer is a programming technique used to solve
complex problems by breaking them down into simpler subproblems.
It works in three main steps:
1. Divide: Break the problem into smaller subproblems that
resemble the original problem.
2. Conquer: Solve each subproblem recursively.
3. Combine: Merge the solutions of the subproblems to form a
complete solution to the original problem.
In order to accomplish that, you need to figure out a simple case as the base
case and reduce your problem and get to the base case.
Quicksort
Quicksort uses the Divide and Conquer strategy to sort arrays
efficiently. Here’s how it works in detail:
Basic Concepts
1. Base Case: The simplest arrays to handle are those with zero
or one element, as they are already sorted. These cases serve
as the termination condition for the recursion.
2. Recursive Step: Quicksort repeatedly divides the array into
sub-arrays using a pivot element until reaching the base case.
Steps of Quicksort
1. Pick a pivot: Choose an element from the array as the pivot.
Common strategies include picking the first element, the last
element, or a random element. The choice of pivot is crucial for
the algorithm's efficiency.
2. Partition the array: Rearrange the array so that:
oElements less than the pivot are placed in one sub-array.
oThe pivot is placed in the middle.
pf3
pf4
pf5

Vista previa parcial del texto

¡Descarga Quicksort and Merge Sort: A Comprehensive Guide to Efficient Sorting Algorithms y más Apuntes en PDF de Algoritmos y Programación solo en Docsity!

Quicksort Quicksort is a highly efficient sorting algorithm. It uses the Divide and Conquer (D&C) strategy to sort an array, making it significantly faster than simple algorithms like Selection Sort. Divide and Conquer (D&C) Divide and Conquer is a programming technique used to solve complex problems by breaking them down into simpler subproblems. It works in three main steps:

  1. Divide : Break the problem into smaller subproblems that resemble the original problem.
  2. Conquer : Solve each subproblem recursively.
  3. Combine : Merge the solutions of the subproblems to form a complete solution to the original problem. In order to accomplish that, you need to figure out a simple case as the base case and reduce your problem and get to the base case. Quicksort Quicksort uses the Divide and Conquer strategy to sort arrays efficiently. Here’s how it works in detail: Basic Concepts
  4. Base Case : The simplest arrays to handle are those with zero or one element, as they are already sorted. These cases serve as the termination condition for the recursion.
  5. Recursive Step : Quicksort repeatedly divides the array into sub-arrays using a pivot element until reaching the base case. Steps of Quicksort
  6. Pick a pivot : Choose an element from the array as the pivot. Common strategies include picking the first element, the last element, or a random element. The choice of pivot is crucial for the algorithm's efficiency.
  7. Partition the array : Rearrange the array so that: o Elements less than the pivot are placed in one sub-array. o The pivot is placed in the middle.

o Elements greater than the pivot are placed in another sub-array.

  1. Recursively apply Quicksort : Call Quicksort on both sub- arrays.
  2. Combine : Combine the sorted sub-arrays and the pivot to get the fully sorted array. Example Consider sorting the array [33, 10, 15]:
  3. Choose 33 as the pivot.
  4. Partition the array: o Sub-array of elements less than 33: [10, 15] o The pivot: [33] o Sub-array of elements greater than 33: []
  5. Recursively sort the sub-arrays: quicksort([10, 15]) returns [10, 15], and quicksort([]) returns [].
  6. Combine: [10, 15] + [33] + [] = [10, 15, 33] Big O Notation for Quicksort The performance of Quicksort depends on the choice of the pivot:  Worst Case : When the pivot divides the array very unevenly (e.g., always choosing the smallest or largest element in a sorted or nearly sorted array), the algorithm has a time complexity of O(n²).  Best Case : When the pivot divides the array into two equal halves, the algorithm achieves a time complexity of O(n log n).  Average Case : By selecting a random pivot, Quicksort generally runs in O(n log n) time on average, making it one of the fastest practical sorting algorithms. Why Quicksort Is Fast
  7. Efficiency in Practice : Although both Quicksort and Merge Sort have a time complexity of O(n log n) , Quicksort is typically faster in real-world scenarios because it has smaller constant factors.

Analyzing Quicksort's Time Complexity Let's review the main steps of Quicksort to see how the time complexity is calculated:

  1. Partitioning : In each step, Quicksort chooses a pivot and partitions the array into two sub-arrays: o One sub-array with elements less than the pivot. o Another sub-array with elements greater than the pivot.
  2. Recursive Sorting : Quicksort then recursively applies the same process to these two sub-arrays until each sub-array contains zero or one element (the base case). Step-by-Step Breakdown
  3. Time for Partitioning : o In each partitioning step, we compare every element of the array to the pivot to decide whether it should go to the left or the right sub-array. This operation takes O(n) time, where n is the number of elements in the current array.
  4. Recursive Calls : o Quicksort divides the array into two sub-arrays, and each of these sub-arrays is recursively sorted. o If the array is evenly split at each step (which is the best and average case scenario), we repeatedly divide the array in half until we reach arrays of size one. The total number of levels of recursion is approximately log n.  Why log n levels? Dividing an array repeatedly in half produces a logarithmic number of divisions.
  5. Total Time Complexity : o At each level of recursion, we perform O(n) operations for partitioning the array. o Since there are log n levels of recursion, the total time complexity is: O(n)×O(log n)=O(n log n)

Visualizing the Process Since each level takes O(n) time and there are log n levels, the overall time complexity is: O(n)×O(log n)=O(n log n) Why Is It "Average Case"? The O(n log n) time complexity is the average case for Quicksort, which occurs when the pivot divides the array into two sub-arrays of approximately equal size at each step. This scenario is typical when:  The pivot is chosen randomly.  The elements in the array are not arranged in a worst-case order (like already sorted or reverse sorted in some implementations). Worst Case: O(n²) The worst case occurs when the pivot selection is poor, such as always choosing the smallest or largest element when the array is already sorted or nearly sorted. In this case:  Instead of dividing the array in half, one sub-array has almost all the elements, and the other sub-array is empty or has only one element.  The recursion depth becomes n, leading to a total time complexity of: O(n)×O(n)= O(n²) SummaryO(n log n) occurs because: o Partitioning the array takes O(n) time per level. o There are log n levels of recursion if the array is divided evenly at each step.  Efficient pivot selection is crucial to ensure Quicksort runs in O(n log n) time on average.
