Designer Professional Practice Exam

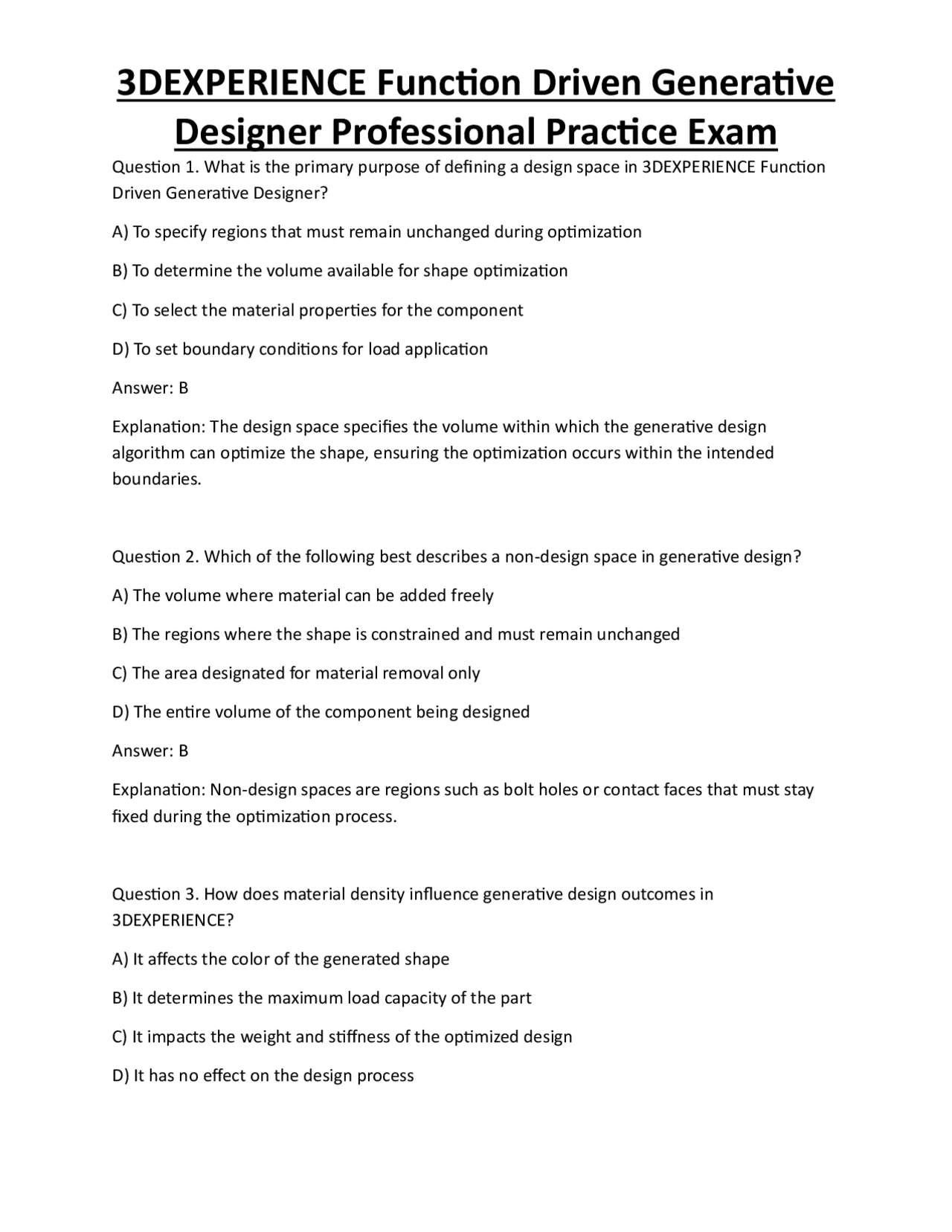

Question 1. What is the primary purpose of defining a design space in 3DEXPERIENCE Function Driven Generative Designer? A) To specify regions that must remain unchanged during optimization B) To determine the volume available for shape optimization C) To select the material properties for the component D) To set boundary conditions for load application Answer: B Explanation: The design space specifies the volume within which the generative design algorithm can optimize the shape, ensuring the optimization occurs within the intended boundaries. Question 2. Which of the following best describes a non-design space in generative design? A) The volume where material can be added freely B) The regions where the shape is constrained and must remain unchanged C) The area designated for material removal only D) The entire volume of the component being designed Answer: B Explanation: Non-design spaces are regions such as bolt holes or contact faces that must stay fixed during the optimization process. Question 3. How does material density influence generative design outcomes in 3DEXPERIENCE? A) It affects the color of the generated shape B) It determines the maximum load capacity of the part C) It impacts the weight and stiffness of the optimized design D) It has no effect on the design process
Designer Professional Practice Exam
Answer: C Explanation: Material density directly influences the weight and structural performance, affecting the optimization results for strength and weight reduction. Question 4. What is the role of functional regions in the generative design process? A) To define areas where the component should be painted B) To specify load application and restraint zones for analysis C) To identify regions for material removal only D) To set aesthetic features for the shape Answer: B Explanation: Functional regions are critical for applying loads and restraints, guiding the design to meet specific functional requirements. Question 5. Which boundary condition type applies a fixed restraint to a component in 3DEXPERIENCE? A) Force B) Fixed restraint C) Torque D) Remote load Answer: B Explanation: A fixed restraint completely restricts movement in all directions, simulating a fixed support or attachment point. Question 6. When creating multiple load cases in generative design, what is the primary purpose? A) To increase the complexity of the model
Designer Professional Practice Exam
Question 9. What is the main goal of setting an optimization objective for mass minimization? A) To maximize the material used in the design B) To reduce the weight of the part while maintaining structural integrity C) To increase the overall size of the component D) To optimize aesthetic appearance only Answer: B Explanation: Mass minimization aims to create lightweight designs that still meet structural performance criteria. Question 10. How does stiffness maximization differ from mass minimization in generative design? A) It focuses solely on reducing material usage B) It aims to produce the stiffest shape for a given volume or mass C) It ignores material properties altogether D) It only applies to thermal analysis Answer: B Explanation: Stiffness maximization seeks the most rigid shape within given constraints, often leading to different design trade-offs compared to mass reduction. Question 11. What is a common manufacturing constraint considered in generative design for additive manufacturing? A) Overhang angles and support structures B) Milling machine tool paths C) Casting draft angles D) Welding joint locations
Designer Professional Practice Exam
Answer: A Explanation: Additive manufacturing constraints include overhang angles, which influence support structure requirements and buildability. Question 12. Which feature is used to ensure the pattern or shape is repeatable and aesthetically balanced? A) Symmetry and patterning constraints B) Load case management C) Material density adjustment D) Boundary condition application Answer: A Explanation: Symmetry and patterning constraints help produce designs that are aesthetically pleasing and functionally consistent. Question 13. When setting displacement constraints in generative design, what is typically specified? A) The maximum allowable displacement at certain points B) The color of the shape after optimization C) The material type to be used D) The mesh size for analysis Answer: A Explanation: Displacement constraints limit the movement of specific points or regions to ensure the design meets positional requirements. Question 14. Why are frequency (vibration) constraints important in generative design? A) To prevent the shape from coloring incorrectly
Designer Professional Practice Exam
Question 17. What is typically involved in the shape reconstruction process after topology optimization? A) Applying textures and colors to the mesh B) Converting the tessellated mesh into smooth CAD surfaces such as B-Rep or surface models C) Adding decorative features D) Simplifying the mesh into a point cloud only Answer: B Explanation: Shape reconstruction converts the rough, tessellated result into usable, smooth CAD geometry suitable for manufacturing and further design. Question 18. Which tool in 3DEXPERIENCE is used for shrinking or wrapping optimized meshes into CAD-ready shapes? A) Generative Shape Design (GSD) tools B) Image rendering tool C) Material library manager D) Assembly constraint tool Answer: A Explanation: Generative Shape Design tools facilitate converting and refining the optimized mesh into smooth, functional CAD geometry. Question 19. Why is smoothing important after generating a shape from topology optimization? A) To improve visual appearance and prepare the shape for manufacturing B) To increase the weight of the part C) To add aesthetic patterns D) To convert the shape into a point cloud
Designer Professional Practice Exam
Answer: A Explanation: Smoothing removes jagged edges and irregularities, making the shape more manufacturable and visually appealing. Question 20. What is a key reason for scaling the concept shape before final validation? A) To adjust the shape to fit back into the original assembly context B) To change the material properties C) To alter the color scheme of the model D) To reduce the number of functional regions Answer: A Explanation: Scaling ensures the optimized shape fits properly within the assembly and meets design specifications before final analysis. Question 21. After shape refinement, what is an essential step to verify the design's functional performance? A) Re-running a simulation or analysis on the smooth geometry B) Changing the color of the shape for visualization C) Removing all load cases and restraints D) Exporting the shape directly to manufacturing without validation Answer: A Explanation: Re-running analysis confirms that the refined shape still satisfies all structural and functional requirements. Question 22. Which material property primarily influences the stiffness of the generated design? A) Thermal conductivity
Designer Professional Practice Exam
Question 25. How does symmetry constraint influence the generated shape in generative design? A) It ensures the shape is aesthetically balanced and repeatable across a plane or axis B) It increases the computational time significantly C) It prevents the shape from being optimized fully D) It only affects the material properties Answer: A Explanation: Symmetry constraints enforce balanced and repeatable features, which are often desirable for both aesthetics and manufacturing. Question 26. Which meshing technique is preferred for capturing detailed stress concentrations in localized areas? A) Octree meshing B) Tetrahedral meshing with finer elements C) Coarse mesh with large elements D) Surface meshing only Answer: B Explanation: Finer tetrahedral meshes allow for detailed stress analysis in localized regions, capturing stress concentrations accurately. Question 27. What is the main advantage of using additive manufacturing constraints during the optimization? A) To ensure the generated shape can be practically manufactured with additive processes B) To reduce the computational complexity of the simulation C) To automatically select the best material for manufacturing D) To replace the need for post-processing steps
Designer Professional Practice Exam
Answer: A Explanation: Incorporating additive manufacturing constraints ensures the shape is feasible to produce with 3D printing, considering overhangs and support requirements. Question 28. How does the concept of "Keep-out" zones assist in the generative design process? A) They prevent the generator from creating shapes within specified regions to avoid interference or assembly conflicts B) They designate areas for aesthetic embellishments C) They mark regions for material removal only D) They define the areas where the shape should be maximized in volume Answer: A Explanation: Keep-out zones restrict the design space, preventing interference with existing components or assembly constraints. Question 29. What is the primary goal when performing trade-off studies between different design runs? A) To identify the best balance between weight, stiffness, and stress B) To select the shape with the most aesthetic appeal C) To eliminate all non-compliant designs D) To maximize the material usage for strength Answer: A Explanation: Trade-off studies help in selecting the optimal design by balancing competing performance objectives like weight and stiffness. Question 30. Which analysis type is typically used to evaluate the dynamic response of a generated shape? A) Modal analysis
Designer Professional Practice Exam
Question 33. In generative design, what does the term "Design Space Partitioning" involve? A) Dividing the design space into regions with different material properties B) Segregating the available volume into zones for functional and non-functional purposes C) Sorting the design space based on aesthetic features D) Removing unnecessary regions from the model Answer: B Explanation: Partitioning separates the design space into functional regions and non-design zones, guiding the optimization process effectively. Question 34. How does the choice of meshing resolution affect the finite element analysis in generative design? A) Higher resolution meshes increase accuracy but require more computational resources B) Lower resolution meshes always provide better results C) Mesh resolution has no impact on analysis accuracy D) It only affects the visual appearance of the mesh, not the analysis Answer: A Explanation: Finer meshes improve simulation accuracy, especially around stress concentrations, but at the cost of increased computational effort. Question 35. Which optimization goal would be most appropriate for designing a lightweight support structure? A) Mass minimization with stiffness constraints B) Stiffness maximization without weight considerations C) Volume maximization D) Aesthetic patterning only
Designer Professional Practice Exam
Answer: A Explanation: To create a lightweight support, minimizing mass while ensuring sufficient stiffness is essential. Question 36. What is the significance of setting overhang angles in additive manufacturing constraints? A) To prevent excessive support structures and facilitate easier printing B) To increase the build height of the part C) To optimize cooling rates during printing D) To control the color of the printed object Answer: A Explanation: Overhang angles influence support requirements; setting limits helps reduce supports and improve print quality. Question 37. How do patterning constraints influence the generated shape? A) They enforce repetitive or balanced feature arrangements for aesthetic or functional purposes B) They randomize the shape for diversity C) They eliminate the need for symmetry constraints D) They simplify the meshing process Answer: A Explanation: Patterning constraints ensure that features are arranged in a consistent, repeatable manner, enhancing aesthetics and manufacturability. Question 38. Which material property is most critical when optimizing for vibrational performance? A) Density
Designer Professional Practice Exam
Question 41. Why is it important to manage "Keep-out" zones during the design process? A) To prevent interference with existing components or assembly constraints B) To add aesthetic features to the shape C) To simplify the mesh generation process D) To increase the overall volume of the design Answer: A Explanation: Keep-out zones ensure that the generated shape does not interfere with other parts, maintaining assembly integrity. Question 42. Which of the following best describes the purpose of setting frequency constraints in the design? A) To avoid resonance that could cause fatigue or failure during operation B) To optimize the visual appearance of the part C) To increase the part’s thermal conductivity D) To reduce the cost of manufacturing Answer: A Explanation: Frequency constraints help in designing parts that do not resonate at operational frequencies, preventing fatigue and failure. Question 43. How does the concept of "Trade-off" help in selecting the optimal design? A) It visualizes the compromise between competing objectives like weight and stiffness, aiding informed decision-making B) It automatically chooses the best design without user input C) It simplifies the shape into a standard form D) It only considers aesthetic factors
Designer Professional Practice Exam
Answer: A Explanation: Trade-off visualization helps designers balance multiple objectives to select the most suitable design based on project priorities. Question 44. Which step follows after converting the optimized mesh into CAD geometry? A) Running validation simulations on the smoothed shape to verify performance B) Exporting directly to production without further checks C) Applying surface textures for presentation D) Ignoring the optimization results and starting a new design Answer: A Explanation: Final validation ensures the shape still meets all functional and structural requirements after refinement. Question 45. What is the primary benefit of using the "Scaling" feature during shape refinement? A) To fit the optimized shape into the original assembly or meet size constraints B) To change the material properties C) To generate aesthetic variations of the shape D) To reduce the number of functional regions Answer: A Explanation: Scaling adjusts the size of the shape to match the design specifications or assembly requirements. Question 46. Which analysis method is most suitable for evaluating the operational vibrational behavior of the final design? A) Modal analysis
Designer Professional Practice Exam
Question 49. In the context of generative design, what is meant by "Patterning"? A) Creating repetitive features to enhance aesthetic or structural qualities B) Randomly distributing material across the shape C) Eliminating all symmetry to produce organic forms D) Applying surface textures only Answer: A Explanation: Patterning involves creating repeated or symmetrical features for improved aesthetics or structural efficiency. Question 50. What is a key consideration when defining "Displacement Constraints" for a part? A) To restrict movement at specific points ensuring the part stays within positional limits during operation B) To change the mesh density C) To determine the color of the optimized shape D) To assign material properties to different regions Answer: A Explanation: Displacement constraints control how much certain regions can move, ensuring the shape functions correctly in its environment. Question 51. Which aspect of meshing influences the resolution of the finite element analysis in the generative process? A) Mesh element size and density B) Material color C) Surface finish texture D) Boundary condition types
Designer Professional Practice Exam
Answer: A Explanation: Finer mesh elements provide higher resolution and more accurate results but require more computational resources. Question 52. Which of the following is a typical goal in performance target setting for generative design? A) To limit displacement and avoid excessive deformation B) To maximize aesthetic complexity C) To minimize manufacturing costs without regard to performance D) To ensure the shape is as large as possible Answer: A Explanation: Performance targets like displacement constraints help ensure that the structure maintains its intended functionality under load. Question 53. How does symmetry constraint benefit the manufacturing process? A) It simplifies the fabrication process by creating balanced and repeatable features B) It increases the number of parts needed for assembly C) It makes the shape more difficult to analyze D) It reduces the overall strength of the design Answer: A Explanation: Symmetry constraints facilitate easier manufacturing, assembly, and often improve aesthetic appeal. Question 54. Why is it important to analyze stress distribution after final shape generation? A) To verify that the optimized shape can withstand operational loads without failure B) To determine the best color for the surface finish
