Complete Questions & Assessment Guide.

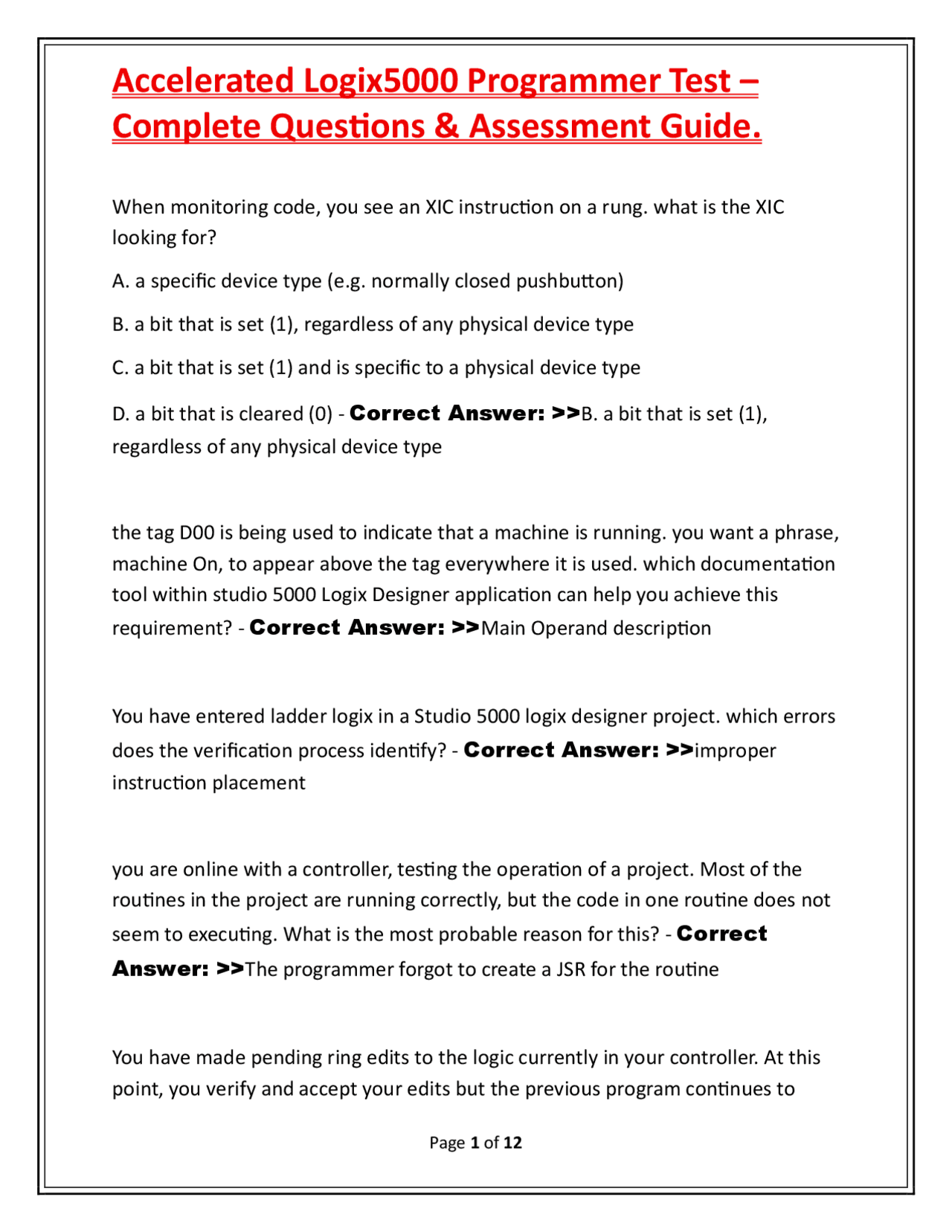

When monitoring code, you see an XIC instruction on a rung. what is the XIC looking for? A. a specific device type (e.g. normally closed pushbutton) B. a bit that is set (1), regardless of any physical device type C. a bit that is set (1) and is specific to a physical device type D. a bit that is cleared (0) - Correct Answer: >>B. a bit that is set (1), regardless of any physical device type the tag D00 is being used to indicate that a machine is running. you want a phrase, machine On, to appear above the tag everywhere it is used. which documentation tool within studio 5000 Logix Designer application can help you achieve this requirement? - Correct Answer: >>Main Operand description You have entered ladder logix in a Studio 5000 logix designer project. which errors does the verification process identify? - Correct Answer: >>improper instruction placement you are online with a controller, testing the operation of a project. Most of the routines in the project are running correctly, but the code in one routine does not seem to executing. What is the most probable reason for this? - Correct Answer: >>The programmer forgot to create a JSR for the routine You have made pending ring edits to the logic currently in your controller. At this point, you verify and accept your edits but the previous program continues to
Complete Questions & Assessment Guide.
execute. Which mode must your controller be in for this series of events to occur?
- Correct Answer: >>Online edits while the controller is in remote run mode Which timer would you program of you wanted to begin timing when the ring goes true and hold the accumulated time when the ring logix goes false? - Correct Answer: >>RTO When programming a counter instruction, which condition would cause your .OV bit to set? - Correct Answer: >>When your instruction has counted above the upper limit of the instruction. You want to set up a condition that turns true as soon as the number of gallons filling a tank reaches or goes beyond the tanks maximum fill line. which instruction should you use? - Correct Answer: >>GEQ Which instruction should you use to determine the remainder after one value is divided by another? - Correct Answer: >>MOD (modulo) You are using the best practices to program move instructions in studio 5000 logic designer project. Which option best describes when to use a One-Shot (ONS) instruction in front of a Move (MOV) instruction? - Correct Answer:
When you want to limit the move to only one scan when the rung goes from false to true.
Complete Questions & Assessment Guide.
If you export an add-on instruction, which extension would it contain? - Correct Answer: >>.L5X You are importing an .L5K file in order to use it. What happens to the file after it's imported? - Correct Answer: >>The .L5K file remains as is while a separate .ACD file is created You need to share data between Controller_A and controller_G using produced and consumed tags. Which of the following network layouts will allow this to occur? - Correct Answer: >>Controller_A and Controller_G are both on the same EtherNet/IP network You are configuring a consumed tag. Which of the following is true regarding the Remote Data (Source tag name) - Correct Answer: >>The Remote Data must be exactly the same as the produced tag name in the producing controller. You have a tag containing data you want to send to a target device. When configuring a message, what field do you enter this tag name in? - Correct Answer: >>Source element Which instruction would you use to monitor specific controller system data? - Correct Answer: >>GSV (Get System Value)
Complete Questions & Assessment Guide.
Which of the following does Firmware Supervisor require in order to function? A. a USB or Ethernet connection between a computer and controller B. An internet connection, in order to download firmware files. C. A memory card installed in the controller D. A message instruction that tells the controller to activate Firmware Supervisor - Correct Answer: >>C. A memory card installed in the controller You are attempting to merge Two Studio 5000 Logix Designer projects, and the setting you are trying to merge is gray in color. What does that indicate? - Correct Answer: >>The item cannot be merged You are working with a ControlLogix 1756-L83E controller. What can you to determine the CPU usage for each task? - Correct Answer: >>The webpage for the controller Which of the following is true when a controller experiences a major fault? A. Upon experiencing a non-recoverable fault, the controller clears the project from its memory. B. Upon experiencing a recoverable fault, the controller clears the project from its memory. C. Upon experiencing a non-recoverable fault, the controller continues to operate.
Complete Questions & Assessment Guide.
A. Whether the module is an input or output device B. The number of points of a digital I/O module. C. The number of channels of an analog I/O module. D. The firmware revision of the module. - Correct Answer: >>D. The firmware revision of the module. You are Inserting modules into a new Logix5000 system. Which of the following is true regarding the use of slot 0? A. Can only contain the processor B. Can only contain the processor or a networked communications module C. Can contain any type of module D. Provides more current than other slots for high power modules - Correct Answer: >>C. Can contain any type of module You are working to help establish a manufacturing control system at your company. which task can you perform using RsLinx Classic software? A. Configure communications drivers B. Create a controller code using ladder logic. C. Create graphic displays.
Complete Questions & Assessment Guide.
D. Schedule ControlNet network traffic. - Correct Answer: >>A. Configure communications drivers Which part of studio5000 logic designer application would you use to organize and view the hierarchy of your entire project in terms of tasks, programs, and routines? A. routine editor/tag window B. Watch tab C. Controller Organizer D. Logical organizer - Correct Answer: >>C. Controller Organizer You are modifying a studio 5000 logic designer project. Which three components should you use to organize a project and direct the execution of code? A. Function block, ladder logic, and structured text B. Project, folder, and file C. Tag, window, and toolbar D. Task, program, and routine - Correct Answer: >>D. task, program, and routine You are creating routines for your studio 5000 logic designer project. Which routine is always required, and must be assigned within a program's properties A. Main routine B. Event routine
Complete Questions & Assessment Guide.
B. Enable Diagnostic C. Process Alarm D. Notch Filter - Correct Answer: >>B. Enable Diagnostic If you need to create a Logix5000 tag that will contain a decimal value, which data type would you select? A. Real B. Sint C. Dint D. Bool - Correct Answer: >>A. Real You are trying to locate a module tag. The tag is for channel 0 of an analog input module, located in slot 2 of a remote chassis. Which of the following could be the name of the tag you are for? A. Local:2:1.Data. B. Remote:2:1.Data. C. Local:2:1.Ch00.Data D. Remote:2:1.Ch00.Data - Correct Answer: >>D. Remote:2:1.Ch00.Data When programming in the Studio 5000 Logix Designer application, when might you create an alias tag? A. To save memory
Complete Questions & Assessment Guide.
B. To give more descriptive real world names to I/O tags C. To create user defined data types which contain multiple tags D. To organize data into subfolders in the controller organizer - Correct Answer: >>B. To give more descriptive real world names to I/O tags You are working with a tank project in a Studio 5000 logix designer application. When the tank is done mixing, its material will be divided and sent to three other tanks. the code for the other tanks is in a separate programs. What type of tag(s) should you create to share data between these programs? A. an alias tag B. an InOut program parameter in each tank C. an output program parameter in the mixing tank, and input program parameters in the other three tanks D. an input program parameter in the mixing tank, and output program parameters in the other three tanks - Correct Answer: >>C. an output program parameter in the mixing tank, and input program parameters in the other three tanks The monitor tags tab in the studio 5000 Logix 5000 Designer application allows you to make adjustments to better monitor a system while online with a controller. Which task can you preform? A. change a tag's name B. create aliases C. define style
