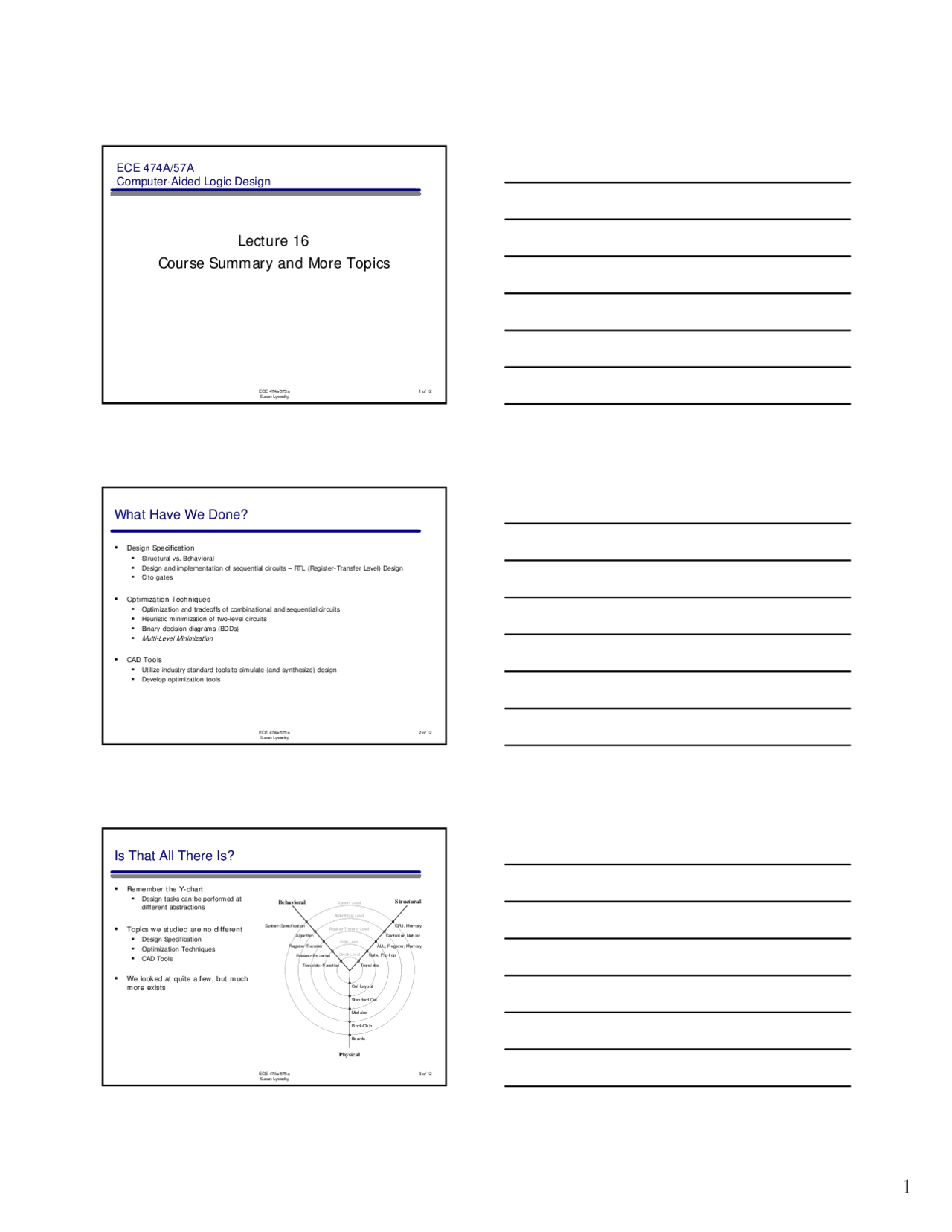

1
ECE 474a/575a
Susan Lysecky 1of 12
ECE 474A/57A
Computer-Aided Logic Design
Lecture 16
Course Summary and More Topics
ECE 474a/575a
Susan Lysecky 2of 12
What Have We Done?
z
e
Design Specification
Structural vs. Behavioral
Design and implementation of sequential circuits –RTL (Register-Transfer Level) Design
C to gates
Optimization Techniques
Optimization and tradeoffs of combinational and sequential circuits
Heuristic minimization of two-level circuits
Binary decision diagrams (BDDs)
Multi-Level Minimization
CAD Tools
Utilize industry standard tools to simulate (and synthesize) design
Develop optimization tools
ECE 474a/575a
Susan Lysecky 3of 12
Is That All There Is?
Structural
Physical
Behavioral
System Specification
Algorithm
Register-Transfer
CPU, Memory
Controller, Net-list
ALU, Register, Memory
Gate, Flip-flop
Cell Layout
Standard Cell
Modules
Block/Chip
Algorithmic Level
Register Transfer Level
Logic Level
Circuit Level
System Level
Boards
Transistor
Transistor Function
Boolean Equation
Remember the Y-chart
Design tasks can be performed at
different abstractions
Topics we studied are no different
Design Specification
Optimization Techniques
CAD Tools
We looked at quite a few, but much
more exists
pf3
pf4

Partial preview of the text

Download Algorithms, Pipelining, Concurrency - Slides | ECE 474A and more Study notes Electrical and Electronics Engineering in PDF only on Docsity!

ECE 474a/575a Susan Lysecky

1 of 12

ECE 474A/57A

Computer-Aided Logic Design

Lecture 16

Course Summary and More Topics

ECE 474a/575a Susan Lysecky

2 of 12

What Have We Done?

ze

ƒ Design Specification

ƒ Structural vs. Behavioral ƒ Design and implementation of sequential circuits – RTL (Register-Transfer Level) Design ƒ C to gates

ƒ Optimization Techniques

ƒ Optimization and tradeoffs of combinational and sequential circuits ƒ Heuristic minimization of two-level circuits ƒ Binary decision diagrams (BDDs)

ƒ Multi-Level Minimization

ƒ CAD Tools

ƒ Utilize industry standard tools to simulate (and synthesize) design ƒ Develop optimization tools

ECE 474a/575a Susan Lysecky

3 of 12

Is That All There Is?

Structural

Physical

Behavioral

System Specification Algorithm Register-Transfer

CPU, Memory Controller, Net-list ALU, Register, Memory Gate, Flip-flop

Cell Layout

Standard Cell

Modules

Block/Chip

Algorithmic Level

Register Transfer Level

Logic Level

Circuit Level

System Level

Boards

Transistor Function Transistor

Boolean Equation

ƒ Remember the Y-chart

ƒ Design tasks can be performed at different abstractions

ƒ Topics we studied are no different

ƒ Design Specification ƒ Optimization Techniques ƒ CAD Tools

ƒ We looked at quite a few, but much

more exists

ECE 474a/575a Susan Lysecky

4 of 12

Algorithm Selection

0x

0x

2: 0x0000000F

256x32 memory

Linear

search

Binary

search

ƒ Chosen algorithm can have big impact

ƒ Example: Quickly find item’s address in 256-

word memory

ƒ Algorithm 1: “Linear search” ƒ Compare item with M[0], then M[1], M[2], ... ƒ 256 comparisons worst case ƒ Algorithm 2: “Binary search” (sort memory first) ƒ Start considering entire memory range ƒ If M[mid]>item, consider lower half of M ƒ If M[mid]<item, consider upper half of M ƒ Repeat on new smaller range ƒ Dividing range by 2 each step; at most 8 such divisions ƒ Only 8 comparisons in worst case

ƒ Choice of algorithm hastremendous impact

ƒ Far more impact than say choice of comparator type ƒ Research looks at how to write algorithm intended to run of HW vs. SW

Digital Design Copyright © 2006 Frank Vahid

ECE 474a/575a Susan Lysecky

5 of 12

Pipelining

W1 D1 W2 D2 W3D

Without pipelining:

With pipelining:

“Stage 1”

“Stage 2”

Time

W

D

W

D

W

D

a

ƒ Intuitive example: Washing dishes with a

friend, you wash, friend dries

ƒ You wash plate 1

ƒ Then friend dries plate 1,while you wash

plate 2

ƒ Then friend dries plate 2, while you wash plate 3; and so on ƒ You don’t sit and watch friend dry; you start on the next plate

ƒ Pipelining: Break task into stages, each

stage outputs data for next stage, all stages

operate concurrently (if they have data)

Digital Design Copyright © 2006 Frank Vahid

ECE 474a/575a Susan Lysecky

6 of 12

Concurrency

ƒ Concurrency : Divide task into subparts,

execute subparts simultaneously

ƒ Dishwashing example: Divide stack into 3 substacks, give substacks to 3 neighbors, who work simultaneously -- 3 times speedup (ignoring time to move dishes to neighbors' homes) ƒ Concurrency does things side-by-side; pipelining instead uses stages (like a factory line)

Task

Concurrency Pipelining

Can do both, too

Digital Design Copyright © 2006 Frank Vahid

ECE 474a/575a Susan Lysecky

10 of 12

Power Optimization

Low-Power Gates on Non-Critical Paths

ƒ Another method: Use low-power gates

ƒ Multiple versions of gates may exist ƒ Fast/high-power, and slow/low-power, versions ƒ Use slow/low-power gates on non-critical paths ƒ Reduces power, without increasing delay

g

f

e

d

c

a b

F

26 transistors 3 ns delay 5 nanowatts power

nanowatts nanoseconds (^) gf

e

d

c

a b

F

26 transistors 3 ns delay 4 nanowatts power

low-power gates delay

high-power gates low-power gates on non-critical path

size

Digital Design Copyright © 2006 Frank Vahid

ECE 474a/575a Susan Lysecky

11 of 12

Multi-level Logic Optimization Factoring

ƒ Logic equation in a form with more than two levels of logic

ƒ Many instances when smaller input gates require less are and power

out = af’c + af’de + bgc + bgde

out

af’

a f’c

ed

bg

bg c

ed

f = af’c + af’de + bgc + bgde f = af’(c + de) + bg(c + de) f = (af’ + bg)(c + de)

f = (af’ + bg)(c + de)

c d e

b g

a f’

f

out = af’c + af’de + bgc + bgde

out

af’

af’ c

ed

bg

b gc

ed

f = af’c + af’de + bgc + bgde f = af’(c + de) + bg(c + de) f = (af’ + bg)(c + de)

f = (af’ + bg)(c + de)

c d e

b g

a f’

f

12a. x · (y + z) = xy + xz 12b. x + y · z = (x+y) · (x+z)

ECE 474a/575a Susan Lysecky

12 of 12

Multi-level Logic Optimization

Functional Decomposition

ƒ Functional Decomposition

ƒ Replace two-level logic equation with two or more new expressions which are then combined to define multilevel circuit

F = x1’x2x3 + x1x2’x3 + x1x2x4 + x1’x2’x

F = gx3 + g’x

g = x1’x2 + x1x2’

F

x

x1’ x

x

x x2’

x

x x

x

x1’x2’

x

x

x x2’

x1’ x f cost = 5 + 16 = 21

cost = 6 + 12 = 18

delay = 2 gate-delay

delay = 4 gate-delay

original equation

functional decomposition

F = x1’x2x3 + x1x2’x3 + x1x2x4 + x1’x2’x F = (x1’x2 + x1x2’)x3 + (x1x2 + x1’x2’)x

F = gx3 + g’x4 Re-write the equation using g

Let g(x1, x2) = x1’x2 + x1x2’

g’ = x1x2 + x1’x2’ (^) Observe g’
