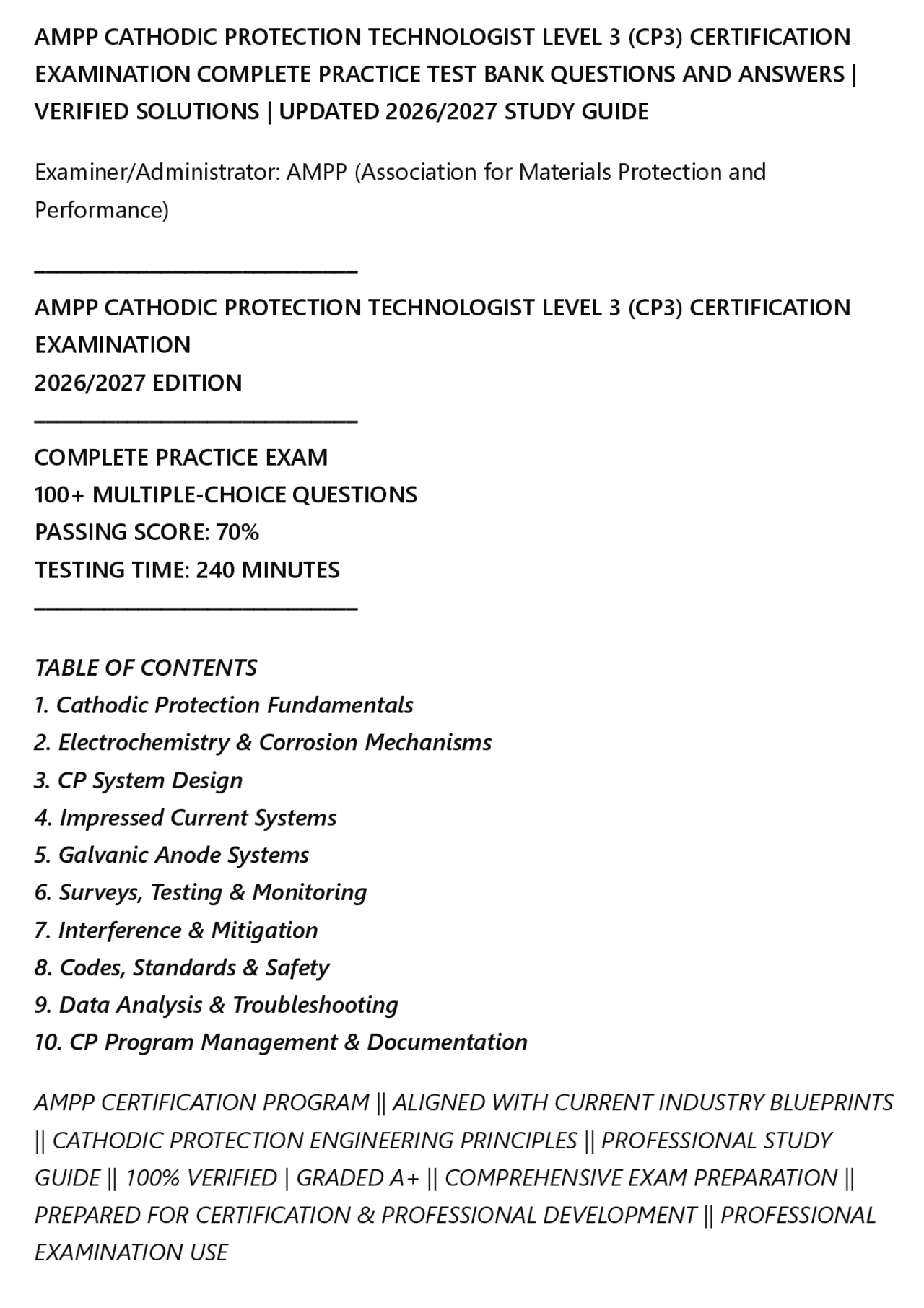

AMPP CATHODIC PROTECTION TECHNOLOGIST LEVEL 3 (CP3) CERTIFICATION
EXAMINATION COMPLETE PRACTICE TEST BANK QUESTIONS AND ANSWERS |
VERIFIED SOLUTIONS | UPDATED 2026/2027 STUDY GUIDE
Examiner/Administrator: AMPP (Association for Materials Protection and Performance)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━ AMPP CATHODIC PROTECTION TECHNOLOGIST LEVEL 3 (CP3) CERTIFICATION EXAMINATION 2026/2027 EDITION ━━━━━━━━━━━━━━━━━━━━━━━━━━━━ COMPLETE PRACTICE EXAM 100+ MULTIPLE-CHOICE QUESTIONS PASSING SCORE: 70% TESTING TIME: 240 MINUTES ━━━━━━━━━━━━━━━━━━━━━━━━━━━━
TABLE OF CONTENTS
**_1. Cathodic Protection Fundamentals
- Electrochemistry & Corrosion Mechanisms
- CP System Design
- Impressed Current Systems
- Galvanic Anode Systems
- Surveys, Testing & Monitoring
- Interference & Mitigation
- Codes, Standards & Safety
- Data Analysis & Troubleshooting
- CP Program Management & Documentation_**
AMPP CERTIFICATION PROGRAM || ALIGNED WITH CURRENT INDUSTRY BLUEPRINTS || CATHODIC PROTECTION ENGINEERING PRINCIPLES || PROFESSIONAL STUDY GUIDE || 100% VERIFIED | GRADED A+ || COMPREHENSIVE EXAM PREPARATION || PREPARED FOR CERTIFICATION & PROFESSIONAL DEVELOPMENT || PROFESSIONAL EXAMINATION USE
Cathodic Protection Fundamentals & Electrochemistry (Q1–Q8)
Q1. A buried steel transmission pipeline exhibits an average native potential of - mV versus a copper/copper sulfate electrode (CSE). After a cathodic protection system is energized, the measured polarized potential becomes -910 mV CSE. Which conclusion is most appropriate?
A. The structure remains underprotected. B. The structure meets a commonly accepted cathodic protection criterion. C. The structure is experiencing anodic polarization. D. Cathodic protection effectiveness cannot be evaluated using polarized potentials.
Correct Answer: 🔴 B. The structure meets a commonly accepted cathodic protection criterion.
Explanation: 🔹 A polarized potential of -850 mV CSE or more negative is widely recognized as one accepted criterion for steel in many soil environments. The measured -910 mV polarized potential indicates adequate cathodic polarization. Option A is incorrect because protection criteria have been achieved. Option C misinterprets the electrochemical response, and Option D is incorrect because polarized potentials are commonly used to assess CP effectiveness.
Q2. During a corrosion investigation, a technologist explains that corrosion of steel in soil is fundamentally driven by:
A. Mechanical fatigue only. B. Electrochemical reactions involving anodic and cathodic sites. C. Thermal expansion differences. D. Magnetic field variations.
Correct Answer: 🔴 B. Electrochemical reactions involving anodic and cathodic sites.
Explanation: 🔹 Corrosion is an electrochemical process involving oxidation at anodic locations and reduction at cathodic locations. An electrolyte enables ionic
Q5. Which statement best describes polarization in cathodic protection?
A. An increase in corrosion rate due to current discharge. B. A shift in electrode potential caused by current flow. C. Complete elimination of all corrosion mechanisms. D. A coating inspection procedure.
Correct Answer: 🔴 B. A shift in electrode potential caused by current flow.
Explanation: 🔹 Polarization refers to a change in potential from its natural state due to applied current. Cathodic polarization shifts the structure toward more negative potentials and reduces corrosion activity. It does not completely eliminate all corrosion mechanisms nor describe coating inspection activities.
Q6. Which electrolyte property has the greatest influence on current distribution from a cathodic protection system?
A. Color of the soil. B. Electrical resistivity. C. Surface texture. D. Atmospheric pressure.
Correct Answer: 🔴 B. Electrical resistivity.
Explanation: 🔹 Soil resistivity strongly influences current flow, anode performance, and current distribution. Low-resistivity environments generally permit easier current flow. The other options have little direct relevance to CP current distribution calculations.
Q7. A technologist is evaluating a structure protected by sacrificial anodes. The protective current originates primarily from:
A. An external rectifier. B. A transformer-rectifier unit.
C. Potential difference between dissimilar metals. D. Alternating current induction.
Correct Answer: 🔴 C. Potential difference between dissimilar metals.
Explanation: 🔹 Galvanic systems operate because the sacrificial anode possesses a more active potential than the protected structure. This natural potential difference drives protective current. External power sources are characteristic of impressed current systems.
Q8. Which metal commonly serves as a sacrificial anode material for underground applications?
A. Copper. B. Stainless steel. C. Magnesium. D. Cast iron.
Correct Answer: 🔴 C. Magnesium.
Explanation: 🔹 Magnesium is widely used as a galvanic anode because of its highly active potential and strong driving voltage. Copper and stainless steel are generally too noble to function as sacrificial anodes, while cast iron is not commonly used as a galvanic anode material.
CP System Design (Q9–Q16)
Q9. During design of an impressed current system for a coated pipeline, which parameter has the greatest influence on total current requirement?
A. Pipe wall thickness only. B. Coating condition and coating efficiency. C. Color of coating. D. Number of welds.
Correct Answer: 🔴 B. Coating condition and coating efficiency.
Q12. What is the principal function of coke breeze around impressed current anodes?
A. Increase coating resistance. B. Reduce anode-to-earth resistance and improve current discharge. C. Electrically isolate the anode. D. Prevent rectifier operation.
Correct Answer: 🔴 B. Reduce anode-to-earth resistance and improve current discharge.
Explanation: 🔹 Coke breeze enhances current distribution, lowers resistance, and extends anode life by providing a conductive environment around the anode. It does not isolate the anode or affect coating resistance directly.
Q13. Which design consideration is most critical when selecting anode material for an impressed current system?
A. Anode consumption characteristics and operating environment. B. Color of the anode. C. Manufacturer logo. D. Distance to nearest office building.
Correct Answer: 🔴 A. Anode consumption characteristics and operating environment.
Explanation: 🔹 Anode selection depends on current output requirements, environment, expected life, and consumption rates. Practical engineering decisions focus on performance and durability rather than cosmetic factors.
Q14. A pipeline crosses an area containing several foreign pipelines. During CP design, what issue should receive special attention?
A. Atmospheric humidity. B. Stray-current interference.
C. Paint color selection. D. Soil appearance.
Correct Answer: 🔴 B. Stray-current interference.
Explanation: 🔹 Closely spaced structures can experience current pickup and discharge, resulting in interference corrosion. Interference evaluation and mitigation are critical aspects of CP system design in congested corridors.
Q15. Which parameter is commonly used to evaluate soil corrosivity during preliminary design?
A. Soil resistivity. B. Wind velocity. C. Ambient noise level. D. Ultraviolet index.
Correct Answer: 🔴 A. Soil resistivity.
Explanation: 🔹 Soil resistivity is one of the most important indicators of corrosive conditions and CP design requirements. Lower resistivity generally corresponds to greater corrosion risk and improved current flow capability.
Q16. When calculating anode life, the designer must consider:
A. Anode consumption rate and current output. B. Paint thickness only. C. Pipeline diameter only. D. Reference electrode manufacturer.
Correct Answer: 🔴 A. Anode consumption rate and current output.
Explanation: 🔹 Anode life calculations depend heavily on the amount of material consumed per unit of current delivered. Current demand, utilization factors, and material properties are central design inputs.
C. Function only in seawater. D. Are sacrificial anodes.
Correct Answer: 🔴 A. Possess favorable consumption characteristics.
Explanation: 🔹 High silicon cast iron exhibits low consumption rates in many impressed current applications, contributing to long service life. It is not a sacrificial anode material.
Q20. Excessive rectifier output can potentially cause:
A. Overprotection and coating damage. B. Reduced polarization. C. Elimination of current flow. D. Instant anode failure in every case.
Correct Answer: 🔴 A. Overprotection and coating damage.
Explanation: 🔹 Excessive current may create adverse effects including coating disbondment, hydrogen-related concerns, and unnecessary power consumption. Proper adjustment is essential for system effectiveness.
Q21. A negative structure-to-electrolyte potential becoming increasingly negative after rectifier adjustment generally indicates:
A. Increased cathodic polarization. B. Increased anodic dissolution. C. Reference electrode failure in every case. D. Loss of protective current.
Correct Answer: 🔴 A. Increased cathodic polarization.
Explanation: 🔹 Increased CP current commonly shifts structure potentials in the negative direction, indicating greater cathodic polarization. Additional verification may be required, but this is the most likely interpretation.
Q22. What is the main purpose of a test station along a pipeline?
A. Decorative marking. B. Electrical measurements and monitoring access. C. Pipe cleaning. D. Ventilation.
Correct Answer: 🔴 B. Electrical measurements and monitoring access.
Explanation: 🔹 Test stations provide convenient access for potential measurements, current assessments, bond testing, and CP monitoring activities. They are essential components of CP programs.
Q23. Which instrument is most commonly used to measure pipe-to-soil potentials?
A. Torque wrench. B. Clamp meter only. C. High-input-impedance voltmeter. D. Thermocouple.
Correct Answer: 🔴 C. High-input-impedance voltmeter.
Explanation: 🔹 Accurate structure-to-electrolyte potential measurements require a high-input-impedance voltmeter used with an appropriate reference electrode. This minimizes circuit loading and improves measurement reliability.
Surveys, Testing & Monitoring (Q24–Q30)
Q24. A close-interval survey (CIS) is primarily performed to:
A. Measure atmospheric corrosion rates. B. Evaluate CP effectiveness along a structure. C. Determine pipe wall thickness directly. D. Locate all valves.
A. Direct current voltage gradient (DCVG). B. Temperature survey. C. Vibration analysis. D. Acoustic emission only.
Correct Answer: 🔴 A. Direct current voltage gradient (DCVG).
Explanation: 🔹 DCVG is specifically designed to locate and evaluate coating defects by measuring voltage gradients in the soil caused by current flow through holidays.
Q28. A technologist observes significant fluctuations in potential readings during testing. A likely cause is:
A. Poor reference electrode contact with the electrolyte. B. Correct instrument operation. C. Excessive documentation. D. Stable environmental conditions.
Correct Answer: 🔴 A. Poor reference electrode contact with the electrolyte.
Explanation: 🔹 Inadequate contact, dry soil, contamination, or damaged equipment can create unstable readings. Measurement quality should always be verified before interpreting results.
Q29. Which document is most valuable for evaluating long-term CP performance trends?
A. Historical survey records. B. Equipment advertisements. C. Weather forecasts only. D. Construction photographs alone.
Correct Answer: 🔴 A. Historical survey records.
Explanation: 🔹 Trend analysis relies on historical data. Comparing previous surveys, rectifier outputs, and potential measurements helps identify deterioration, interference, and emerging risks.
Q30. While reviewing annual CP data, a technologist notices a gradual increase in required rectifier current over several years. The most probable explanation is:
A. Progressive coating deterioration increasing current demand. B. Reduced exposed metal area. C. Improved coating effectiveness. D. Elimination of all corrosion cells.
Correct Answer: 🔴 A. Progressive coating deterioration increasing current demand.
Explanation: 🔹 As coatings age, defects and holidays often increase, exposing more steel to the environment. Additional exposed surface area requires higher CP current to maintain adequate protection. Improved coatings would generally reduce current demand, making the other options less plausible.
Cathodic Protection Technologist Level 3 (CP3) Practice Exam
Questions 31–
CP System Management, Troubleshooting & Diagnostics (Q31–Q38)
C. Thick pipe coatings D. Low humidity levels
Correct Answer: 🔴 A. Nearby DC traction systems
Explanation: 🔹 DC-powered rail systems and similar infrastructure can introduce external currents that enter and leave buried structures, causing localized corrosion at discharge points. Soil resistivity and coatings influence severity but are not primary sources.
Q34. A bond is installed between two pipelines. The primary purpose is to:
A. Increase coating breakdown B. Equalize electrical potentials and control current flow C. Eliminate all corrosion cells D. Reduce pipeline diameter effects
Correct Answer: 🔴 B. Equalize electrical potentials and control current flow
Explanation: 🔹 Bonds are used to manage interference by providing controlled electrical continuity, helping balance potentials and prevent unwanted current discharge between structures.
Q35. During troubleshooting, a rectifier shows normal voltage but zero current output. The most likely cause is:
A. Open circuit in output leads B. Increased soil moisture C. Overcoating of pipeline D. Low atmospheric pressure
Correct Answer: 🔴 A. Open circuit in output leads
Explanation: 🔹 Voltage presence with no current typically indicates a broken circuit, disconnected leads, or failed connections preventing current flow.
Environmental factors do not typically cause this electrical condition.
Q36. Which measurement is most useful for identifying current discharge areas on a pipeline?
A. Pipe diameter measurement B. Close interval potential survey C. Soil color grading D. Magnetic field only
Correct Answer: 🔴 B. Close interval potential survey
Explanation: 🔹 CIS helps identify anodic and cathodic transition zones where current enters or leaves the structure, indicating possible discharge or corrosion risk areas.
Q37. A pipeline shows fluctuating potentials near a DC railway line. The best mitigation strategy is:
A. Increase soil resistivity B. Install cathodic protection isolation and bonding/mitigation systems C. Remove all coatings D. Reduce pipe diameter
Correct Answer: 🔴 B. Install cathodic protection isolation and bonding/mitigation systems
Explanation: 🔹 Interference mitigation may include drainage bonds, isolation joints, and current control devices to manage stray current effects from external DC sources.
Q38. The most reliable method to confirm CP system interruption is:
Explanation: 🔹 CP systems involve DC electrical currents and energized equipment, requiring proper lockout/tagout procedures and electrical safety practices.
Q41. Before conducting CP field measurements, technicians must ensure:
A. No coating exists B. Proper calibration of instruments C. Pipe is exposed completely D. Soil is dry everywhere
Correct Answer: 🔴 B. Proper calibration of instruments
Explanation: 🔹 Accurate measurements depend on properly calibrated instruments to ensure reliable and standardized data collection.
Q42. Which document typically governs CP design criteria for pipelines?
A. AMPP standards and industry codes B. Local weather reports C. Construction photography manuals D. Painting catalogs
Correct Answer: 🔴 A. AMPP standards and industry codes
Explanation: 🔹 CP systems are designed using established engineering standards such as those published by AMPP, ensuring consistency and safety.
Q43. Hydrogen embrittlement risk is most associated with:
A. Overprotection of high-strength steel B. Low soil moisture C. High pipe diameter D. Paint color changes
Correct Answer: 🔴 A. Overprotection of high-strength steel
Explanation: 🔹 Excessively negative potentials can promote hydrogen evolution, which may lead to embrittlement in susceptible high-strength steels.
Q44. A technician working on energized CP systems should primarily use:
A. Non-insulated tools B. Insulated tools and PPE C. No protective equipment D. Aluminum ladders only
Correct Answer: 🔴 B. Insulated tools and PPE
Explanation: 🔹 Electrical safety requires appropriate personal protective equipment and insulated tools to minimize shock hazards when working with energized CP equipment.
Q45. The purpose of lockout/tagout (LOTO) procedures in CP systems is to:
A. Increase CP current B. Prevent accidental energization during maintenance C. Improve soil conductivity D. Reduce coating defects
Correct Answer: 🔴 B. Prevent accidental energization during maintenance
Explanation: 🔹 LOTO ensures systems are safely de-energized to protect personnel during inspection, repair, or maintenance activities.
Data Analysis & Troubleshooting (Q46–Q53)
Q46. A gradual decrease in rectifier current over time may indicate:
