This exam is part of the NASCLA Accredited Trade program, specifically tailored for Residential Electrical Contractors in Arizona. It tests knowledge of residential electrical systems, including wiring methods, electrical theory, load calculations, NEC (National Electrical Code) compliance, safety protocols, grounding and bonding, overcurrent protection, and installation standards. Candidates must also demonstrate knowledge of Arizona-specific statutes and building codes applicable to residential electrical work. Passing ensures contractors can safely install, maintain, and repair electrical systems in residential projects.
Typology: Exams
1 / 185
This page cannot be seen from the preview
Don't miss anything!

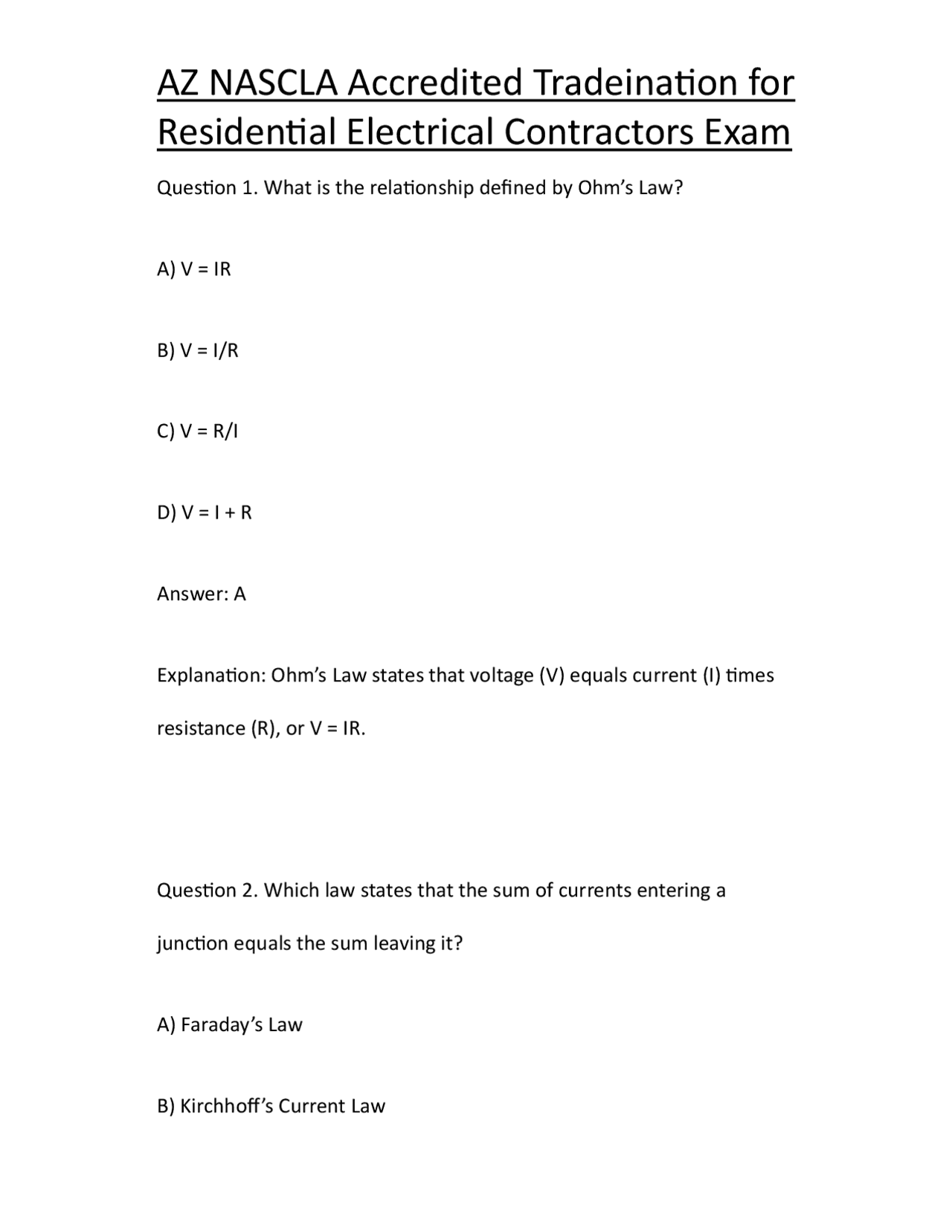

Question 1. What is the relationship defined by Ohm’s Law? A) V = IR B) V = I/R C) V = R/I D) V = I + R Answer: A Explanation: Ohm’s Law states that voltage (V) equals current (I) times resistance (R), or V = IR. Question 2. Which law states that the sum of currents entering a junction equals the sum leaving it? A) Faraday’s Law B) Kirchhoff’s Current Law
C) Newton’s Law D) Lenz’s Law Answer: B Explanation: Kirchhoff’s Current Law (KCL) states the algebraic sum of currents entering a node equals zero, meaning what goes in must come out. Question 3. How is electrical power calculated in a DC circuit? A) P = IR B) P = V/I C) P = IV D) P = V + I Answer: C
A) AC flows in one direction, DC alternates direction B) DC flows in one direction, AC alternates direction C) Both flow in the same direction D) Both alternate direction Answer: B Explanation: Direct current (DC) flows in one direction, while alternating current (AC) changes direction periodically. Question 6. Which material is commonly used as a conductor in residential wiring? A) Rubber B) Copper C) Plastic
D) Glass Answer: B Explanation: Copper is widely used due to its excellent conductivity and durability. Question 7. Which of these is considered an insulator? A) Aluminum B) Silver C) Glass D) Gold Answer: C Explanation: Glass is an insulator, meaning it resists the flow of electricity.
C) Electrical pressure or potential difference D) Electrical current Answer: C Explanation: A volt measures the electrical potential difference between two points. Question 10. What is the primary function of a transformer? A) Generate electricity B) Store electricity C) Change voltage levels D) Measure current Answer: C
Explanation: Transformers change the voltage level in AC circuits by electromagnetic induction. Question 11. Which formula is used to calculate resistance if voltage and current are known? A) R = V/I B) R = I/V C) R = V × I D) R = V + I Answer: A Explanation: Resistance (R) is calculated by dividing voltage (V) by current (I).
B) Watts C) Ohms D) Amperes Answer: B Explanation: The watt (W) is the unit of power, or the rate at which energy is consumed or produced. Question 14. Which of the following is the formula for power using resistance and current? A) P = IV B) P = I^2R C) P = V/I D) P = VR
Answer: B Explanation: Power can be calculated as P = I^2R when current and resistance are known. Question 15. What is the purpose of grounding electrical systems? A) Increase impedance B) Prevent short circuits C) Protect against electrical shock D) Reduce resistance Answer: C Explanation: Grounding is a safety measure to protect people from electrical shock.
C) Interrupt current flow during overcurrent D) Convert AC to DC Answer: C Explanation: Circuit breakers interrupt excessive current flow to protect wiring and prevent fires. Question 18. The force that moves electrons in a circuit is called: A) Resistance B) Current C) Voltage D) Power Answer: C
Explanation: Voltage is the electromotive force that moves electrons. Question 19. Which of the following is a disadvantage of aluminum wiring compared to copper? A) Lower cost B) Higher conductivity C) Greater expansion/contraction D) Lower resistance Answer: C Explanation: Aluminum expands and contracts more than copper, which can loosen connections. Question 20. What device stores energy in a magnetic field?
D) Resistance rating Answer: C Explanation: Ampacity is the maximum current a wire can safely carry. Question 22. The NEC is updated every: A) 2 years B) 3 years C) 5 years D) 10 years Answer: B Explanation: The National Electrical Code (NEC) is updated every three years.
Question 23. Which of the following is a common unit for measuring electrical energy? A) Coulomb B) Joule C) Watt D) Watt-hour Answer: D Explanation: The watt-hour (Wh) is a common unit of electrical energy. Question 24. Which law states that the sum of the voltages around a closed loop equals zero? A) Kirchhoff’s Voltage Law
Answer: C Explanation: Fuses protect circuits by breaking the circuit when current exceeds safe levels. Question 26. The term “lockout/tagout” refers to: A) Labeling devices B) Securing equipment from use C) Enclosure of electrical panels D) Increasing voltage Answer: B Explanation: Lockout/tagout is a safety procedure to ensure equipment is de-energized and cannot be operated during maintenance.
Question 27. What is the unit of electrical resistance? A) Watt B) Ohm C) Volt D) Ampere Answer: B Explanation: The ohm (Ω) is the standard unit of resistance. Question 28. Which of the following PPE is required when there is a risk of arc flash? A) Hard hat only B) Flame-resistant clothing
