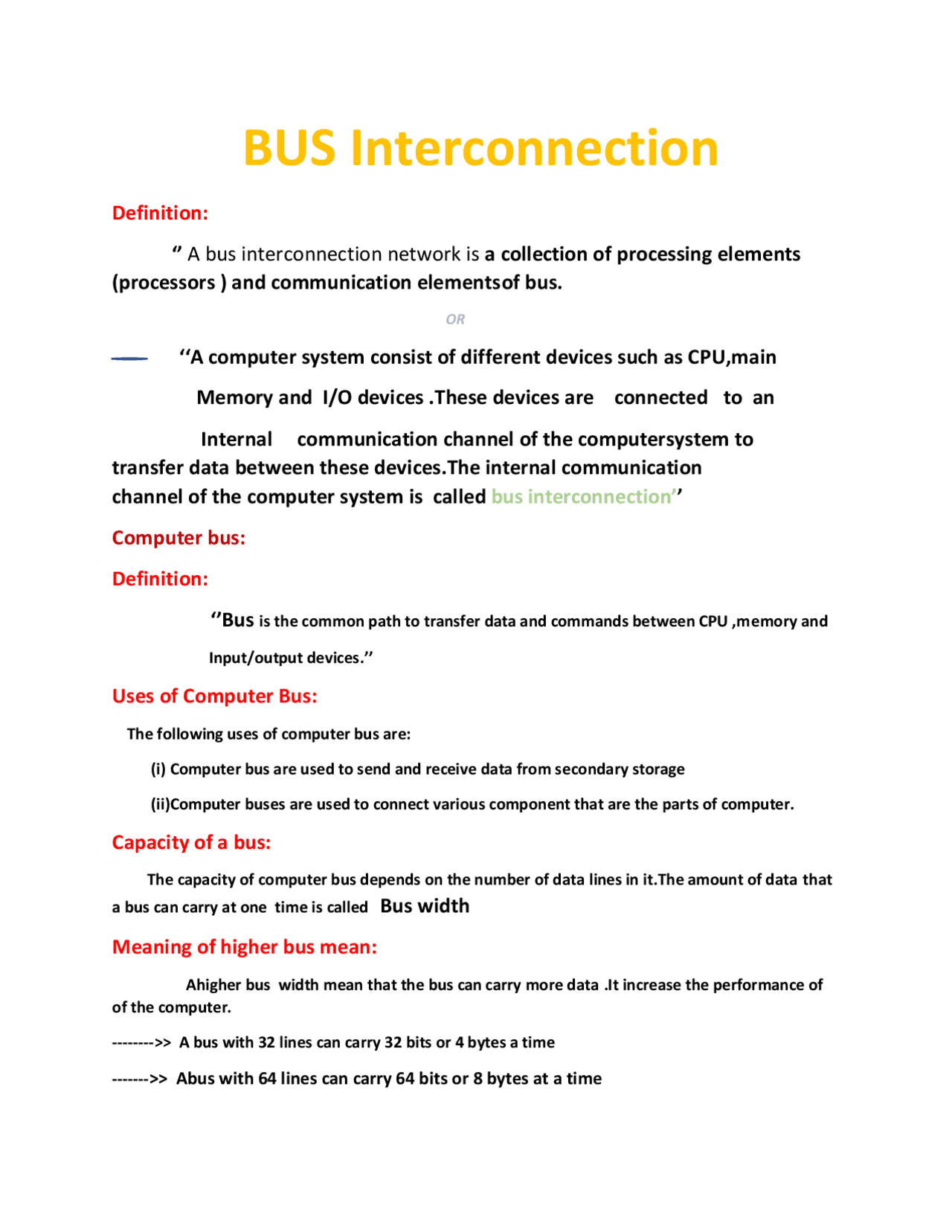

BUS Interconnection
Definition:
‘’ A bus interconnection network is a collection of processing elements
(processors ) and communication elementsof bus.
OR
‘‘A computer system consist of different devices such as CPU,main
Memory and I/O devices .These devices are connected to an
Internal communication channel of the computersystem to
transfer data between these devices.The internal communication
channel of the computer system is called bus interconnection’’
Computer bus:
Definition:
‘’Bus is the common path to transfer data and commands between CPU ,memory and
Input/output devices.’’
Uses of Computer Bus:
The following uses of computer bus are:
(i) Computer bus are used to send and receive data from secondary storage
(ii)Computer buses are used to connect various component that are the parts of computer.
Capacity of a bus:
The capacity of computer bus depends on the number of data lines in it.The amount of data that
a bus can carry at one time is called Bus width
Meaning of higher bus mean:
Ahigher bus width mean that the bus can carry more data .It increase the performance of
of the computer.
-------->> A bus with 32 lines can carry 32 bits or 4 bytes a time
------->> Abus with 64 lines can carry 64 bits or 8 bytes at a time
