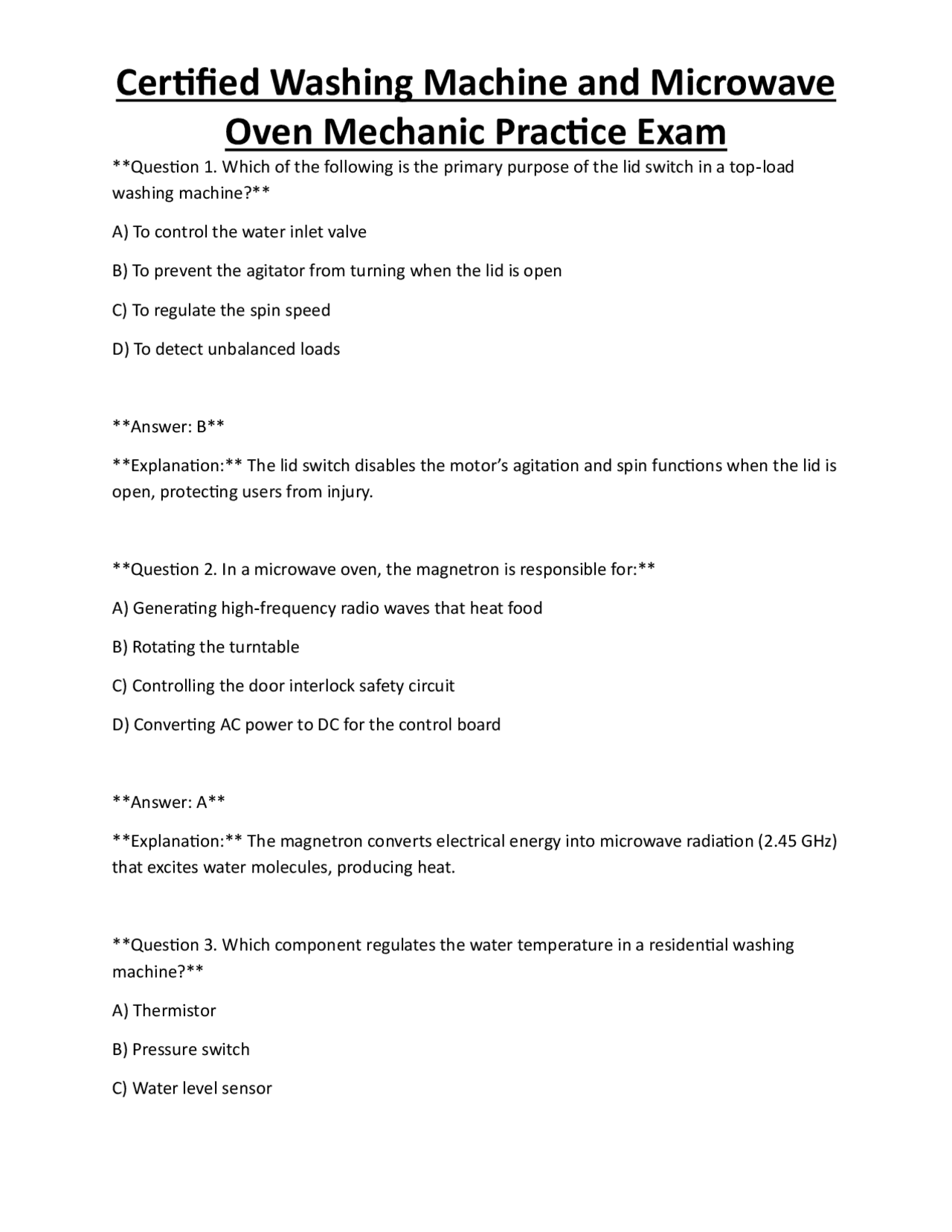

Oven Mechanic Practice Exam
Question 1. Which of the following is the primary purpose of the lid switch in a top‑load washing machine? A) To control the water inlet valve B) To prevent the agitator from turning when the lid is open C) To regulate the spin speed D) To detect unbalanced loads Answer: B Explanation: The lid switch disables the motor’s agitation and spin functions when the lid is open, protecting users from injury. Question 2. In a microwave oven, the magnetron is responsible for: A) Generating high‑frequency radio waves that heat food B) Rotating the turntable C) Controlling the door interlock safety circuit D) Converting AC power to DC for the control board Answer: A Explanation: The magnetron converts electrical energy into microwave radiation (2.45 GHz) that excites water molecules, producing heat. Question 3. Which component regulates the water temperature in a residential washing machine? A) Thermistor B) Pressure switch C) Water level sensor
Oven Mechanic Practice Exam
D) Drive motor Answer: A Explanation: The thermistor (temperature sensor) monitors water temperature and signals the control board to adjust the heating element accordingly. Question 4. A microwave oven displays “F1” on the digital panel. This code most commonly indicates: A) Door latch failure B) Magnetron overheating C) Faulty high‑voltage diode D) Faulty transformer Answer: C Explanation: “F1” is a typical diagnostic code for a failed high‑voltage diode, which rectifies the HV transformer output to power the magnetron. Question 5. In a front‑load washing machine, the “tension rod” is used to: A) Detect the drum’s rotational speed B) Measure water pressure in the inlet line C) Sense the drum’s load weight for balance control D) Secure the door latch Answer: C Explanation: The tension (or load) rod measures drum resistance during spin, allowing the machine to adjust spin speed and prevent excess vibration.
Oven Mechanic Practice Exam
C) Broken water pump impeller D) Loose lid latch Answer: B Explanation: Drum bearings support the rotating drum; wear causes grinding and excess vibration during high‑speed spins. Question 9. When testing a microwave oven’s high‑voltage diode with a multimeter, you should: A) Measure resistance in both directions; it should read low in one direction and open in the other B) Expect a reading of 0 Ω in both directions C) Expect a reading of infinite resistance in both directions D) Measure voltage across the diode while the oven is running Answer: A Explanation: A diode conducts in one direction (low resistance) and blocks in the opposite (open circuit). This test confirms diode integrity. Question 10. In a washing machine, the “pressure switch” primarily monitors: A) Water temperature B) Water level in the tub C) Drum rotation speed D) Motor current Answer: B
Oven Mechanic Practice Exam
Explanation: The pressure (or water level) switch senses the air pressure in a hose connected to the tub, indicating water level for fill and drain cycles. Question 11. Which of the following is NOT a typical symptom of a failed microwave transformer? A) No heating, but the oven runs B) Burning smell from the rear of the unit C) Tripped circuit breaker when the oven is turned on D) Continuous beeping error code Answer: D Explanation: A transformer failure usually prevents power to the magnetron, leading to no heating, possible burning odor, or breaker trips, but does not generate a beeping error code. Question 12. A washing machine’s “error code E4” (common on many brands) usually indicates a problem with: A) Unbalanced load detection B) Door lock mechanism C) Water temperature sensor D) Drain pump Answer: A Explanation: E4 typically signals an unbalanced load; the machine pauses spin until the load is redistributed. Question 13. The purpose of the high‑voltage capacitor in a microwave oven is to:
Oven Mechanic Practice Exam
Answer: C Explanation: The high‑voltage transformer steps up the mains voltage (120/240 V) to several thousand volts required by the magnetron. Question 16. A washing machine that continuously fills water without stopping likely has a malfunctioning: A) Thermostat B) Pressure switch C) Drain pump D) Motor coupler Answer: B Explanation: If the pressure switch cannot detect water level, it will not signal the control to stop filling, causing continuous water flow. Question 17. In a microwave oven, the “turntable motor” is typically powered by: A) The same high‑voltage supply as the magnetron B) A low‑voltage AC supply from the control board C) Direct DC from the main transformer D) A separate dedicated transformer Answer: B Explanation: The turntable motor operates on low‑voltage AC (often 120 V) supplied by the control board, independent of the magnetron’s HV circuit.
Oven Mechanic Practice Exam
Question 18. Which of the following describes the function of a “water pump seal” in a washing machine? A) Prevents water from leaking out of the pump housing B) Controls water temperature during the wash cycle C) Regulates spin speed of the drum D) Detects unbalanced loads Answer: A Explanation: The pump seal (often a rubber gasket) prevents water leakage from the pump’s interior to the exterior of the machine. Question 19. When troubleshooting a microwave that displays “F6” (common on many brands), the technician should first inspect: A) The door latch assembly B) The magnetron filament C) The high‑voltage transformer primary winding D) The control board for a shorted MOSFET Answer: D Explanation: “F6” often indicates a control board fault, typically a shorted power MOSFET or IGBT that drives the HV circuit. Question 20. In a washing machine, the “agitator” is driven by: A) The transmission directly attached to the motor shaft B) The water inlet valve pressure C) The drum’s rotation via a belt
Oven Mechanic Practice Exam
Question 23. In a microwave oven, the “waveguide cover” serves to: A) Direct microwaves from the magnetron into the cooking cavity B) Protect the magnetron from moisture C) Provide structural support for the door latch D) Convert AC to DC for the control board Answer: A Explanation: The waveguide cover (often made of mica) protects the waveguide and helps channel microwaves into the cooking chamber. Question 24. A washing machine that stops mid‑cycle and displays “F07” typically indicates a problem with: A) The drive motor B) The water temperature sensor (thermistor) C) The door lock (or lid switch) D) The drain pump Answer: C Explanation: “F07” is a common code for a door lock or lid‑switch failure, preventing the machine from continuing for safety. Question 25. When measuring the resistance of a microwave oven’s high‑voltage capacitor, the correct procedure is to: A) Measure directly across the terminals; it should read 0 Ω B) Use the “capacitance” setting on the meter; it should read the rated μF value
Oven Mechanic Practice Exam
C) Measure resistance after fully discharging; it should show infinite resistance D) Measure voltage while the oven is operating Answer: C Explanation: After discharge, a HV capacitor should show infinite resistance; any low resistance indicates a shorted capacitor. Question 26. In a front‑load washer, the “door latch assembly” must be functional because: A) It controls the water inlet valve timing B) It ensures the drum can spin at high speeds safely C) It monitors the temperature of the wash water D) It balances the load during spin Answer: B Explanation: The door latch prevents the drum from rotating while the door is open, ensuring safety during high‑speed spins. Question 27. Which component is responsible for converting low‑voltage AC to DC for the microwave’s control board? A) Bridge rectifier B) Step‑down transformer C) Magnetron D) High‑voltage capacitor Answer: A
Oven Mechanic Practice Exam
A) Door lock status B) Drum rotation speed C) Water temperature D) The brand of detergent used Answer: D Explanation: The control board cannot detect detergent brand; it monitors mechanical and electrical parameters. Question 31. A microwave oven that produces a “popping” sound during operation is most likely experiencing: A) Faulty door latch B) Magnetron arcing due to a damaged waveguide cover C) Overfilled water inlet valve D) Loose turntable motor Answer: B Explanation: Damage or corrosion in the waveguide cover can cause arcing, producing popping noises. Question 32. Which of the following is a typical symptom of a worn‑out drive belt in a belt‑driven washing machine? A) Excessive vibration during spin B) No water filling C) Continuous draining D) Failure to heat water
Oven Mechanic Practice Exam
Answer: A Explanation: A slipping or broken belt reduces torque transmission, leading to vibration and reduced spin efficiency. Question 33. The “high‑voltage diode” in a microwave oven is used to: A) Convert AC to DC for the magnetron’s filament B) Rectify the high‑voltage AC from the transformer into DC for the magnetron C) Regulate the turntable motor speed D) Protect the control board from surges Answer: B Explanation: The HV diode rectifies the high‑voltage AC from the transformer, providing the DC needed by the magnetron. Question 34. When a washing machine’s “spin” timer does not advance, the likely cause is a: A) Faulty timer motor (electromechanical) or control board error B) Clogged water inlet filter C) Defective lid switch D) Bad water temperature sensor Answer: A Explanation: The spin timer controls cycle progression; a failed timer motor or board prevents advancement.
Oven Mechanic Practice Exam
Answer: B Explanation: The output window is a ceramic (often alumina) that allows microwaves to pass while containing the vacuum inside the magnetron. Question 38. A washing machine that fills with cold water even when the “hot” setting is selected most likely has a problem with: A) The lid switch B) The hot water inlet valve (solenoid) C) The drain pump D) The agitator drive Answer: B Explanation: A defective hot water inlet valve will not open, causing only cold water to fill regardless of setting. Question 39. Which component in a microwave oven protects the control board from voltage spikes generated by the magnetron? A) Fuse B) MOV (Metal Oxide Varistor) C) Thermistor D) Door interlock Answer: B Explanation: An MOV clamps high voltage spikes, protecting sensitive electronics from magnetron‑induced transients.
Oven Mechanic Practice Exam
Question 40. In a top‑load washer, the “agitator drive shaft” is lubricated with: A) Grease (high‑temperature) B) Silicone oil C) Water D) No lubrication; it is sealed Answer: A Explanation: The agitator drive shaft uses high‑temperature grease to reduce wear and allow smooth motion. Question 41. When a microwave oven’s “door latch” fails, the typical symptom is: A) The oven will not start at all B) The oven runs but the turntable does not rotate C) The oven beeps continuously and refuses to heat D) The oven overheats the interior Answer: C Explanation: A faulty door latch triggers a safety interlock, causing the oven to refuse heating and often emit a continuous error beep. Question 42. The “water level sensor” in a washing machine is typically a: A) Mechanical float switch B) Pressure‑sensitive diaphragm switch C) Optical sensor
Oven Mechanic Practice Exam
Question 45. A microwave oven that displays “F2” on the panel typically indicates a problem with: A) The door interlock B) The magnetron C) The high‑voltage transformer D) The turntable motor Answer: B Explanation: “F2” is a common code for magnetron failure; the oven cannot generate microwaves. Question 46. The “drain hose” in a washing machine must be installed with a minimum upward bend (air gap) of: A) 2 inches B) 6 inches C) 12 inches D) 18 inches Answer: B Explanation: A 6‑inch (or 15 cm) upward bend prevents backflow of wastewater into the machine. Question 47. In a microwave oven, the “control board” typically uses which type of microcontroller for timing and logic? A) 8‑bit AVR
Oven Mechanic Practice Exam
B) 16‑bit PIC C) 32‑bit ARM Cortex‑M D) 4‑bit Intel 8051 Answer: C Explanation: Modern microwaves employ 32‑bit ARM Cortex‑M microcontrollers for efficient processing and peripheral control. Question 48. Which of the following is NOT a function of the washing machine’s “timer relay”? A) Switching the motor on/off for different cycles B) Controlling the heating element activation C) Monitoring the water temperature directly D) Sequencing the drain pump operation Answer: C Explanation: The timer relay does not directly monitor temperature; a thermistor or thermostat handles temperature sensing. Question 49. A microwave oven that emits a “buzzing” noise during operation but still heats properly is likely experiencing: A) Faulty door latch B) Loose magnetron mounting bolts C) A failing high‑voltage capacitor D) Turntable motor imbalance
