Question 01 Explain major challenges in mobile computing using suitable examples. Question 02 Explain cellular network architected using suitable diagrams. Question 03 Explain Vehicular Networks using suitable diagrams. Question 04 Explain the process of the IPv4 Location registration using suitable diagram.
Typology: Study notes
1 / 5
This page cannot be seen from the preview
Don't miss anything!

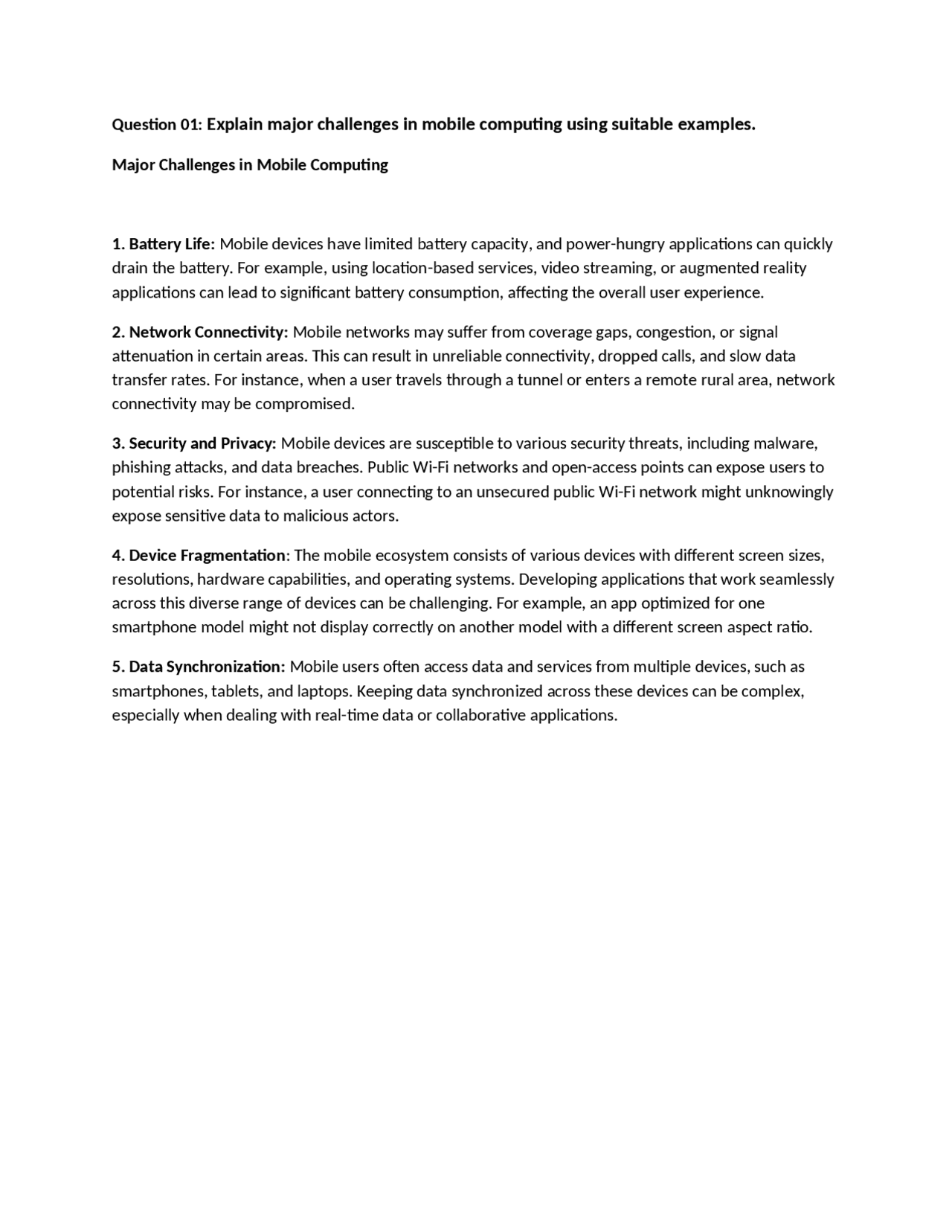

Major Challenges in Mobile Computing
1. Battery Life: Mobile devices have limited battery capacity, and power-hungry applications can quickly drain the battery. For example, using location-based services, video streaming, or augmented reality applications can lead to significant battery consumption, affecting the overall user experience. 2. Network Connectivity: Mobile networks may suffer from coverage gaps, congestion, or signal attenuation in certain areas. This can result in unreliable connectivity, dropped calls, and slow data transfer rates. For instance, when a user travels through a tunnel or enters a remote rural area, network connectivity may be compromised. 3. Security and Privacy: Mobile devices are susceptible to various security threats, including malware, phishing attacks, and data breaches. Public Wi-Fi networks and open-access points can expose users to potential risks. For instance, a user connecting to an unsecured public Wi-Fi network might unknowingly expose sensitive data to malicious actors. 4. Device Fragmentation : The mobile ecosystem consists of various devices with different screen sizes, resolutions, hardware capabilities, and operating systems. Developing applications that work seamlessly across this diverse range of devices can be challenging. For example, an app optimized for one smartphone model might not display correctly on another model with a different screen aspect ratio. 5. Data Synchronization: Mobile users often access data and services from multiple devices, such as smartphones, tablets, and laptops. Keeping data synchronized across these devices can be complex, especially when dealing with real-time data or collaborative applications.
Question 02: Explain cellular network architected using suitable diagrams Cellular Network Architecture The cellular network architecture consists of various components that enable mobile communication. The main components of a cellular network are:
1. Base Station (BS) or Cell Tower: The base station serves as the communication hub for mobile devices within its coverage area, known as a cell. It manages radio communication and handles call setup, data transmission, and handovers. 2. Mobile Switching Center (MSC): The MSC is a central network element responsible for call routing and management. It connects the cellular network to the Public Switched Telephone Network (PSTN) and other mobile networks. 3. Home Location Register (HLR) and Visitor Location Register (VLR): The HLR is a centralized database that stores subscriber information, including user profiles and location data. The VLR is a temporary database that holds subscriber data for roaming users within its coverage area. 4. Base Station Controller (BSC): The BSC is responsible for managing multiple base stations within a specific area. It controls radio resources and handovers between cells. 5. Mobile Station (MS): The mobile station refers to the user's mobile device, such as a smartphone or tablet. It communicates with the base station and the network infrastructure. Diagram of Cellular Network Architecture: |---- [Base Station]----[BSC]-----| | | |---- [Base Station]----[BSC]-----| | (Coverage Area 1) | [Mobile]---| |---[Mobile Switching Center] User | (Coverage Area 2) | | | |---- [Base Station]----[BSC]-----| | | |---- [Base Station]----[BSC]-----|
Question 04: Explain the process of the IPv4 Location registration using suitable diagram IPv4 Location Registration Process The IPv4 Location Registration process in Mobile IP allows a mobile device (Mobile Node) to notify its current location to its Home Agent. The Home Agent is responsible for forwarding data packets destined for the Mobile Node to its current location (Care of Address) while the device is away from its home network. Diagram of IPv4 Location Registration Process: [Home Network] [Foreign Network] | | |<--- Request for Location ----| | | |--- Reply with Care of Address->| | | |<-- Acknowledgment Message ----| | |
1. The Mobile Node sends a "Request for Location" message to its Home Agent when it enters a foreign network. 2. The Home Agent replies with a "Care of Address," which is the temporary address assigned to the Mobile Node in the foreign network. 3. The Mobile Node acknowledges the Care of Address by sending an "Acknowledgment Message" to the Home Agent. 4. The Home Agent updates its location information for the Mobile Node, allowing it to forward data packets to the Mobile Node's current location (Care of Address). This process ensures that the Mobile Node remains reachable and can receive data packets from its home network, even while roaming in a foreign network.
