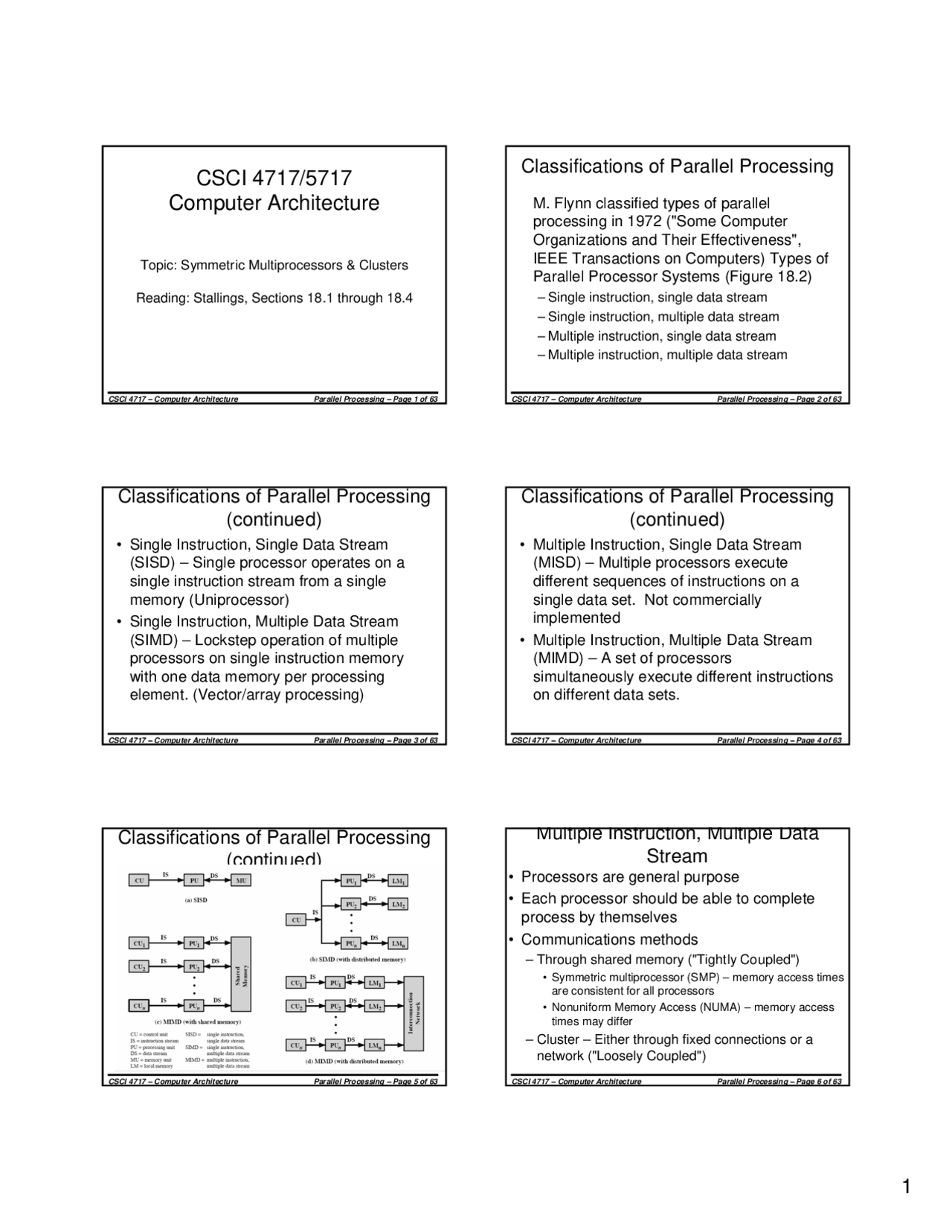

CSCI 4717 – Computer Architecture Parallel Processing – Page 1 of 63
CSCI 4717/
Computer Architecture
Topic: Symmetric Multiprocessors & Clusters
Reading: Stallings, Sections 18.1 through 18.
CSCI 4717 – Computer Architecture Parallel Processing – Page 2 of 63
Classifications of Parallel Processing
M. Flynn classified types of parallel processing in 1972 ("Some Computer Organizations and Their Effectiveness", IEEE Transactions on Computers) Types of Parallel Processor Systems (Figure 18.2)
- Single instruction, single data stream
- Single instruction, multiple data stream
- Multiple instruction, single data stream
- Multiple instruction, multiple data stream
CSCI 4717 – Computer Architecture Parallel Processing – Page 3 of 63
Classifications of Parallel Processing
(continued)
- Single Instruction, Single Data Stream (SISD) – Single processor operates on a single instruction stream from a single memory (Uniprocessor)
- Single Instruction, Multiple Data Stream (SIMD) – Lockstep operation of multiple processors on single instruction memory with one data memory per processing element. (Vector/array processing)
CSCI 4717 – Computer Architecture Parallel Processing – Page 4 of 63
Classifications of Parallel Processing
(continued)
- Multiple Instruction, Single Data Stream (MISD) – Multiple processors execute different sequences of instructions on a single data set. Not commercially implemented
- Multiple Instruction, Multiple Data Stream (MIMD) – A set of processors simultaneously execute different instructions on different data sets.
CSCI 4717 – Computer Architecture Parallel Processing – Page 5 of 63
Classifications of Parallel Processing
(continued)
CSCI 4717 – Computer Architecture Parallel Processing – Page 6 of 63
Multiple Instruction, Multiple Data
Stream
- Processors are general purpose
- Each processor should be able to complete process by themselves
- Communications methods
- Through shared memory ("Tightly Coupled")
- Symmetric multiprocessor (SMP) – memory access times are consistent for all processors
- Nonuniform Memory Access (NUMA) – memory access times may differ
- Cluster – Either through fixed connections or a network ("Loosely Coupled")
CSCI 4717 – Computer Architecture Parallel Processing – Page 7 of 63
Symmetric Multiprocessors (SMP)
A stand alone computer with the following traits
- Two or more similar processors of comparable capacity
- Processors share same memory and I/O
- Processors are connected by a bus or other internal connection
- Memory access time is approximately the same for each processor
CSCI 4717 – Computer Architecture Parallel Processing – Page 8 of 63
Symmetric Multiprocessors (continued)
- All processors share access to I/O through either:
- same channels
- different channels providing paths to same devices
- All processors can perform the same functions (hence symmetric)
- System controlled by integrated operating system providing interaction between processors
- Interaction at job, task, file and data element levels
CSCI 4717 – Computer Architecture Parallel Processing – Page 9 of 63
Integrated Operating System
- O/S for SMP is NOT like clusters/loosely coupled where communication usually is at file level
- Can be a high degree of interaction between processes
- O/S schedules processes or threads across all processors
CSCI 4717 – Computer Architecture Parallel Processing – Page 10 of 63
SMP Advantages
Advantages only realized if O/S can provide parallelism
- Performance, but only if some work can be done in parallel
- Availability/reliability – Since all processors can perform the same functions, failure of a single processor does not halt the system
- Incremental growth – User can enhance performance by adding additional processors
- Scaling – Vendors can offer range of products based on number of processors
- Transparent to user – User only sees improvement in performance
CSCI 4717 – Computer Architecture Parallel Processing – Page 11 of 63
Organization of Tightly Coupled
Multiprocessor
- Individual processors are self-contained, i.e., they have their own control unit, ALU, registers, one or more levels of cache, and private main memory
- Access to shared memory and I/O devices through some interconnection network
- Processors communicate through memory in common data area
CSCI 4717 – Computer Architecture Parallel Processing – Page 12 of 63
Organization of Tightly Coupled
Multiprocessor (continued)
- Memory is often organized to provide simultaneous access to separate blocks of memory
- Bus
- Time-shared or common bus
- Central controller (arbitrator)
- Multiport memory
CSCI 4717 – Computer Architecture Parallel Processing – Page 19 of 63
Multiport Memory
CSCI 4717 – Computer Architecture Parallel Processing – Page 20 of 63
Multiport Memory (continued)
- Advantages
- Removing bus access bottleneck
- Dedicate portions of memory to only one processor - Better security - Better recovery from faults
- Disadvantages
- Complex memory logic
- More PCB wiring
- Write through policy should be used for caches
CSCI 4717 – Computer Architecture Parallel Processing – Page 21 of 63
Central Control Unit
Functions
- Funnels separate data streams between independent modules
- Can buffer requests
- Performs arbitration and timing
- Pass status and control
- Perform cache update alerting
CSCI 4717 – Computer Architecture Parallel Processing – Page 22 of 63
Central Control Unit (continued)
- Uses same control, addressing, and data interfaces as typical processor, therefore, interfaces to modules remain the same
- Disadvantages
- Very complex control unit
- Control unit is possible bottleneck
CSCI 4717 – Computer Architecture Parallel Processing – Page 23 of 63
SMP Operating System
- To user, it appears as if there is a single O/S, i.e., single processor multiprogramming system
- User should be able to create multithreaded processes without needing to know whether one processor or more will be used
CSCI 4717 – Computer Architecture Parallel Processing – Page 24 of 63
SMP Operating System Design Issues
- Simultaneous concurrent processes
- O/S routines should be reentrant
- O/S tables and other management structures must be expanded to handle multiple processes and processors
- Scheduling
- More than just order now, also which processor gets a process
- Any processor should be capable of scheduling too
CSCI 4717 – Computer Architecture Parallel Processing – Page 25 of 63
SMP Operating System Design Issues
(continued)
- Synchronization – scheduling of resources now more than just for processes but also for processors
- Memory management
- Shared page replacement strategy
- Must understand and take advantage of memory hardware
- Reliability and fault tolerance – Must be able to handle the loss of a processor without taking down other processors.
CSCI 4717 – Computer Architecture Parallel Processing – Page 26 of 63
Cache Coherence
- One or two levels of cache typically associated with each processor – this is essential for performance
- Problem
- Multiple copies of same data in different caches
- Can result in an inconsistent view of memory
CSCI 4717 – Computer Architecture Parallel Processing – Page 27 of 63
Write Policy Review
- Write back policy
- Write goes only to cache
- Main memory updated only when cache block is replaced
- Can lead to inconsistency
- Write through policy
- All writes made to cache and main memory
- Inconsistencies can occur unless all caches monitor memory traffic
CSCI 4717 – Computer Architecture Parallel Processing – Page 28 of 63
Software Solutions
- Compiler and operating system deal with problem
- Overhead transferred to compile time
- Design complexity transferred from hardware to software
- Software tends to make conservative decisions leading to inefficient cache utilization
CSCI 4717 – Computer Architecture Parallel Processing – Page 29 of 63
Software Solutions (continued)
- Marked shared variables as non-cacheable
- Instructions added to enable/disable caching for variables. Then compiler can analyze code to determine safe periods for caching shared variables
CSCI 4717 – Computer Architecture Parallel Processing – Page 30 of 63
Hardware Solution
- A.K.A cache coherence protocols
- Dynamic recognition of potential problems at run time
- Because it only deals w/problem when it occurs, more efficient use of cache
- Transparent to programmer and compiler
- Methods
- Directory protocols
- Snoopy protocols
CSCI 4717 – Computer Architecture Parallel Processing – Page 37 of 63
Snoopy Protocols – Implementations
- Performance of these two implementations depends on number of caches and pattern of read/writes
- Some systems use adaptive protocols to use both methods
- Write invalidate most common – Used in Pentium 4 and PowerPC systems
CSCI 4717 – Computer Architecture Parallel Processing – Page 38 of 63
MESI Protocol
- Each line of a cache has associated with it two bits
- Modified – line in this cache is modified and only valid in this cache
- Exclusive – line in this cache is same as that in memory (unmodified) and not present in any other cache
- Shared – line in this cache is same as that in memory (unmodified) and may also be present in another cache
- Invalid – line in this cache contains bad data
- Write throughs from an L1 cache to an L2 cache makes it visible to the MESI protocol
CSCI 4717 – Computer Architecture Parallel Processing – Page 39 of 63
MESI Protocol (continued)
CSCI 4717 – Computer Architecture Parallel Processing – Page 40 of 63
MESI – State Transition Diagram
CSCI 4717 – Computer Architecture Parallel Processing – Page 41 of 63
Clusters
- Defined
- a group of interconnected, whole computers
- working together as a unified computing resource
- can create the illusion of being one machine
- Alternative to Symmetric Multiprocessing (SMP) - High performance - High availability - Server applications
- Each computer called a node CSCI 4717 – Computer Architecture Parallel Processing – Page 42 of 63
Cluster Computer Architecture
Figure 18.11 from Stallings, Computer Organization & Architecture
CSCI 4717 – Computer Architecture Parallel Processing – Page 43 of 63
Cluster Benefits
- Absolute scalability – Almost limitless in terms of adding independent multiprocessing machines
- Incremental scalability – Can start out small and build as user acquires new machines
CSCI 4717 – Computer Architecture Parallel Processing – Page 44 of 63
Cluster Benefits (continued)
- High availability
- Loss of one node only causes small decrement in performance
- Software (middleware) handles fault tolerance automatically
- Superior price/performance
- By using easily affordable building blocks, gets better performance at a lower price than a single large computer
- Expanding design doesn't depend on PCB redesign
CSCI 4717 – Computer Architecture Parallel Processing – Page 45 of 63
Cluster Configurations
- High-speed message link options/configurations - Dedicated LAN with at least one having connection to remote client - Shared LAN with other non-cluster machines
- Simplest way to classify clusters is based on whether computers share disk(s) - No shared disk – each machine has a local disk - Shared disk in addition to local disk – should use disk mirroring or RAID CSCI 4717 – Computer Architecture Parallel Processing – Page 46 of 63
Cluster Configurations – Standby
Server with no Shared Disk
CSCI 4717 – Computer Architecture Parallel Processing – Page 47 of 63
Cluster Configurations – Shared Disk
CSCI 4717 – Computer Architecture Parallel Processing – Page 48 of 63
Cluster Configurations (continued)
- Secondary server – cluster functional classification - Passive Standby - Second computer will take over in the event of a failure on the part of the first - First computer sends "heartbeat“ - Heartbeat stops, secondary takes over - Data must be shared or disks must be shared in order for secondary to take over database stuff too - Active Standby – Second computer participates in processing
CSCI 4717 – Computer Architecture Parallel Processing – Page 55 of 63
Cluster O/S Design Issues –
Parallelizing Computation
- Single application executing in parallel on a number of machines in cluster
- Three general approaches to the problem:
- Parallelizing compiler
- Parallelizing application
- Parametric computing
CSCI 4717 – Computer Architecture Parallel Processing – Page 56 of 63
Parallelizing Compiler
- Determines at compile time which parts can be executed in parallel
- Split off for different computers
- Performance depends on compiler
CSCI 4717 – Computer Architecture Parallel Processing – Page 57 of 63
Parallelizing Application
- Application written to be parallel
- Message passing to move data between nodes
- Hard to program
- Performance depends on programmer
- Potential for best end result
CSCI 4717 – Computer Architecture Parallel Processing – Page 58 of 63
Parametric computing
- If a problem is repeated execution of algorithm on different sets of data
- Example: simulation using different scenarios
- Depends on tools to organize/manage and execute
CSCI 4717 – Computer Architecture Parallel Processing – Page 59 of 63
Cluster Middleware
Software installed on each node to enable cluster operation:
- Provides high availability through load balancing and failover control
- Creates unified image to user
- Single point of entry – User logs onto cluster rather than a node
- Single file hierarchy – User sees a single file structure
- Single control point – single node acts as the interface to the user
- Single virtual network visible to cluster nodes
- Single memory space – programs are allowed to share variables across distributed memory
- Single job management system – cluster assigns the jobs, not the user
- Single user interface CSCI 4717 – Computer Architecture Parallel Processing – Page 60 of 63
Cluster Middleware (continued)
- Enhancement of availability
- Single I/O space – I/O is accessible by any of the nodes regardless of the I/O device's location
- Single process space
- Processes are treated as if they are all operating on a single machine
- This means that the process identification scheme should be uniform and independent of host node
- Checkpointing – for recovery from a failure, each process should periodically save its state and intermediate variable values for failback
- Process migration – to allow for load balancing
CSCI 4717 – Computer Architecture Parallel Processing – Page 61 of 63
Cluster v. SMP
Positive points for both
- Both provide multiprocessor support to high demand applications.
- Both available commercially – SMP has been around longer
CSCI 4717 – Computer Architecture Parallel Processing – Page 62 of 63
SMP benefits
- Easier to manage and configure since it is a single machine
- Closer to single processor systems for which nearly all applications are written
- Scheduling is main difference between SMP and single-processor system
- Less physical space
- Lower power consumption
- Well-established
CSCI 4717 – Computer Architecture Parallel Processing – Page 63 of 63
Cluster benefits
- Superior incremental & absolute scalability
- Superior availability through redundancy of all components, not just processors
- Simpler to create from computers than SMP which is designed from PCB level
- With time, clusters are likely to dominate
