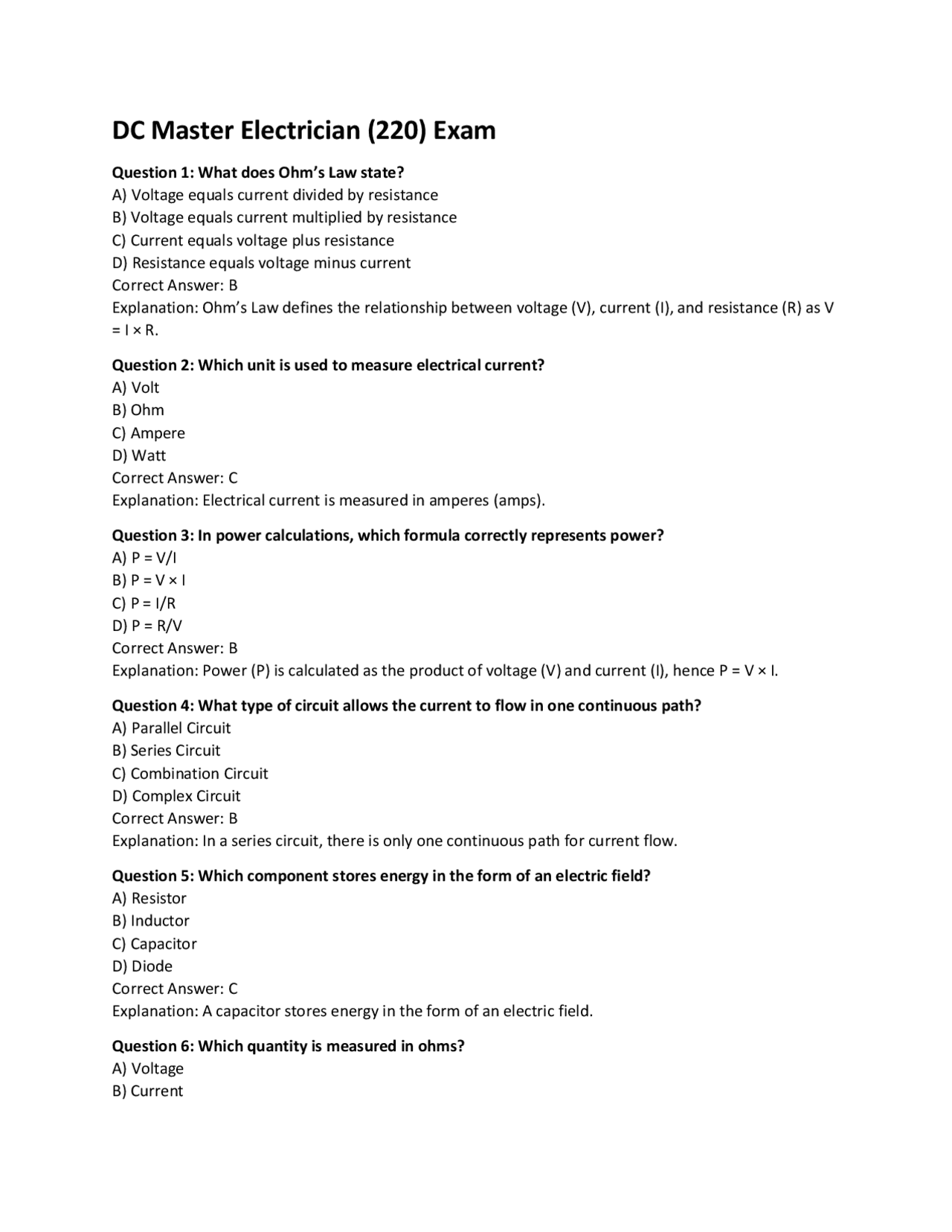

DC Master Electrician (220) Exam
Question 1: What does Ohm’s Law state? A) Voltage equals current divided by resistance B) Voltage equals current multiplied by resistance C) Current equals voltage plus resistance D) Resistance equals voltage minus current Correct Answer: B Explanation: Ohm’s Law defines the relationship between voltage (V), current (I), and resistance (R) as V = I × R. Question 2: Which unit is used to measure electrical current? A) Volt B) Ohm C) Ampere D) Watt Correct Answer: C Explanation: Electrical current is measured in amperes (amps). Question 3: In power calculations, which formula correctly represents power? A) P = V/I B) P = V × I C) P = I/R D) P = R/V Correct Answer: B Explanation: Power (P) is calculated as the product of voltage (V) and current (I), hence P = V × I. Question 4: What type of circuit allows the current to flow in one continuous path? A) Parallel Circuit B) Series Circuit C) Combination Circuit D) Complex Circuit Correct Answer: B Explanation: In a series circuit, there is only one continuous path for current flow. Question 5: Which component stores energy in the form of an electric field? A) Resistor B) Inductor C) Capacitor D) Diode Correct Answer: C Explanation: A capacitor stores energy in the form of an electric field. Question 6: Which quantity is measured in ohms? A) Voltage B) Current
C) Power D) Resistance Correct Answer: D Explanation: Resistance is measured in ohms (Ω). Question 7: What is the primary difference between AC and DC circuits? A) AC has constant voltage; DC reverses direction B) AC reverses direction periodically; DC flows in one direction C) AC is used only in electronics; DC in power systems D) AC uses batteries; DC uses generators Correct Answer: B Explanation: AC (Alternating Current) periodically reverses direction while DC (Direct Current) flows in a single direction. Question 8: Which of the following is considered a reactive power component? A) Apparent Power B) Real Power C) Reactive Power D) True Power Correct Answer: C Explanation: Reactive power is associated with the energy stored and released by inductors and capacitors. Question 9: Which device is used to protect electrical systems by interrupting overcurrent? A) Fuse B) Capacitor C) Transformer D) Oscillator Correct Answer: A Explanation: Fuses protect circuits by melting and interrupting the flow of excessive current. Question 10: What does NFPA 70E primarily address? A) Wiring methods in buildings B) Electrical safety in the workplace C) Transformer efficiency D) Solar panel installation Correct Answer: B Explanation: NFPA 70E outlines the electrical safety requirements for workplaces. Question 11: What is the purpose of Lockout/Tagout (LOTO) procedures? A) To increase system voltage B) To ensure equipment remains de-energized during maintenance C) To speed up circuit breaker response D) To improve current flow Correct Answer: B Explanation: LOTO procedures are designed to prevent accidental energizing of equipment during maintenance.
Explanation: Box fill calculations ensure that electrical boxes have enough space to safely contain wires and devices. Question 18: Which device provides overcurrent protection and can interrupt circuits when necessary? A) Surge protector B) Circuit breaker C) Dimmer switch D) Transformer Correct Answer: B Explanation: Circuit breakers interrupt the flow of electricity when an overcurrent is detected. Question 19: What does AFCI stand for in electrical safety? A) Automated Frequency Control Interrupter B) Arc Fault Circuit Interrupter C) Alternating Flow Current Interference D) Advanced Fuse Circuit Integrator Correct Answer: B Explanation: AFCI stands for Arc Fault Circuit Interrupter, which protects against arc faults. Question 20: What is the function of a GFCI device? A) To reduce voltage fluctuations B) To provide surge protection C) To detect and interrupt ground faults D) To increase current flow Correct Answer: C Explanation: GFCIs detect ground faults and disconnect power to prevent electric shock. Question 21: In load calculations, what is the significance of demand factors? A) They determine conductor colors B) They reduce the calculated load based on typical usage C) They increase the estimated current D) They are used to calculate voltage drop Correct Answer: B Explanation: Demand factors account for the fact that not all electrical devices operate simultaneously, reducing the calculated load. Question 22: When sizing service conductors, which factor is critical? A) Color of insulation B) Length of the run C) Number of outlets D) Room temperature Correct Answer: B Explanation: The length of the conductor run can affect voltage drop and proper sizing of service conductors.
Question 23: Which of the following best describes a panelboard? A) A protective covering for wires B) A distribution system for electrical circuits C) A type of grounding equipment D) A surge protection device Correct Answer: B Explanation: Panelboards distribute electrical power to various circuits within a building. Question 24: What is the purpose of a subpanel in an electrical distribution system? A) To store excess energy B) To divide power distribution from the main panel C) To convert AC to DC D) To reduce voltage to low levels Correct Answer: B Explanation: Subpanels provide a secondary distribution point branching off from the main panel. Question 25: When designing branch circuits, which calculation is essential? A) Conductor insulation color code B) Breaker sizing C) Appliance weight D) Room dimensions Correct Answer: B Explanation: Branch circuit design requires proper breaker sizing to ensure circuit protection. Question 26: What is the primary function of a conduit in electrical installations? A) To increase current capacity B) To physically protect and route electrical wiring C) To generate electricity D) To reduce voltage drop Correct Answer: B Explanation: Conduits protect wiring from physical damage and help organize installations. Question 27: Which type of conduit is known for its flexibility and ease of installation? A) Rigid Metal Conduit B) Electrical Metallic Tubing (EMT) C) PVC Conduit D) Flexible Metal Conduit Correct Answer: D Explanation: Flexible metal conduit offers adaptability for installations with curves or obstacles. Question 28: When performing conduit fill calculations, why is it important? A) To determine conductor weight B) To avoid excessive heat buildup and ensure safe wire placement C) To establish electrical panel capacity D) To calculate voltage Correct Answer: B
Question 34: What does a Variable Frequency Drive (VFD) control in a motor circuit? A) Voltage only B) Frequency of the power supply, thereby controlling motor speed C) Current direction D) Physical rotation Correct Answer: B Explanation: VFDs regulate the frequency of the power supply to control the speed and torque of an AC motor. Question 35: What is the main function of a transformer in electrical systems? A) To store electrical energy B) To convert voltage levels between circuits C) To generate electrical power D) To protect against overcurrent Correct Answer: B Explanation: Transformers adjust voltage levels, stepping them up or down as needed for different applications. Question 36: Which type of transformer is used to step-down high voltage for residential use? A) Auto-transformer B) Isolation transformer C) Step-down transformer D) Variable transformer Correct Answer: C Explanation: Step-down transformers lower high voltage to a safe level for residential and commercial use. Question 37: In lighting systems, what distinguishes task lighting from general lighting? A) Task lighting is used outdoors exclusively B) Task lighting is designed for focused illumination in work areas C) General lighting is always LED D) Task lighting is solely decorative Correct Answer: B Explanation: Task lighting is designed to provide concentrated light for detailed work, unlike general lighting which illuminates a broader area. Question 38: Which lighting control device adjusts the brightness of a light fixture? A) Occupancy sensor B) Dimmer switch C) Circuit breaker D) Relay Correct Answer: B Explanation: Dimmer switches allow users to adjust the intensity of lighting. Question 39: What is the primary purpose of emergency exit lighting? A) To enhance decor B) To provide illumination during power outages for safe evacuation
C) To reduce energy consumption D) To highlight architectural features Correct Answer: B Explanation: Emergency exit lighting ensures safe evacuation in the event of a power outage. Question 40: Which element in a power distribution system directs electricity to various branch circuits? A) Generator B) Distribution panel C) Transformer D) Conduit Correct Answer: B Explanation: The distribution panel serves as the central point for routing electrical power to branch circuits. Question 41: What component in a busbar system carries high currents within an electrical panel? A) Circuit breaker B) Metal strip C) Conductor cable D) Fuse link Correct Answer: B Explanation: Busbars are metal strips or bars that conduct high currents within electrical panels. Question 42: What is the primary purpose of an Uninterruptible Power Supply (UPS)? A) To convert AC to DC B) To provide backup power during outages C) To increase voltage levels D) To control circuit frequency Correct Answer: B Explanation: UPS systems supply backup power to critical loads during power interruptions. Question 43: During an electrical inspection, what is a common focus for inspectors? A) Color of the equipment B) Grounding and proper circuit protection C) Aesthetic installation D) Brand of electrical devices Correct Answer: B Explanation: Inspectors prioritize ensuring proper grounding and correct circuit protection to maintain safety. Question 44: What is a key benefit of regular electrical system maintenance? A) Increasing voltage levels B) Preventing potential safety hazards and system failures C) Lowering electricity prices D) Expanding system capacity Correct Answer: B
Question 50: What is the primary energy conversion process in a wind turbine? A) Thermal to electrical energy B) Chemical to electrical energy C) Kinetic to electrical energy D) Radiant to electrical energy Correct Answer: C Explanation: Wind turbines convert kinetic energy from wind into electrical energy. Question 51: What is the purpose of energy efficiency considerations in electrical systems? A) To increase the installation cost B) To minimize energy consumption and reduce costs C) To add complexity to the system D) To require more maintenance Correct Answer: B Explanation: Energy efficiency measures aim to reduce energy use and lower operating costs. Question 52: In advanced circuit theory, what does impedance represent? A) The pure resistance of a circuit B) The combination of resistance, inductance, and capacitance effects C) Only the capacitive effects D) The thermal properties of conductors Correct Answer: B Explanation: Impedance combines the effects of resistance, inductive reactance, and capacitive reactance in AC circuits. Question 53: Which phenomenon is described by resonance in a circuit? A) Maximum power loss B) Minimum current flow C) A condition where inductive and capacitive reactances cancel each other D) A permanent short circuit Correct Answer: C Explanation: Resonance occurs when the inductive and capacitive reactances in a circuit are equal and cancel each other out. Question 54: What is a common technique for diagnosing short circuits? A) Visual inspection only B) Systematic diagnostic testing using a multimeter C) Increasing the voltage D) Replacing all wiring Correct Answer: B Explanation: A systematic approach using a multimeter helps locate and diagnose short circuits. Question 55: Which instrument is used to test for continuity in electrical circuits? A) Oscilloscope B) Continuity tester C) Voltage regulator D) Frequency counter
Correct Answer: B Explanation: A continuity tester is used to check if a complete path exists in a circuit. Question 56: What is a key aspect of preventive maintenance in electrical systems? A) Waiting for system failure B) Regular inspections and testing C) Reducing the number of inspections D) Ignoring minor issues Correct Answer: B Explanation: Preventive maintenance involves scheduled inspections and testing to prevent system failures. **Question 57: Which of the following is a licensing requirement for Master Electricians in DC? A) Must hold a PhD in engineering B) Passing a state-approved examination and meeting continuing education requirements C) Being over 50 years old D) Owning a personal business vehicle Correct Answer: B Explanation: Licensing requirements typically include passing a comprehensive exam and fulfilling continuing education criteria. Question 58: What is a critical component in the estimating and bidding process for electrical projects? A) The color of wiring B) Accurate load calculations and material cost estimations C) The brand of tools used D) The personal opinion of the electrician Correct Answer: B Explanation: Accurate load calculations and cost estimates are essential for preparing competitive bids. Question 59: In project management for electrical installations, what is crucial for effective scheduling? A) Ignoring client requirements B) Clear communication and timeline coordination C) Relying solely on subcontractors D) Using only traditional methods Correct Answer: B Explanation: Effective scheduling relies on clear communication, planning, and coordination with all involved parties. Question 60: Which ethical consideration is vital for a DC Master Electrician? A) Maximizing profit at any cost B) Maintaining professionalism and adherence to safety standards C) Cutting corners to reduce labor costs D) Ignoring local code amendments Correct Answer: B
B) Conductors for general wiring C) Circuit protection D) Lighting systems Correct Answer: B Explanation: Article 310 of the NEC deals with the types and installation of conductors used in general wiring. Question 67: In NEC Table Usage, what do voltage drop tables help determine? A) The appropriate conductor insulation B) The maximum allowable voltage drop over a conductor length C) The current rating of a fuse D) The ambient temperature Correct Answer: B Explanation: Voltage drop tables are used to calculate the voltage loss over a conductor run to ensure safe and efficient operation. Question 68: What is the purpose of overcurrent protection in electrical circuits? A) To maintain a constant voltage B) To prevent damage by interrupting excessive current flow C) To increase power delivery D) To balance circuit loads Correct Answer: B Explanation: Overcurrent protection devices, such as fuses and circuit breakers, interrupt current flow to prevent overheating and potential fires. Question 69: Which method is used to calculate the electrical load of a residential installation? A) Multiplying voltage by resistance B) Summing the wattages of individual loads and applying demand factors C) Dividing current by voltage D) Using only the largest appliance rating Correct Answer: B Explanation: Load calculations involve summing the wattages of all devices and applying demand factors to account for simultaneous usage. Question 70: In panelboard installations, what is the significance of service entrance equipment? A) It decorates the panel B) It connects the building to the external power source C) It increases the electrical load D) It serves as a backup power source Correct Answer: B Explanation: Service entrance equipment is the interface between the utility’s power and the building’s electrical system. Question 71: What factor must be considered when sizing conductors based on load? A) Ambient temperature and installation conditions B) Color of the cable jacket C) Time of day
D) The phase of the moon Correct Answer: A Explanation: Ambient temperature and installation conditions affect the current-carrying capacity of conductors. Question 72: Which wiring method is typically used for interior residential wiring? A) Metal Clad (MC) cable B) Nonmetallic (NM) cable C) Armored cable D) Underground feeder (UF) cable Correct Answer: B Explanation: NM cable is commonly used in interior residential wiring due to its ease of installation and cost-effectiveness. Question 73: In the context of splices and terminations, what is a critical consideration? A) Using the longest possible conductor B) Ensuring a secure and low-resistance connection C) Matching conductor colors D) Selecting the highest voltage rating available Correct Answer: B Explanation: Proper splices and terminations ensure reliable, low-resistance connections that prevent overheating and failure. Question 74: What distinguishes a DC motor from an AC motor? A) DC motors always run faster B) DC motors operate on direct current and offer variable speed control C) AC motors require batteries D) DC motors use three-phase power Correct Answer: B Explanation: DC motors operate on direct current and can provide more precise speed control compared to AC motors. Question 75: Which motor starting method directly applies full line voltage to the motor? A) Soft start B) Direct On-Line (DOL) starting C) Star-delta starting D) Reduced voltage starting Correct Answer: B Explanation: Direct On-Line (DOL) starting applies full line voltage immediately to the motor, resulting in high starting current. Question 76: Which component in a motor control circuit is used to start and stop the motor? A) Transformer B) Start/Stop switch C) Capacitor D) Fuse
Question 82: What is the purpose of battery systems in emergency lighting circuits? A) To permanently power the circuit B) To provide power during outages until the main power is restored C) To increase the voltage level D) To control circuit frequency Correct Answer: B Explanation: Battery systems in emergency lighting ensure that lights operate during power failures. Question 83: During electrical inspections, why is proper grounding critical? A) It enhances signal strength B) It prevents electrical shock and equipment damage C) It increases circuit complexity D) It reduces the need for overcurrent protection Correct Answer: B Explanation: Proper grounding minimizes the risk of electric shock and protects equipment from voltage surges. Question 84: What is one of the common code violations during electrical inspections? A) Excessively high voltage B) Inadequate grounding or bonding C) Too many circuit breakers D) Overuse of LED lighting Correct Answer: B Explanation: Inadequate grounding or bonding is a frequent issue found during inspections and must be corrected for safety. Question 85: Which electrical test equipment is most commonly used for diagnosing insulation resistance? A) Multimeter B) Megger C) Clamp meter D) Oscilloscope Correct Answer: B Explanation: A megger is specifically designed to test insulation resistance in electrical installations. Question 86: What is a primary benefit of preventive maintenance in electrical systems? A) It increases installation complexity B) It reduces the likelihood of unexpected system failures C) It requires less training D) It eliminates the need for inspections Correct Answer: B Explanation: Regular preventive maintenance helps detect potential issues early, reducing the risk of sudden failures. Question 87: Which renewable energy technology converts sunlight directly into electricity? A) Solar thermal B) Photovoltaic systems
C) Wind turbines D) Geothermal systems Correct Answer: B Explanation: Photovoltaic systems convert sunlight directly into electrical energy using solar panels. Question 88: In wind energy systems, what is the primary factor to consider when sizing a wind turbine? A) The turbine color B) Wind speed and consistency C) The building’s architectural design D) The type of foundation Correct Answer: B Explanation: The efficiency of a wind turbine is largely determined by the average wind speed and its consistency at the site. Question 89: What is the purpose of power factor correction equipment? A) To increase voltage drop B) To improve the efficiency of power systems by reducing reactive power C) To decrease system frequency D) To alter the physical size of conductors Correct Answer: B Explanation: Power factor correction devices optimize the system’s power usage by reducing reactive power and improving efficiency. Question 90: In advanced troubleshooting, what is the first step in a systematic diagnostic method? A) Replacing all components B) Isolating the problem area C) Increasing power supply D) Ignoring minor discrepancies Correct Answer: B Explanation: Isolating the problem area helps pinpoint the cause of the issue, making troubleshooting more effective. Question 91: Which component is critical when testing for continuity in a circuit? A) Insulation tester B) Continuity tester or multimeter C) Voltage regulator D) Frequency meter Correct Answer: B Explanation: A continuity tester or multimeter is essential for checking if an electrical path is complete. Question 92: What does “preventive maintenance” in an electrical system primarily aim to do? A) Increase system load B) Preemptively address issues before they cause failures C) Eliminate the need for any testing D) Decrease system voltage Correct Answer: B
Question 98: When calculating power factor, which two types of power are compared? A) Real power and lost power B) Reactive power and apparent power C) Real power and apparent power D) Apparent power and lost power Correct Answer: C Explanation: Power factor is the ratio of real power (useful work) to apparent power (total supplied power). Question 99: In a DC circuit, which component limits the amount of current flow? A) Capacitor B) Resistor C) Inductor D) Transformer Correct Answer: B Explanation: A resistor is used to control and limit current flow in a circuit. Question 100: Which electrical unit represents the rate of energy consumption? A) Volt B) Ampere C) Watt D) Ohm Correct Answer: C Explanation: The watt is the unit used to measure the rate of energy consumption or power. Question 101: What is the significance of using proper conductor insulation in electrical installations? A) It enhances the color of the cable B) It prevents accidental contact and electrical short circuits C) It increases current capacity D) It reduces the physical weight of the wire Correct Answer: B Explanation: Proper insulation protects against accidental contact and helps prevent short circuits and electrical hazards. Question 102: Which characteristic is important for conductors in high-temperature environments? A) Higher tensile strength B) Elevated ampacity rating C) Increased flexibility D) Enhanced thermal resistance Correct Answer: D Explanation: Conductors in high-temperature environments require enhanced thermal resistance to maintain safety and performance. Question 103: What does the term “NEC compliance” generally refer to? A) Following manufacturer guidelines exclusively B) Adhering to the safety standards and guidelines outlined in the National Electrical Code C) Meeting aesthetic design requirements
D) Maximizing energy consumption Correct Answer: B Explanation: NEC compliance means following the standards and guidelines set forth in the National Electrical Code for safe electrical installations. Question 104: Which tool is used to test insulation resistance in wiring? A) Clamp meter B) Megger C) Voltmeter D) Oscilloscope Correct Answer: B Explanation: A megger is the tool used to test insulation resistance and identify potential breakdowns in wiring insulation. Question 105: What is the primary purpose of a circuit breaker? A) To store electrical energy B) To interrupt current flow in the event of an overload or short circuit C) To enhance signal strength D) To regulate voltage fluctuations Correct Answer: B Explanation: Circuit breakers protect electrical circuits by interrupting the current flow during overloads or short circuits. Question 106: Which installation method involves running cables inside a protective metal or plastic tubing? A) Direct burial B) Conduit installation C) Aerial installation D) Surface wiring Correct Answer: B Explanation: Conduit installation involves routing cables within protective tubing to shield them from physical damage. Question 107: When selecting wiring materials, why is the cable type important? A) It determines the aesthetic of the installation B) Different cable types are rated for different environmental conditions and applications C) It has no impact on safety D) It solely determines the installation cost Correct Answer: B Explanation: Cable types such as THWN, NM, and MC have different ratings and are suited for specific applications and environmental conditions. Question 108: What is the function of an occupancy sensor in lighting systems? A) To change the color of the light B) To automatically turn lights on or off based on room occupancy C) To measure the brightness of a room D) To regulate voltage supply
