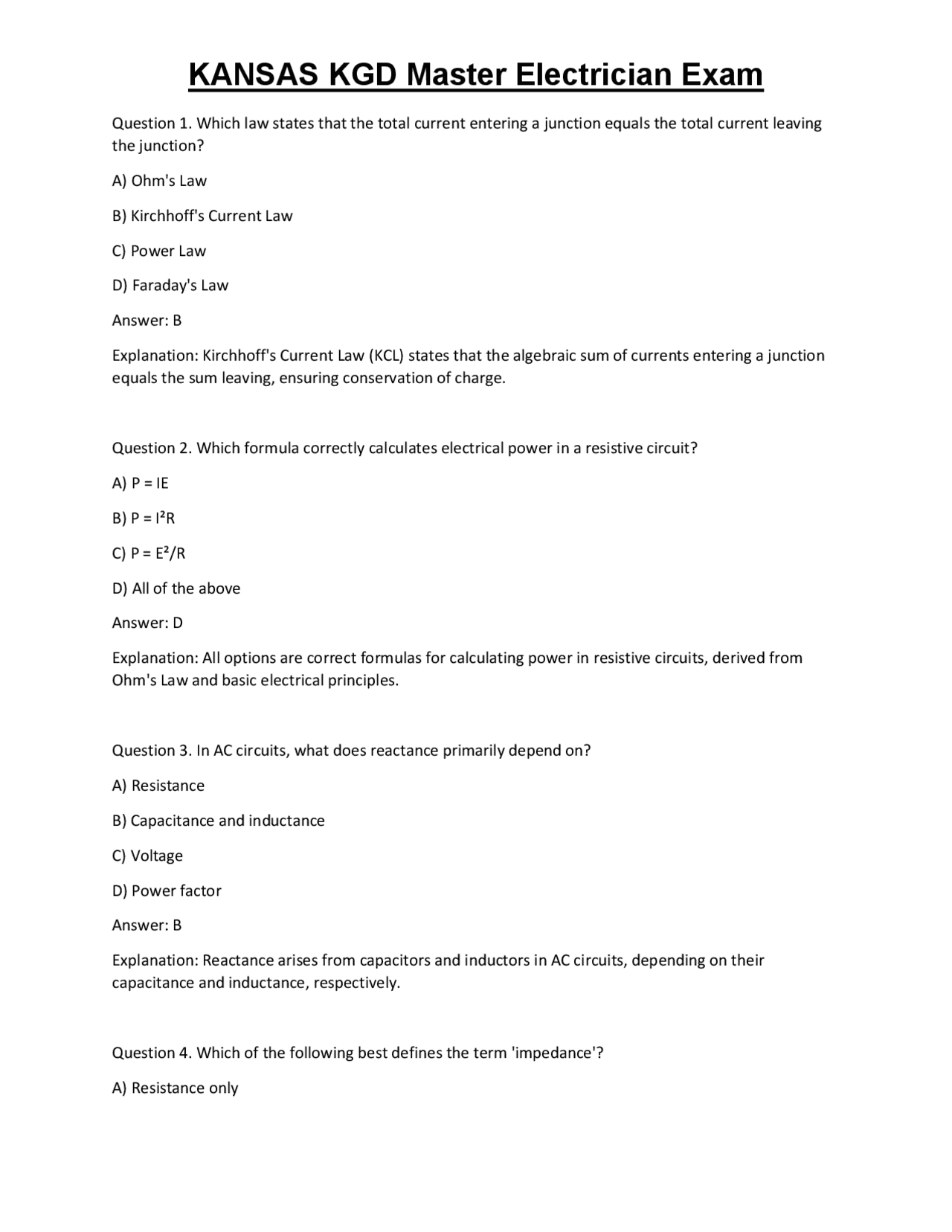

Question 1. Which law states that the total current entering a junction equals the total current leaving the junction? A) Ohm's Law B) Kirchhoff's Current Law C) Power Law D) Faraday's Law Answer: B Explanation: Kirchhoff's Current Law (KCL) states that the algebraic sum of currents entering a junction equals the sum leaving, ensuring conservation of charge. Question 2. Which formula correctly calculates electrical power in a resistive circuit? A) P = IE B) P = I²R C) P = E²/R D) All of the above Answer: D Explanation: All options are correct formulas for calculating power in resistive circuits, derived from Ohm's Law and basic electrical principles. Question 3. In AC circuits, what does reactance primarily depend on? A) Resistance B) Capacitance and inductance C) Voltage D) Power factor Answer: B Explanation: Reactance arises from capacitors and inductors in AC circuits, depending on their capacitance and inductance, respectively. Question 4. Which of the following best defines the term 'impedance'? A) Resistance only
B) The opposition to current flow in AC circuits, including resistance and reactance C) Voltage drop D) Power consumed in a circuit Answer: B Explanation: Impedance combines resistance and reactance in AC circuits, representing total opposition to current flow. Question 5. When calculating lighting loads in a commercial building, which factor is typically applied to account for actual usage? A) Power factor B) Demand factor C) Voltage drop factor D) Resistance factor Answer: B Explanation: Demand factor adjusts the total connected load to reflect actual anticipated usage, preventing overestimation in load calculations. Question 6. For a dwelling unit, what is the standard method to calculate the general lighting load according to NEC? A) 3 VA per square foot B) 1 VA per square foot C) 2 VA per square foot D) 4 VA per square foot Answer: A Explanation: The NEC typically prescribes 3 VA per square foot for general lighting load calculations in dwelling units. Question 7. Which type of load calculation considers the simultaneous operation of multiple motors? A) Continuous load calculation B) Motor load calculation
D) Step-up transformer Answer: C Explanation: Dry-type transformers are cooled by air or other forced ventilation and are suitable for indoor or dry environments. Question 11. What is the primary reason for grounding electrical systems? A) To improve voltage stability B) To provide a safe path for fault currents and prevent shock hazards C) To increase current capacity D) To reduce power consumption Answer: B Explanation: Grounding provides a safe path for fault currents, reducing shock hazards and protecting equipment. Question 12. How deep must underground conductors be buried to comply with NEC requirements for direct burial? A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: The NEC generally requires underground conductors to be buried at a minimum depth of 24 inches, depending on the wiring method. Question 13. Which type of conduit is most suitable for hazardous locations due to its corrosion resistance and mechanical protection? A) EMT B) PVC C) Rigid Metal Conduit (RMC) D) Flexible conduit
Answer: C Explanation: Rigid Metal Conduit (RMC) is durable and suitable for hazardous locations requiring robust protection. Question 14. Which of the following is a NEMA-rated enclosure designed for outdoor use with weather resistance? A) NEMA 1 B) NEMA 3R C) NEMA 4 D) NEMA 12 Answer: B Explanation: NEMA 3R enclosures are rated for outdoor use and provide protection against rain, sleet, and snow. Question 15. Which calculation is essential in determining the appropriate size of conductors to minimize voltage drop? A) Power factor correction B) Conductor ampacity C) Voltage drop calculation D) Overcurrent protection sizing Answer: C Explanation: Voltage drop calculations help determine if conductors are adequately sized to supply loads without excessive voltage loss. Question 16. What is the maximum conductor fill percentage allowed in a conduit according to NEC? A) 40% B) 50% C) 60% D) 75% Answer: C
Question 20. Which type of wiring method is most suitable for underground residential distribution (URD)? A) Non-metallic sheathed cable (NM) B) Rigid Metal Conduit (RMC) C) Underground Feeder (UF) cable D) Flexible conduit Answer: C Explanation: UF cable is specifically designed for underground use, with rugged insulation suitable for direct burial. Question 21. Which of the following is a common type of raceway used for indoor, exposed wiring? A) Rigid Metal Conduit (RMC) B) EMT (Electrical Metallic Tubing) C) IMC (Intermediate Metal Conduit) D) PVC conduit Answer: B Explanation: EMT is commonly used for indoor, exposed wiring due to its lightweight and ease of installation. Question 22. What is the purpose of a panelboard in an electrical system? A) To distribute power to branch circuits and provide overcurrent protection B) To step down voltage C) To convert AC to DC D) To serve as a grounding point Answer: A Explanation: Panelboards distribute power to branch circuits and contain overcurrent protective devices, ensuring circuit safety. Question 23. How is the total number of conductors in a box calculated? A) Sum of conductors plus devices
B) Conductors only C) Conductors plus devices plus fittings D) Conductors plus grounding conductors only Answer: C Explanation: Box fill calculations include conductors, devices, and fittings to ensure compliance with capacity and safety standards. Question 24. Which of the following is a proper use of a junction box? A) To serve as a splice point for conductors B) To act as a disconnect switch C) To serve as a receptacle D) To route conductors outside the building Answer: A Explanation: Junction boxes are designed for splicing conductors and organizing wiring connections safely. Question 25. Which type of overcurrent protection device is most suitable for sensitive electronic equipment? A) Fuses B) Standard circuit breakers C) AFCI D) Ground-fault interrupter Answer: C Explanation: AFCIs are designed to protect against arc faults that can cause fires and are suitable for sensitive electronics. Question 26. When installing conductors in a conduit, what is the maximum allowable fill percentage for a 90°C rated conductor? A) 40% B) 50%
Explanation: Bonding creates a low-resistance path to ground, preventing voltage differences and ensuring safety. Question 30. Which system component is typically used to connect a grounding electrode system to the main service panel? A) Bonding jumper B) Overcurrent device C) Conduit connector D) Insulation Answer: A Explanation: A bonding jumper connects the grounding electrode system to the service panel, establishing a continuous ground path. Question 31. What is the minimum size of grounding electrode conductor for a 200-amp service according to NEC? A) 8 AWG B) 6 AWG C) 4 AWG D) 2 AWG Answer: B Explanation: NEC Table 250.66 specifies a minimum of 6 AWG for grounding electrodes for a 200-amp service. Question 32. Which of the following is a key requirement for temporary wiring on a construction site? A) It must be permanently installed B) It must have GFCI protection C) It can be left ungrounded D) It should be installed only outdoors Answer: B Explanation: Temporary wiring must be GFCI protected to reduce shock hazards during construction.
Question 33. Which term describes the ratio of real power to apparent power in an AC circuit? A) Power factor B) Voltage C) Resistance D) Reactance Answer: A Explanation: Power factor indicates the efficiency of power usage, defined as the ratio of real power to apparent power. Question 34. What is the purpose of a demand factor in electrical load calculations? A) To increase the estimated load B) To account for simultaneous usage variations C) To reduce the actual load D) To determine conductor size Answer: B Explanation: Demand factors account for the fact that not all connected loads operate at full capacity simultaneously, leading to more accurate load estimates. Question 35. Which of the following is an example of a three-phase transformer connection? A) Delta-Delta B) Wye-Wye C) Delta-Wye D) All of the above Answer: D Explanation: All listed configurations—delta-delta, wye-wye, delta-wye—are common three-phase transformer connections. Question 36. In a three-phase system, what is the phase difference between line-to-line voltages? A) 0 degrees
Explanation: All factors influence conductor selection, including temperature, insulation, and length, to ensure safety and code compliance. Question 40. Which type of conduit is flexible and used for connections requiring movement or vibration absorption? A) EMT B) Rigid conduit C) Flexible metal conduit (FMC) D) PVC conduit Answer: C Explanation: FMC provides flexibility for connections that require movement or vibration absorption. Question 41. Which device is typically used to protect a circuit against overload and short circuit? A) GFCI B) Overcurrent protective device (breaker or fuse) C) Surge protector D) Transformer Answer: B Explanation: Overcurrent protective devices like circuit breakers or fuses interrupt excessive current to protect wiring and devices. Question 42. How is the ampacity of a conductor affected by its installation in a conduit with multiple conductors? A) It increases B) It decreases C) It remains the same D) It depends on the conductor material Answer: B Explanation: The ampacity decreases due to heat buildup when multiple conductors are installed in a single conduit, requiring correction factors.
Question 43. Which of the following is a common environmental rating for outdoor electrical enclosures? A) NEMA 1 B) NEMA 3R C) NEMA 12 D) NEMA 13 Answer: B Explanation: NEMA 3R enclosures are designed for outdoor use, providing protection against weather elements. Question 44. What is the purpose of a panel schedule? A) To display circuit wiring details B) To list circuit breaker ratings and the loads they serve C) To show the wiring diagram D) To identify grounding methods Answer: B Explanation: Panel schedules list circuit breaker ratings, circuit numbers, and the loads served, aiding in system management. Question 45. Which of the following conductor types is most suitable for use in wet locations? A) THHN B) XHHW C) USE (Underground Service Entrance) cable D) All of the above Answer: D Explanation: All listed conductors are suitable for wet locations if rated appropriately. Question 46. What is the typical minimum size for a service entrance conductor for a 100-amp service? A) 2 AWG
Answer: A Explanation: Motor-rated fuses or circuit breakers designed for motor loads provide proper protection against overcurrent and short circuits. Question 50. What is the main reason for installing a disconnect switch near a motor? A) To control the motor remotely B) To facilitate maintenance and emergency shutdown C) To regulate voltage D) To reduce power consumption Answer: B Explanation: A disconnect switch provides a means to safely disconnect power for maintenance or emergencies. Question 51. Which of the following is an acceptable method for grounding overhead metallic raceways? A) Connecting to the grounding terminal in the box B) Using listed connectors to bond raceways together C) Leaving them unbonded D) Both A and B Answer: D Explanation: Proper bonding and grounding of raceways are essential to ensure electrical safety and are achieved through connectors and grounding terminals. Question 52. In a three-phase delta connection, what is the relationship between line-to-line and phase voltages? A) Line-to-line equals phase voltage B) Line-to-line is √3 times phase voltage C) Line-to-line is half of phase voltage D) Line-to-line is equal to phase current Answer: B
Explanation: In a delta system, line-to-line voltage is √3 times the phase (or line-to-neutral) voltage. Question 53. For a transformer, what does the 'turns ratio' determine? A) The voltage transformation ratio B) The current capacity C) The phase shift D) The core size Answer: A Explanation: The turns ratio of a transformer defines how primary voltage relates to secondary voltage. Question 54. Which article of the NEC covers the requirements for grounding and bonding? A) Article 250 B) Article 300 C) Article 410 D) Article 430 Answer: A Explanation: Article 250 of the NEC provides detailed requirements for grounding and bonding practices. Question 55. What is the primary purpose of a panelboard's main breaker? A) To protect the entire panel from overload B) To disconnect all branch circuits simultaneously C) To provide a safety shutoff D) All of the above Answer: D Explanation: The main breaker protects the system, allows for disconnecting all circuits, and enhances safety. Question 56. Which type of conduit is typically used where corrosion resistance is a priority in outdoor environments?
C) 277/480 volts D) 480/277 volts Answer: A Explanation: Residential services commonly supply 120/240 volts in the US, with 120V for outlets and 240V for larger appliances. Question 60. Which of the following best describes the purpose of a grounding conductor? A) To carry current during normal operation B) To carry fault current safely to ground C) To reduce voltage D) To serve as a neutral conductor Answer: B Explanation: The grounding conductor provides a low-resistance path for fault current, ensuring safety during electrical faults. Question 61. Which NEC article covers requirements for motor circuits and controllers? A) Article 430 B) Article 250 C) Article 310 D) Article 210 Answer: A Explanation: Article 430 addresses motor circuits, controllers, and associated protections. Question 62. What is the primary function of a disconnect switch installed in a motor branch circuit? A) To disconnect power for maintenance or emergency B) To regulate motor speed C) To measure motor current D) To reduce starting torque Answer: A
Explanation: The disconnect provides a means to safely disconnect power for servicing or emergencies. Question 63. Which of the following is a typical application for a GFCI device? A) Outdoor outlets B) Bathrooms C) Kitchens D) All of the above Answer: D Explanation: GFCIs are required in outdoor outlets, bathrooms, kitchens, and other wet or damp locations to prevent shocks. Question 64. In a residential wiring system, what is the standard voltage between hot and neutral? A) 120 volts B) 240 volts C) 208 volts D) 277 volts Answer: A Explanation: The voltage between hot (phase) and neutral in residential systems is typically 120 volts. Question 65. Which type of circuit breaker trips in response to an overcurrent condition? A) Ground-fault circuit interrupter B) Overcurrent breaker C) Arc-fault breaker D) Both B and C Answer: D Explanation: Both overcurrent (standard) and arc-fault breakers trip in response to overcurrent conditions; GFCIs trip on ground faults. Question 66. What is the main advantage of using AFCI protection in dwelling circuits?
