Electrician Exam

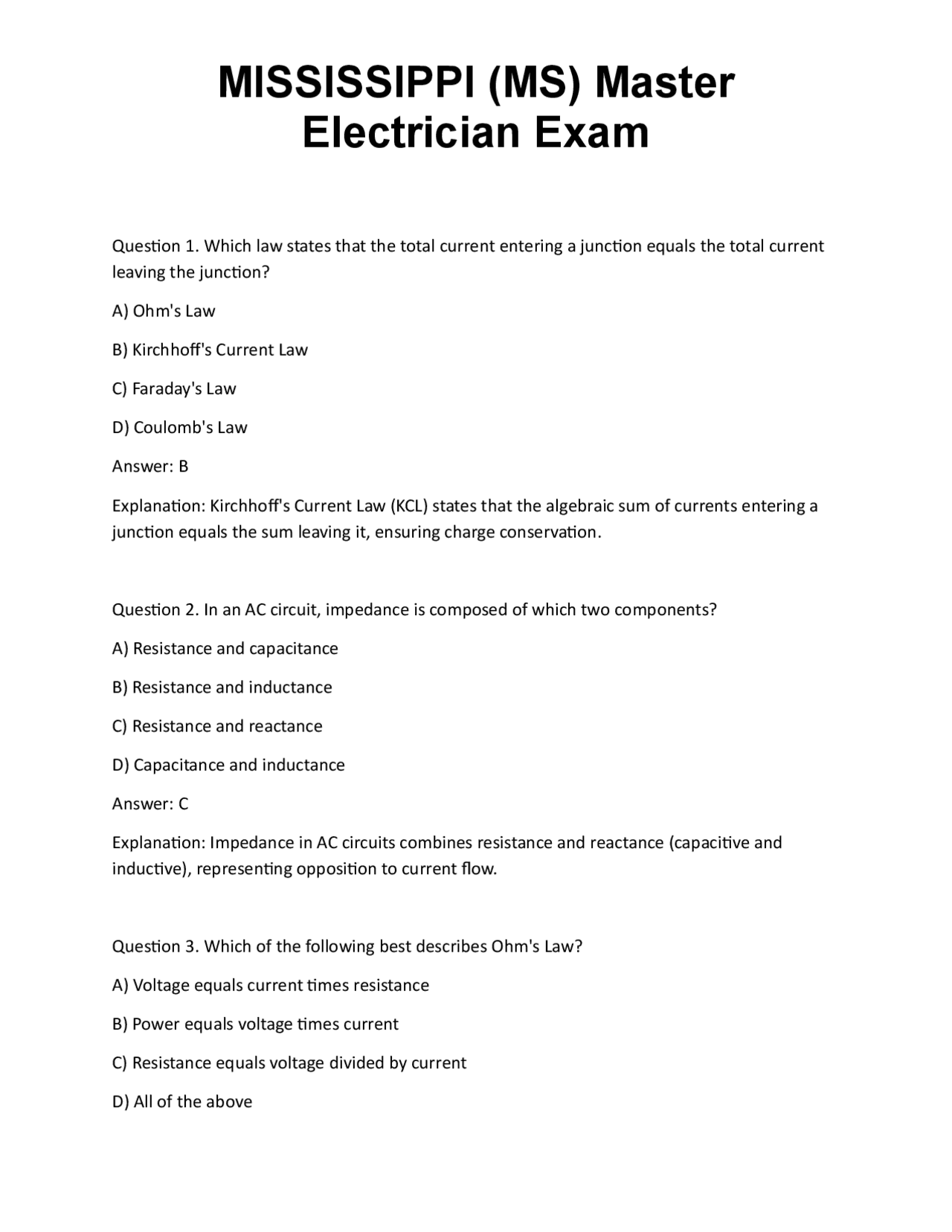

Question 1. Which law states that the total current entering a junction equals the total current leaving the junction? A) Ohm's Law B) Kirchhoff's Current Law C) Faraday's Law D) Coulomb's Law Answer: B Explanation: Kirchhoff's Current Law (KCL) states that the algebraic sum of currents entering a junction equals the sum leaving it, ensuring charge conservation. Question 2. In an AC circuit, impedance is composed of which two components? A) Resistance and capacitance B) Resistance and inductance C) Resistance and reactance D) Capacitance and inductance Answer: C Explanation: Impedance in AC circuits combines resistance and reactance (capacitive and inductive), representing opposition to current flow. Question 3. Which of the following best describes Ohm's Law? A) Voltage equals current times resistance B) Power equals voltage times current C) Resistance equals voltage divided by current D) All of the above
Electrician Exam
Answer: D Explanation: Ohm's Law states that V = IR; it also implies P = VI and R = V/I, covering all options provided. Question 4. What is the primary function of a transformer? A) Convert AC to DC B) Change the voltage level of AC power C) Store electrical energy D) Generate electrical power Answer: B Explanation: Transformers are designed to change AC voltage levels—either stepping up or stepping down voltage—by electromagnetic induction. Question 5. Which type of motor is commonly used in appliances due to its simplicity and low cost? A) Synchronous motor B) Induction motor C) Universal motor D) DC motor Answer: C Explanation: Universal motors can operate on AC or DC and are widely used in portable appliances because they are simple and inexpensive. Question 6. Which device converts mechanical energy into electrical energy? A) Motor B) Generator
Electrician Exam
Question 9. In the NEC, what is the minimum height for working space in front of electrical equipment rated over 600 volts? A) 3 feet B) 4 feet C) 6 feet D) 8 feet Answer: C Explanation: The NEC requires a minimum working space height of 6 feet in front of equipment rated over 600 volts for safe access and maintenance. Question 10. Which conductor insulation type is suitable for direct burial applications? A) NM cable B) UF cable C) EMT conduit D) Rigid RMC conduit Answer: B Explanation: UF (Underground Feeder) cable is specifically designed for direct burial, with insulation suitable for underground conditions. Question 11. Which NEC article covers grounding and bonding requirements? A) Article 250 B) Article 300 C) Article 400 D) Article 700 Answer: A
Electrician Exam
Explanation: Article 250 of the NEC provides detailed requirements for grounding and bonding electrical systems. Question 12. What is the primary purpose of a GFCI receptacle? A) Protect against overloads B) Protect against ground faults C) Protect against short circuits D) Protect against electrical fires Answer: B Explanation: GFCI (Ground-Fault Circuit Interrupter) receptacles detect ground faults and quickly disconnect power to prevent shock. Question 13. Which wiring method is most suitable for outdoor, wet, or corrosive environments? A) NM cable B) EMT conduit C) Rigid RMC conduit D) Flexible cord Answer: C Explanation: Rigid Metal Conduit (RMC) provides excellent protection in outdoor and harsh environments, resisting corrosion and physical damage. Question 14. When calculating box fill, which of the following counts as one conductor? A) Each conductor only B) Ground wire only C) Each conductor and the device terminals
Electrician Exam
A) To convert DC to AC B) To step down high-voltage transmission to low voltage for distribution C) To store electrical energy D) To generate electrical power from mechanical energy Answer: B Explanation: Transformers are primarily used to step down high-voltage transmission lines to safer, usable levels for distribution. Question 18. In the context of NEC, what is the purpose of a grounding electrode system? A) To provide a reference point for voltages B) To stabilize voltage levels and reduce shock hazards C) To improve circuit efficiency D) To protect against electromagnetic interference Answer: B Explanation: Grounding electrode systems help stabilize voltage levels and provide a path for fault currents, reducing shock hazards. Question 19. Which of the following is a typical characteristic of a Class I hazardous location? A) Presence of flammable gases or vapors B) Presence of combustible dust C) Enclosed space with high humidity D) Unclassified area with no hazards Answer: A Explanation: Class I locations involve the presence of flammable gases or vapors, requiring special wiring and equipment.
Electrician Exam
Question 20. Which NEC article addresses the requirements for lighting in commercial occupancies? A) Article 410 B) Article 520 C) Article 410 D) Article 410 Answer: C (Note: Typically, lighting requirements are covered in Article 410, but it may vary; for this question, assume Article 410 covers lighting in commercial spaces.) Explanation: Article 410 includes provisions for luminaires, lamps, and lighting in commercial and industrial occupancies. Question 21. What is the primary function of an AFCI device? A) Protect against ground faults B) Protect against arc faults that could cause fires C) Protect against overcurrent D) Protect against voltage surges Answer: B Explanation: AFCI (Arc-Fault Circuit Interrupter) devices detect arc faults that could ignite fires and disconnect power to prevent hazards. Question 22. Which type of conduit is flexible and often used for appliance connections? A) EMT B) Flexible metal conduit (FMC) C) Rigid RMC D) PVC conduit Answer: B
Electrician Exam
D) Reducing electromagnetic interference Answer: C Explanation: Bonding creates a low-resistance path to ground, reducing the risk of electrical shock if equipment becomes energized. Question 26. Which of the following is an example of a Class II hazardous location? A) Gasoline dispensing station B) Commercial laundry with dust-producing machinery C) Manufacturing plant with flammable dust D) Unclassified office space Answer: C Explanation: Class II locations involve the presence of combustible dust, such as in manufacturing with dust-producing equipment. Question 27. In a three-phase system, what does the term "delta connection" refer to? A) Winding connection in a star shape with a common point B) Winding connection in a triangle shape without a common neutral point C) Single-phase operation D) A method of grounding Answer: B Explanation: Delta connection involves winding coils connected in a triangle, without a neutral point, commonly used in three-phase systems. Question 28. What is the purpose of a motor starter? A) To convert AC to DC for the motor B) To control motor starting, stopping, and protection
Electrician Exam
C) To increase motor speed D) To reduce power consumption during operation Answer: B Explanation: A motor starter controls the starting and stopping of motors and provides overload and short-circuit protection. Question 29. Which NEC article covers requirements for wiring methods in dwelling units? A) Article 210 B) Article 300 C) Article 430 D) Article 250 Answer: A Explanation: Article 210 addresses branch circuits, receptacle spacing, and wiring methods in dwelling units. Question 30. Which symbol represents a ground connection in electrical diagrams? A) A circle with a line B) A downward-pointing triangle with multiple lines C) A dashed line D) A square Answer: B Explanation: The ground symbol typically shows a downward-pointing triangle with multiple horizontal lines, indicating a connection to earth or equipment grounding. Question 31. Which type of circuit has all components connected end-to-end, forming a single path for current?
Electrician Exam
Question 34. Magnetism is primarily associated with which type of particles? A) Protons B) Electrons C) Neutrons D) Ions Answer: B Explanation: Electrons are responsible for magnetic effects because their motion and intrinsic magnetic moments create magnetic fields. Question 35. The principle operation of a transformer relies on which physical phenomenon? A) Electromagnetic induction B) Mechanical rotation C) Chemical reactions D) Thermal expansion Answer: A Explanation: Transformers operate on electromagnetic induction, where changing magnetic flux induces voltage in the secondary coil. Question 36. For a motor, what does the term "slip" refer to? A) The difference between synchronous speed and actual rotor speed B) The amount of current required to start the motor C) The voltage fluctuation during operation D) The temperature rise of the motor Answer: A
Electrician Exam
Explanation: Slip is the difference between synchronous speed and actual rotor speed in an induction motor, expressed as a percentage. Question 37. Which type of generator is commonly used in portable applications? A) Synchronous generator B) Induction generator C) DC generator D) Permanent magnet generator Answer: C Explanation: DC generators are often portable and used in small-scale applications due to their ability to produce direct current easily. Question 38. The unit of inductance is called what? A) Farad B) Henry C) Ohm D) Weber Answer: B Explanation: Inductance is measured in henrys (H), representing a coil's ability to oppose changes in current. Question 39. In circuit analysis, the superposition theorem is used to analyze circuits with how many sources? A) One B) Two or more C) Only DC sources
Electrician Exam
B) The voltage a conductor can withstand C) The resistance of a conductor D) The power capacity of a circuit breaker Answer: A Explanation: Ampacity is the maximum current that a conductor can safely carry without damage due to overheating. Question 43. Which NEC article covers requirements for temporary wiring installations? A) Article 590 B) Article 250 C) Article 300 D) Article 410 Answer: A Explanation: Article 590 addresses temporary wiring requirements used during construction, remodeling, or emergencies. Question 44. Which device is used to protect circuits from overcurrent by opening the circuit when current exceeds a preset value? A) Fuse B) Circuit breaker C) GFCI D) Both A and B Answer: D Explanation: Both fuses and circuit breakers serve as overcurrent protective devices, disconnecting circuits when current exceeds safe limits.
Electrician Exam
Question 45. What is the purpose of a conduit fill calculation? A) To determine the voltage drop in a conduit B) To ensure conductors fit within a conduit without exceeding fill limits C) To calculate the current capacity of the conduit D) To measure the length of the conduit needed Answer: B Explanation: Conduit fill calculations ensure that conductors are installed without exceeding maximum fill percentage, preventing overheating and ease of pulling conductors. Question 46. In electrical systems, what does the term "power factor" describe? A) The efficiency of energy transfer in an AC circuit B) The ratio of reactive power to real power C) The phase difference between voltage and current D) All of the above Answer: D Explanation: Power factor describes how effectively electrical power is converted into useful work; it involves phase difference, reactive, and real power. Question 47. Which type of motor is typically used in applications requiring precise speed control? A) Synchronous motor B) Induction motor C) Universal motor D) Shunt motor Answer: A
Electrician Exam
Answer: B Explanation: RCDs (also known as GFCIs) detect leakage currents to earth and disconnect power, preventing electric shocks. Question 51. Which type of conductor is most suitable for high-temperature environments? A) THHN B) UF cable C) NM cable D) THW Answer: A Explanation: THHN conductors are rated for high temperatures and are suitable for conduit and raceway installations in elevated temperature conditions. Question 52. What is the main purpose of an emergency lighting system? A) To provide illumination during power outages for safe egress B) To enhance ambient lighting for comfort C) To increase overall building lighting efficiency D) To illuminate outdoor signage Answer: A Explanation: Emergency lighting ensures safe evacuation by providing illumination during power outages or emergencies. Question 53. Which NEC article covers requirements for electric vehicle charging systems? A) Article 625 B) Article 690 C) Article 720
Electrician Exam
D) Article 700 Answer: A Explanation: Article 625 provides the wiring, installation, and safety requirements for electric vehicle charging systems. Question 54. What is the primary function of an isolation transformer? A) To isolate sensitive equipment from ground faults and transients B) To increase voltage for transmission C) To convert AC to DC D) To store energy for backup power Answer: A Explanation: Isolation transformers provide galvanic isolation, protecting sensitive equipment from ground faults and electrical noise. Question 55. Which of the following is an example of a Class III hazardous location? A) Areas with flammable gases B) Locations with combustible dust C) Areas with easily ignitable fibers or flyings D) Areas with high humidity only Answer: C Explanation: Class III locations involve the presence of easily ignitable fibers or flyings, such as textile mills or paper plants. Question 56. What does the term "short circuit" mean? A) A circuit with excessive resistance B) An unintended low-resistance connection that allows high current flow
