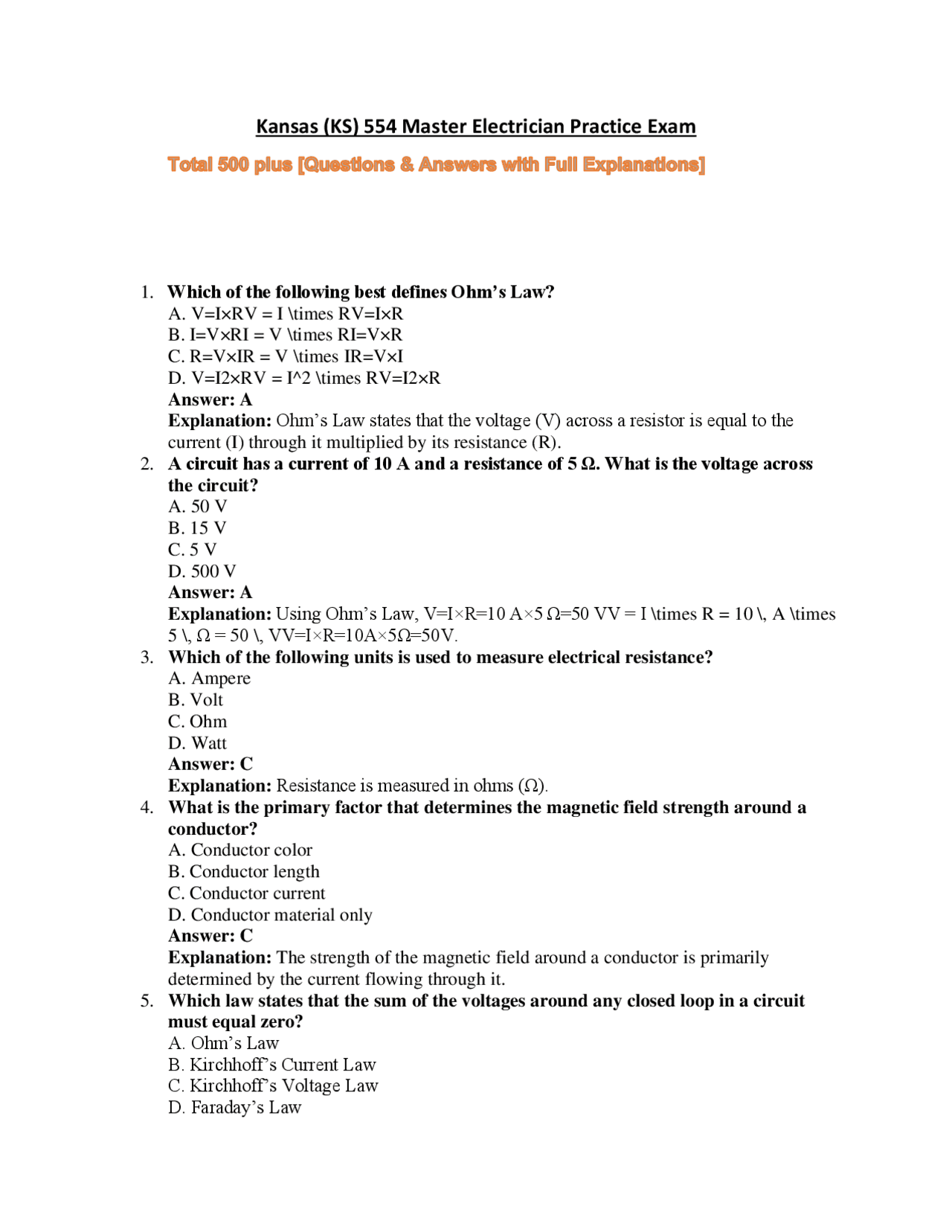

Kansas (KS) 554 Master Electrician Practice Exam
- Which of the following best defines Ohm’s Law? A. V=I×RV = I \times RV=I×R B. I=V×RI = V \times RI=V×R C. R=V×IR = V \times IR=V×I D. V=I2×RV = I^2 \times RV=I2×R Answer: A Explanation: Ohm’s Law states that the voltage (V) across a resistor is equal to the current (I) through it multiplied by its resistance (R).
- A circuit has a current of 10 A and a resistance of 5 Ω. What is the voltage across the circuit? A. 50 V B. 15 V C. 5 V D. 500 V Answer: A Explanation: Using Ohm’s Law, V=I×R=10 A×5 Ω=50 VV = I \times R = 10 , A \times 5 , Ω = 50 , VV=I×R=10A×5Ω=50V.
- Which of the following units is used to measure electrical resistance? A. Ampere B. Volt C. Ohm D. Watt Answer: C Explanation: Resistance is measured in ohms (Ω).
- What is the primary factor that determines the magnetic field strength around a conductor? A. Conductor color B. Conductor length C. Conductor current D. Conductor material only Answer: C Explanation: The strength of the magnetic field around a conductor is primarily determined by the current flowing through it.
- Which law states that the sum of the voltages around any closed loop in a circuit must equal zero? A. Ohm’s Law B. Kirchhoff’s Current Law C. Kirchhoff’s Voltage Law D. Faraday’s Law
Answer: C Explanation: Kirchhoff’s Voltage Law (KVL) states that the sum of all the voltages around any closed loop in a circuit is zero.
2. General Electrical Load Calculations 6. When performing load calculations, which factor is typically used to determine the continuous load of a circuit? A. 50% of the circuit rating B. 75% of the circuit rating C. 100% of the circuit rating D. 125% of the circuit rating Answer: B Explanation: For continuous loads, the circuit should be loaded at no more than 75% of its capacity to avoid overheating and ensure safety. 7. A circuit breaker is rated at 20 A. For a continuous load, what is the maximum current allowed? A. 15 A B. 20 A C. 25 A D. 10 A Answer: A Explanation: For continuous loads, the breaker should not exceed 75% of its rating. 20 A×0.75=15 A20 , A \times 0.75 = 15 , A20A×0.75=15A. 8. Which calculation is essential when determining the service load for a residential installation? A. Lighting load only B. HVAC load only C. Total demand load including appliances and HVAC D. Transformer load only Answer: C Explanation: The service load calculation must consider all significant loads in a residential installation, including lighting, HVAC, appliances, etc. 9. Which term describes the expected maximum power demand in a building during peak usage? A. Continuous load B. Demand load C. Inrush current D. Load factor Answer: B Explanation: The demand load represents the maximum expected load during peak usage periods. 10. In a load calculation, which of the following is considered a non-continuous load? A. Electric oven B. Lighting circuit C. Motor startup
Explanation: A raceway is an enclosed channel designed for holding wires, cables, or busbars, protecting them from damage.
4. Plan Reading 16. When reading an electrical blueprint, what do dashed lines typically represent? A. Underground wiring B. Temporary wiring C. Future expansion areas D. Overhead wiring Answer: C Explanation: Dashed lines on a blueprint often indicate areas reserved for future expansion or non-permanent features. 17. In a schematic diagram, what does a single line with a break usually indicate? A. A faulty connection B. A hidden junction or splice C. A transformer location D. A circuit breaker Answer: B Explanation: A break in a line can indicate a junction or splice that is not physically visible but is part of the circuit path. 18. Which symbol in a plan typically represents a receptacle outlet? A. A circle with two parallel lines B. A triangle C. A square with an “X” D. A rectangle with a circle Answer: A Explanation: Receptacles are often represented by a circle with two parallel lines indicating the slots. 19. When reading electrical plans, which document section would detail panel schedules? A. Title block B. Legend or key C. Schedule sheet D. Specification sheet Answer: C Explanation: The schedule sheet contains panel schedules, listing circuits, loads, and breaker ratings. 20. Which of the following is the most important factor when interpreting a plan’s scale? A. The color of the lines B. The ratio of drawing units to actual measurements C. The type of paper used D. The drawing’s title Answer: B
Explanation: The scale indicates the ratio between the drawing’s dimensions and the actual dimensions, making it crucial for accurate interpretation.
Section 2: Services and Service Equipment (Approx. 16%)
5. Services and Fault Current 21. What is fault current? A. The regular current used by appliances B. The current that flows during a fault or short circuit C. The current used by motors D. The current lost due to resistance Answer: B Explanation: Fault current is the abnormal current that flows during a fault condition, such as a short circuit, and must be safely managed by protective devices. 22. Which device is primarily responsible for interrupting fault current? A. Fuse B. Circuit breaker C. Receptacle D. Conduit Answer: B Explanation: Circuit breakers are designed to interrupt excessive fault current and protect the wiring from damage. 23. Calculating available fault current is essential for selecting which of the following? A. Conductor insulation B. Overcurrent protective devices C. Lighting fixtures D. Service panel covers Answer: B Explanation: Knowing the available fault current helps in selecting and rating the appropriate overcurrent protective devices (OCPDs). 24. Which factor is NOT typically used in calculating fault current? A. Transformer impedance B. Conductor resistance C. Ambient temperature D. Source voltage Answer: C Explanation: While transformer impedance, conductor resistance, and source voltage are used in fault current calculations, ambient temperature is not directly used for this purpose. 25. In service equipment, why is it important to know the available fault current? A. It determines the number of outlets B. It affects the selection and rating of protective devices C. It sets the color of conductors
Answer: B Explanation: The number of dwelling units and their individual loads are essential for accurately calculating the service load in multi-family dwellings.
7. Service Equipment & Service Conductors 31. Which component is responsible for disconnecting power from the premises? A. Service entrance conductors B. Main service disconnect C. Branch circuit conductors D. Grounding electrode Answer: B Explanation: The main service disconnect is the primary means of disconnecting all power to the premises for safety and maintenance purposes. 32. What is the primary purpose of service conductors? A. To support overhead lines B. To connect the service equipment to the building’s electrical system C. To house lighting fixtures D. To serve as the equipment grounding conductor Answer: B Explanation: Service conductors run from the service point (utility connection) to the service equipment and supply power to the building’s circuits. 33. Which factor does NOT affect the sizing of service conductors? A. The current-carrying capacity B. The length of the conductor C. The color of the conductor insulation D. The ambient temperature Answer: C Explanation: Conductor size is determined by current, length (voltage drop considerations), and ambient temperature, not by the color of the insulation. 34. The “dead front” design in service equipment is intended to protect which part? A. Conductor ampacity B. Live parts from accidental contact C. Grounding conductors D. Overcurrent devices Answer: B Explanation: A “dead front” design prevents accidental contact with live parts, enhancing safety. 35. In service equipment, which of the following best describes “service entrance cable”? A. A cable that runs between branch circuits B. The cable connecting the utility transformer to the building’s main disconnect C. A cable used for temporary wiring D. A cable that grounds the transformer Answer: B
Explanation: Service entrance cable is the cable that carries power from the utility’s transformer to the building’s main service disconnect or panel.
8. Transformers 36. What is the primary function of a transformer in an electrical system? A. Convert AC to DC B. Change voltage levels C. Store electrical energy D. Filter electrical noise Answer: B Explanation: Transformers are used to step-up or step-down voltage levels to suit different parts of an electrical system. 37. Which type of transformer is most commonly used for residential service? A. Autotransformer B. Isolation transformer C. Step-down transformer D. Variable transformer Answer: C Explanation: Residential services typically use step-down transformers to convert higher utility voltages to the lower voltages used in homes. 38. In transformer terminology, what does the term “kVA” refer to? A. Kilovolt-amperes, a measure of apparent power B. Kilovolt-amps, a measure of real power C. Kilo-voltage amperes, a measure of resistance D. Kinetic voltage amperes, a measure of current Answer: A Explanation: kVA stands for kilovolt-amperes, which is a unit of apparent power in an electrical system. 39. Which of the following is a common safety practice when working on or near transformers? A. Wearing conductive jewelry B. De-energizing and grounding the transformer C. Operating without personal protective equipment (PPE) D. Ignoring lockout/tagout procedures Answer: B Explanation: De-energizing and grounding transformers are essential safety practices to prevent electrical shock or injury during maintenance. 40. Which component in a transformer is primarily responsible for transferring energy between circuits? A. Core B. Winding C. Tank D. Bushings Answer: B
10. Temporary Service Wiring 46. What is the main purpose of temporary service wiring? A. To permanently install lighting fixtures B. To provide power during construction or maintenance C. To replace main service conductors D. To connect transformers permanently Answer: B Explanation: Temporary service wiring provides a safe means of supplying power during construction, maintenance, or special events, and is not intended for permanent installation. 47. Which of the following is a key requirement for temporary service wiring according to the NEC? A. Must be installed underground only B. Must be protected against physical damage C. Must be connected to the main panel permanently D. Must use aluminum conductors only Answer: B Explanation: Temporary wiring must be protected against physical damage to ensure the safety of workers and the public. 48. Temporary service wiring is often used in which type of installation? A. Residential renovations B. Permanent commercial installations C. Outdoor festivals or construction sites D. Indoor office spaces only Answer: C Explanation: Temporary wiring is commonly used in outdoor events, festivals, or construction sites where a temporary power supply is required. 49. Which device is often used in temporary wiring to provide overcurrent protection? A. Fused disconnect B. Ground fault circuit interrupter C. Arc-fault circuit interrupter D. Motor starter Answer: A Explanation: Fused disconnects or temporary circuit breakers are typically used in temporary wiring to protect against overcurrent. 50. What is a primary concern when installing temporary service wiring? A. Matching the permanent wiring color scheme B. Ensuring proper support and strain relief for cables C. Minimizing voltage drop below 10% D. Using the same materials as permanent wiring Answer: B Explanation: Temporary wiring must be properly supported and secured to prevent strain or damage that could lead to hazardous conditions.
Section 3: Mixed Topics & Advanced Applications
11. Advanced Electrical Theory & Calculations 51. Which formula represents the power consumed in a circuit? A. P=V+IP = V + IP=V+I B. P=V×IP = V \times IP=V×I C. P=I2×RP = I^2 \times RP=I2×R D. Both B and C Answer: D Explanation: Power can be calculated as P=V×IP = V \times IP=V×I and, using Ohm’s Law, also as P=I2×RP = I^2 \times RP=I2×R. 52. In a three-phase system, what is the relationship between line-to-line voltage (VLLV_{LL}VLL) and phase voltage (VphV_{ph}Vph) for a balanced load? A. VLL=VphV_{LL} = V_{ph}VLL=Vph B. VLL=3×VphV_{LL} = \sqrt{3} \times V_{ph}VLL=3×Vph C. VLL=Vph/3V_{LL} = V_{ph} / \sqrt{3}VLL=Vph/ D. VLL=3×VphV_{LL} = 3 \times V_{ph}VLL=3×Vph Answer: B Explanation: In a balanced three-phase system, the line-to-line voltage is equal to 3 \sqrt{3}3 times the phase voltage. 53. Which method is used to calculate voltage drop in a circuit? A. Vdrop=I×RV_{drop} = I \times RVdrop=I×R B. Vdrop=V/IV_{drop} = V / IVdrop=V/I C. Vdrop=I2×LV_{drop} = I^2 \times LVdrop=I2×L D. Vdrop=I×LV_{drop} = I \times LVdrop=I×L Answer: A Explanation: Voltage drop is calculated by multiplying the current (I) by the total resistance (R) of the circuit path. 54. If a load is specified as “continuous” according to the NEC, how long is it expected to operate? A. 1 hour or less B. 2 hours or more C. 3 hours continuously D. 4 hours or more Answer: B Explanation: A continuous load is defined as one expected to run for 3 hours or more; however, the NEC conservatively uses 2 hours as a threshold for some calculations. Always refer to the local code interpretation. 55. When calculating conductor ampacity, which factor is critical? A. Ambient temperature B. Color of the insulation C. Length of the conductor only D. Manufacturer’s location Answer: A
13. Service Equipment & Conductor Sizing Advanced 61. When selecting service conductors, which calculation is used to determine the minimum conductor size? A. Based solely on voltage drop B. Based solely on fault current C. Based on service load and conductor ampacity D. Based on aesthetic considerations Answer: C Explanation: Conductor sizing for service conductors is based on the service load and the required ampacity, taking into account NEC tables and adjustments for ambient conditions. 62. What does “minimum circuit ampacity” (MCA) represent in equipment specifications? A. The minimum current the circuit must carry B. The minimum conductor size required C. The minimum current rating for the branch circuit conductors D. The maximum fault current allowed Answer: C Explanation: MCA is the minimum current-carrying capacity required for the branch circuit conductors as specified by the equipment manufacturer. 63. In service equipment, what is the purpose of a “disconnecting means”? A. To permanently ground the equipment B. To allow safe disconnection of power for maintenance C. To connect multiple circuits D. To increase the available load Answer: B Explanation: A disconnecting means allows for the safe isolation of the electrical system or equipment for maintenance or emergency purposes. 64. Which of the following factors would require a de-rating of service conductor ampacity? A. Low ambient temperature B. Bundling conductors together C. Short conductor length D. Installation outdoors in cool weather Answer: B Explanation: When conductors are bundled together, heat dissipation is reduced, requiring a de-rating of their ampacity per NEC guidelines. 65. Which standard document is most commonly referenced for determining conductor ampacity? A. ANSI C B. IEEE 1584 C. NEC Table 310.15(B)(16) D. NFPA 70E Answer: C Explanation: NEC Table 310.15(B)(16) is the primary reference for determining
conductor ampacity based on conductor type, insulation, ambient conditions, and installation method.
14. Transformers – Installation and Maintenance 66. During transformer installation, which clearance is most critical for safety? A. Clearance from the ground B. Clearance from combustible materials C. Clearance from other transformers D. Clearance from service panels Answer: B Explanation: Adequate clearance from combustible materials is critical to prevent fire hazards in the event of a transformer fault or overheating. 67. What is the function of transformer bushings? A. To provide physical support only B. To insulate and safely connect conductors to the transformer C. To ground the transformer D. To measure transformer output Answer: B Explanation: Transformer bushings insulate the conductors as they pass through the transformer tank and provide a safe electrical connection. 68. Which routine maintenance task is important for ensuring transformer longevity? A. Painting the transformer B. Checking oil levels and condition (for oil-filled transformers) C. Replacing transformer windings annually D. Increasing the voltage output periodically Answer: B Explanation: For oil-filled transformers, checking the oil levels and its condition is essential for cooling and insulation. 69. In a step-down transformer used for service, what does the secondary winding provide? A. A higher voltage than the primary B. The same voltage as the primary C. A lower, usable voltage for the building’s electrical system D. DC power Answer: C Explanation: In a step-down transformer, the secondary winding provides a lower voltage suitable for the building’s electrical needs. 70. What is a common sign of transformer overload? A. A decrease in temperature B. Unusual noise or overheating C. Lower voltage output D. Increased efficiency Answer: B Explanation: Overloaded transformers may exhibit unusual noise or overheating, indicating that they are operating beyond their design limits.
Explanation: It is critical to ensure that temporary wiring is securely and correctly connected, without interfering with or overloading the permanent wiring.
16. Mixed Practical Applications & Troubleshooting 76. Which of the following best describes “inrush current”? A. The current drawn by a device during steady-state operation B. The high initial current drawn when an electrical device is first turned on C. The current lost due to conductor resistance D. The current in a fault condition Answer: B Explanation: Inrush current is the surge of current experienced when a device, especially a motor or transformer, is first energized. 77. When troubleshooting a circuit that is not functioning, which tool is most appropriate to measure voltage? A. Ammeter B. Multimeter C. Oscilloscope D. Continuity tester only Answer: B Explanation: A multimeter is versatile and can measure voltage, current, and resistance, making it ideal for troubleshooting. 78. If an electrical blueprint shows a “T” junction in a conduit run, what does it indicate? A. A branching point for circuits B. A dead-end wiring C. A switch location D. A transformer connection Answer: A Explanation: A “T” junction indicates a branch in the conduit run where one conduit splits into two directions. 79. Which method is best to verify proper grounding in a circuit? A. Visual inspection only B. Using a continuity tester or ground resistance meter C. Checking for proper wire color D. Measuring the voltage drop across the neutral Answer: B Explanation: Using a continuity tester or ground resistance meter helps confirm that the grounding path is continuous and effective. 80. When calculating load for a multi-dwelling unit, which of the following factors is least likely to be included? A. Individual dwelling unit loads B. Common area lighting loads C. Local weather data D. Appliance demand factors Answer: C
Explanation: Local weather data is not typically factored into load calculations for multi-dwelling units, while dwelling unit loads, common area loads, and appliance demand factors are critical.
17. Advanced Plan Reading and Code Application 81. Which document should you consult for specific manufacturer requirements when installing service equipment? A. The electrical blueprint only B. The manufacturer’s installation instructions C. The local building code D. The color coding guidelines Answer: B Explanation: The manufacturer’s installation instructions provide detailed, specific requirements that must be followed for safety and warranty compliance. 82. When reviewing a set of electrical plans, what is the purpose of a “single-line diagram”? A. To show the building’s layout B. To provide a simplified representation of the electrical distribution system C. To detail the mechanical system D. To list all materials needed Answer: B Explanation: A single-line diagram simplifies the electrical system into one line per circuit, making it easier to understand the overall distribution. 83. Which symbol in an electrical plan is most commonly used to represent a circuit breaker? A. A rectangle with a number inside B. A circle with two parallel lines C. A triangle pointing upward D. A zigzag line Answer: A Explanation: Circuit breakers are typically shown as rectangles with a rating or number inside the symbol. 84. When a plan indicates “Note: Conduit fill shall not exceed 40%,” what does this imply? A. The conduit can only be 40% of its rated size B. The sum of the areas of the conductors in the conduit should not exceed 40% of the conduit’s total cross-sectional area C. The conductors must be arranged in a circle D. Only 40% of the wiring is used Answer: B Explanation: This note means that the total cross-sectional area of the wires must not exceed 40% of the internal cross-sectional area of the conduit to prevent overheating and ease of installation. 85. Which NEC article addresses the installation of services? A. Article 210
B. Properly sized and coordinated overcurrent protective devices C. The brand of service panel D. The physical location of the building Answer: B Explanation: Properly sized and coordinated overcurrent protective devices are essential to safely interrupt fault currents and protect the electrical system.
19. Scenario-Based Troubleshooting and Code Compliance 91. A transformer’s secondary voltage is reading lower than expected. Which of the following could be a cause? A. Incorrectly installed branch circuits B. High load demand causing voltage drop C. Faulty wiring on the primary side D. Both B and C Answer: D Explanation: A lower-than-expected secondary voltage can result from high load causing voltage drop or issues on the primary side. Both possibilities should be investigated. 92. During an inspection, you note that a service disconnect is installed indoors. According to NEC requirements, where should the disconnect be located? A. Within sight of the building’s entrance B. In the basement C. At least 100 feet from the building D. No specific location is required Answer: A Explanation: The NEC requires that the service disconnect be readily accessible and within sight of the building, ensuring quick access in emergencies. 93. In calculating the load for an HVAC system, which of the following is most relevant? A. The system’s startup (inrush) current only B. The system’s running current and duty cycle C. The color of the HVAC unit D. The manufacturer’s advertising Answer: B Explanation: The running current and duty cycle provide a better representation of the load, though startup currents must be considered for proper overcurrent protection sizing. 94. Which of the following is a common mistake when performing electrical load calculations? A. Accounting for diversity B. Ignoring continuous load requirements C. Using manufacturer specifications D. Following NEC demand factors Answer: B Explanation: A common mistake is failing to account for continuous load limitations (i.e., exceeding 75% of circuit capacity), which can lead to unsafe conditions.
- An electrician finds that the bonding jumper at the service equipment is missing. What is the primary safety concern? A. Increased lighting efficiency B. Potential differences between metal parts leading to shock hazards C. Reduced conductor ampacity D. Inadequate circuit protection Answer: B Explanation: Without the bonding jumper, metal parts may be at different potentials, increasing the risk of shock if a fault occurs. 20. Code Update and Future Considerations
- When new amendments to the NEC are published, what is the electrician’s responsibility? A. Continue using old practices B. Update installations to comply with the current code when required C. Ignore the changes D. Replace all equipment immediately Answer: B Explanation: Electricians are responsible for ensuring that their work complies with the most current code as adopted by their local jurisdiction.
- A building owner requests an upgrade to a service panel to support new loads. Which calculation should be revisited? A. Conductor color selection B. Service load calculation C. Conduit fill only D. Transformer oil level Answer: B Explanation: Upgrading a service panel requires a new service load calculation to ensure the system can handle the increased demand safely.
- Which of the following best describes “conductor bundling” in terms of its effect on conductor ampacity? A. It increases the conductor’s ampacity B. It requires de-rating due to reduced heat dissipation C. It has no effect on ampacity D. It only affects the conductor’s color Answer: B Explanation: Bundling conductors can cause them to heat up more because of limited air circulation; therefore, ampacity must be derated per NEC guidelines.
- When a transformer is replaced with a new unit of higher capacity, what should be re-evaluated in the service equipment? A. The color of the service panel B. Overcurrent protection settings and conductor sizing C. The building’s paint scheme D. The type of temporary wiring used Answer: B
