February 26, 2001 page 1 S. Derenzo

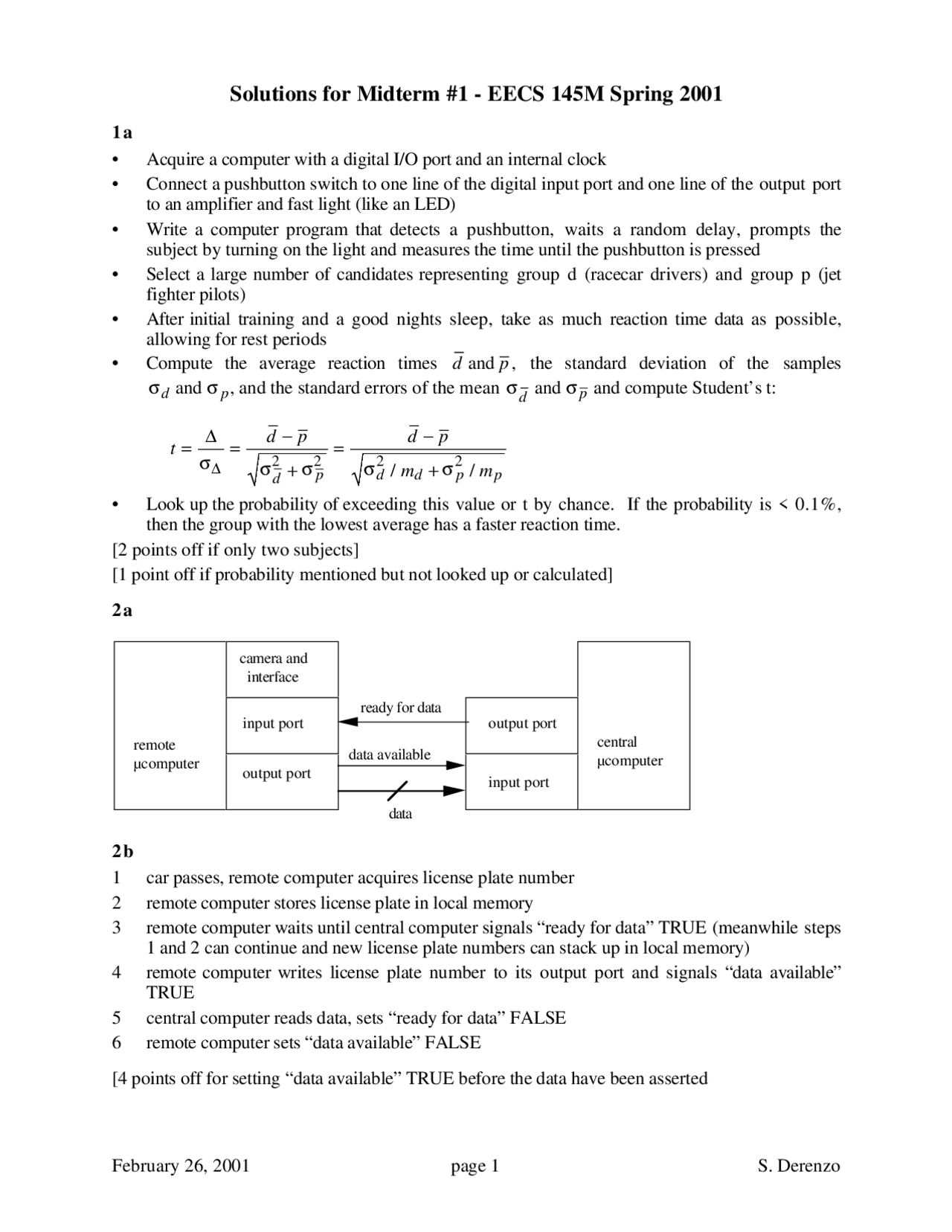

Solutions for Midterm #1 - EECS 145M Spring 2001
1a
Acquire a computer with a digital I/O port and an internal clock
Connect a pushbutton switch to one line of the digital input port and one line of the output port
to an amplifier and fast light (like an LED)
Write a computer program that detects a pushbutton, waits a random delay, prompts the
subject by turning on the light and measures the time until the pushbutton is pressed
Select a large number of candidates representing group d (racecar drivers) and group p (jet
fighter pilots)
After initial training and a good nights sleep, take as much reaction time data as possible,
allowing for rest periods
Compute the average reaction times dp and , the standard deviation of the samples
σσ
dp
and , and the standard errors of the mean σσ
dp
and and compute Student’s t:
tdp dp
mm
dpdd pp
==
+=
+
σσσ σ σ
22 2 2
//
Look up the probability of exceeding this value or t by chance. If the probability is < 0.1%,
then the group with the lowest average has a faster reaction time.
[2 points off if only two subjects]
[1 point off if probability mentioned but not looked up or calculated]
2a
remote
µcomputer
camera and
interface
input port
output port
central
µcomputer
input port
output port
data
data available
ready for data
2b
1 car passes, remote computer acquires license plate number
2 remote computer stores license plate in local memory
3 remote computer waits until central computer signals “ready for data” TRUE (meanwhile steps
1 and 2 can continue and new license plate numbers can stack up in local memory)
4 remote computer writes license plate number to its output port and signals “data available”
TRUE
5 central computer reads data, sets “ready for data” FALSE
6 remote computer sets “data available” FALSE
[4 points off for setting “data available” TRUE before the data have been asserted
pf3
pf4

Partial preview of the text

Download EECS 145M Spring 2001 Midterm #1 Solutions and Common Mistakes and more Exams Microcomputers in PDF only on Docsity!

Solutions for Midterm #1 - EECS 145M Spring 2001

1a

  • Acquire a computer with a digital I/O port and an internal clock
  • Connect a pushbutton switch to one line of the digital input port and one line of the output port to an amplifier and fast light (like an LED)
  • Write a computer program that detects a pushbutton, waits a random delay, prompts the subject by turning on the light and measures the time until the pushbutton is pressed
  • Select a large number of candidates representing group d (racecar drivers) and group p (jet fighter pilots)
  • After initial training and a good nights sleep, take as much reaction time data as possible, allowing for rest periods
  • Compute the average reaction times d and p , the standard deviation of the samples σ (^) d and σ p , and the standard errors of the mean σ (^) d and σ p and compute Student’s t:

t d p d p

d p^ d^ m^ d^ p^ mp

σ (^) ∆ σ 2 σ 2 σ (^2) / σ^2 /

  • Look up the probability of exceeding this value or t by chance. If the probability is < 0.1%, then the group with the lowest average has a faster reaction time. [2 points off if only two subjects] [1 point off if probability mentioned but not looked up or calculated]

2a

remote μcomputer

camera and interface

input port

output port

central μcomputer input port

output port

data

data available

ready for data

2 b 1 car passes, remote computer acquires license plate number 2 remote computer stores license plate in local memory 3 remote computer waits until central computer signals “ready for data” TRUE (meanwhile steps 1 and 2 can continue and new license plate numbers can stack up in local memory) 4 remote computer writes license plate number to its output port and signals “data available” TRUE 5 central computer reads data, sets “ready for data” FALSE 6 remote computer sets “data available” FALSE

[4 points off for setting “data available” TRUE before the data have been asserted

A common mistake was to answer something like this: 1 car passes, remote computer acquires license plate number 2 remote computer stores license plate in local memory 3 remote computer signals “data available” TRUE (fundamental error here- “data available” should be set TRUE only after data are actually available to the receiver) 4 central computer detects “data available” TRUE and when ready sets “ready for data” TRUE 5 remote computer detects “ready for data” TRUE and asserts data on its input port 6 central computer reads data and sets “ready for data” FALSE 7 remote computer detects “ready for data” TRUE and sets “data available” FALSE

WHAT IS WRONG WITH THE ABOVE?

the central computer could perform steps 4 and 6 before step 5 is completed

Another common mistake was to think that the remote computer could “send” data to the central computer without any action on the part of the central computer. This appeared as the above with step 6 as 6 remote computer sends data to the central computer and sets “ready for data” FALSE

3a

μcomput

16-bit digital output port

(^12) D/A converter S/H

S/H

S/H

S/H

R1 R

L1 (^) L

A0 (^) R2 R

L2 L

R1, R3, L1, and L3 are digital control lines to S/H amps [2 points off for using only two S/H amps, a design that does not update both left and right within << 1 μs]

3 b 1 reset_clock; (this sets the clock to zero) 2 i= 3 write to output port, sending val_right[i] to the D/A, SAMPLE to R1 and HOLD to R3, L1, and L3 (during this 1 μs step the D/A output A0 can convert, glitch, and settle down; this stable analog voltage appears at R2) 4 write to output port, sending val_right[i] to the D/A, HOLD to R1, R3, L1, and L3 (this holds the new analog value on R2) 5 write to output port, sending val_left[i] to the D/A, SAMPLE to L1 and HOLD to L3, R1, and R3, (during this 1 μs step the D/A output A0 can convert, glitch, and settle down; this stable analog voltage appears at L2)

Midterm #1 class statistics:

Problem max average rms 1 20 18.0 2. 2 20 16.7 2. 3 60 47.4 9. total 100 82.1 10.

Grade distribution:

Range number approximate letter grade 61-65 1 C– 66-70 2 C 71-75 0 C+ 76-80 3 B 81-85 3 B+ 86-90 4 A– 91-95 0 A 96-100 2 A+
