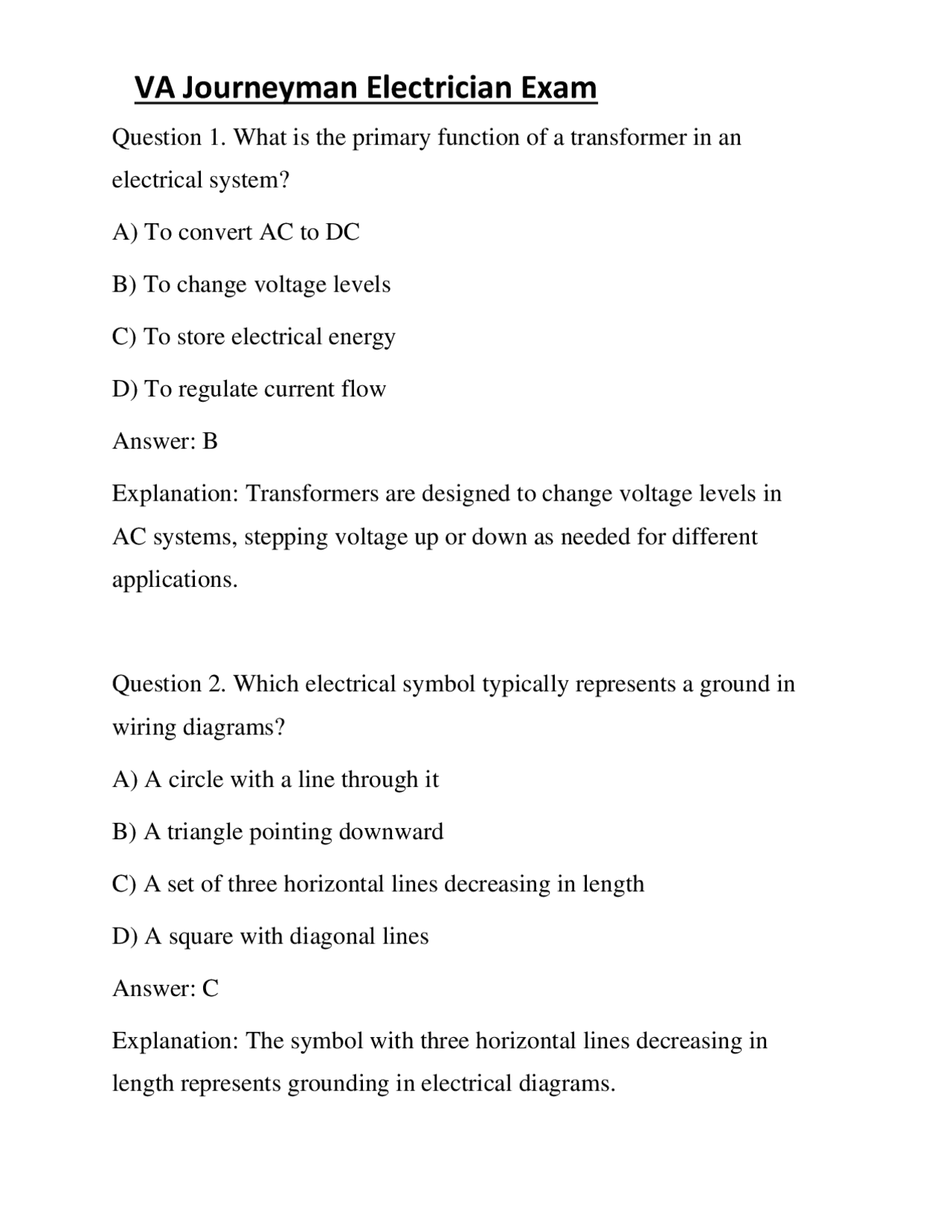

Question 1. What is the primary function of a transformer in an electrical system? A) To convert AC to DC B) To change voltage levels C) To store electrical energy D) To regulate current flow Answer: B Explanation: Transformers are designed to change voltage levels in AC systems, stepping voltage up or down as needed for different applications. Question 2. Which electrical symbol typically represents a ground in wiring diagrams? A) A circle with a line through it B) A triangle pointing downward C) A set of three horizontal lines decreasing in length D) A square with diagonal lines Answer: C Explanation: The symbol with three horizontal lines decreasing in length represents grounding in electrical diagrams.
Question 3. According to Ohm's Law, if voltage increases while resistance remains constant, what happens to current? A) It decreases B) It remains the same C) It increases D) It becomes zero Answer: C Explanation: Ohm's Law states that I=V/RI = V / RI=V/R. If voltage increases and resistance is constant, current increases proportionally. Question 4. Which type of circuit has all components connected end- to-end, providing a single path for current? A) Parallel circuit B) Series circuit C) Combination circuit D) Open circuit Answer: B Explanation: In a series circuit, components are connected end-to-end, creating a single path for current flow.
Question 7. What is the typical insulation rating for THHN wire used in conduit? A) 60°C B) 75°C C) 90°C D) 105°C Answer: C Explanation: THHN wire is rated for 90°C insulation, suitable for most conduit wiring applications. Question 8. Which NEC article covers requirements for grounding and bonding? A) Article 250 B) Article 300 C) Article 410 D) Article 430 Answer: A Explanation: Article 250 of the NEC details grounding and bonding requirements essential for electrical safety.
Question 9. In a three-phase system, what is the typical phase difference between each phase? A) 60 degrees B) 90 degrees C) 120 degrees D) 180 degrees Answer: C Explanation: Three-phase systems have phases separated by 120 degrees to ensure balanced power delivery. Question 10. Which type of switch allows control of a load from three or more locations? A) Single-pole switch B) Double-pole switch C) Three-way switch D) Four-way switch Answer: D Explanation: Four-way switches are used in conjunction with three- way switches to control a load from multiple locations.
Question 13. Which NEC article addresses requirements for residential wiring? A) Article 210 B) Article 300 C) Article 230 D) Article 400 Answer: A Explanation: Article 210 covers branch circuits, outlets, and other wiring requirements specific to residential systems. Question 14. What is the purpose of a conduit fill calculation? A) To determine the number of conductors that can be safely installed in a conduit B) To calculate voltage drop C) To size the transformer D) To select appropriate circuit breakers Answer: A
Explanation: Conduit fill calculations ensure that conductors are properly sized and not overfilled within a conduit to prevent overheating. Question 15. Which type of receptacle is required in outdoor locations to prevent electrical shock? A) Standard receptacle B) GFCI receptacle C) AFCI receptacle D) Tamper-resistant receptacle Answer: B Explanation: GFCI receptacles are required outdoors to protect users from ground-faults that can cause shocks. Question 16. What is the main function of a capacitor in an AC circuit? A) To store electrical energy B) To oppose changes in voltage C) To convert AC to DC D) To increase resistance
D) Servo motor Answer: B Explanation: Single-phase motors are common in household appliances due to their ability to operate on standard residential power supplies. Question 19. What is the primary reason for derating conductors? A) To reduce voltage B) To account for ambient temperature and bundling effects C) To increase current capacity D) To simplify wiring Answer: B Explanation: Derating accounts for factors like high ambient temperature and grouping of conductors, which can reduce ampacity. Question 20. Which type of wiring method is most suitable for flexible, outdoor, or exposed applications? A) EMT conduit B) Rigid metal conduit C) Liquidtight flexible metal conduit
D) PVC conduit Answer: C Explanation: Liquidtight flexible metal conduit provides flexibility, weather resistance, and protection for outdoor or exposed environments. Question 21. In NEC terminology, what does the abbreviation "GFCI" stand for? A) Ground Fault Circuit Interrupter B) Grounded Fault Current Indicator C) General Fault Control Interface D) Grounding and Fire Circuit Interrupter Answer: A Explanation: GFCI stands for Ground Fault Circuit Interrupter, a device that quickly disconnects power when a ground fault is detected. Question 22. Which of the following is a characteristic of a double- pole switch? A) Controls a single circuit from one location B) Controls two separate circuits independently
B) Article 725 C) Article 728 D) Article 700 Answer: D Explanation: Article 700 specifies the wiring, installation, and requirements for emergency and life safety systems, including fire alarms. Question 25. Which type of lighting is most energy-efficient? A) Incandescent B) Fluorescent C) LED D) Halogen Answer: C Explanation: LED lighting is the most energy-efficient, consuming less power and lasting longer than incandescent and fluorescent options. Question 26. When performing a voltage drop calculation, what is an acceptable maximum voltage drop percentage for branch circuits?
A) 2%
B) 5%
C) 10%
D) 15%
Answer: B Explanation: The NEC recommends that voltage drop not exceed 5% for branch circuits to ensure proper operation of devices. Question 27. Which of the following best describes a combination circuit? A) A circuit with both series and parallel components B) A circuit that combines AC and DC sources C) A circuit that includes both lighting and receptacles D) A circuit with multiple ground connections Answer: A Explanation: A combination circuit contains both series and parallel elements, often used in complex systems. Question 28. What is the function of an AFCI device? A) To protect against ground faults
B) To carry current during normal operation C) To provide a path for fault current to the ground D) To be insulated with non-conductive material Answer: A Explanation: The grounding electrode conductor connects the system to the grounding electrode, establishing a reference to earth ground. Question 31. In a residential electrical system, what is the typical color of the grounding conductor? A) Black B) Red C) Green or bare copper D) White Answer: C Explanation: Grounding conductors are typically bare copper or green insulated to indicate their safety function. Question 32. When size is being calculated for conductors, what factor primarily affects ampacity? A) Length of the conductor
B) Ambient temperature C) Type of insulation D) Both B and C Answer: D Explanation: Ampacity is affected by insulation type and ambient temperature, among other factors like conductor length. Question 33. Which NEC article provides guidelines for wiring methods used in industrial facilities? A) Article 430 B) Article 318 C) Article 500 D) Article 725 Answer: B Explanation: Article 318 covers wiring methods and installation requirements suitable for industrial environments. Question 34. What is the purpose of a pull box in electrical wiring? A) To serve as a junction for splicing conductors B) To provide a connection point for grounding
C) NM cable D) Liquidtight flexible conduit Answer: B Explanation: Copper bonding conductors are used for proper grounding and bonding of pools to ensure safety. Question 37. What does the term "demand factor" refer to in electrical load calculations? A) The maximum load a circuit can handle B) The ratio of actual load to connected load C) The minimum circuit size required D) The safety margin for circuit protection Answer: B Explanation: Demand factor accounts for the likelihood that not all connected loads operate simultaneously, reducing the calculated load. Question 38. Which device prevents electrical shock by disconnecting power when a ground fault is detected? A) Circuit breaker B) GFCI
C) AFCI
D) Fuse Answer: B Explanation: GFCIs disconnect power rapidly when they detect a difference in current between hot and neutral, preventing shock. Question 39. In wiring diagrams, what does a dashed line typically represent? A) A conduit B) A hidden or concealed wiring path C) A ground connection D) A control circuit Answer: B Explanation: Dashed lines often indicate concealed or hidden wiring in diagrams. Question 40. What is the primary safety concern associated with arc flash hazards? A) Electromagnetic interference B) Thermal burns and flying debris
