●Shut down operation 7-

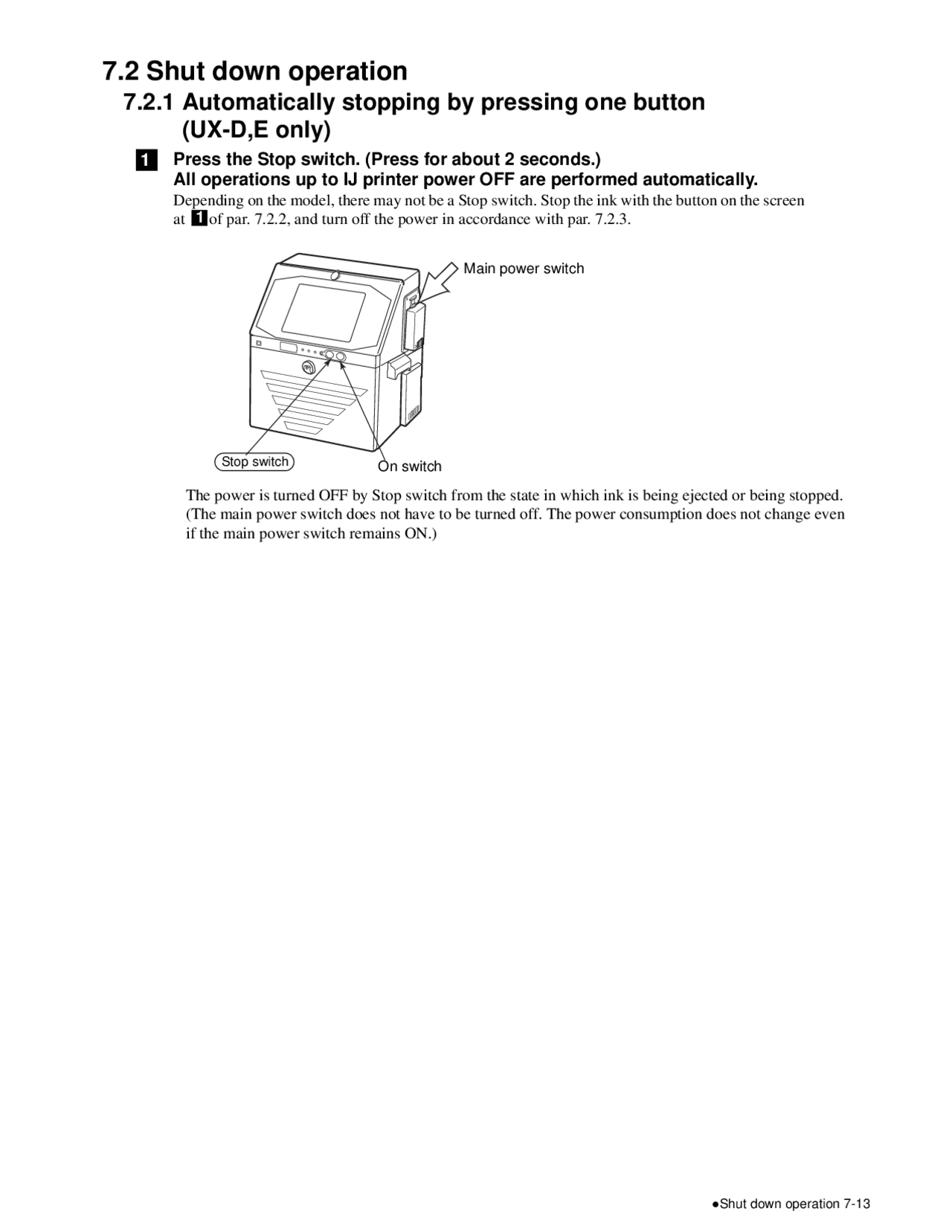

7.2 Shut down operation
7.2.1 Automatically stopping by pressing one button
(UX-D,E only)
The power is turned OFF by Stop switch from the state in which ink is being ejected or being stopped.
(The main power switch does not have to be turned off. The power consumption does not change even
if the main power switch remains ON.)
Main power switch
Stop switch On switch
Press the Stop switch. (Press for about 2 seconds.) All operations up to IJ printer power OFF are performed automatically.
Depending on the model, there may not be a Stop switch. Stop the ink with the button on the screen
at of par. 7.2.2, and turn off the power in accordance with par. 7.2.3.
1
7-14 ●Shut down operation
7.2.2 Stopping ink ejection by pressing the screen button
● Perform ink stop processing using the following procedure.
(1) UX-D,E
TEST
Shutdown Process Confirmation No.
CONFIRMATION
Shutdown will stop the ink jet.
Solution 1. To stop the ink jet, press .
- To stop the ink without cleaning, press <No-cleaning stop>.
- To execute the auto power shutdown process after ink stop. press .
OK No-cleaningstop STOP Close
Press the SHUTDOWN → OK.
A confirmation screen is displayed.
1
●Wait for the status to change from “Stopping” to “Stop”.
Press SHUTDOWN.
Stops ink jet. Turns OFF the power after ink jet is stopped.
7-16 ●Shut down operation
Turn off method Method which displays a screen at the next operation
When the main power switch was turned off after being stopped by Stop switch.
Screen is displayed when the startup switch is turned ON after the main power switch was turned ON.
When the main power switch was turned off without using the stop switch
Screen is displayed when the main power switch is turned ON.
7.2.3 Turning off the main power switch
(1) UX-D,E
●Press Stop switch normally instead of main power switch to turn off the power at the end of operation.
●If the IJ printer will not be used for a long time, turn off the main power switch.
●Do not turn off the main power switch while ink is being ejected.
See “11. EMERGENCY PROCEDURES”.
●The state when the power is turned on at the next operation differs depending on the state when the main
power switch was turned off.
(2) UX-B
●Turn off main power switch at the end of operation.
●Do not turn off the main power switch while ink is being ejected.
●Shut down operation 7-
1. To prevent drying of the nozzle orifice and dust from sticking to the plate during unit storage,
the unit is shipped with a “nozzle rubber seal” installed. Remove this “nozzle rubber seal” at
installation and test running and adjustment.
2. The “nozzle rubber seal” prevents drying of the nozzle orifice and dust from sticking to the
plate. When the IJ printer will not be used for several days over a holiday, etc., we
recommend that the “nozzle rubber seal” be installed between the nozzle orifice and charge
electrode at shutdown.
Store the “nozzle rubber seal” in a plastic bag, etc., to protect it from dirt and dust.
Always install the “nozzle rubber seal” after cleaning it with makeup.
When installing the “nozzle rubber seal”, be careful not to deform the charge
electrode.
Usage precautions
Handling the nozzle rubber seal
Charge electrode
Nozzle orifice
Nozzle rubber seal
7.2.4 Careful Cleaning
(1) Overview
● This is the function to clean the printer carefully when IJ Printer is frequently used in high-temperature
environment, or before the weekend, such as 2-3 day shutdown period. This careful cleaning uses more
amount of makeup than the normal cleaning.
● Please note that precautions shall be fully understood when using this function, because with the
“Careful-Cleaning” function, IJP uses more amount of makeup than the normal Cleaning Stop.
(2) How to use Careful Cleaning function
● Please contact your nearest local distributor to use this function.
●Basic operation 7-
Print description (Menu 1)
Print description (Menu 2)
Power ON Power OFF
Operation management
Select message
Over Write message
Adjust print parameters
Environment setup menu
Auxiliary function menu
Maintenance menu
: Screen name
- See next page, Change message
Change message
Edit message
Print format
Print specifications
Change message
Adjust print parameters
Edit message
Print format
Print specifications
Adjust print parameters
Change message
Select login user
Create/Edit message
For print target data
For save data
Change message
7.3.2 Operating Scheme (Previous HMI)
(1) Overall view
7-20 ●Basic operation
(2) Change message
Change message (^) Edit message
Print format
Print specifications
Various print setup
Count conditions
Calendar conditions
Adjust Inter-character space Substitution rules
Shift code setup (Op on UX-D,E)
(Op on UX-D,E)
Time count conditions
- The display can be switched between screens Edit message, Print format, and Print specifications.
: Screen name
7-22 ●Basic operation
⇔
(^1) The new HMI screen is displayed.
Press menu LOGIN.
The Select login user screen will be displayed.
2
The saved user names are displayed.
This icon shows "Administrator". (^) This icon shows "User"
Press the administrator name admin.
A password input window opens.
3
The password input window opens.
Enter
The window will close.
Back space
Cursor
Shift
7.3.3 Change procedure of (New HMI) (Previous HMI)
(1)Change procedure of (New HMI) ⇒ (Previous HMI)
●Basic operation 7-
Print description [Stop]
Ink operating time(hours) Cumulative op. time(hours) Print count(prints) Ink pressure(MPastandard value: )
Message name[] Current user ID : admin
Makeup Ink
Input the password for the administrator name "admin" and press Enter.
Logs in again using administrator name "admin" and the touch screen returns to the Print description
screen (Previous HMI) is displayed.
4
●Basic operation 7-
Select login user [Stop] Current user ID : user
Operating Time Ink Presure Standard Value
Print Count
Makeup Ink
TEST START PRINTING STARTUP
Press user name user.
A password input window opens.
Caution : Administrator user can't change to New HMI screens.
4
Enter the password of user name “user2”, and press Enter.
Logs in again using user name "user2" and the touch screen returns to the Print description
screen (New HMI) is displayed.
5
Inputs the password of user name "user2".
Enter
