8-1 ●Ink and makeup replenishment
● When replenishing the ink and makeup, changing the ink, or performing other work in which the ink and makeup are handled, be sure not to spill the ink and makeup. If the ink and makeup is accidentally spilled, quickly wipe it off with wiping paper, etc. Do not close the maintenance cover until you verify that the wiped parts are completely dry. Since the ink and makeup vapor will collect inside the printer especially in the state in which the ink and makeup was spilled inside the printer and was not wiped off completely, it will cause ignition and fire. When wiping is difficult in the energized state, perform shutdown processing with the maintenance cover remaining open and turn off the power, then perform wiping again. ● If leaking of the ink and makeup inside the printer was detected during printer operation or maintenance, quickly wipe it with wiping paper, etc. and perform shutdown processing with the maintenance cover remaining open and turn off the power, then repair the leak. If operation is continued when the ink and makeup is leaking, it will cause trouble and prevent normal printing will become. In addition, since the ink and makeup are combustible, they may cause a fire.
● The ink and makeup, their waste solution, used wiping papers and empty containers
are flammable. Waste disposal must comply with appropriate regulations. Consult the appropriate regulatory agency for further information. ● When the ink particles are caught in a beaker during test printing, etc., use a conductive beaker and securely connect the beaker to a ground. In addition, be sure that the print head is not inserted into the beaker. Since the ink particles used in printing are electrically charged, if the beaker is not connected to a ground, the charge load will gradually increase and cause a fire.

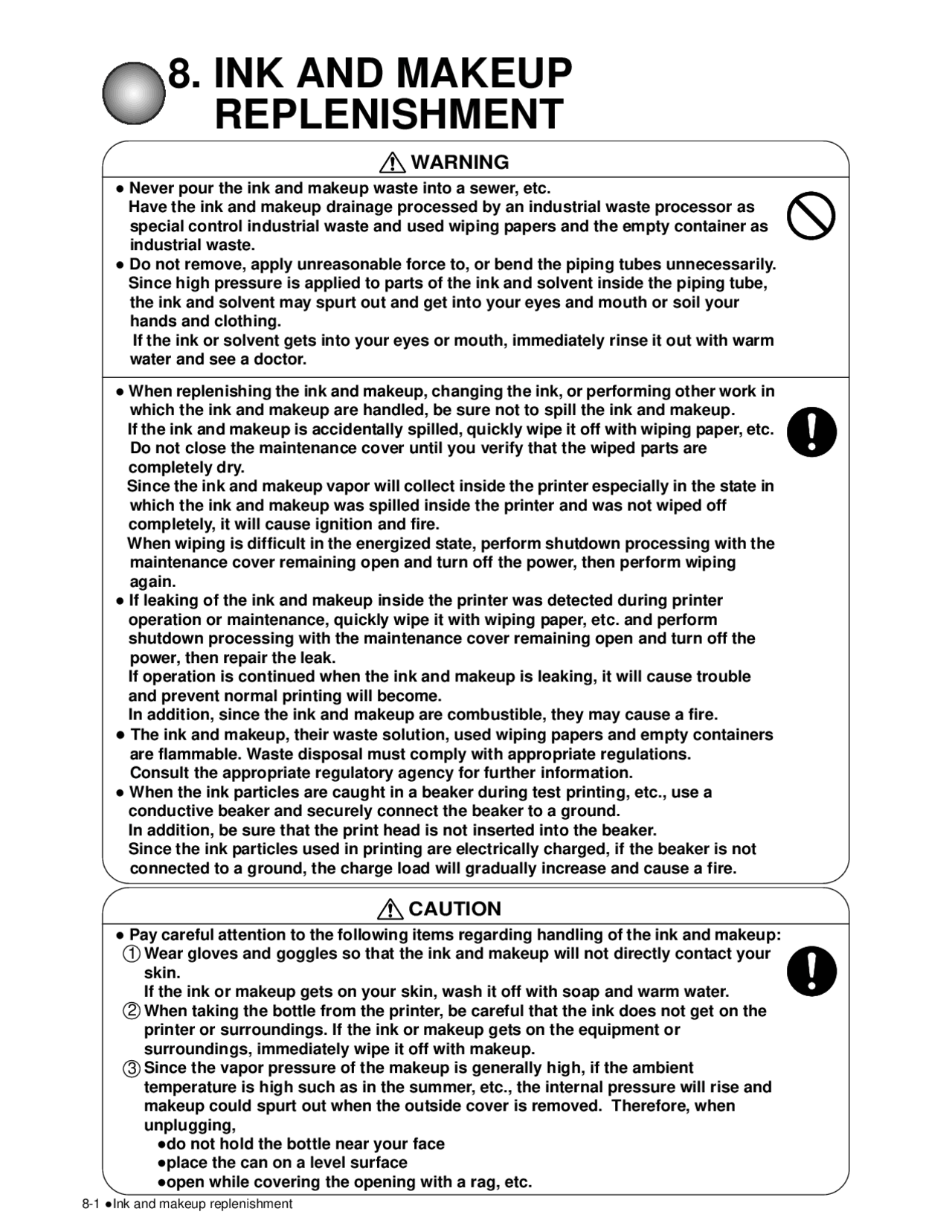

8. INK AND MAKEUP
REPLENISHMENT
● Never pour the ink and makeup waste into a sewer, etc. Have the ink and makeup drainage processed by an industrial waste processor as special control industrial waste and used wiping papers and the empty container as industrial waste. ● Do not remove, apply unreasonable force to, or bend the piping tubes unnecessarily. Since high pressure is applied to parts of the ink and solvent inside the piping tube, the ink and solvent may spurt out and get into your eyes and mouth or soil your hands and clothing. If the ink or solvent gets into your eyes or mouth, immediately rinse it out with warm water and see a doctor.
WARNING
● Pay careful attention to the following items regarding handling of the ink and makeup: Wear gloves and goggles so that the ink and makeup will not directly contact your skin. If the ink or makeup gets on your skin, wash it off with soap and warm water. When taking the bottle from the printer, be careful that the ink does not get on the printer or surroundings. If the ink or makeup gets on the equipment or surroundings, immediately wipe it off with makeup. Since the vapor pressure of the makeup is generally high, if the ambient temperature is high such as in the summer, etc., the internal pressure will rise and makeup could spurt out when the outside cover is removed. Therefore, when unplugging, ● do not hold the bottle near your face ● place the can on a level surface ● open while covering the opening with a rag, etc.
CAUTION
●Replenishing the ink 8-
8.1 Replenishing the ink
(1) Overview ●Ink can be refilled when the remaining ink icon is at the position which indicates that the cartridge bottle can be replaced. ●Replenish the ink in the ink reservoir within 60 minutes after an Ink Low warning is generated. If the ink is not replenished, the printer will stop. ●When the ink is replenished, the warning is automatically reset. ●Ink can only be refilled while the power is ON.
Remove the over cap of an ink cartridge bottle.
The over cap is a cap that is necessary at storage. It is unnecessary at ink refill.
Ink cap
● Do not grip the over cap and lift the cartridge bottle. The cartridge bottle could be dropped. ● Since an IC chip is built into the cartridge bottle, avoid strong shock and electromagnetic waves and liquid wetting.
CAUTION
Over cap
Ink cartridge bottle
● When the ink cap was loosened, set it after tightening firmly. Otherwise the ink may spill when setting the cartridge bottle. ● After removing the over cap, do not allow your finger, foreign matter or dirt to get into the hole of the ink cap. Doing so could cause ink leakage and equipment failure. ● Do not change the ink cap of the ink cartridge bottle or makeup cap of the makeup cartridge bottle. Ink or makeup could spill.
CAUTION
[NOTE] If the color of icon is "Green", the ink cartridge bottle can't be replaced.
●If the ink cartridge bottle with reduced content is set in the printer, the level of the Remaining Ink Icon displayed on the screen may suddenly drop to the Replaceable Ink level. However, this is not a failure and the printer operation can be continued.
(2) Operation
Full Empty
Replaceable Ink level
●Replenishing the ink 8-
Change Change
Manually input the ink ID in the ID input area.
To toggle between upper and lower case letters, press the or key.
Operating Time Ink Presure Standard Value
Print Count
Makeup Ink
TEST START PRINTING SHUTDOWN
Print description [Stop ]
Ink operating time(hours) Cumulative op. time(hours) Print count(prints) Ink pressure(MPastandard value:)
Message name[ ] Current user ID : user
Makeup Ink
Change Change
If manually inputting the ID, touch the icon on the home screen of the IJP,
call up the ID input screen and input the Ink ID.
● An ink ID is printed on the label of the cartridge bottle.
[When IC tag reader is not supported]
Icon Icon
● If the ID cannot be read because it is dirtied by ink, etc., contact your nearest service station.
CAUTION
Ink ID
8-5 ●Replenishing the ink
3 When the ink ID is read, the lock on the ink side is released.
Tilt the lever handle toward yourself, lift and remove the
cartridge bottle.
Lever handle
Lift the lever handle and remove the empty cartridge bottle.
● After removing the cartridge bottle from the IJP, quickly place the cap toward the top. Also do not expose the cartridge bottle to impacts after being removed. Doing so could cause ink to splatter. ● Do not turn the cartridge bottle with the cartridge bottle set in the IJP. The ink cap could become loosened and ink may overflow. ● Do not put waste solution in used cartridge bottles. Waste solution could spill. You should note that used cartridge bottles are not hermetically sealed even when the over cap is mounted. ● If used cartridge bottles are filled with ink or makeup and reused, ink or makeup could spill.
CAUTION
● If the lever handle could not be lifted up, do not pull it with excessive force. In such a case, push the lever handle all the way in.
CAUTION
Lever handle
Push
8-7 ●Replenishing the ink
When a new cartridge bottle is set, press the lever handle down and it into the
printer.
Lever handle
● Be careful not to get your hand or fingers pinched when pushing down the lever handle. (See the figure below.)
CAUTION
Lever handle
The cartridge replacement (ink refill) is now completed.
Press at the IJ printer guidance screen. Pressing confirms that ink refill is complete.
Lever handle
Lever handle
Push
●Replenishing the makeup 8-
8.2 Replenishing the makeup
(1) Overview ● Makeup can be refilled when the remaining makeup icon is at the position which indicates that the cartridge bottle can be replaced. ●Replenish the makeup in the makeup reservoir within 60 minutes after a Makeup Low warning is generated. If replenishment is not performed, the printer will stop. ●When the makeup is replenished, the warning is automatically reset. ●Makeup can only be refilled while the power is ON.
Remove the over cap of a makeup cartridge bottle.
The over cap is a cap that is necessary at storage. It is unnecessary at ink refill.
Makeup cap
Over cap
Makeup cartridge bottle
● Do not grip the over cap and lift the cartridge bottle. The cartridge bottle could be dropped. ● Since an IC chip is built into the cartridge bottle, avoid strong shock and electromagnetic waves and liquid wetting.
CAUTION
[NOTE] If the color of icon is "Green", the makeup cartridge bottle can't be replaced.
●Please set an unopened makeup cartridge bottle or an opened makeup cartridge bottle still has more than half of its content. Before makeup cartridge bottle with reduced content is set in the printer, place the cartridge bottle horizontally and confirm its level is more than half of its content.
Full Empty
Replaceable Makeup level
Liquid level
●If the makeup cartridge bottle with reduced content is set in the printer, the level of the Remaining Makeup Icon displayed on the screen may suddenly drop to the Replaceable Makeup level. However, this is not a failure and the printer operation can be continued.
(2) Operation
Liquid level
●Replenishing the makeup 8-
Operating Time Ink Presure Standard Value
Print Count
Makeup Ink
TEST START PRINTING SHUTDOWN
Print description [Stop ]
Ink operating time(hours) Cumulative op. time(hours) Print count(prints) Ink pressure(MPastandard value:)
Message name[ ] Current user ID : user
Makeup Ink
Change Change
[When IC tag reader is not supported]
Icon Icon
● If the ID cannot be read because it is dirtied by ink, etc., contact your nearest service station.
CAUTION
If manually inputting the ID, touch the icon on the home screen of the IJP,
call up the ID input screen and input the Makeup ID.
● A makeup ID is printed on the label of the cartridge bottle.
Makeup ID
Manually input the makeup ID in the ID input area.
To toggle between upper and lower case letters, press the (^) Change or (^) Changekey.
