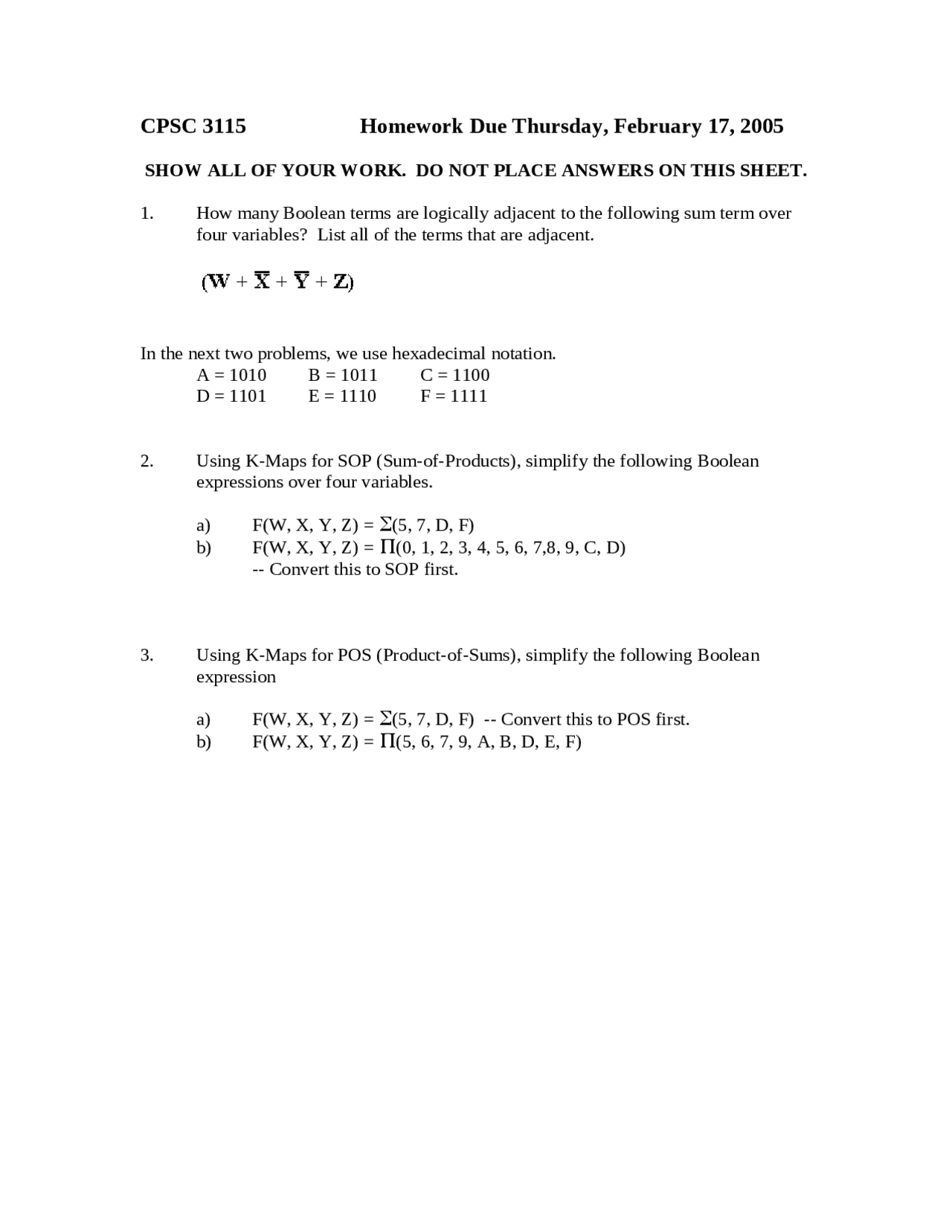

CPSC 3115 Homework Due Thursday, February 17, 2005
SHOW ALL OF YOUR WORK. DO NOT PLACE ANSWERS ON THIS SHEET.
1. How many Boolean terms are logically adjacent to the following sum term over
four variables? List all of the terms that are adjacent.
In the next two problems, we use hexadecimal notation.
A = 1010 B = 1011 C = 1100
D = 1101 E = 1110 F = 1111
2. Using K-Maps for SOP (Sum-of-Products), simplify the following Boolean
expressions over four variables.
a) F(W, X, Y, Z) = (5, 7, D, F)
b) F(W, X, Y, Z) = (0, 1, 2, 3, 4, 5, 6, 7,8, 9, C, D)
-- Convert this to SOP first.
3. Using K-Maps for POS (Product-of-Sums), simplify the following Boolean
expression
a) F(W, X, Y, Z) = (5, 7, D, F) -- Convert this to POS first.
b) F(W, X, Y, Z) = (5, 6, 7, 9, A, B, D, E, F)
