Boards Exam

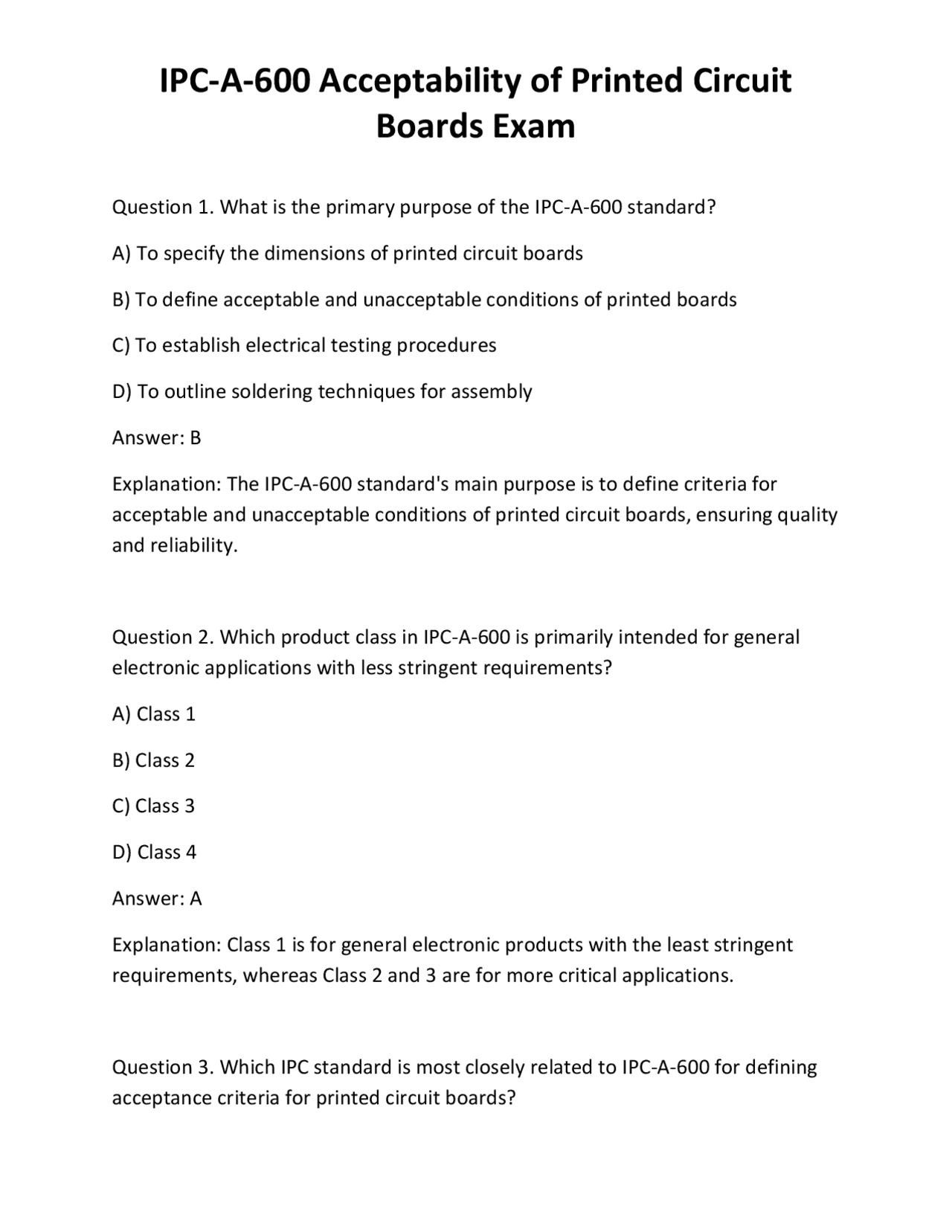

Question 1. What is the primary purpose of the IPC-A-600 standard? A) To specify the dimensions of printed circuit boards B) To define acceptable and unacceptable conditions of printed boards C) To establish electrical testing procedures D) To outline soldering techniques for assembly Answer: B Explanation: The IPC-A-600 standard's main purpose is to define criteria for acceptable and unacceptable conditions of printed circuit boards, ensuring quality and reliability. Question 2. Which product class in IPC-A-600 is primarily intended for general electronic applications with less stringent requirements? A) Class 1 B) Class 2 C) Class 3 D) Class 4 Answer: A Explanation: Class 1 is for general electronic products with the least stringent requirements, whereas Class 2 and 3 are for more critical applications. Question 3. Which IPC standard is most closely related to IPC-A-600 for defining acceptance criteria for printed circuit boards?
Boards Exam
A) IPC- 6012
B) IPC- 6013
C) IPC- 6018
D) All of the above Answer: D Explanation: IPC-A-600 is related to IPC-6012 (for circuit board fabrication), IPC- 6013 (for flexible circuits), and IPC-6018 (for laminate materials), forming a comprehensive suite of standards. Question 4. In the context of IPC-A-600, what does the term "land" refer to? A) An area of copper on the PCB used for component soldering B) A drilled hole in the PCB C) The entire surface of the PCB D) The insulating layer between traces Answer: A Explanation: A "land" is a conductive pad used for component mounting and soldering, critical in determining solderability and electrical connectivity. Question 5. During inspection, which lighting condition is recommended to best observe surface imperfections? A) Bright, diffuse lighting
Boards Exam
C) Any defect visible under magnification D) A minor surface scratch Answer: B Explanation: Major defects are those likely to cause electrical failure or compromise the board's reliability, such as open traces or missing lands. Question 8. How does the acceptable weave exposure for laminate differ between Class 1 and Class 3 product categories? A) More exposure is acceptable in Class 3 B) Less exposure is acceptable in Class 1 C) Greater weave exposure is acceptable in Class 1 D) No weave exposure is acceptable in any class Answer: C Explanation: Class 1 allows more weave exposure due to less stringent requirements, while Class 3 requires minimal weave exposure to ensure high reliability. Question 9. What is the primary cause of fiber exposure in laminates? A) Excessive etching B) Poor prepreg application or damage during manufacturing C) Over-curing of the laminate
Boards Exam
D) Excessive soldering Answer: B Explanation: Fiber exposure occurs due to improper handling, damage, or inadequate prepreg application during manufacturing, exposing the fiber reinforcement. Question 10. Which of the following is an acceptable level of measling in laminate materials? A) Complete absence B) Light measling not exceeding 0.2 mm in diameter C) Measling covering the entire surface D) Any measurable measling Answer: B Explanation: Light measling up to 0.2 mm is generally acceptable; larger or more extensive measling is considered a defect. Question 11. Which surface imperfection is characterized by small, shallow indentations on the laminate surface? A) Scratches B) Nicks C) Dents D) Stains
Boards Exam
Explanation: Inclusions are foreign materials trapped within the laminate, which can compromise structural integrity and reliability. Question 14. What is a common cause of voids within a laminate? A) Excessive curing temperature B) Poor lamination process or trapped air C) Over-etching D) Proper storage Answer: B Explanation: Voids typically result from improper lamination, such as trapped air or inadequate pressure during manufacturing. Question 15. Which conductor condition indicates damage caused by improper handling or manufacturing defect? A) Perfectly smooth surface B) Nick on the conductor edge C) Uniform width D) Bright, shiny surface Answer: B Explanation: Nicks are localized damages, often caused by mechanical handling or manufacturing defects.
Boards Exam
Question 16. What impact does lift-off of a conductor have on board performance? A) It enhances electrical connectivity B) It causes open circuits and potential failures C) It improves solderability D) It has no impact Answer: B Explanation: Lifted conductors break electrical continuity, leading to open circuits and potential device failure. Question 17. Which plating anomaly involves areas of missing plating on conductors? A) Plating nodules B) Skip plating C) Discoloration D) Roughness Answer: B Explanation: Skip plating refers to areas where the plating has not properly adhered, resulting in missing or incomplete copper on conductors.
Boards Exam
A) Improved electrical contact B) Difficulties in component insertion and potential shorts C) Better board appearance D) Increased flexibility Answer: B Explanation: Drill burrs can interfere with component insertion, cause shorts, or lead to reliability issues if not removed. Question 21. Which is a common visual sign of insufficient solder mask coverage? A) Excessive mask thickness B) Voids or skips over conductors C) Bright, shiny surfaces D) Perfect registration Answer: B Explanation: Voids or skips indicate poor coverage, which can lead to solder bridging or corrosion. Question 22. What does poor solder mask adhesion typically look like visually? A) Bright and smooth edges B) Peeling or delamination at edges C) Uniform coverage
Boards Exam
D) No visible defects Answer: B Explanation: Peeling or delamination are visible signs of poor adhesion of the solder mask to the substrate. Question 23. Which feature indicates a poorly registered legend? A) Correct position with clear characters B) Smearing or bleeding of markings C) Proper spacing D) Sharp, defined letters Answer: B Explanation: Smearing or bleeding of the legend indicates registration issues, affecting clarity and readability. Question 24. In the context of solder mask, what does a pinhole defect imply? A) Excess solder B) A small hole in the mask exposing the copper C) Complete coverage of the mask D) Perfect adhesion Answer: B
Boards Exam
Question 27. What is the significance of a minimum hole wall roughness in non- plated holes? A) Ensures proper mechanical fit B) Prevents contamination C) Improves electrical conductivity D) Reduces manufacturing cost Answer: A Explanation: Adequate roughness ensures proper mechanical fit and alignment for components or fasteners. Question 28. Which condition describes a plated-through hole with a large smear that exceeds acceptable limits? A) Acceptable for Class 1 only B) Usually a defect impacting electrical connection C) No impact on performance D) Indicates proper plating Answer: B Explanation: Excessive smear can cause bridging or poor plating quality, impacting electrical connection and reliability.
Boards Exam
Question 29. Which feature is NOT typically a concern in the plating thickness of plated-through holes? A) Insufficient thickness leading to corrosion risk B) Excessive thickness causing shorts C) Uniformity of plating D) Color of the copper Answer: D Explanation: The color of copper is not a direct concern; thickness and uniformity are critical for electrical and mechanical integrity. Question 30. What is the primary purpose of the solder mask? A) To insulate electrical traces and prevent solder bridging B) To provide mechanical support C) To act as an adhesive D) To improve thermal conductivity Answer: A Explanation: The solder mask insulates traces, prevents solder bridging, and protects the board from environmental damage. Question 31. How does poor solder mask registration typically manifest? A) Perfect alignment with lands
Boards Exam
D) Correct ink viscosity Answer: B Explanation: Smearing or bleeding often result from poor screen printing techniques or misregistration during printing. Question 34. Which of the following is an acceptable condition for a legend? A) Slight bleeding within tolerance B) Complete omission of legend C) Illegible characters D) Smearing over multiple features Answer: A Explanation: Slight bleeding within specified tolerances can be acceptable, but illegibility or extensive smearing is a defect. Question 35. Why is the understanding of terms like "smear" and "delamination" important for IPC-A-600 inspectors? A) They relate to electrical specifications B) They are critical defect criteria affecting acceptability C) They describe component placement D) They are only relevant to manufacturing Answer: B
Boards Exam
Explanation: Recognizing terms like "smear" and "delamination" is essential because they indicate defect types that influence acceptability assessments. Question 36. Which defect is characterized by a crack or separation within the laminate layers? A) Crazing B) Blister C) Delamination D) Measling Answer: C Explanation: Delamination is the separation of laminate layers, which can compromise mechanical strength and electrical integrity. Question 37. What causes crazing in laminate materials? A) Excessive heat during curing B) Mechanical stress or thermal cycling C) Contamination D) Proper manufacturing process Answer: B Explanation: Crazing results from mechanical stress or thermal cycling, leading to fine cracks within the laminate.
Boards Exam
A) 0.25 mm B) 0.10 mm C) 0.05 mm D) 0.15 mm Answer: D Explanation: The minimum width depends on manufacturing capabilities but is often around 0.15 mm (6 mils) for fine-line circuitry, ensuring reliable fabrication. Question 41. Which conductor condition indicates possible etching overcut or damage? A) Sharp edges B) Narrower than specified width C) Rough surface with etch pits D) Bright and smooth surface Answer: C Explanation: Roughness with etch pits suggests over-etching or damage during manufacturing, impacting conductor integrity. Question 42. What is a typical cause of lifted conductors? A) Proper soldering B) Mechanical stress or improper handling
Boards Exam
C) Correct plating process D) Excessive heat during operation Answer: B Explanation: Mechanical stress or mishandling during manufacturing or assembly can cause conductors to lift from the substrate. Question 43. Which plating anomaly involves the presence of small, raised copper nodules? A) Voids B) Discoloration C) Plating nodules D) Etch pits Answer: C Explanation: Plating nodules are small raised areas of copper caused by irregular plating or contamination. Question 44. What does a plating nodule typically indicate? A) Uniform deposition B) Contamination or overplating C) Good quality process D) Excessive etching
