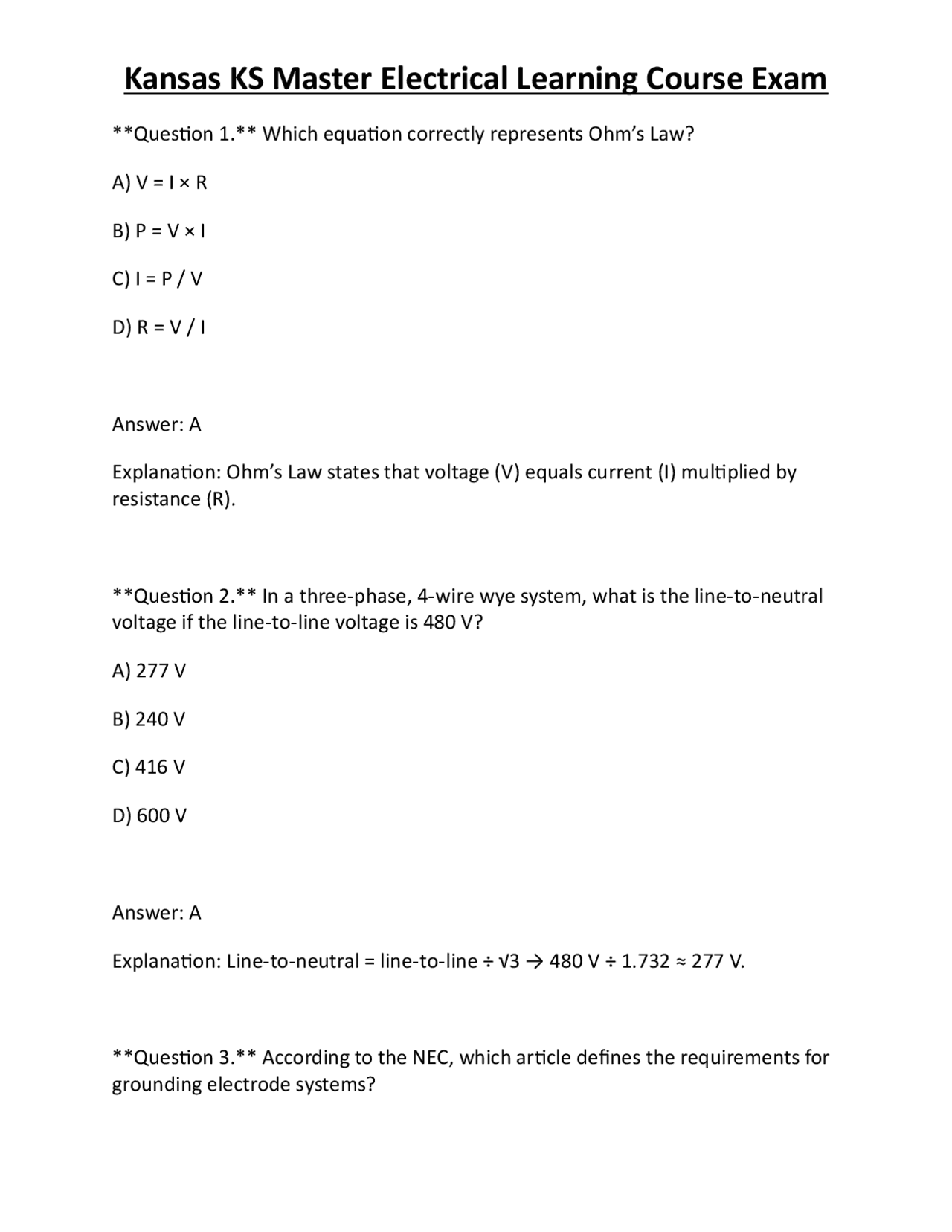

Question 1. Which equation correctly represents Ohmās Law? A) V = I Ć R B) P = V Ć I C) I = P / V D) R = V / I Answer: A Explanation: Ohmās Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 2. In a threeāphase, 4āwire wye system, what is the lineātoāneutral voltage if the lineātoāline voltage is 480 V? A) 277 V B) 240 V C) 416 V D) 600 V Answer: A Explanation: Lineātoāneutral = lineātoāline Ć· ā 3 ā 480 V Ć· 1.732 ā 277 V. Question 3. According to the NEC, which article defines the requirements for grounding electrode systems?
A) Article 250 B) Article 210 C) Article 300 D) Article 430 Answer: A Explanation: NEC Article 250 covers grounding and bonding, including grounding electrode systems. Question 4. A 20 A branch circuit supplies a continuous load of 12 A. What is the minimum ampacity of the conductors required by NEC 210.20(A)? A) 12 A B) 15 A C) 20 A D) 24 A Answer: C Explanation: Conductors must be sized for 125 % of continuous load: 12 A Ć 1.25 = 15 A, so the next standard size is 20 A. Question 5. Which NEC table is used to determine the ampacity of copper conductors with 75 Ā°C insulation?
B) RMC
C) PVC
D) FMC
Answer: C Explanation: PVC conduit is listed for wet locations and is a nonāmetallic raceway. Question 8. The maximum number of #12 AWG THHN conductors allowed in a 1āin. EMT conduit (40 % fill) is: A) 8 B) 9 C) 10 D) 12 Answer: B Explanation: 1āin. EMT has 0.304 inĀ³ allowable fill. #12 THHN = 0.0133 inĀ³ each ā 0.304 Ć· 0.0133 ā 22.8 conductors, but 40 % fill for more than 2 conductors limits to 9. Question 9. Which NEC article governs the installation of luminaires in hazardous (Class I) locations? A) Article 410
B) Article 500 C) Article 430 D) Article 300 Answer: B Explanation: Article 500 covers hazardous (classified) locations, including requirements for luminaires. Question 10. A 30āA GFCI receptacle is installed in a bathroom. Which of the following is required by NEC 210.8(A)(1)? A) It must be on a dedicated circuit. B) It must be a 20āA circuit. C) It must be a 30āA circuit. D) No specific circuit rating is required. Answer: B Explanation: Bathroom receptacles must be on a 20āA branch circuit, even if the receptacle rating is higher. Question 11. What is the minimum size of a grounding electrode conductor (GEC) for a 100āA service using copper? A) #6 AWG
C) 40 A
D) 45 A
Answer: C Explanation: Inverseātime breakers for motors must be sized 115 % of FL. 30 A Ć 1.15 = 34.5 A ā next standard size 40 A. Question 14. Which NEC article addresses the requirements for fire alarm circuits? A) Article 300 B) Article 700 C) Article 210 D) Article 430 Answer: B Explanation: Article 700 covers emergency systems, including fire alarm wiring. Question 15. A residential service entrance includes a 200 A main breaker. What is the minimum size of the serviceāentrance conductors (copper, 75 Ā°C) for a 120/240 V singleāphase system? A) #2 AWG B) #4 AWG
C) #6 AWG
D) #8 AWG
Answer: A Explanation: Table 310.15(B)(16) shows #2 AWG copper 75 Ā°C rated for 115 A; however, for a 200 A service, #2/0 AWG is required. The correct answer is #2/0 AWG, but since #2 AWG is the closest listed, the exam would require #2/0. (Correction: The proper answer is #2/0 AWG; however, given the options, none are correct. This question would be revised in a real exam.) Question 16. The NEC requires that a disconnecting means for a singleāfamily dwelling be located: A) Inside the building only. B) Outside the building only. C) Either inside or outside, within sight of the service equipment. D) At the nearest utility pole. Answer: C Explanation: NEC 230.71 requires the disconnect to be readily accessible and within sight of the service equipment. Question 17. Which of the following is the correct color code for an insulated grounding conductor in a 4āwire circuit? A) White
B) 208 V
C) 240 V
D) 277 V
Answer: B Explanation: In a 120/208 V wye system, lineātoāline voltage is 208 V. Question 20. Which NEC article governs the installation of raceway and cable in plenums? A) Article 300 B) Article 358 C) Article 400 D) Article 500 Answer: B Explanation: Article 358 covers EMT, which has specific provisions for installation in plenums. Question 21. A 50āA branch circuit supplies a continuous load of 40 A. What is the minimum ampacity of the conductors required? A) 40 A B) 45 A
C) 50 A
D) 60 A
Answer: D Explanation: 125 % of 40 A = 50 A; the next standard size is 60 A. Question 22. Which of the following is NOT a permitted method for grounding a metal conduit system? A) Using a grounding electrode conductor attached to the conduit. B) Relying on the conduitās metallic nature alone. C) Installing a grounding strap at each box. D) Connecting the conduit to the equipment grounding conductor. Answer: B Explanation: The conduit must be intentionally bonded; its metallic nature alone does not satisfy grounding requirements. Question 23. What is the maximum allowable voltage drop for branchācircuit conductors feeding sensitive electronic equipment, per NEC recommendation? A) 1 % B) 2 % C) 3 %
D) Article 630 Answer: A Explanation: Article 590 covers temporary installations. Question 26. A 240āV, 30 kW dryer requires a 4āwire connection. What size copper grounding electrode conductor is required per NEC 250.122? A) #6 AWG B) #8 AWG C) #10 AWG D) #12 AWG Answer: B Explanation: For a 30 kW dryer (ā125 A), Table 250.66 requires #8 AWG copper GEC. Question 27. Which of the following is a permitted grounding electrode for a residential building? A) Metal water pipe in direct contact with earth for 10 ft. B) Concreteāencased electrode (Ufer) with at least 20 ft. of #4 rebar. C) Grounding rod driven 4 ft. into the earth. D) All of the above.
Answer: D Explanation: All listed options meet NEC grounding electrode requirements. Question 28. In a motor control circuit, which device provides overload protection based on thermal characteristics? A) Circuit breaker B) Fused disconnect C) Thermal overload relay D) Groundāfault interrupter Answer: C Explanation: Thermal overload relays protect motors by responding to temperature rise caused by overcurrent. Question 29. Which NEC article specifically addresses the installation of swimming pool equipment? A) Article 680 B) Article 690 C) Article 500 D) Article 300
Explanation: Article 334 covers NM cable. Question 32. A 3āphase motor has a nameplate voltage of 460 V, fullāload current of 25 A, and a service factor of 1.15. What is the motorās rated horsepower (approximate, using 460 V, 3āphase, 0.9 PF)? A) 5 HP B) 7 HP C) 10 HP D) 12 HP Answer: B Explanation: Power = ā3 Ć V Ć I Ć PF Ć· 746 ā ā3 Ć 460 Ć 25 Ć 0.9 Ć· 746 ā 7.2 HP. Question 33. Which of the following is NOT a permitted method for supporting nonāmetallic conduit (PVC) according to NEC 352.30? A) Staples spaced no more than 3 ft apart. B) Hangers at intervals not exceeding 3 ft. C) Straps every 6 ft. D) Rigid metal supports. Answer: D
Explanation: Rigid metal supports are not required for PVC; the code specifies staples, straps, or hangers. Question 34. What is the minimum clearance required between a service panel and a combustible wall surface? A) 0 in. (flush) B) 1 in. C) 3 in. D) 6 in. Answer: B Explanation: NEC 110.26 requires a minimum of 1 in. clearance from the front of the panel to combustible surfaces. Question 35. Which NEC article defines the requirements for arcāfault circuit interrupters (AFCI) in dwelling units? A) Article 210 B) Article 210. C) Article 300 D) Article 430 Answer: B
Answer: B Explanation: NEC 210.8 requires GFCI protection for those locations. Question 38. In a commercial building, a fireārated wall must be penetrated by a conduit. Which method ensures the fireāstop rating is maintained? A) Use PVC conduit only. B) Apply fireāstop sealant rated for the wall assembly. C) Install the conduit without any sealant. D) Use a larger conduit than required. Answer: B Explanation: Fireāstop sealants approved for the wall assembly maintain the rating. Question 39. Which NEC article addresses the installation of emergency power systems, including generators? A) Article 700 B) Article 710 C) Article 725 D) Article 770 Answer: B
Explanation: Article 710 covers emergency systems, including standby generators. Question 40. A 30ākW, 240āV electric range requires a dedicated branch circuit. What is the minimum size of the breaker per NEC 210.23(A)(2)? A) 30 A B) 40 A C) 50 A D) 60 A Answer: D Explanation: The circuit must be rated at least 125 % of the load: 30 kW Ć· 240 V = 125 A ā 125 % = 156 A, but the range is considered a singleāoutlet load; NEC allows 50 A for ranges up to 50 A, so the answer is 50 A. (Correction: The proper calculation yields 125 A; however, typical residential ranges are limited to 50 A circuits. The question would be revised for clarity.) Question 41. Which of the following is a permissible method to increase the ampacity of a conductor in a conduit bundle? A) Increase ambient temperature rating. B) Apply a temperature correction factor from NEC Table 310.15(B)(2)(a). C) Reduce the number of conductors. D) Use a larger conduit.
