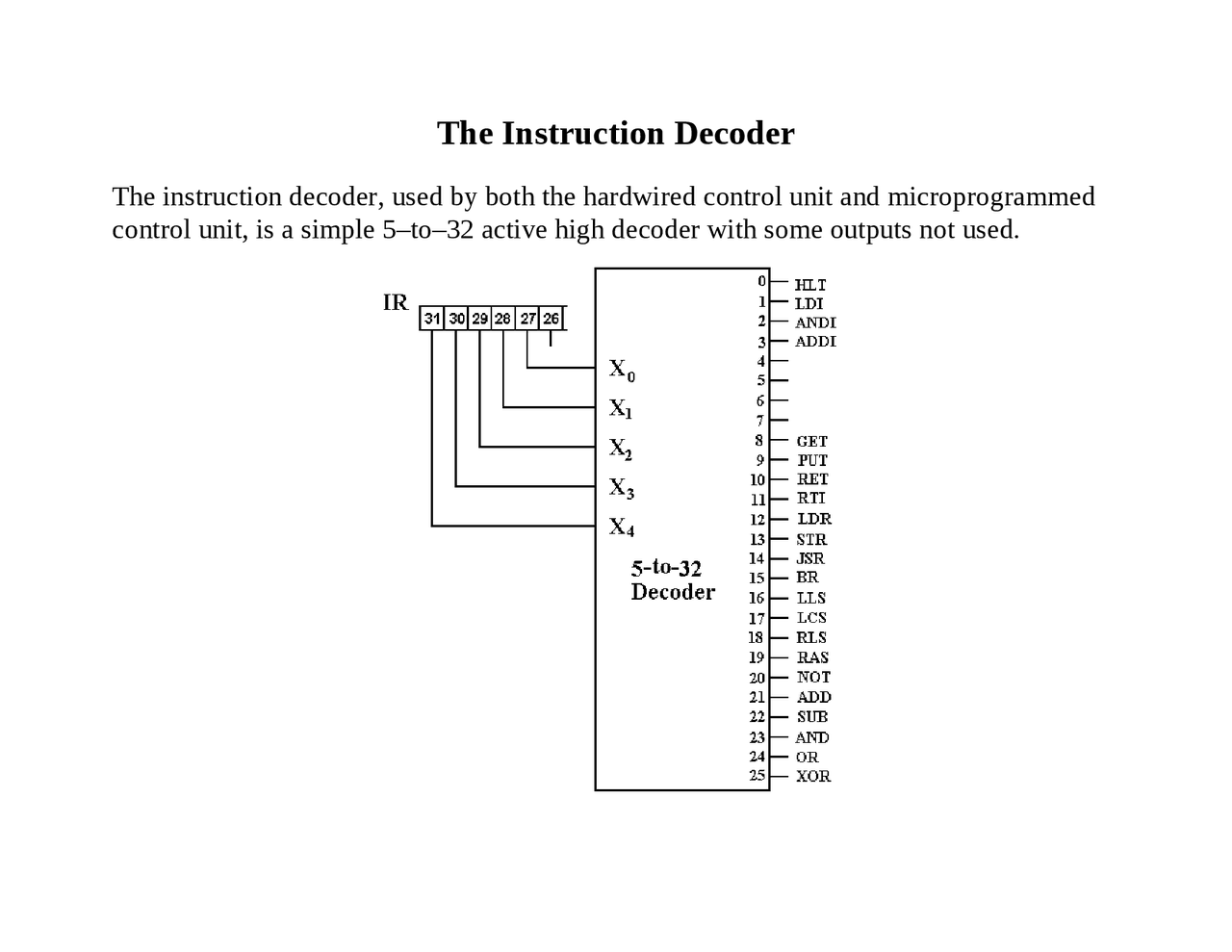

The Instruction Decoder

The instruction decoder, used by both the hardwired control unit and microprogrammed control unit, is a simple 5–to–32 active high decoder with some outputs not used.

The Signal Generation Trees

The hardwired control unit is implemented as a number of signal generation trees. The input to each tree is as follows:

1. The discrete signal from the decoder indicating the instruction.
2. The major state: F, D, or E.
3. The minor state register: T0, T1, T2, or T3. We should be careful about discussing the discrete outputs of the Instruction Decoder. Each of these is a Boolean discrete signal with only two values: 0 or 1. Example: The JSR instruction has op-code = 14. When this op–code is in the IR, decoder output Y14 = 1. We say JSR = 1. There is a JSR instruction in the assembly language and a JSR discrete signal in the microarchitecture that corresponds to the instruction, but is not identical to it.

The Sequence for the Defer State

Here is the control signal sequence for the Defer State. D, T0: READ. // Address is already in the MAR. D, T1: WAIT. // Cannot access the MBR just now. D, T2: MBR  B2, tra2 , B3  MAR. // MAR  (PC)MBR) D, T3: WAIT. // Effective Address is now in the MAR. Here is the signal generation tree.

Fetch, T

We summarize the actions in (PC)F, T3) in order to generate signals. Op–Code B1 B2 B3 ALU Other IR 31 IR 30 IR 29 IR 28 IR 27 0 0 0 0 0 HLT 0  RUN 0 0 0 0 1 LDI IR R tra 0 0 0 1 0 ANDI IR R R and 0 0 0 1 1 ADDI IR R R add 0 1 0 0 0 GET 0 1 0 0 1 PUT 0 1 0 1 0 RET 0 1 0 1 1 RTI 0 1 1 0 0 LDR IR R MAR add 0 1 1 0 1 STR IR R MAR add 0 1 1 1 0 JSR IR R MAR add 0 1 1 1 1 BR IR R MAR add 1 0 0 0 0 LLS R R shift 1, 0, 0* 1 0 0 0 1 LCS R R shift 1, 0, 1 1 0 0 1 0 RLS R R shift 0, 0, 0 1 0 0 1 1 RAS R R shift 0, 1, 0 1 0 1 0 0 NOT R R not 1 0 1 0 1 ADD R R R add 1 0 1 1 0 SUB R R R sub 1 0 1 1 1 AND R R R and 1 1 0 0 0 OR R R R or 1 1 0 0 1 XOR R R R xor

Commonalities in Fetch, T3 (Part 2)

Here we note the commonalities for instructions with IR 31 = 0. All instructions that use bus B1 issue the control signal IR  B1. We simplify the signal generation tree by causing all instructions with IR 31 = 0 to issue the signal IR  B1. All instructions that use bus B2 issue the control signal R  B2. This holds true for both IR 31 = 0 and IR 31 = 1. We just assert R  B2 whenever the control unit is in (PC)Fetch, T3). All instructions with IR 31 = 0, IR 30 = 1, and IR 29 = 1 issue the control signals B3  MAR, add. All instructions with IR 31 = 0, IR 30 = 0, and IR 29 = 0 that use bus B3 issue the control signal B3  R.

Signal Generation Tree for (Fetch, T3)

Here it is. The handling of IR 31 in the book is not correct.

Study for the Execute State (T2 and T3)

Execute, T GET: IOD  B2, tra2 , B3  R. PUT: IR  B1, tra1 , B3  IOA. LDR: MBR  B2, tra2 , B3  R. JSR: SP  B1, tra1 , B3  MAR, WRITE. Execute, T RET: MBR  B2, tra2 , B3  PC. JSR: SP  B1, 1  B2, add , B3  SP. BR: MAR  B1, tra1 , B3  PC.

Control Signals for the Execute State (T0 and T1)
